Camshaft Position Sensor: Installation

  1. INSTALL CAMSHAFT POSITION SENSOR

    Install the camshaft position sensor with the bolt and stud bolt

    1. Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

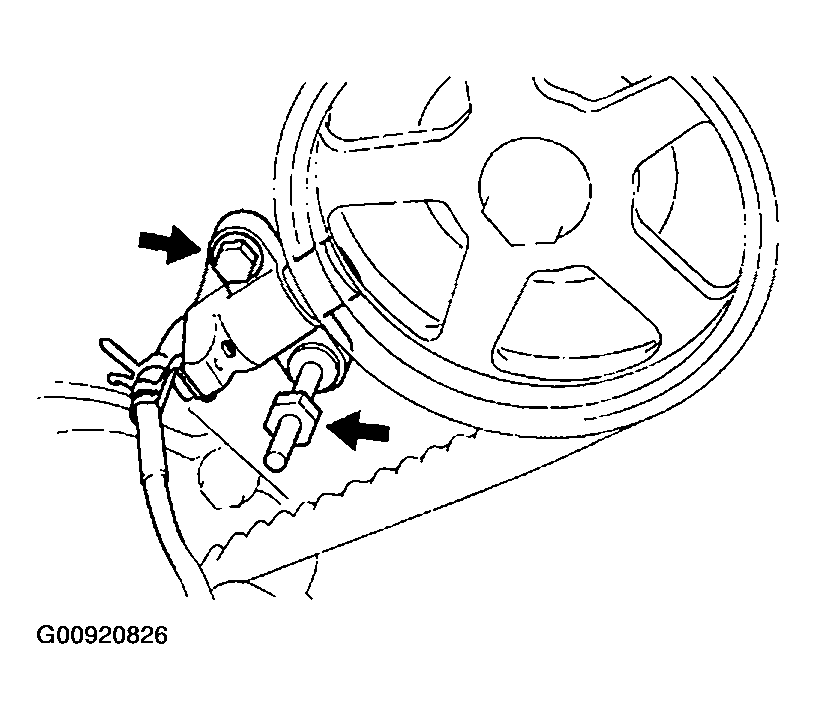

    Fig 1: Installing Camshaft Position Sensor
    G00920826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL LH NO. 3 TIMING BELT COVER (See  INSTALLATION  )
  3. CONNECT RADIATOR HOSE
  4. INSTALL V-BANK COVER
  5. FILL ENGINE COOLANT (See  REPLACEMENT  )
  6. CHECK ENGINE COOLANT FOR LEAKS
  7. CHECK IGNITION TIMING (See  INSPECTION  )
