Camshaft Position Sensor: Removal

  1. REMOVE V-BANK COVER
  2. DRAIN ENGINE COOLANT
  3. DISCONNECT UPPER RADIATOR HOSE
  4. REMOVE LH NO. 3 TIMING BELT COVER (See  REMOVAL  )
  5. REMOVE CAMSHAFT POSITION SENSOR

    Remove the bolt, stud bolt and camshaft position sensor.

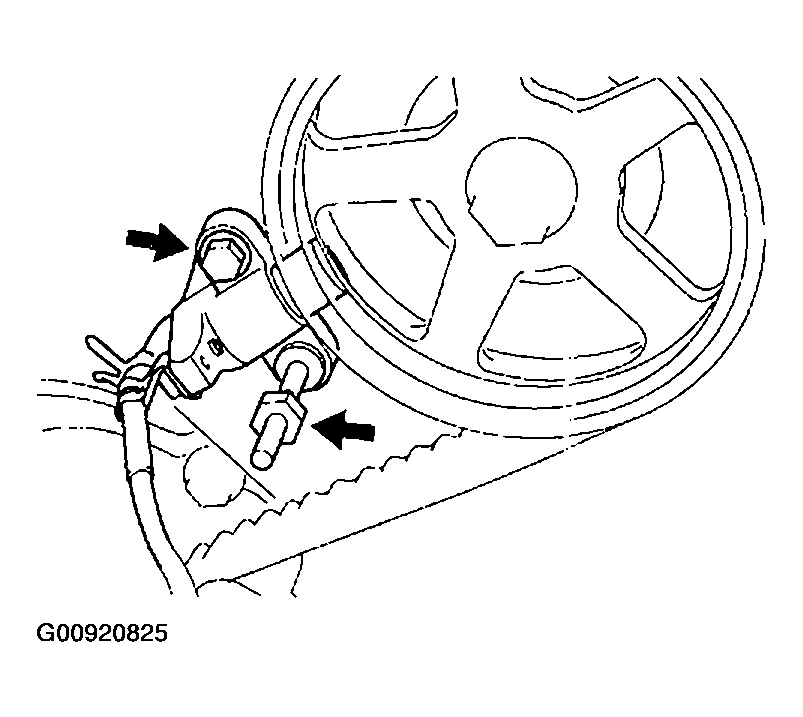

    Fig 1: Removing Camshaft Position Sensor
    G00920825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
