Ignition Coils: Components

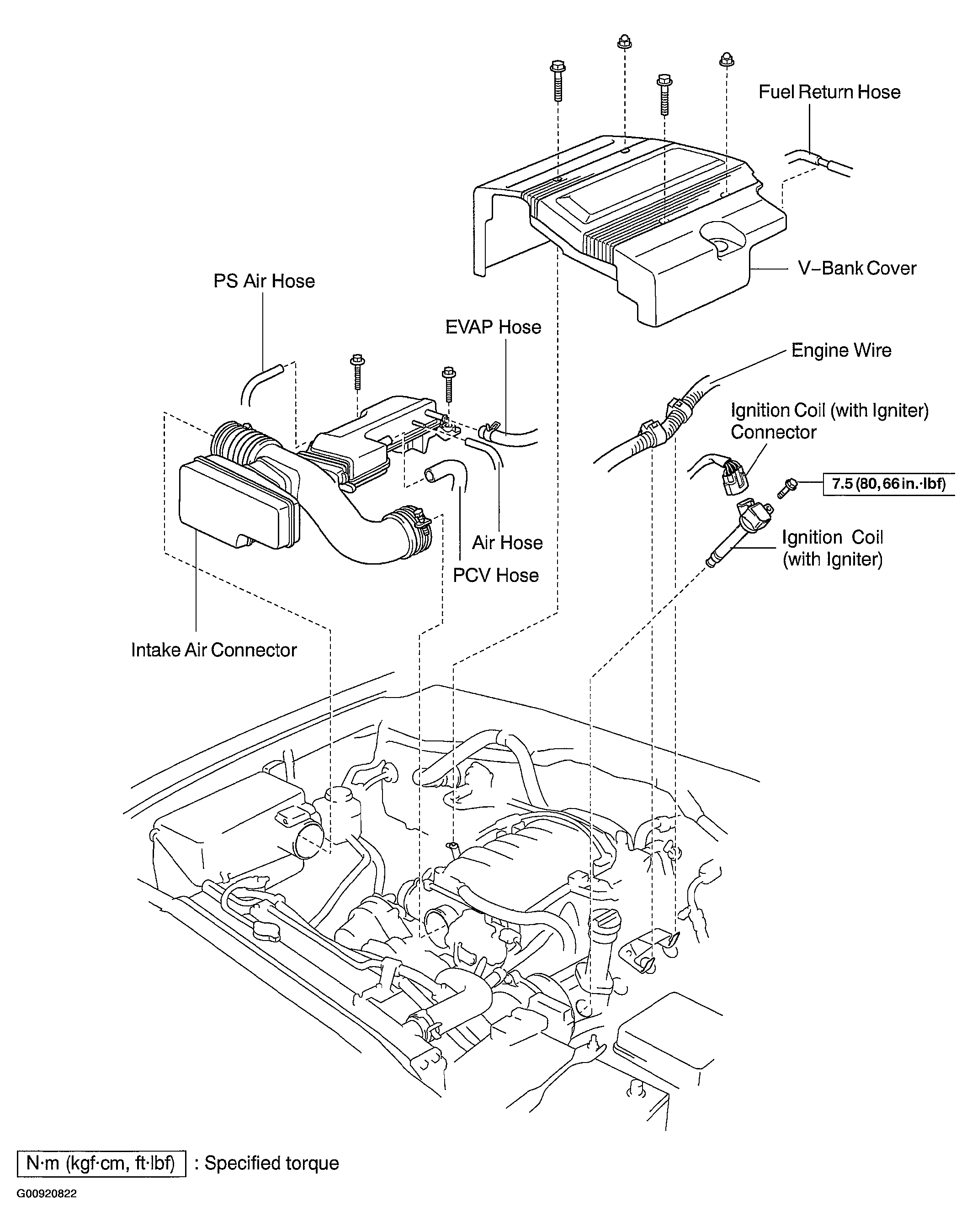

Fig 1: Ignition Coil Components
G00920822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
