Input Shaft: Reassembly

HINT:

Coat all of the sliding and rotating surfaces with gear oil before reassembly.

1. INSTALL FRONT BALL BEARING
   1. Using SST and a press, install a new front ball bearing.
      1. SST 09316-60011 (09316-00011)

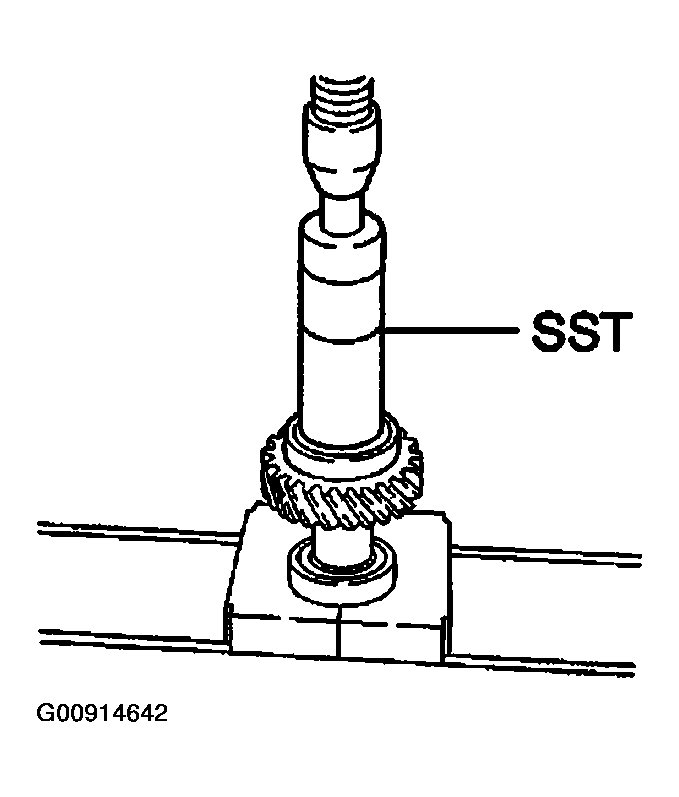

      Fig 1: Installing New Front Ball Bearing Using SST & Press

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.

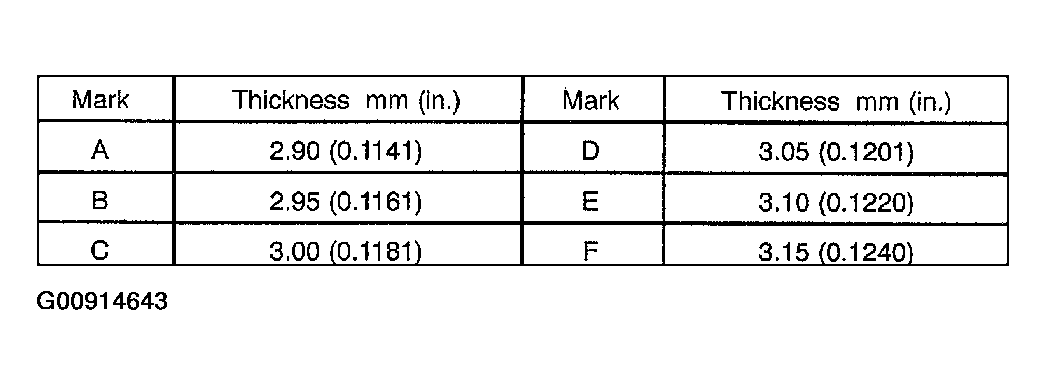

      Fig 2: Snap Ring Thickness Specification Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a snap ring expander, install a new snap ring.

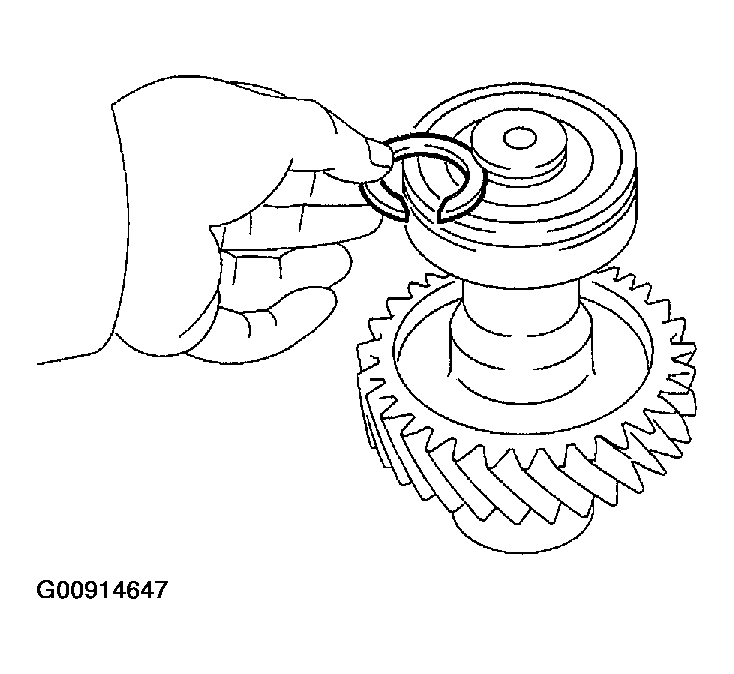

      Fig 3: Installing New Snap Ring Using Snap Ring Expander

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSTALL REAR BALL BEARING
   1. Using SST and a press, install the rear ball bearing.
      1. SST 09316-60011 (09316-00011, 09316-00031)

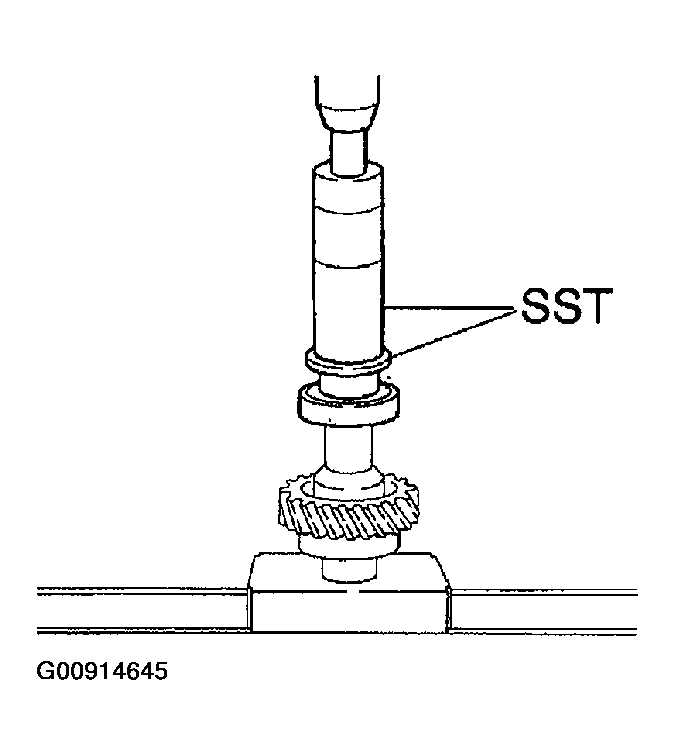

      Fig 4: Installing Rear Ball Bearing Using SST & Press

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a snap ring that will allow the minimum axial play.

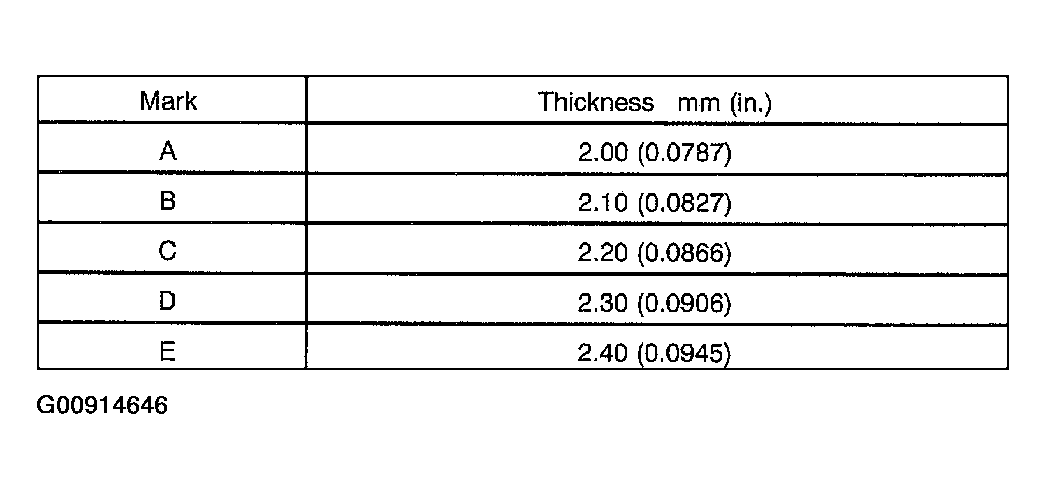

      Fig 5: Snap Ring Thickness Specification Table

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Using a snap ring expander, install a new snap ring.

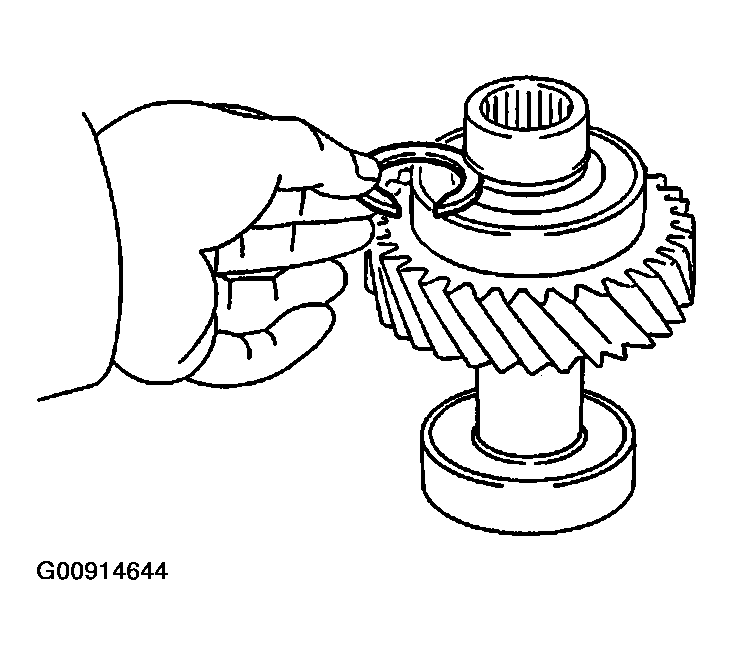

      Fig 6: Installing New Snap Ring Using Snap Ring Expander

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
