Motor Shift Control System: Location

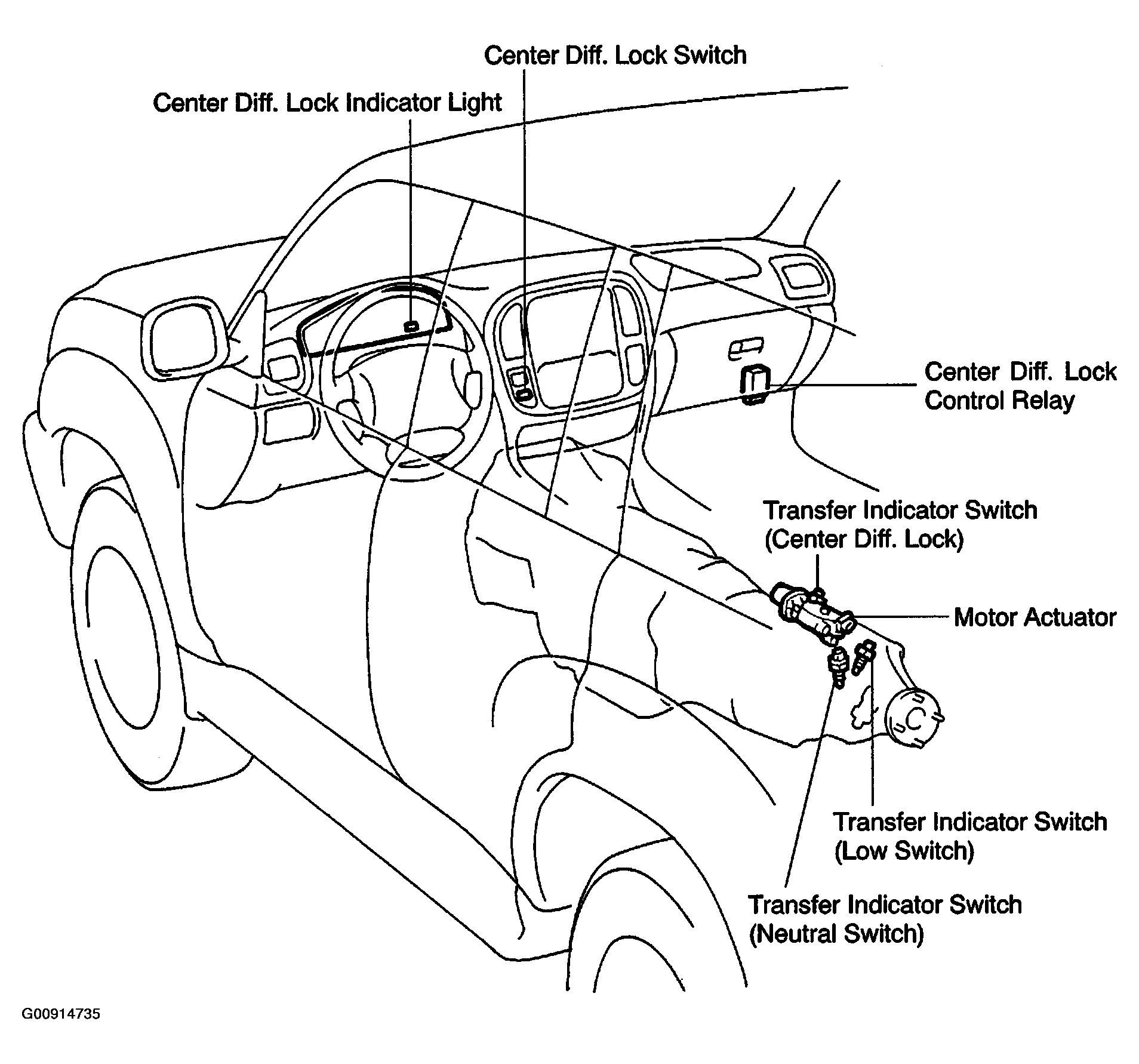

Fig 1: Identifying Components Of Motor Shift Control System
G00914735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
