Transfer Shift Lever Assembly: Components

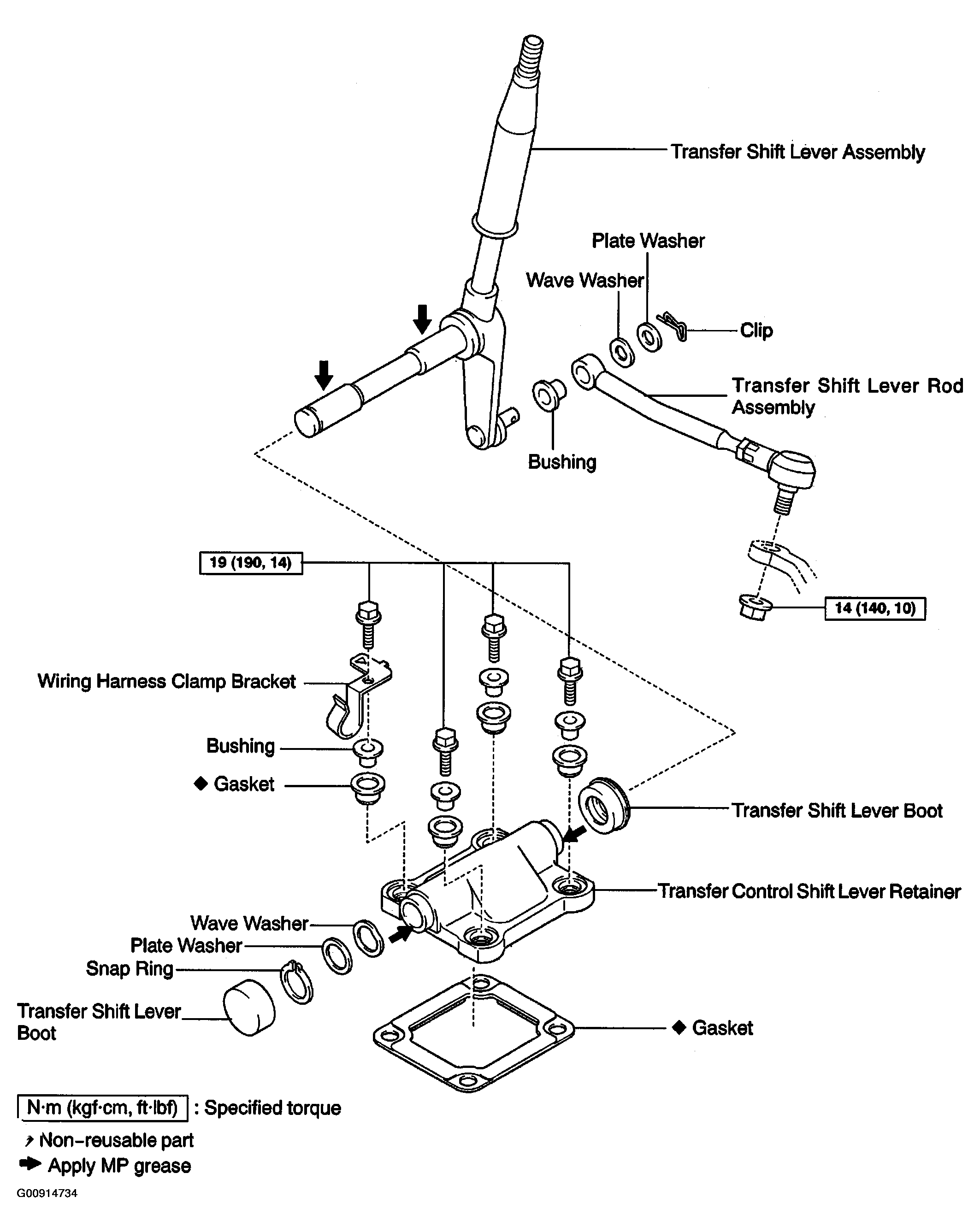

Fig 1: Identifying Components Of Transfer Shift Lever Assembly
G00914734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
