Speed Sensor Front LH: Replacement

HINT:

Replace the RH side by using the same procedures as those for the LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH
3. REMOVE SPEED SENSOR FRONT LH
   1. Disconnect the speed sensor connector.
      Fig 1: Disconnecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

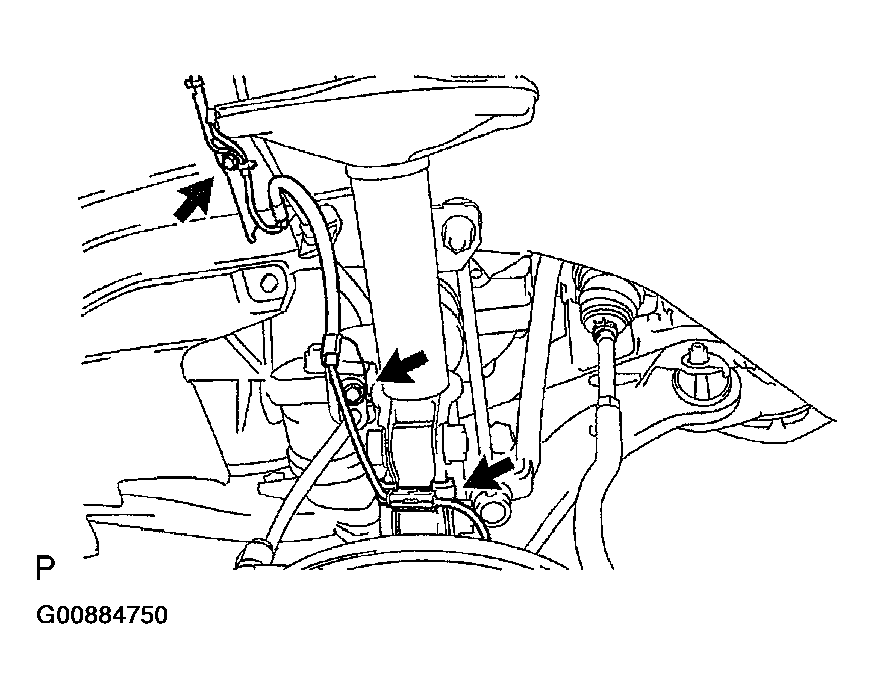

   2. Remove the 2 bolts and the clamp from the body and the shock absorber assy.
      Fig 2: Removing Bolt And Speed Sensor Front

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

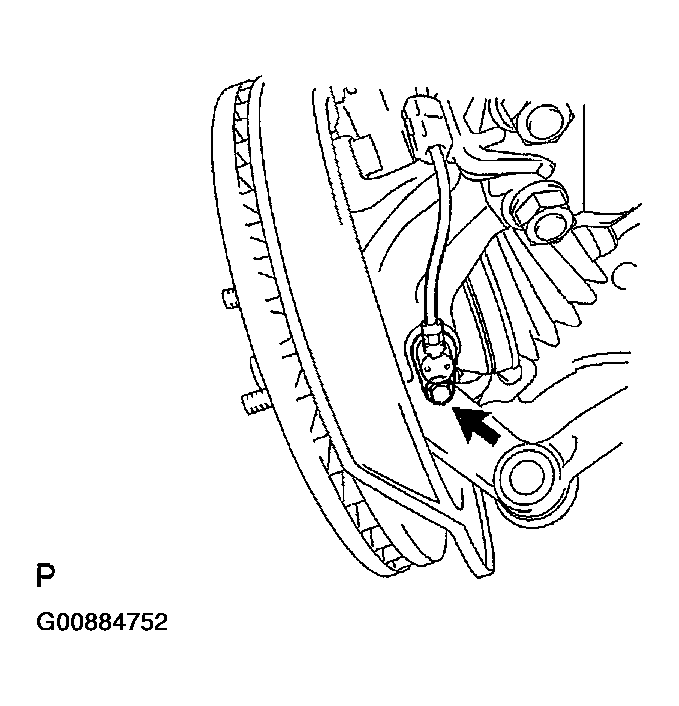

   3. Remove the bolt and the speed sensor front.
      NOTE: Prevent foreign matter from attaching to the sensor tip.
      Fig 3: Installing Speed Sensor Front With Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SPEED SENSOR FRONT LH

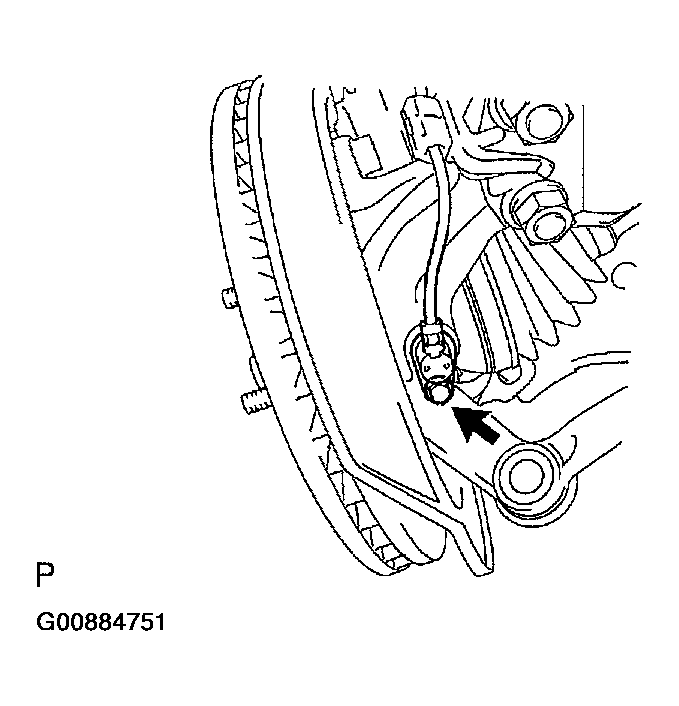

   1. Install the speed sensor front with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE: Prevent foreign matter from attaching to the sensor tip.
      Fig 4: Connecting Speed Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

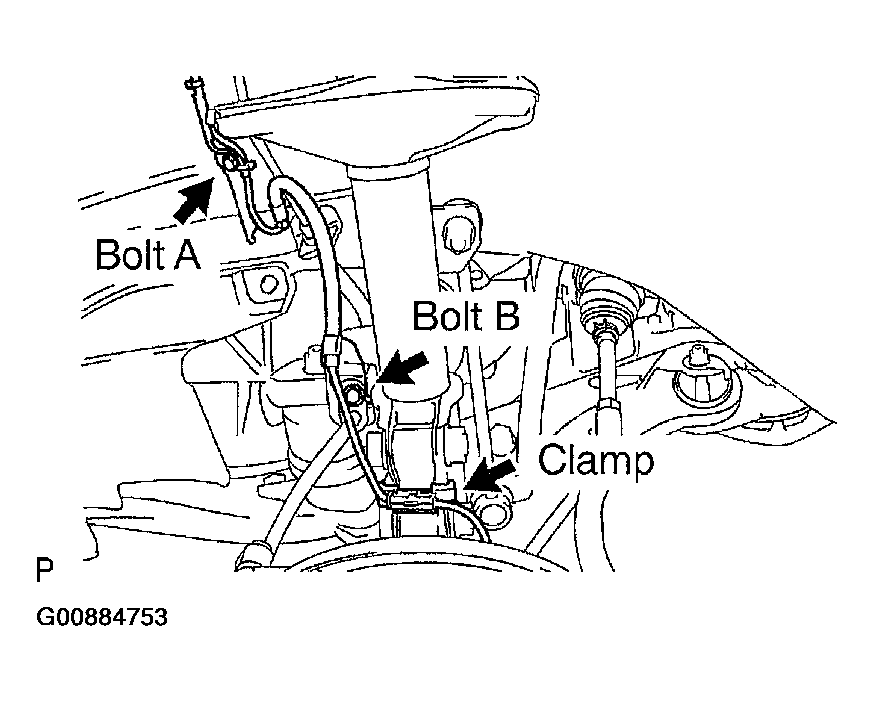

   2. Install the speed sensor front with the 2 bolts and the clamp.

      Torque:

      Bolt A: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Bolt B: 29 N.m (296 kgf.cm, 21 ft.lbf)

      NOTE: Do not twist the sensor wire when installing the sensor.
   3. Connect the speed sensor connector.
5. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSY LH
6. INSTALL FRONT WHEEL

   Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

7. CHECK ABS SPEED SENSOR SIGNAL (See  PRE-CHECK  )
