VVT Sensor (3MZ-FE): Replacement

REMOVE ENGINE UNDER COVER NO. 2 (W/ENGINE UNDER COVER NO. 2)
1. Remove the clip, 2 screws and 2 bolts
2. Slide the engine under cover No. 2 toward the rear to detach it from the retainers, and then remove the engine under cover No. 2.
REMOVE AIR CLEANER INLET NO. 2 (See REPLACEMENT )
REMOVE AIR CLEANER ASSY (See REPLACEMENT )

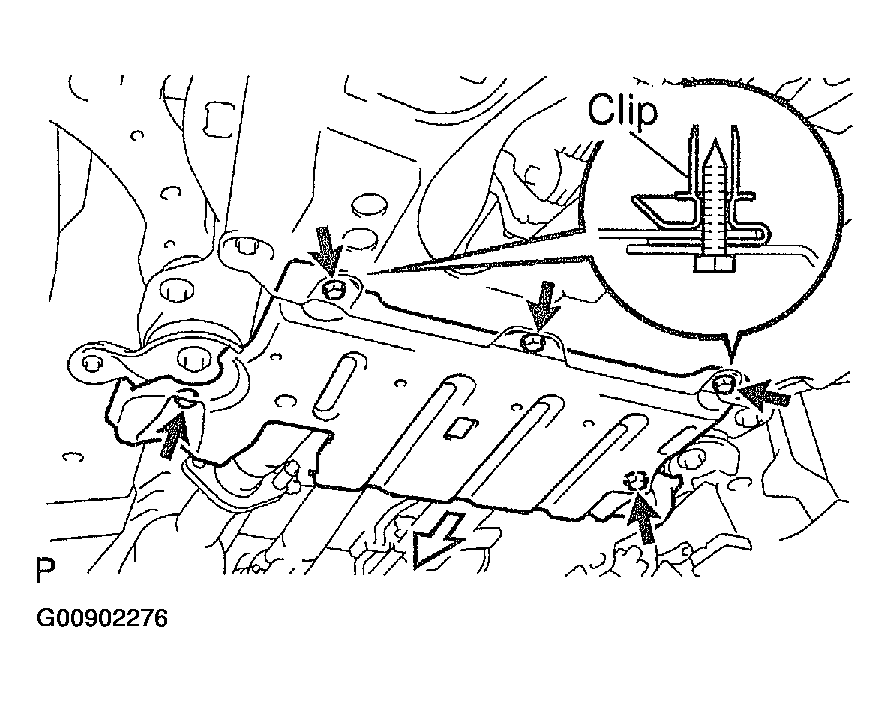

Fig 1: Removing Clip, Screws & Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VVT SENSOR
1. Disconnect the 2 VVT sensor connectors.
2. Remove the 2 bolts, and then remove the 2 VVT sensors.

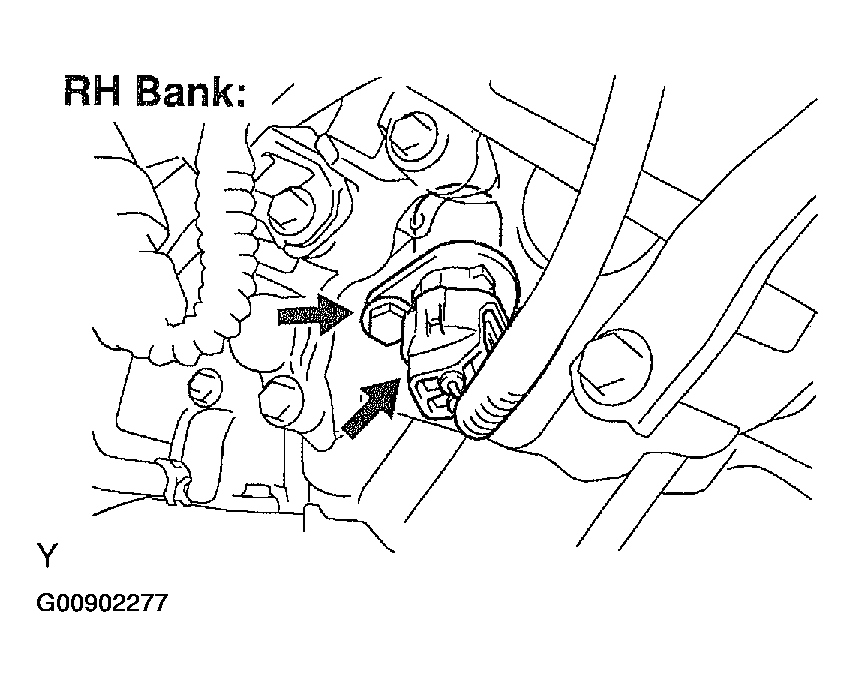

  Fig 2: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

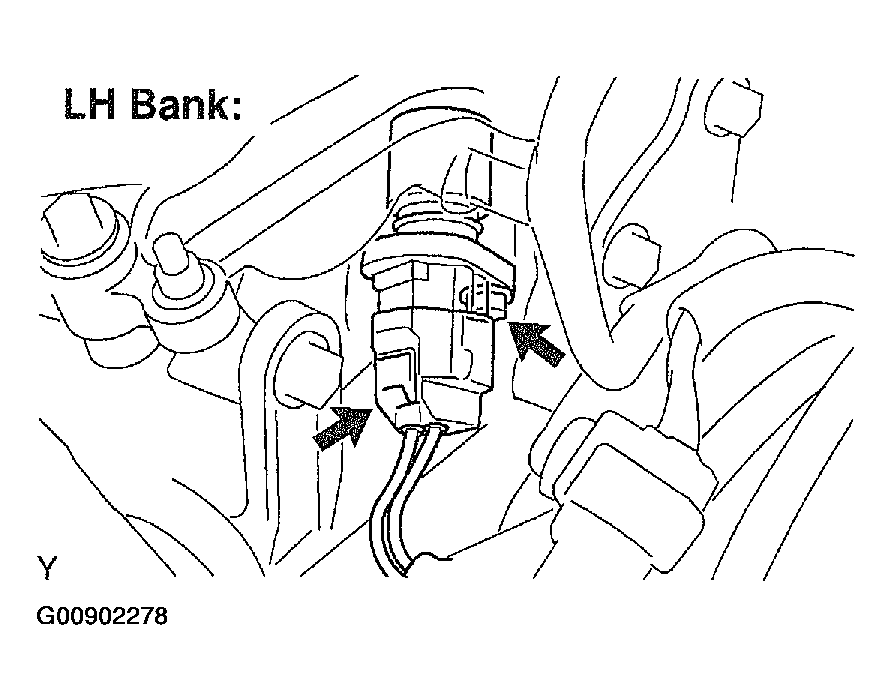

  Fig 3: Installing VVT Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR
1. Apply a light coat of engine oil to the O-ring on the VVT sensor.
2. Install the 2 VVT sensors with the 2 bolts.
  Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)
3. Connect the 2 VVT sensor connectors.
INSTALL AIR CLEANER ASSY (See REPLACEMENT )
INSTALL AIR CLEANER INLET NO. 2 (See REPLACEMENT )
CHECK CONNECTION OF VACUUM HOSE (See REPLACEMENT )
INSTALL ENGINE UNDER COVER NO.2 (W/ENGINE UNDER COVER NO.2)
