Automatic Transaxle ASSY (U151E/U151F): Components

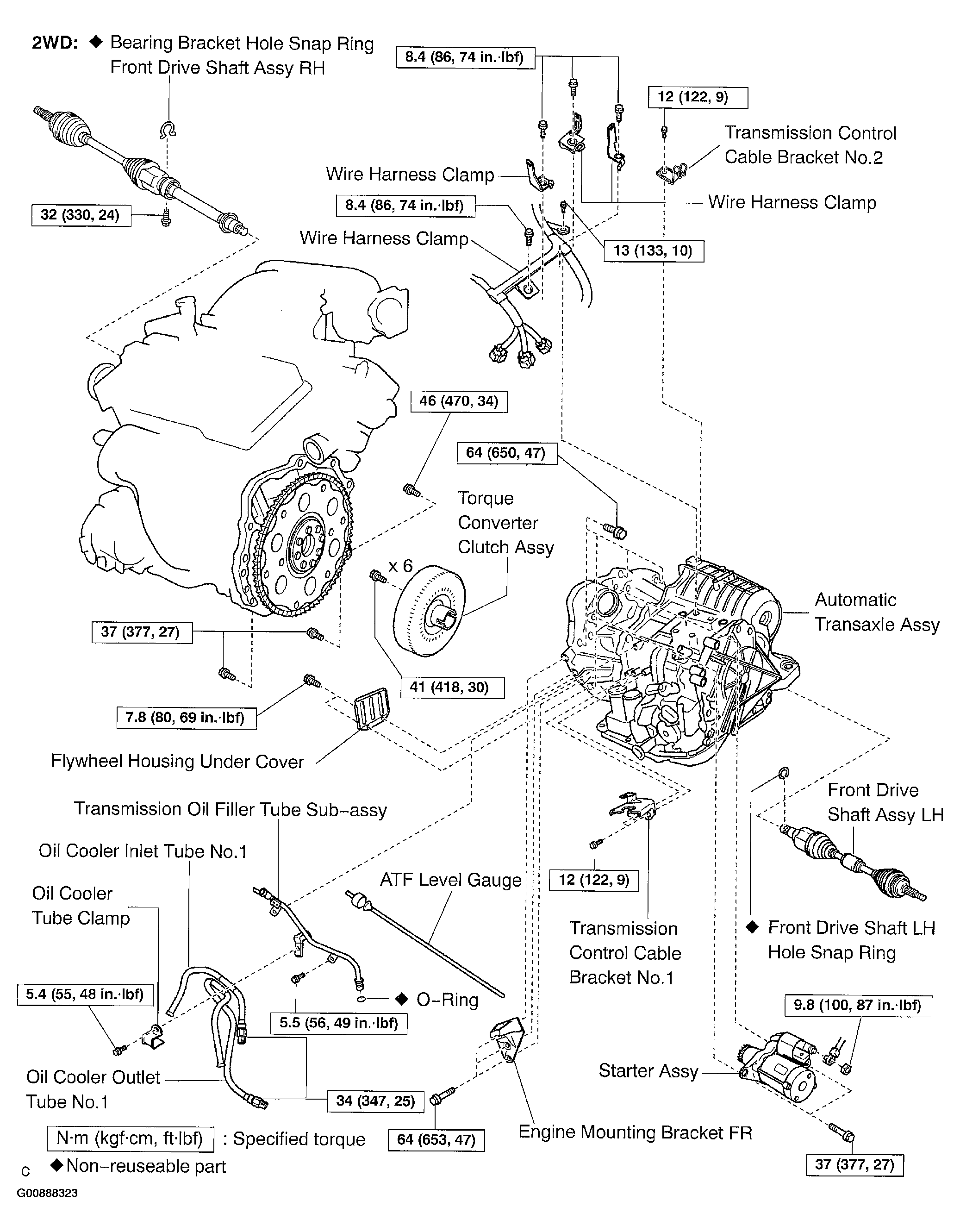

Fig 1: Exploded View Of Automatic Transaxle Assy Components (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

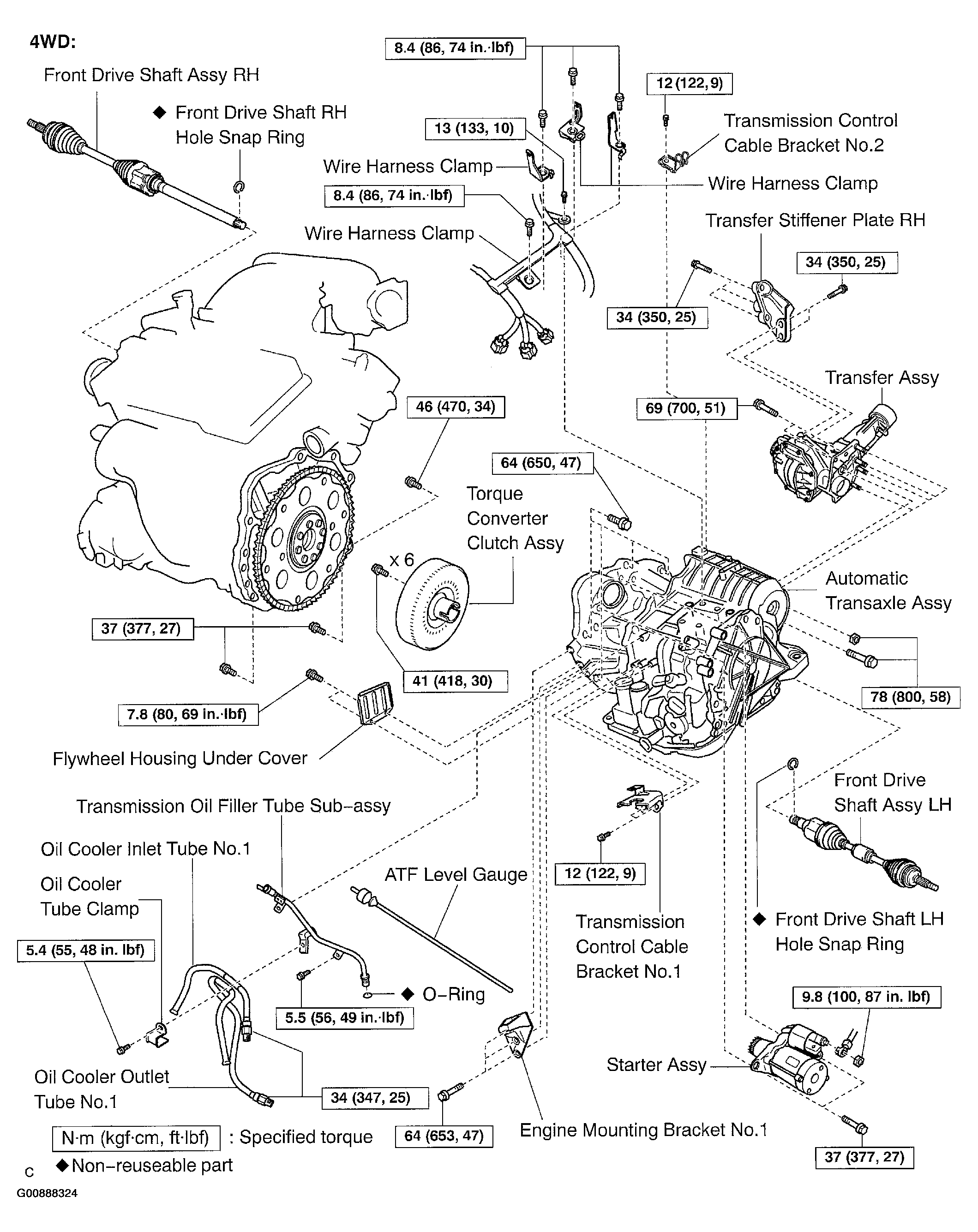

Fig 2: Exploded View Of Automatic Transaxle Assy Components (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
