Transmission Control Cable ASSY (ATM): Replacement

HINT:

COMPONENTS:

INSTRUMENT PANEL/METER (See COMPONENTS )
HEATER & AIR-CONDITIONER (See AIR CONDITIONING RADIATOR ASSY )
SUPPLEMENTAL RESTRAINT SYSTEM (See AIR BAG CENTER SENSOR )

REMOVE ENGINE UNDER COVER ASSY
REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY (See REPLACEMENT )
REMOVE AIR CONDITIONER UNIT ASSY (See step 30 under OVERHAUL ).
REMOVE AIR BAG SENSOR ASSY CENTER (See AIR BAG CENTER SENSOR )
REMOVE TRANSMISSION CONTROL CABLE ASSY
1. Remove the nut from the control shaft lever.
2. Disconnect the transmission control cable assy from the control shaft lever.

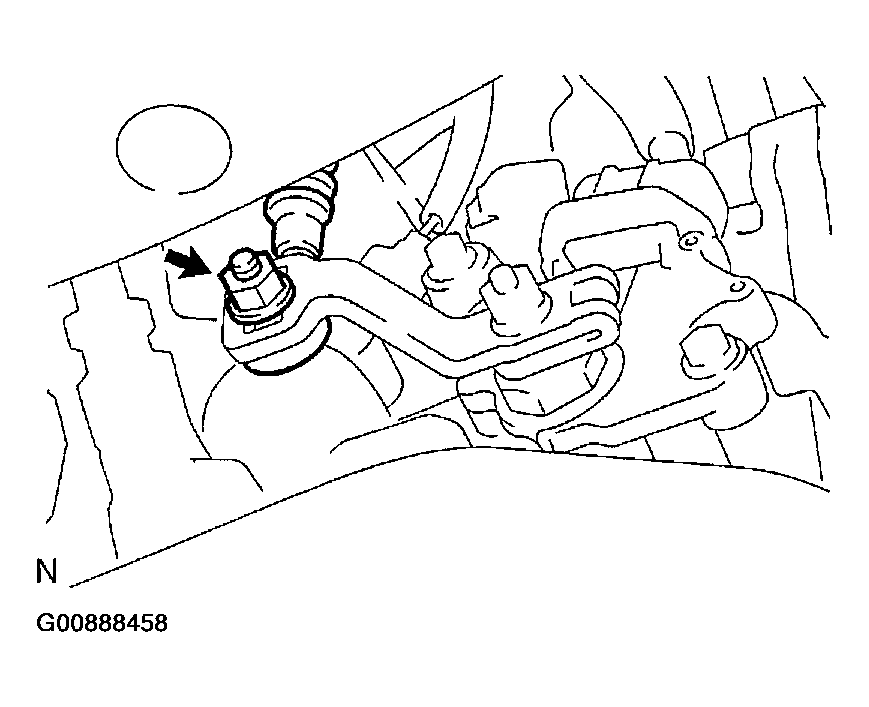

  Fig 1: Identifying Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the clip and disconnect the transmission control cable assy from the control cable bracket.

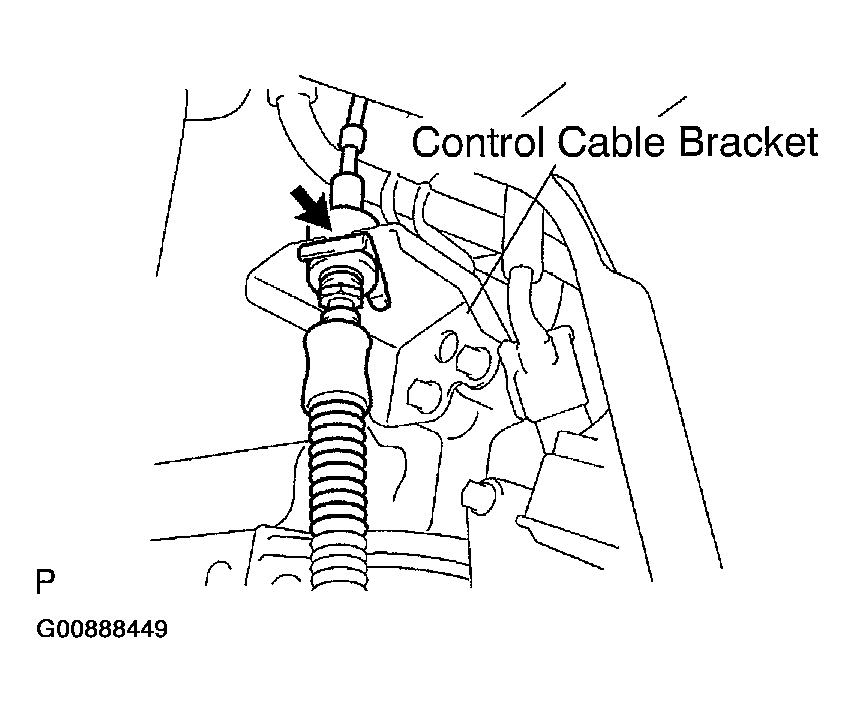

  Fig 2: Identifying Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and transmission control cable bracket No. 2.

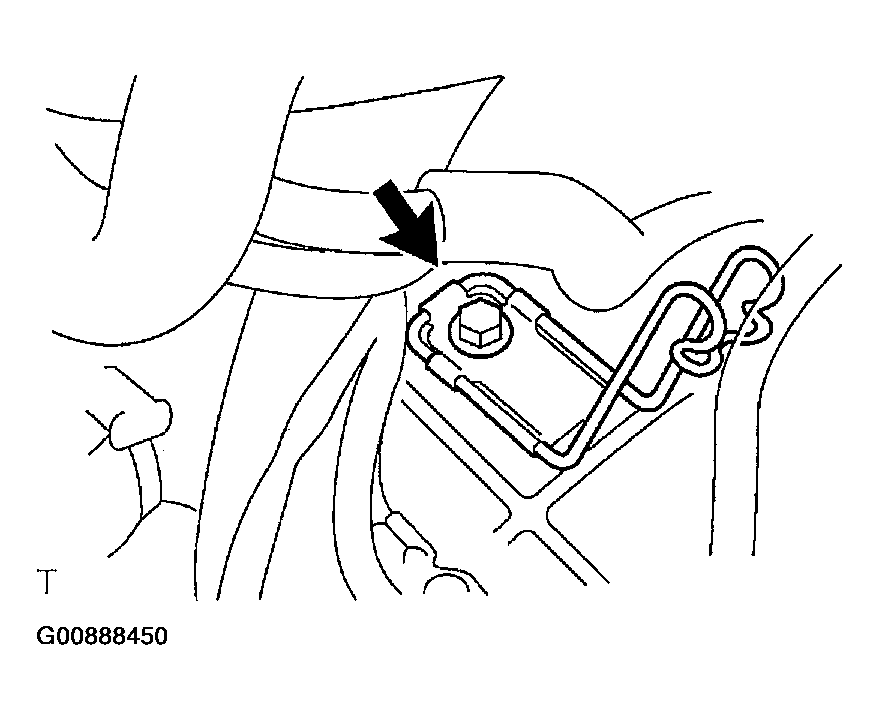

  Fig 3: Locating Bolt Of Transmission Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 3 bolts and disconnect the transmission control cable assy from the vehicle.

  Fig 4: Disconnecting Transmission Control Cable Assy From Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a screwdriver, disconnect the cable end from the shift lever assy.
7. Turn the socket of the transmission control cable assembly counterclockwise and remove the stopper cap.
8. Disconnect the transmission control cable assembly from the shift lever assy.

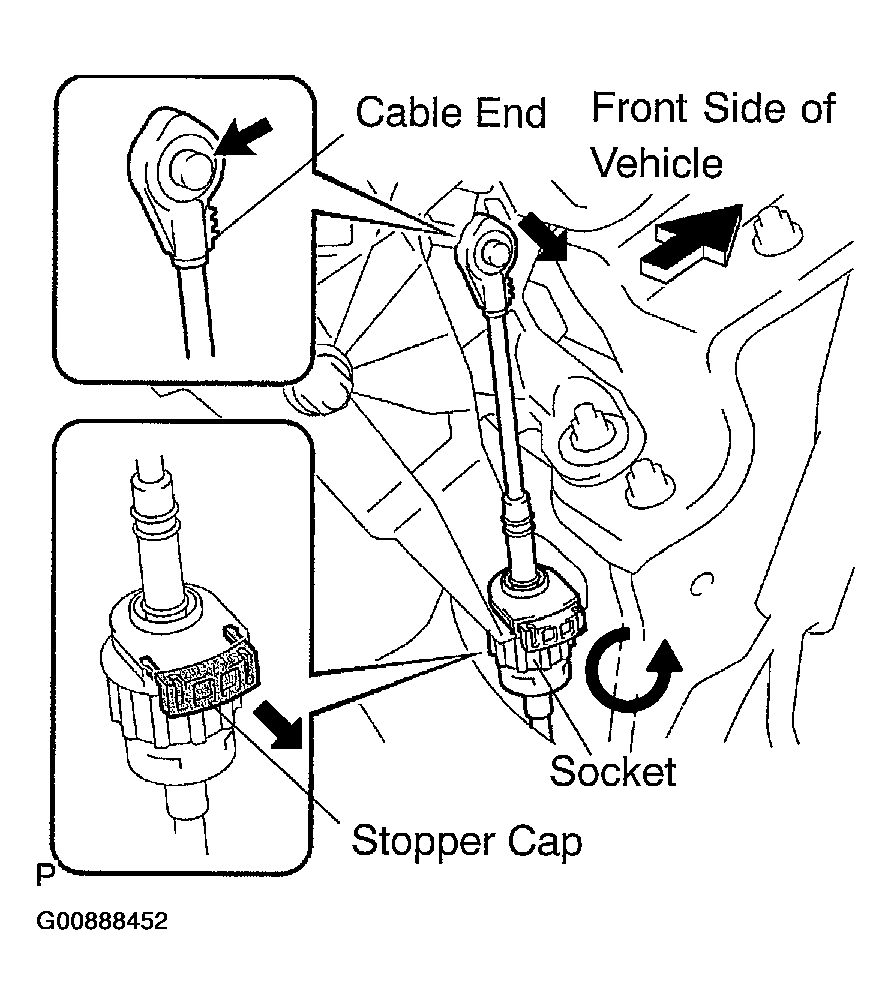

  Fig 5: Disconnecting Transmission Control Cable Assembly From Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Connect the socket of the transmission control cable assembly to the shift lever assy.
2. Connect the control cable end to the shift lever assy.
3. Push the stopper cap to the socket as shown in the illustration.
4. Turn the socket of the transmission control cable assy clockwise and install the stopper cap.
  NOTE:
  - To prevent torsion of the inner cable, the end with the eye should face up.
  - Push the cable end to the bottom of the pin.
  - Confirm that the connection between the socket and the shift lock control unit is fixed.

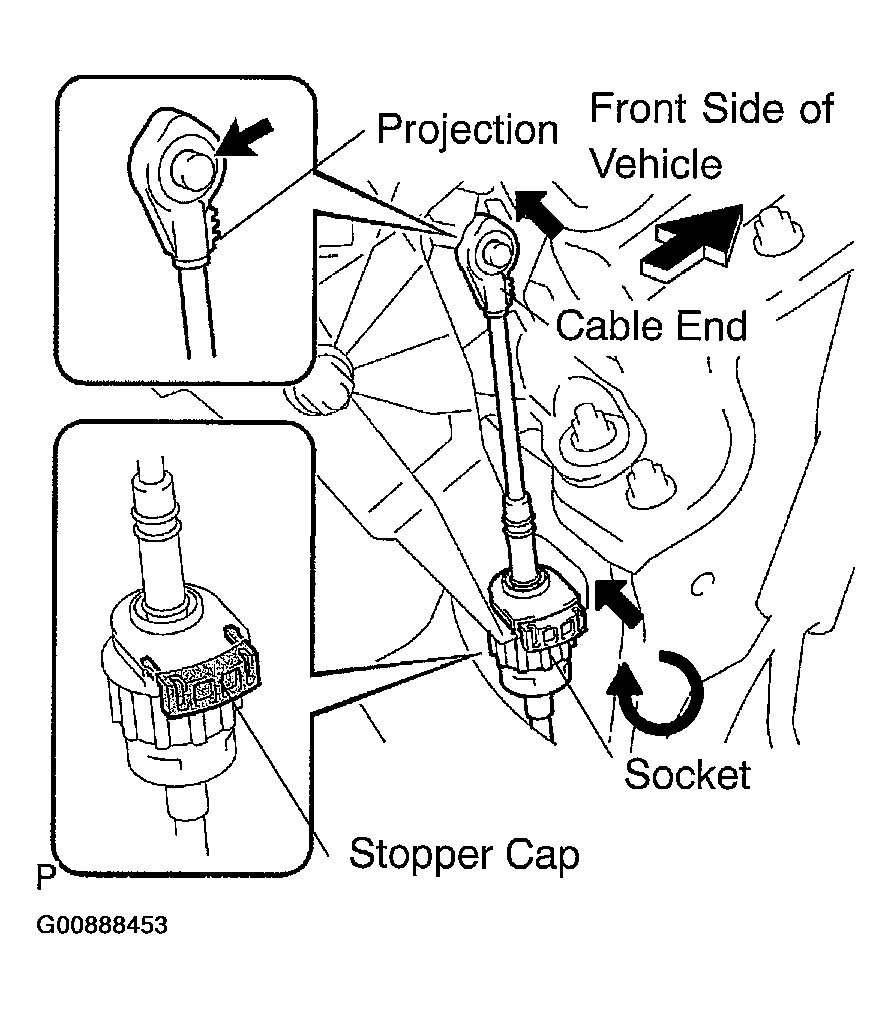

    Fig 6: Installing Transmission Control Cable Assy Components
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the transmission control cable assy with the 3 bolts.
  Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

  Fig 7: Locating Bolts For Transmission Control Cable Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the transmission control cable bracket No. 2 with the bolt.
  Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

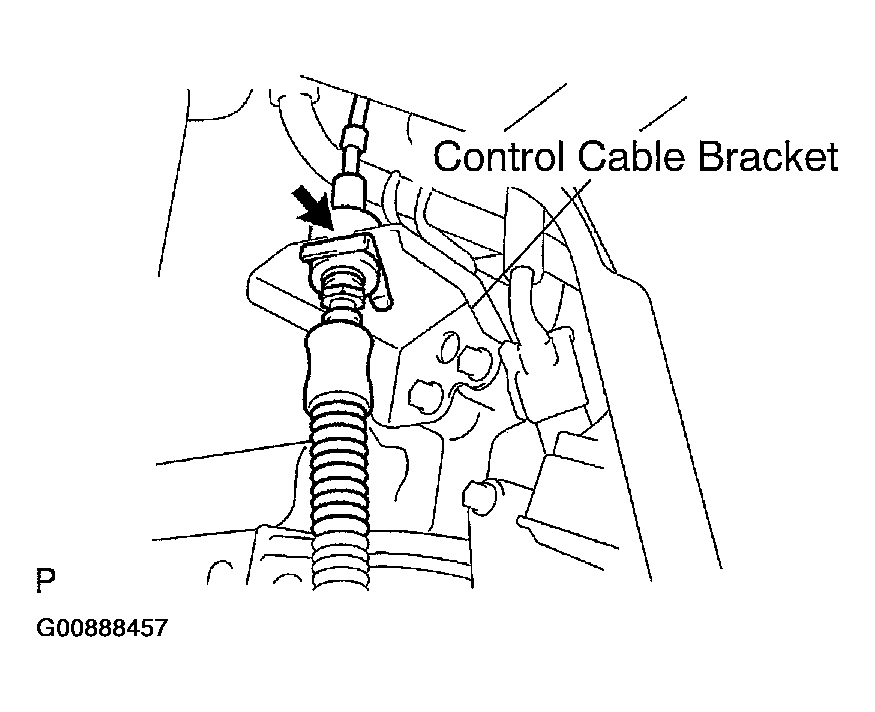

  Fig 8: Locating Bolt Of Transmission Control Cable Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Temporarily install the transmission control cable assy to the control shaft lever with the nut.

  Fig 9: Identifying Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Install the transmission control cable assy and clip to the bracket.

  Fig 10: Installing Transmission Control Cable Assy And Clip To Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR BAG SENSOR ASSY CENTER (See AIR BAG CENTER SENSOR )
INSTALL AIR CONDITIONER UNIT ASSY (See step 30 under OVERHAUL ).
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY (See REPLACEMENT )
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION
1. Loosen the nut on the control shaft lever.

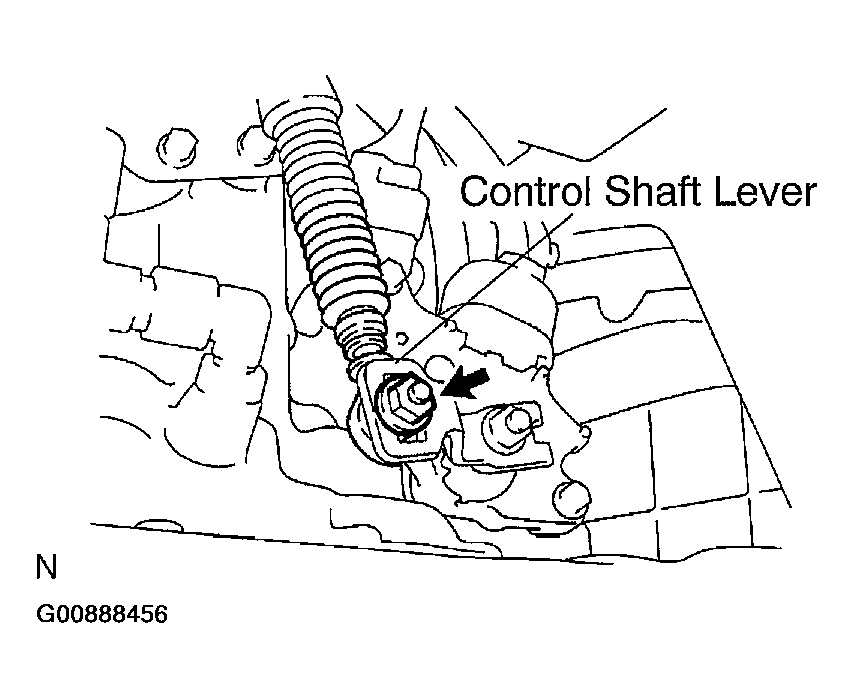

  Fig 11: Locating Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Push the control shaft fully downward.
3. Return the control shaft lever 2 notches to the N position.

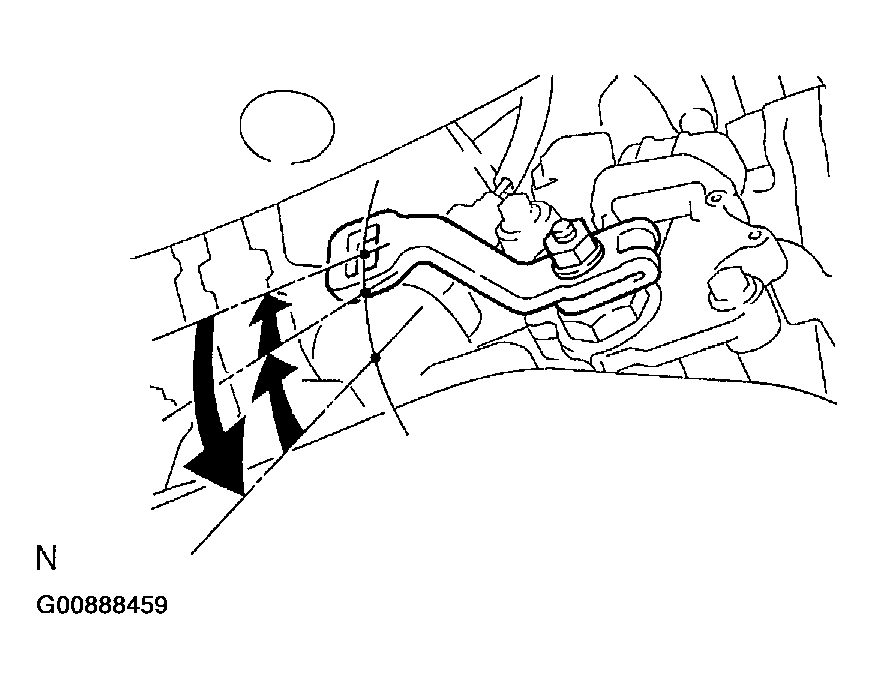

  Fig 12: Push Control Shaft Fully Downward/ Then Up 2 Notches
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. While pushing the control cable end up with the shift lever in the N position, install it to the control shaft lever with the nut.
  Torque: 15 N.m (150 kgf.cm, 10 ft.lbf)
  NOTE:
  - If the control cable end is excessively pushed up, the shift lever can not be adjusted.
  - When tightening the nut, confirm that the control cable is properly stretched.
5. Start the engine and make sure that the vehicle moves forward when shifting the lever from the N to D position and moves rearward when shifting it to the R position.

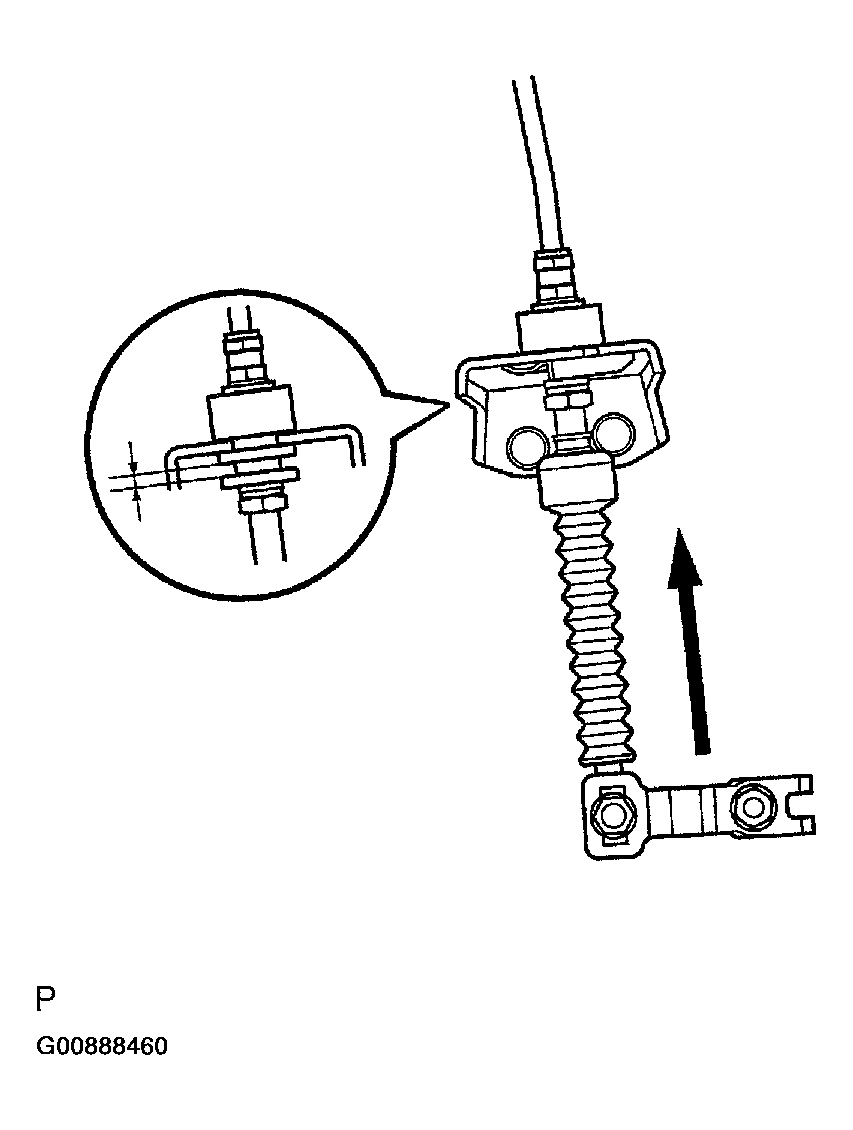

  Fig 13: Identifying Control Cable Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE UNDER COVER ASSY
OCCUPANT CLASSIFICATION ECU INITIALIZATION (See OCCUPANT CLASSIFICATION ELECTRONIC CONTROL UNIT (ECU) INITIALIZATION PROCEDURE )
INSPECT SRS WARNING LIGHT (See AIR BAG RESTRAINT SYSTEMS )
