Front Door: Components

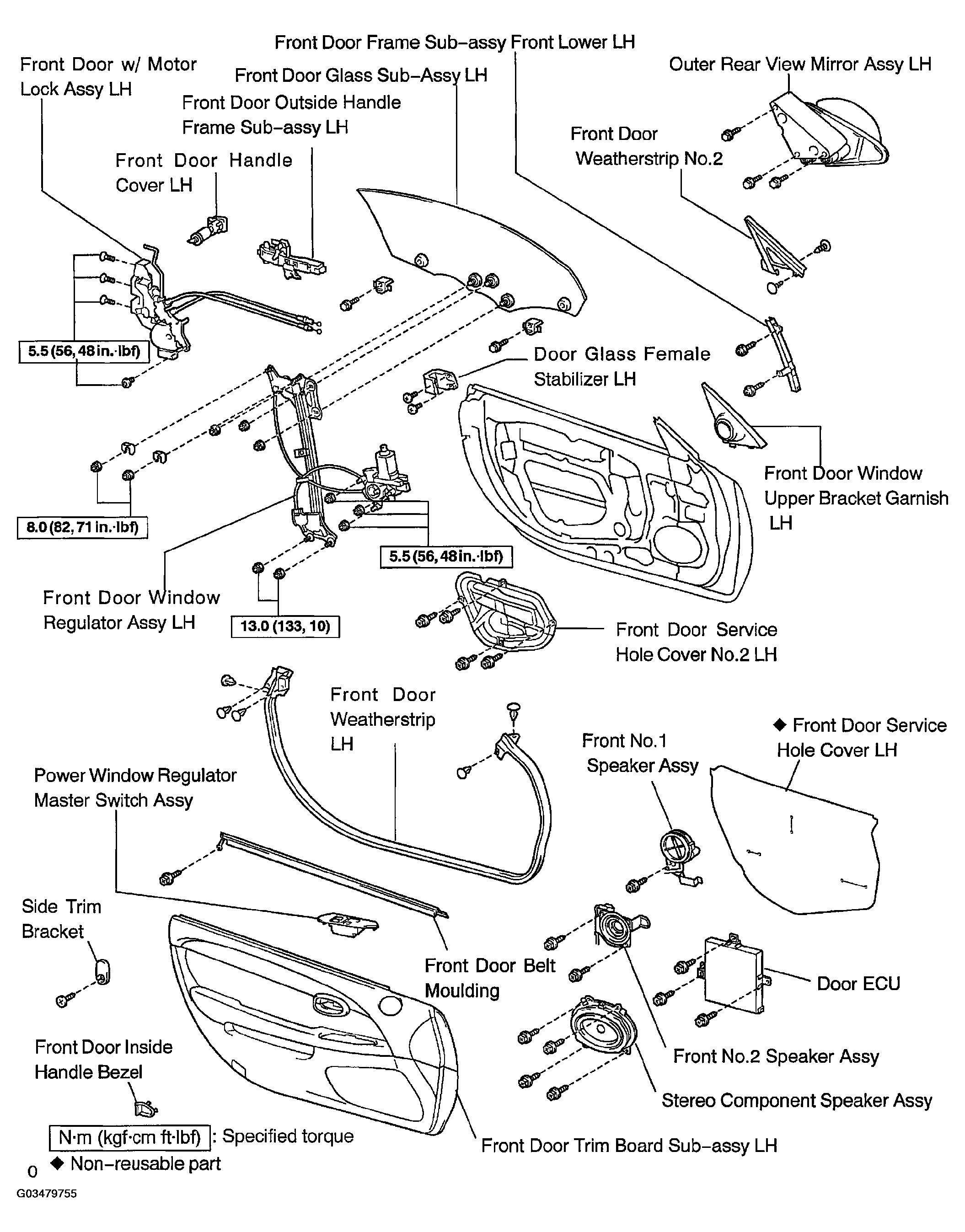

Fig 1: Exploded View Of Front Door Components
G03479755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
