Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| A/C Dual Pressure Switch | At upper left radiator support, integral to A/C triple pressure switch. See Figure. |
| A/C Single Pressure Switch | At upper left radiator support, integral to A/C triple pressure switch. See Figure. |
| A/C Triple Pressure Switch | At upper left radiator support. See Figure. |
| A/T Indicator Light SW | On transmission. See Figure. |
| Back-Up Light SW | On transmission. See Figure. |
| Brake Fluid Level Warning Switch | In brake fluid reservoir. See Figure. |
| Buckle Switch (Left) | In left front seat belt buckle. See Figure. |
| Buckle Switch (Right) | In right front seat belt buckle. See Figure. |

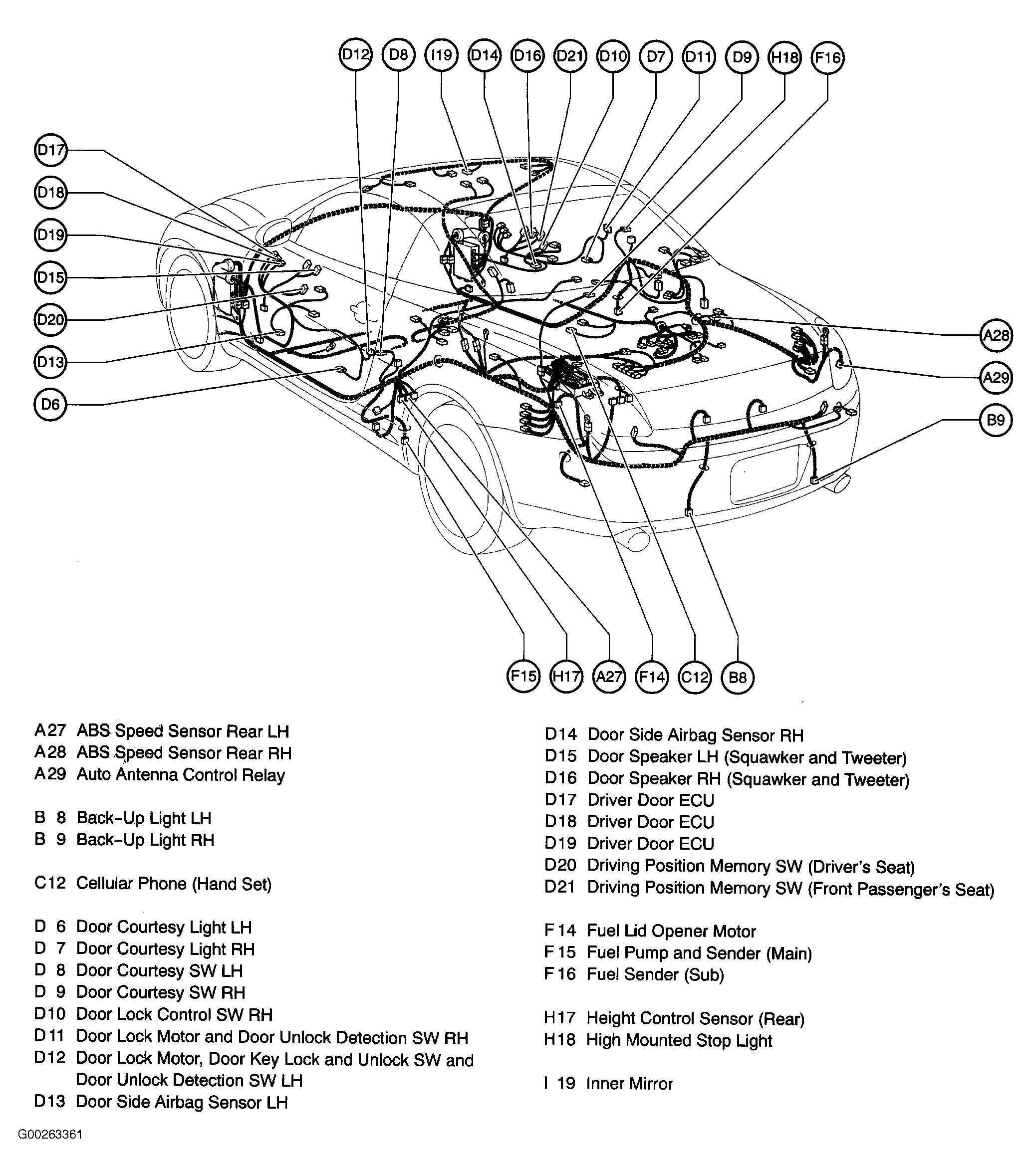

| Door Lock Motor And Door Lock Detection SW (Right) | In right front door. See Figure. |
| Door Lock Motor, Door Key Lock And Unlock SW And Door Lock Detection SW (Left) | In left front door. See Figure. |
| Engine Hood Courtesy Switch | At front center of engine compartment. See Figure. |
| Limit Switch (Left/Right Luggage Front Lock) | At respective rear side of luggage compartment. See Figure. |
| Limit Switch (Package Tray No. 1) | Near Left side of package tray. See Figure. |
| Limit Switch (Package Tray No. 2) | Above right rear wheel. See Figure. |
| Limit Switch (Roof Close) (Left/Right) | At respective side of roof. See Figure. |
| Limit Switch (Roof Lock) | At left side of roof. See Figure. |
| Limit Switch (Roof Open) | Rear center of vehicle. See Figure. |
| Limit Switch (Roof Position No. 1 And No. 2) | In front of left rear wheel. See Figure. |
| Limit Switch (Roof Position No. 3) | Above right rear wheel. See Figure. |
| Limit Switch (Tonneau Cover) | Front of luggage compartment. See Figure. |
| Mayday SW | Center rear of vehicle. See Figure. |
| Oil Pressure SW | On left front side of engine. See Figure. |
| Parking Brake Switch | Behind left side of dash. See Figure. |
| Park/Neutral Position Switch | On transmission. See Figure. |

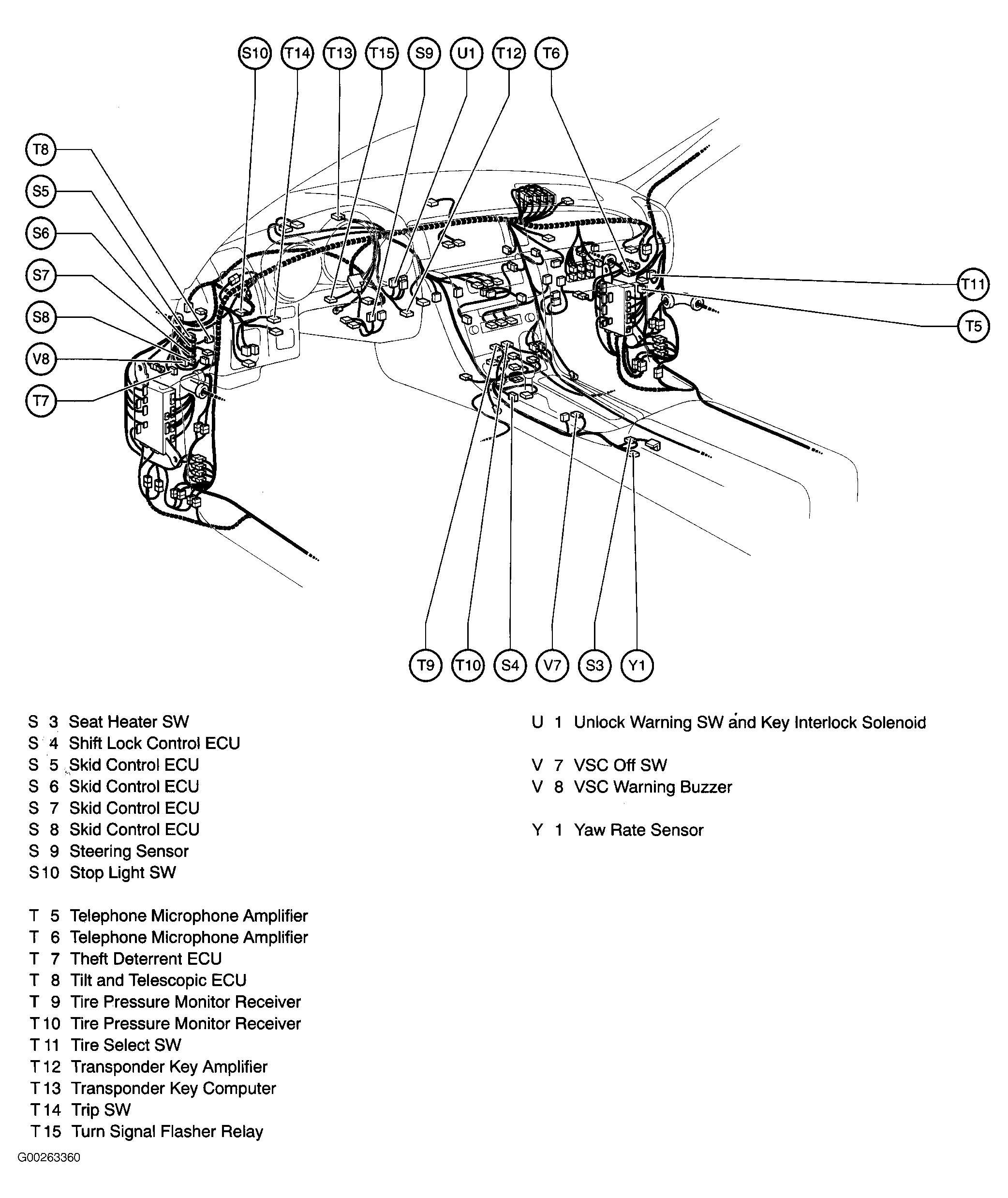

| Stop Light Switch | On top of brake pedal bracket. See Figure. |
| Unlock Warning Switch & Key Interlock Solenoid | Behind left side of dash. See Figure. |
