Mayday Switch ASSY: Replacement

REMOVE BOX PANEL NO. 3
1. Using a screwdriver, remove the box panel No.3.
HINT:

Tape the screwdriver tip before use.

Fig 1: Removing Box Panel No. 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MOBILEPHONE BRACKET
1. Disconnect the connector.

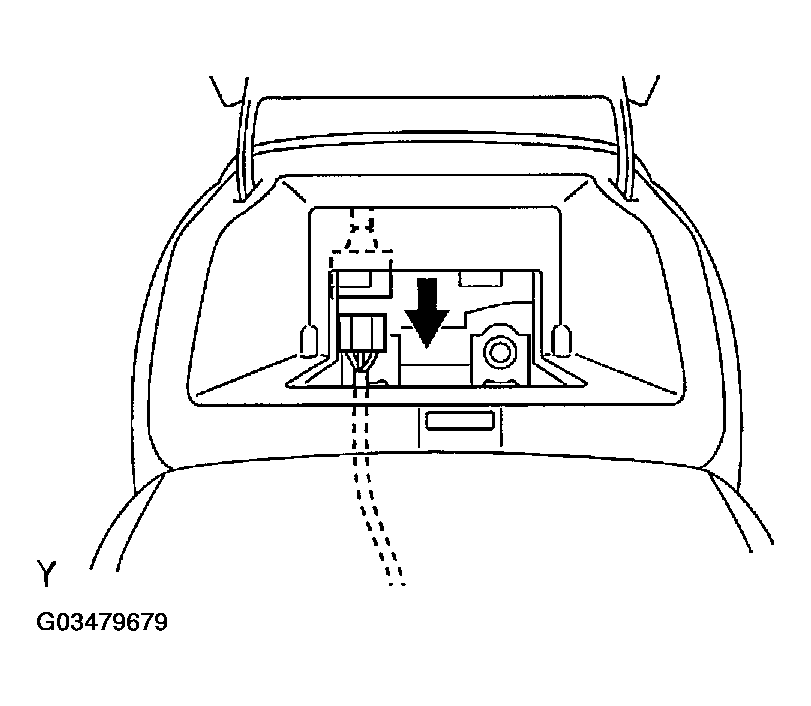

  Fig 2: Disconnecting Mobilephone Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the console box carpet.
3. Remove the lower console box cover.
4. Pull the mobilephone bracket in the arrow mark directions shown in Fig 3 and remove it.

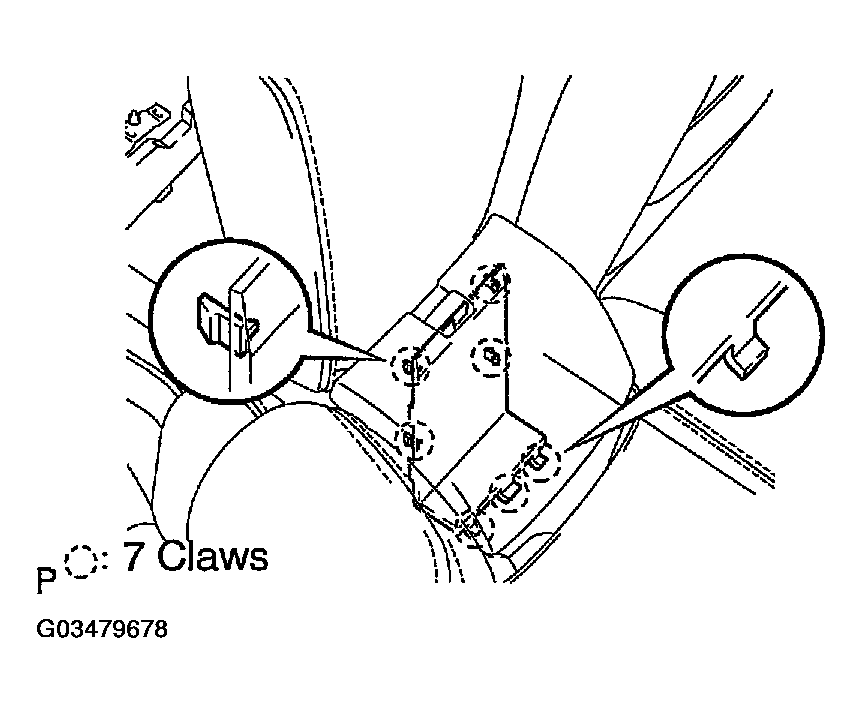

  Fig 3: Pulling Mobilephone Bracket In Direction Of Arrows
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the tape that is attached to the wire harness of the mayday switch assembly.
NOTE: Carefully remove the tape.

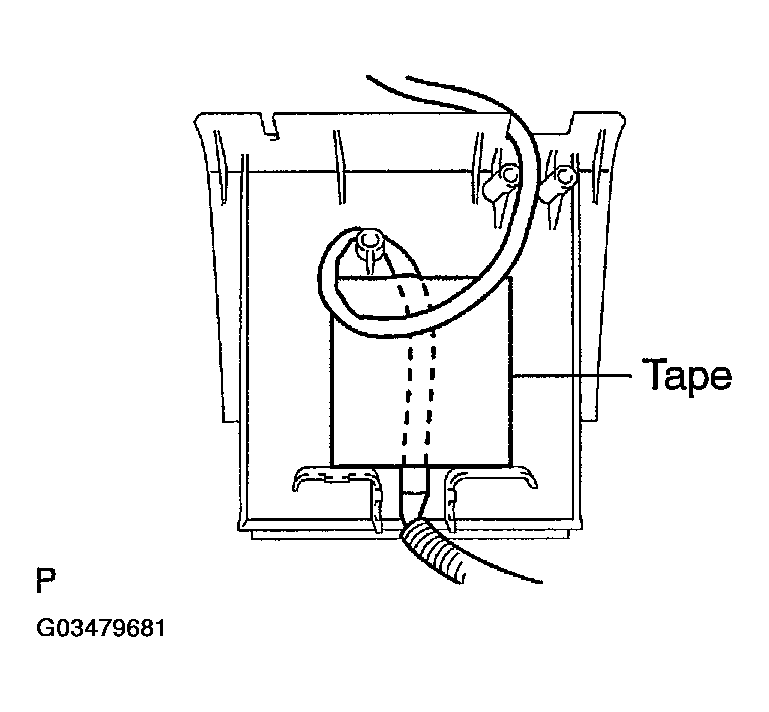

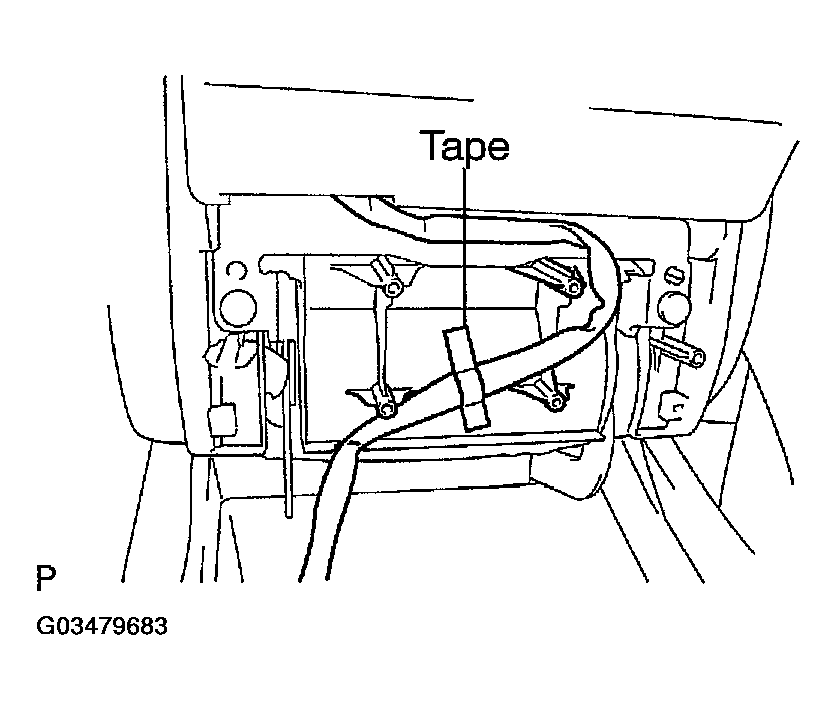

Fig 4: Removing Tape Attached To Wire Harness
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MAYDAY SWITCH ASSY
1. Remove the 6 screws and console box rear.

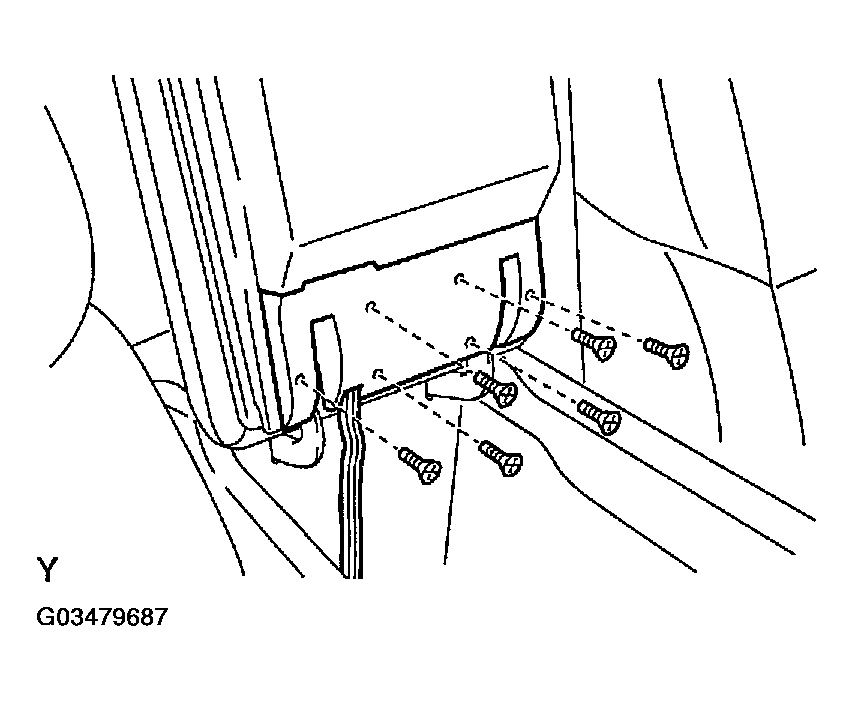

  Fig 5: Removing Console Box Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the tape that is attached to the wire harness of the mayday switch assembly.
  NOTE: Carefully remove the tape.

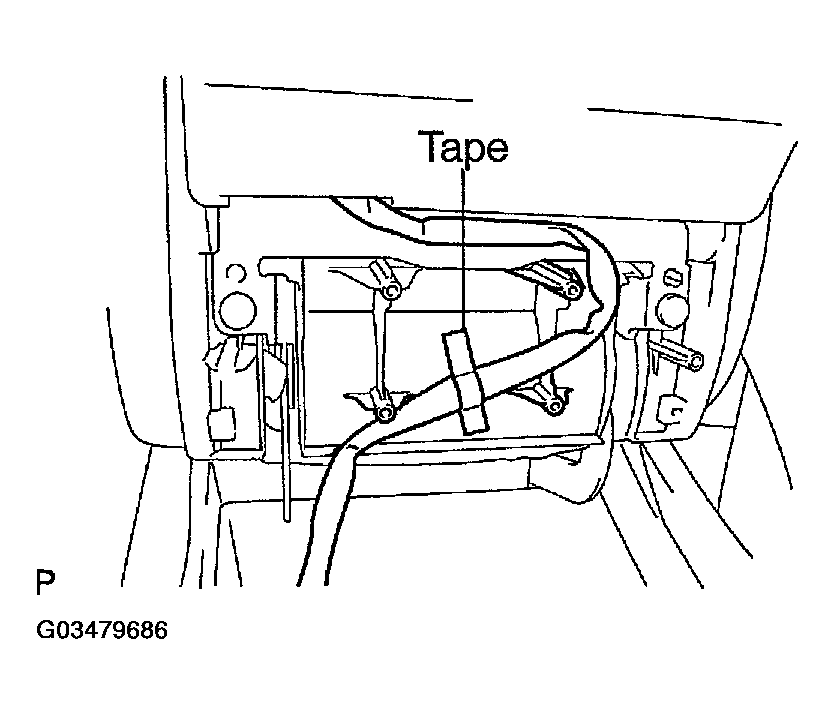

  Fig 6: Removing Tape Attatched To Wire Harness Of Mayday Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 screws and telephone switch assembly.

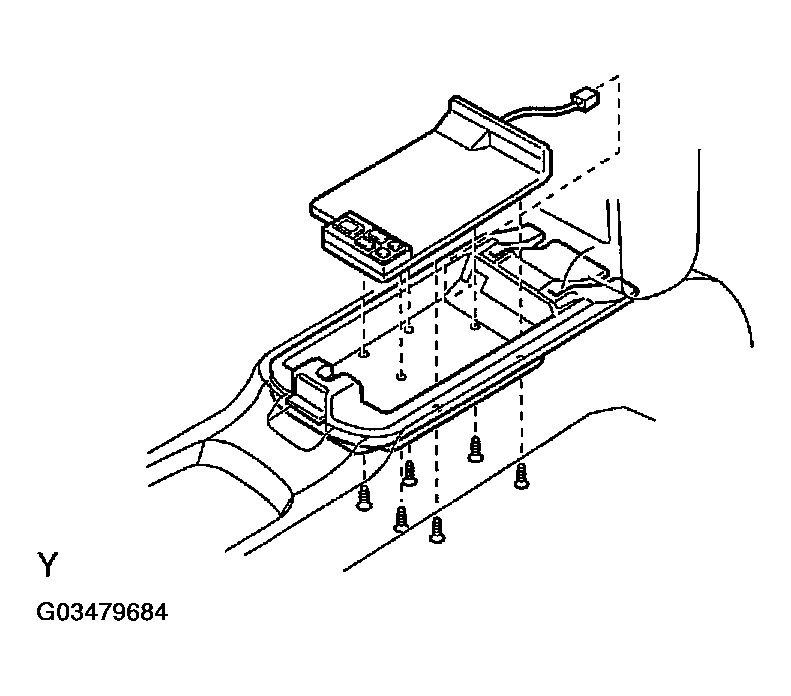

Fig 7: Removing Telephone Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MAYDAY SWITCH ASSY
1. Pass the connector of the mayday switch assembly through the hole of the box door.
2. Install the mayday switch assembly with the 6 screws.

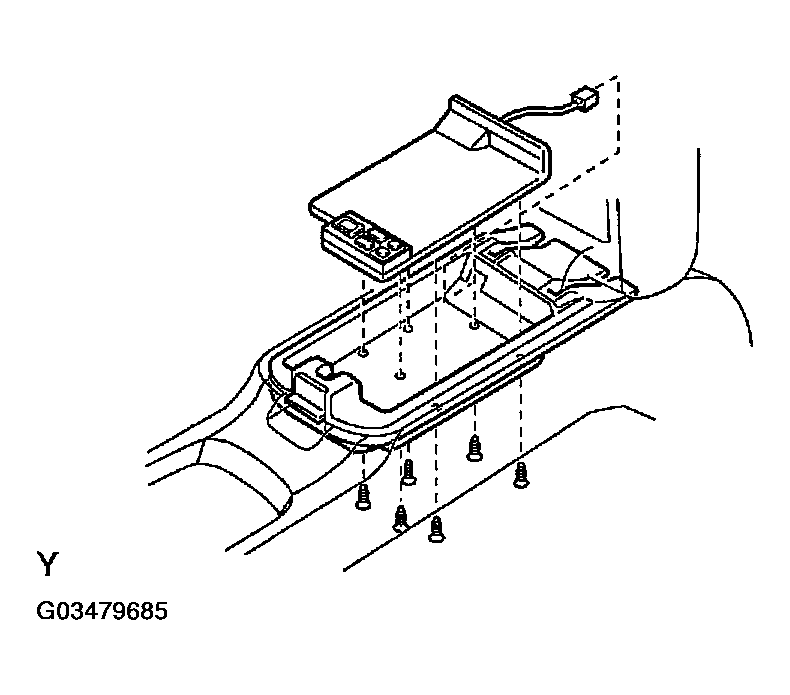

  Fig 8: Installing Mayday Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness of the mayday switch assembly and fix it with tape as shown in Fig 9.

  Fig 9: Fixing Mayday Switch Assembly With Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the console box rear with the 6 screws.

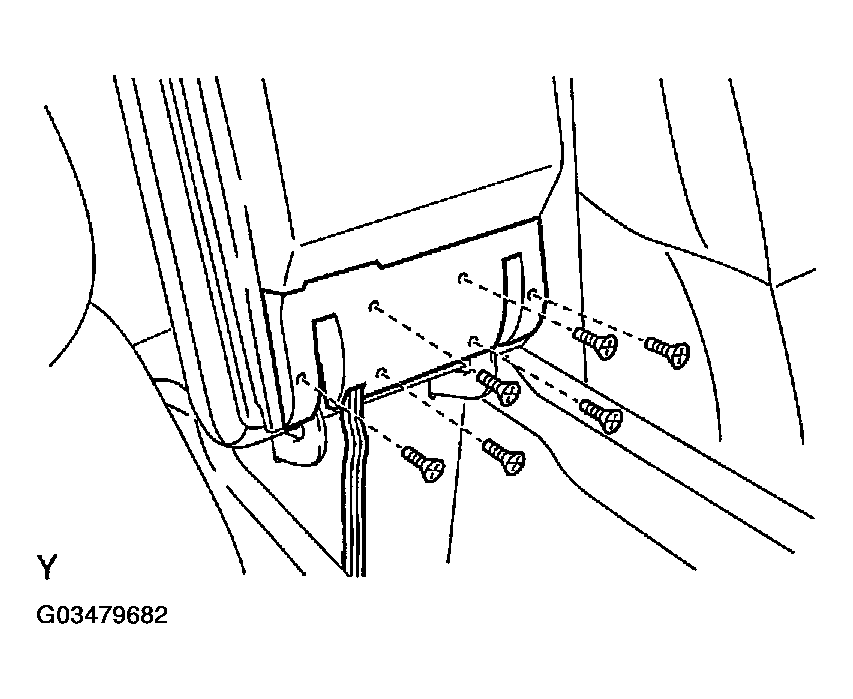

Fig 10: Installing Console Box Rear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL MOBILEPHONE BRACKET
1. Install the wire harness of the mayday switch assembly to the mobilephone bracket and fix it with tape, as shown in Fig 11.

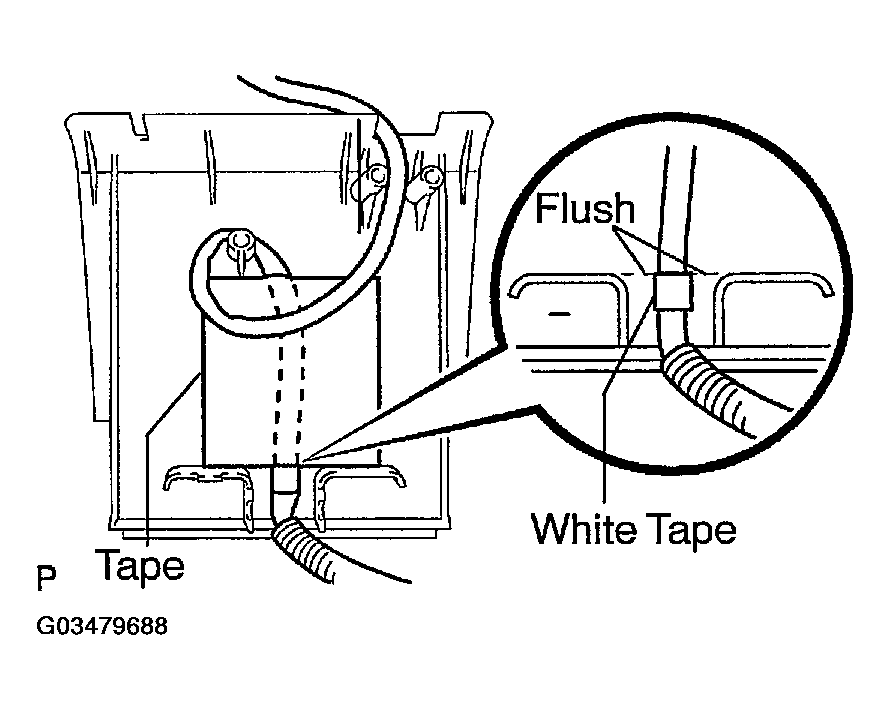

  Fig 11: Installing Wire Harness To Mobilephone Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the mobilephone bracket.
3. Install the lower console box cover.
4. Install the console box carpet.
5. Connect the connector.

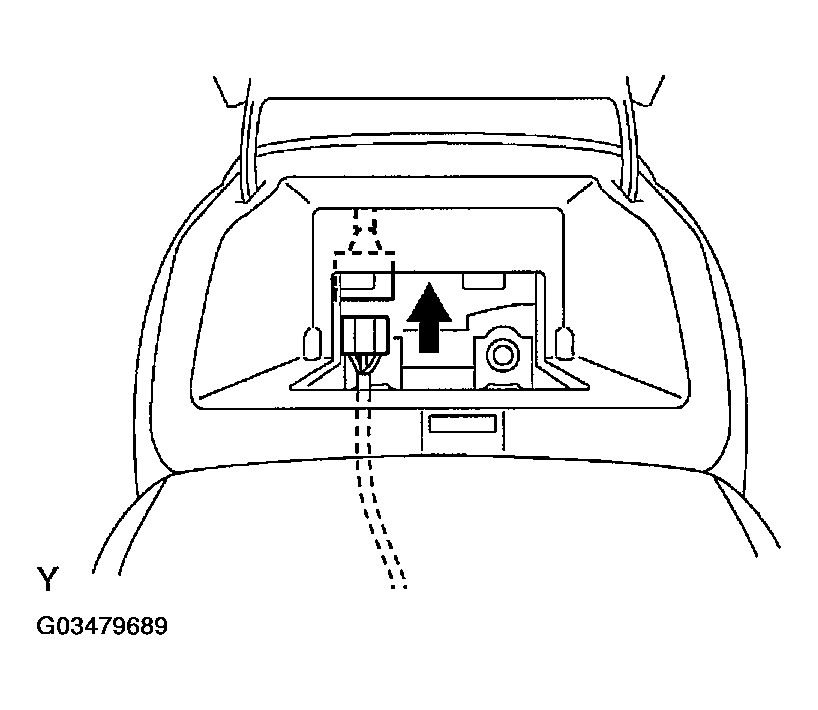

  Fig 12: Connecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BOX PANEL NO.3
INSPECT MAYDAY SWITCH ASSY
1. Check that the wire harness of the mayday switch assembly moves smoothly.

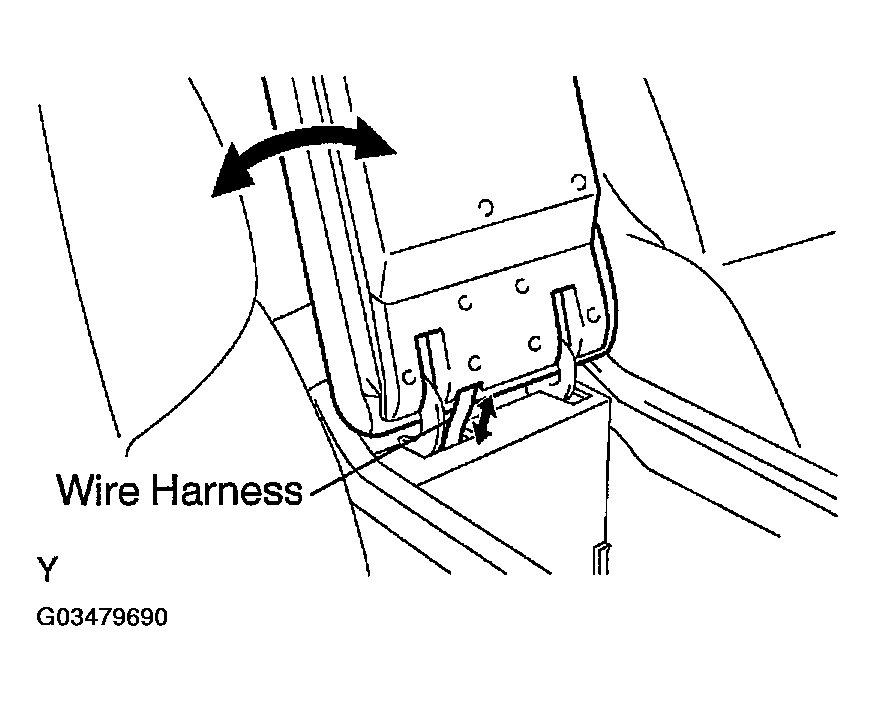

Fig 13: Inspecting Mayday Switch Assy Wiring Harness
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
