Repair Instruction: Precaution

1. HINTS ON OPERATIONS

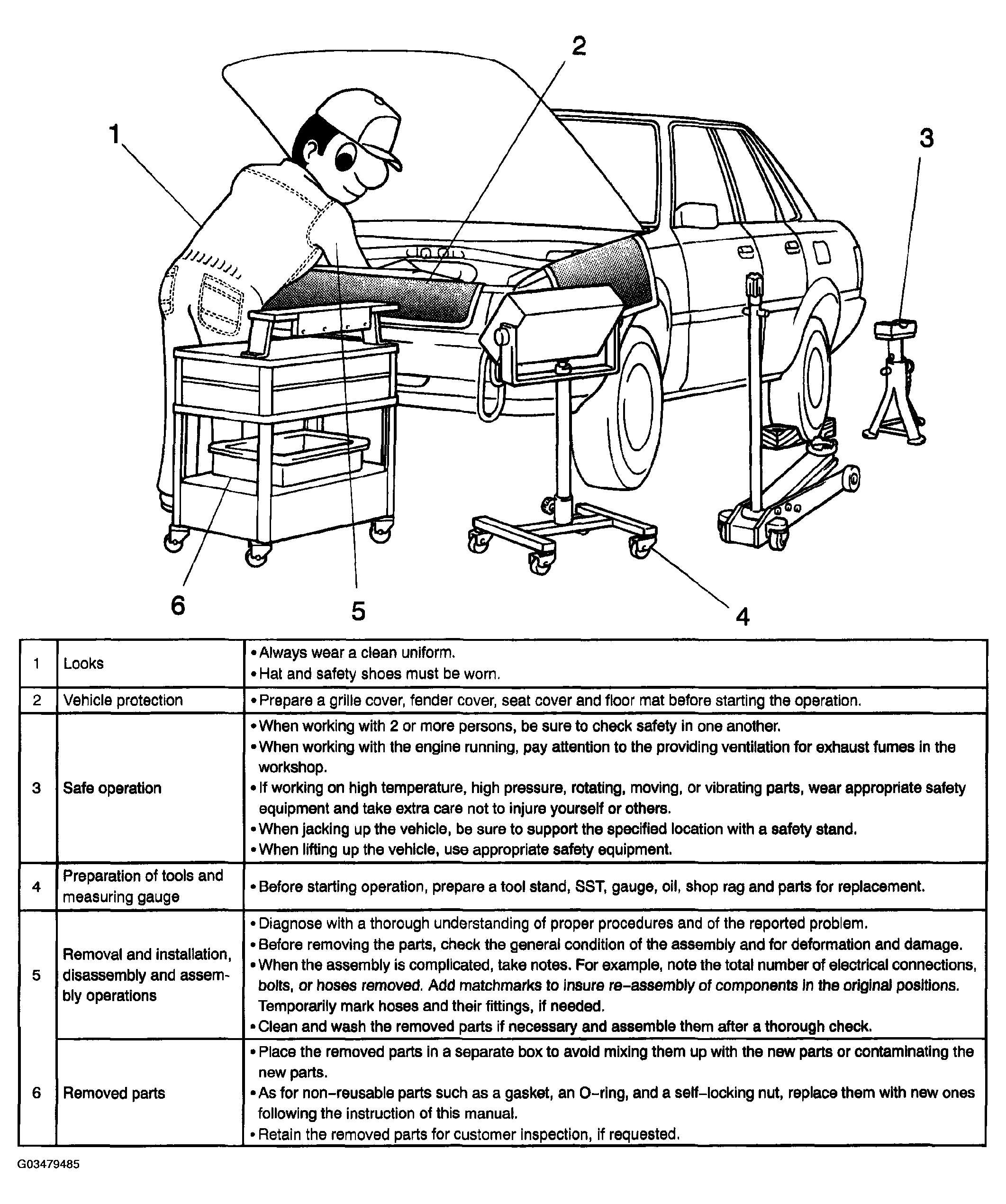

   Fig 1: Precaution For Basic Repair Operations

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. JACKING UP AND SUPPORTING VEHICLE
   1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations (See VEHICLE LIFT AND SUPPORT LOCATIONS ).
3. PRECOATED PARTS
   1. Precoated parts are bolts and nuts. That are coated with a seal lock adhesive at the factory.
   2. If a precoated part is retightened, loosened or moved in anyway, it must be recoated with the specified adhesive.
   3. When reusing precoated parts, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to the bolts and nuts.
      NOTE: Perform the torque with the lower limit value of the torque tolerance.

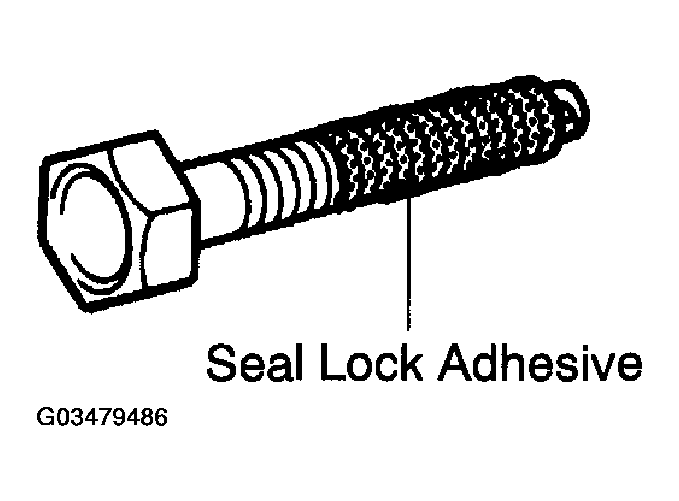

      Fig 2: Identifying Seal Lock Adhesive Coated Bolt & Nut

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Some seal lock agents harden slowly. You may have to wait for the seal lock agent to harden.
4. GASKETS
   1. When necessary, use a sealer on gaskets to prevent leaks.
5. BOLTS, NUTS AND SCREWS
   1. Carefully follow all the specifications for tightening torques. Always use a torque wrench.
6. FUSES
   1. When replacing fuses, be sure that the new fuse has the correct amperage rating. DO NOT exceed the rating or use one with a lower rating.

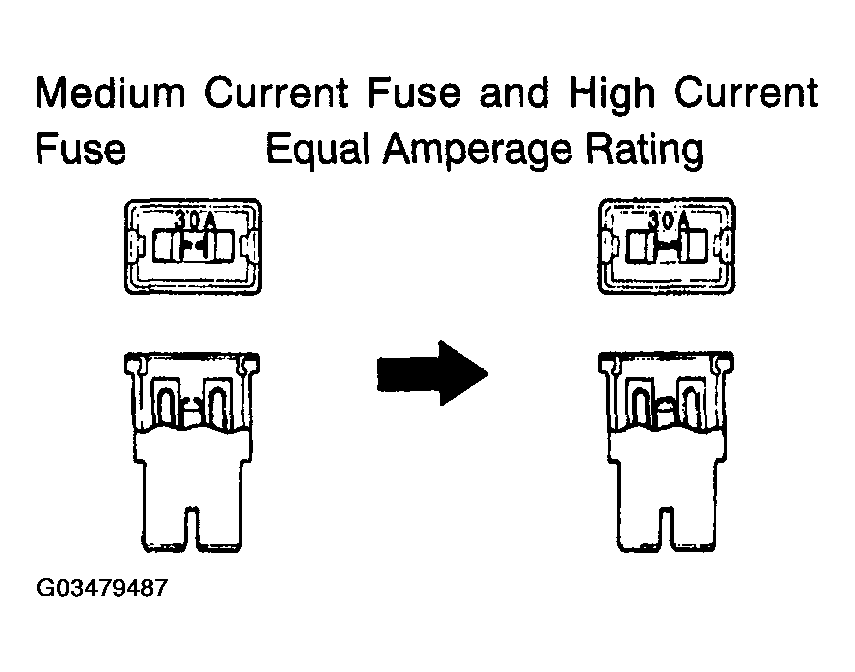

      Fig 3: Identifying Medium Current & High Current Fuse

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

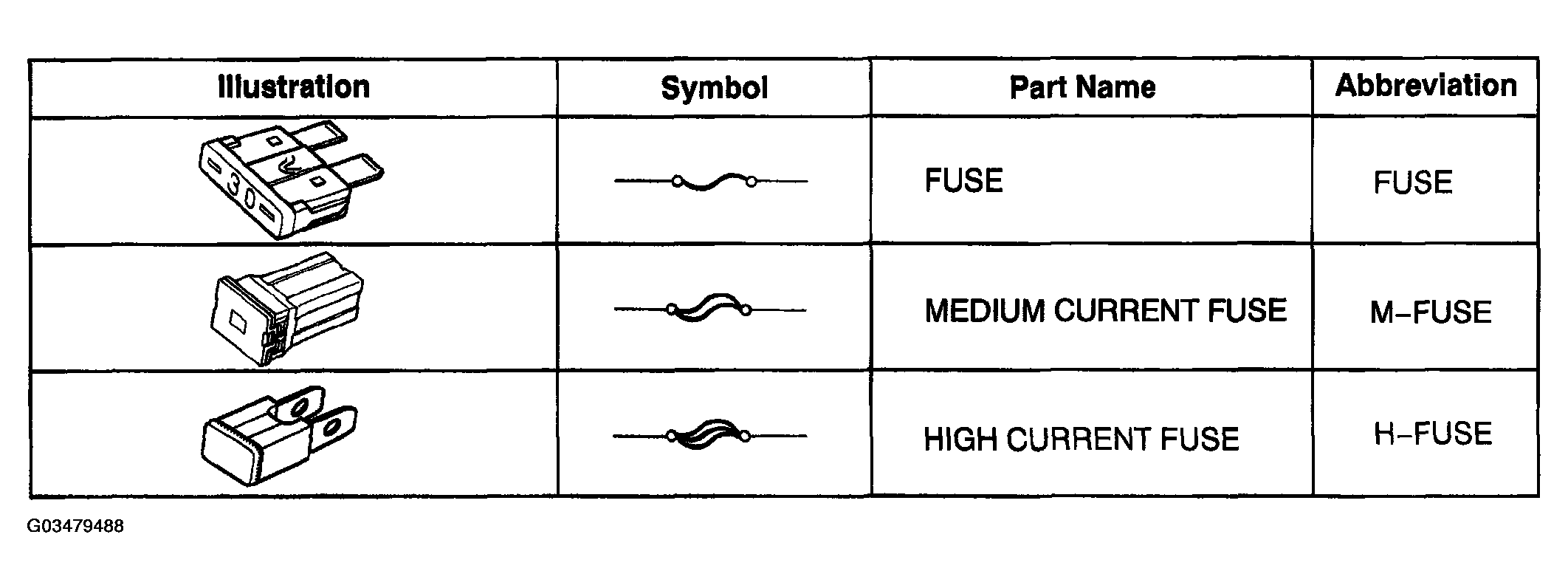

   Fig 4: Parts Illustration & Symbol Specification Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. CLIPS
   1. The removal and installation methods of typical clips used in body parts are shown in the Fig 5 .

   HINT:

   If clips are damaged during a procedure, always replace the damaged clip with a new clip.

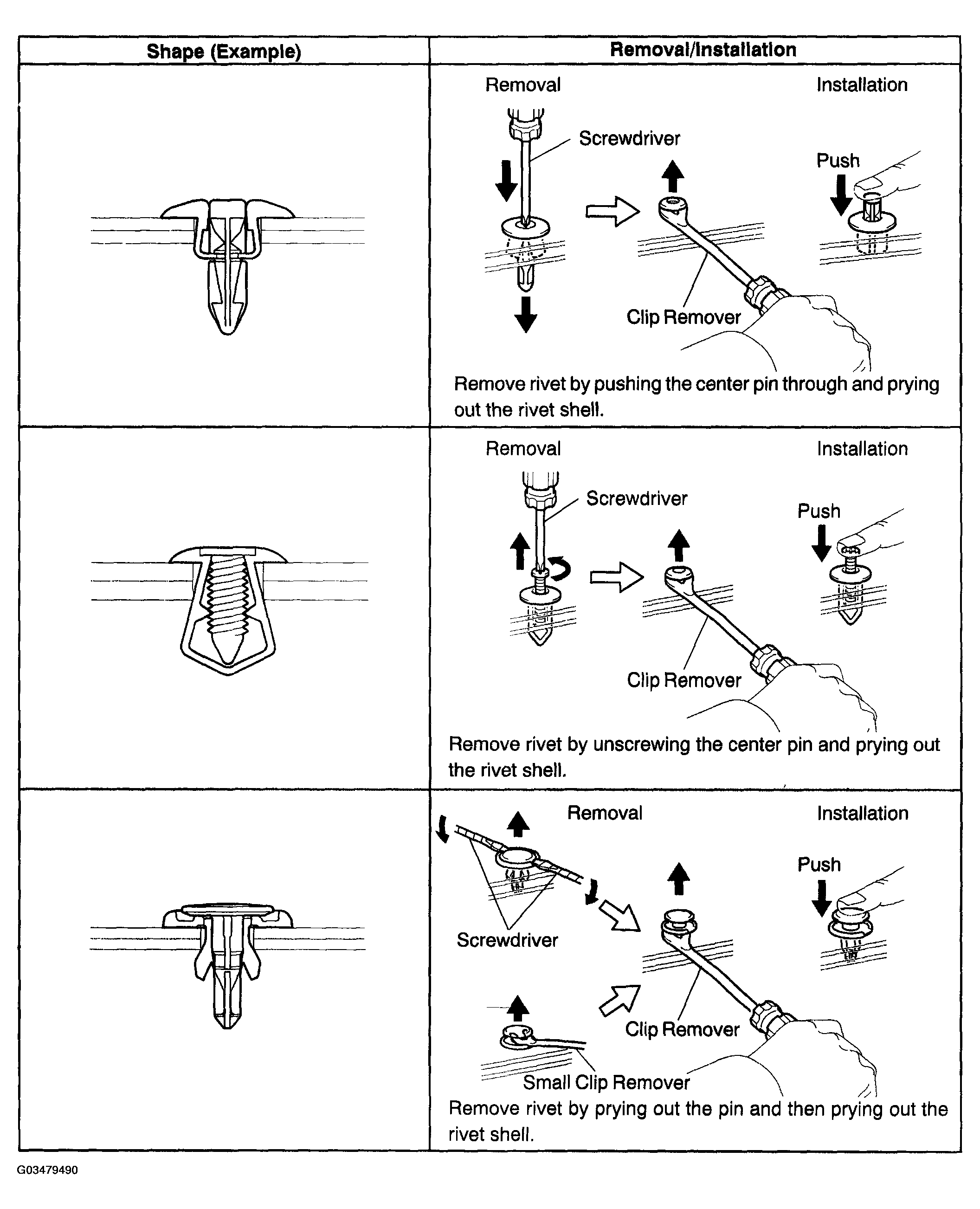

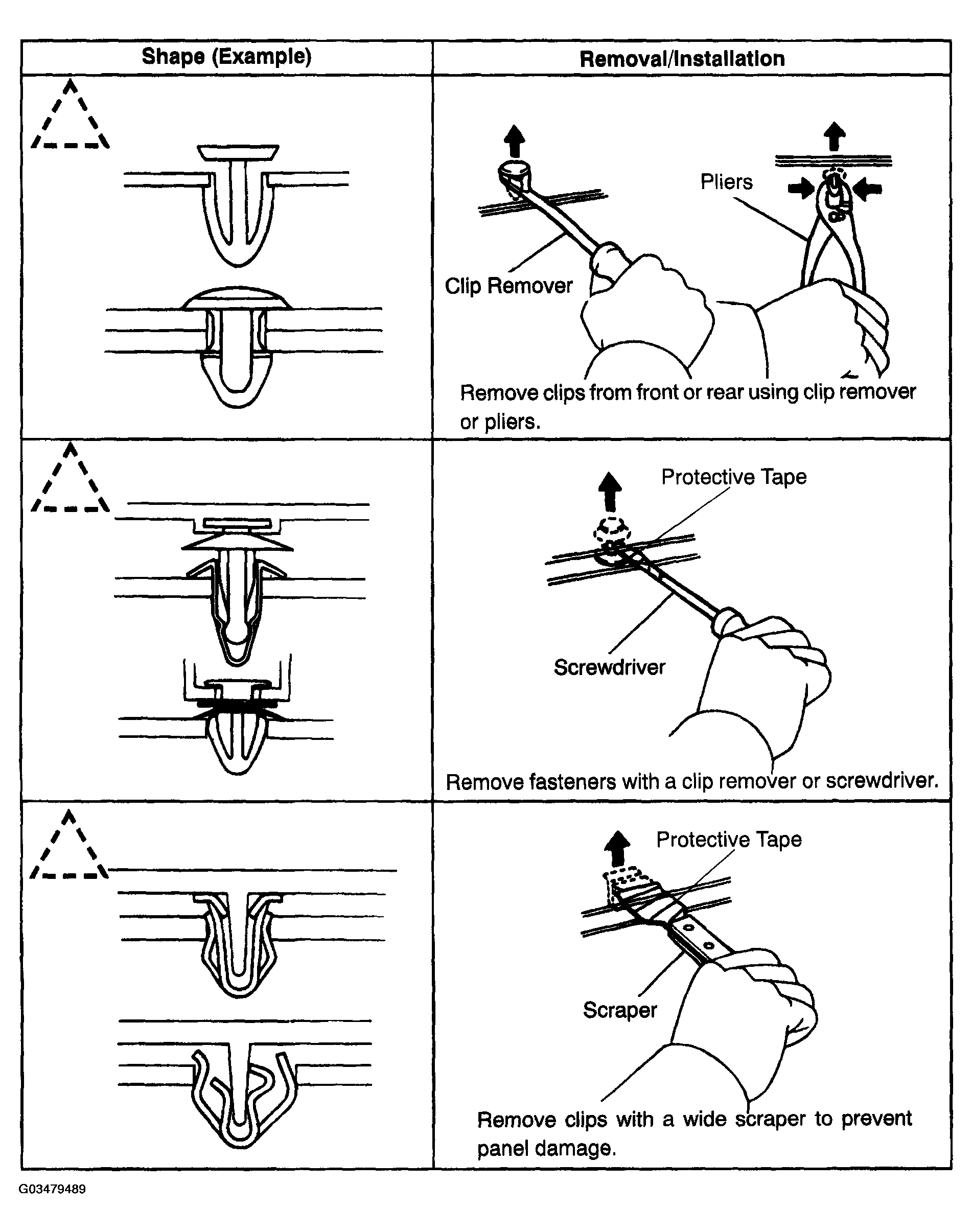

   Fig 5: Typical Clips Operation Table (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 6: Typical Clips Operation Table (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVAL AND INSTALLATION OF VACUUM HOSES
   1. To disconnect vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may cause damage.

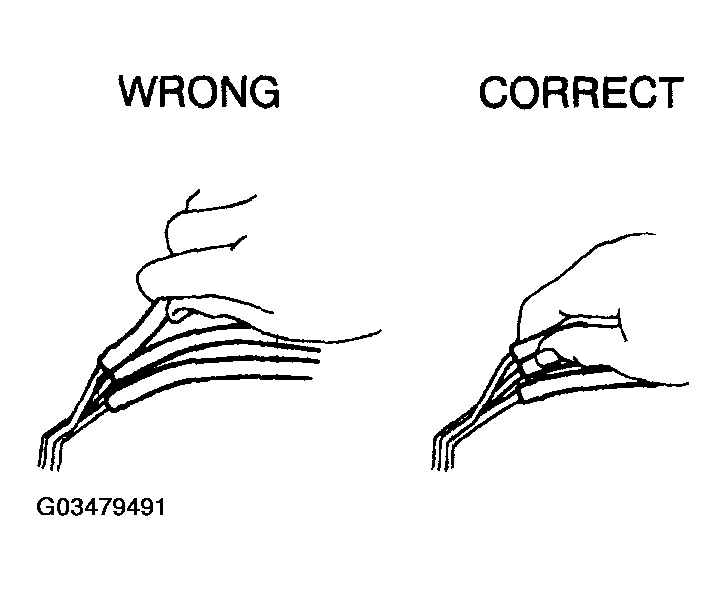

      Fig 7: Identifying Wrong & Correct Way To Disconnect Vacuum Hose

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When disconnecting vacuum hoses, use tags to identify where they should be reconnected.
   3. After completing the job, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.

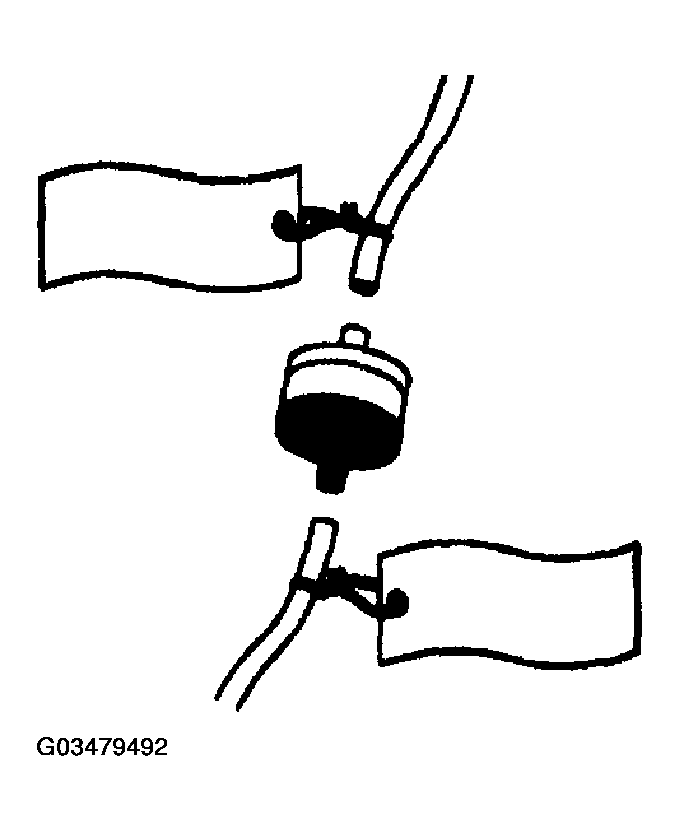

      Fig 8: Disconnecting Vacuum Hoses

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. When using a vacuum gauge, never force the hose onto a connector that is too large. Use a step-down adapter for adjustment. Once the hose has been stretched, it may leak air.
9. TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL
   1. If SST or an extension tool is combined with the torque wrench to extend its length, do not tighten the torque wrench to the specified torque values in this information. The actual torque will be excessive.
   2. Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with the torque wrench.
   3. Formula: T' = T x L2/(L1 + L2)

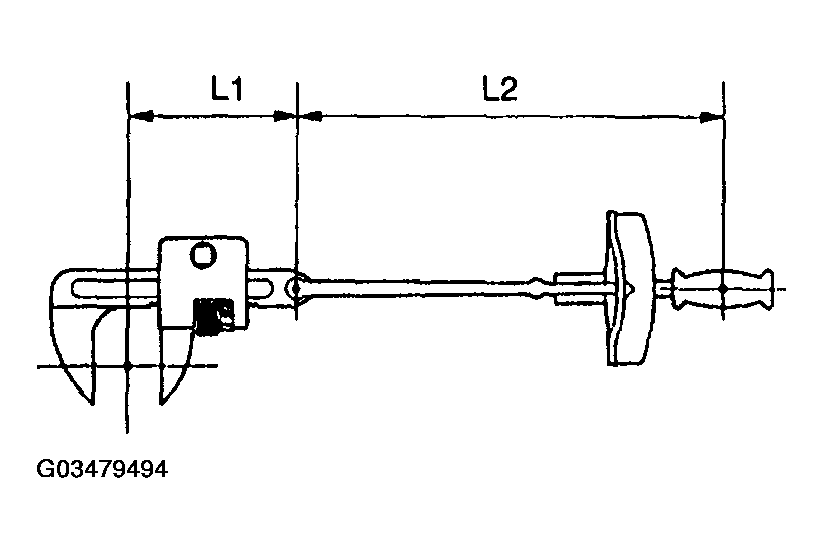

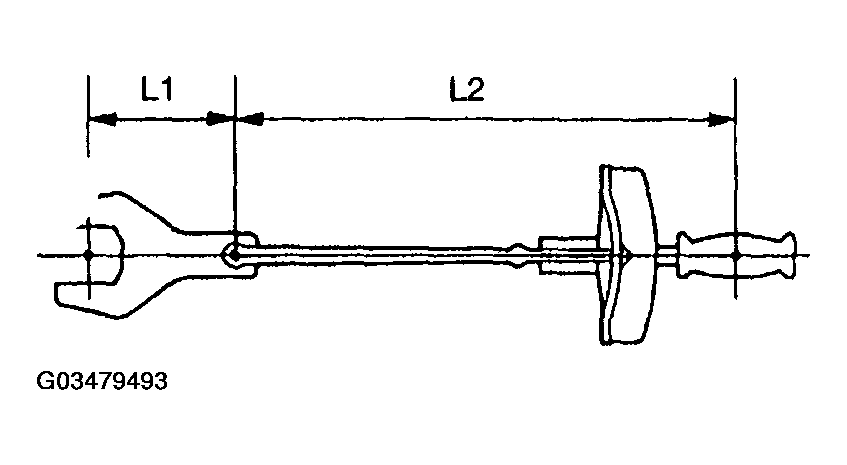

      Fig 9: Calculating Special Torque Values When Extension Tool Is Combined With Torque Wrench

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TORQUE WRENCH AND EXTENSION TOOL SPECIFICATION



   T	Reading of torque wrench {N.m (kgf.cm, ft.lbf)}
   T	Torque {N.m (kgf.cm, ft.lbf)}
   L1	Length of SST or extension tool (cm)
   L2	Length of torque wrench (cm)

   Fig 10: Calculating Special Torque Values When Extension Tool Is Combined With Torque Wrench

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The LEXUS SC430 is equipped with a Supplemental Restraint System (SRS) and seat belt pretensioner. Failure to carry out the service operations in the correct sequence could cause the SRS to unexpectedly deploy during servicing and lead to serious injury.

Furthermore, if a mistake is made when servicing the SRS, it is possible that the SRS may fail to operate properly. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read the following section carefully.

1. GENERAL NOTICE
   1. Malfunction symptoms of the SRS are difficult to confirm so the Diagnostic Trouble Codes (DTCs) become the most important source of information when troubleshooting. When troubleshooting the SRS, always check the DTCs before disconnecting the battery (See AIR BAG RESTRAINT SYSTEMS ).
   2. To avoid serious injury, servicing the SRS must be started 90 seconds after:
      • The ignition switch is turned to the LOCK position.
      • The negative (-) terminal cable is disconnected from the battery.

      (The SRS is equipped with a back-up power source. If work is started within 90 seconds of disconnecting the negative (-) terminal cable from the battery, the SRS may deploy).

      Disconnecting the negative (-) terminal cable will erase the memory, of all vehicle systems. Initialize the systems after disconnecting/reconnecting the cable.

      CAUTION: Never use a back-up power source (battery or other) avoid erasing system memory. The back-up power source may power the SRS, leading to a possible SRS and cause it to deploy.
   3. In minor collisions where the SRS does not deploy, the horn button assembly, instrument panel passenger airbag assembly, front seat airbag assembly, curtain shield airbag assembly and seat belt pretensioner should be inspected before further use of the vehicle (See AIR BAG RESTRAINT SYSTEMS and DISPOSAL ).
   4. Never use SRS parts from another vehicle. When replacing parts, use new parts.
   5. Before repairs, remove the airbag sensor if impacts are likely to be applied to the sensor during repairs.
   6. Never disassemble and repair the airbag sensor assembly, horn button assembly, instrument panel passenger airbag assembly, front seat airbag assembly, curtain shield airbag assembly or seat belt pretensioner.
   7. Replace the center airbag sensor assembly, side airbag sensor assembly, horn button assembly or the instrument panel passenger airbag assembly front seat airbag assembly or curtain shield airbag assembly: 1) if damage has occurred from being dropped, or 2) if there are cracks, dents or other defects in the case, bracket or connector.
   8. Do not directly expose the airbag sensor assembly, the horn button assembly, the instrument panel passenger airbag assembly front seat airbag assembly, curtain shield airbag assembly or the seat belt pretensioner to hot air or flames.
   9. Use a voltmeter/ohmmeter with high impedance (10 kΩ/V minimum) for troubleshooting electrical circuits.
   10. Information labels are attached to the SRS components. Follow the instructions on the labels.
   11. After work on the SRS is completed, check the SRS warning light (See AIR BAG RESTRAINT SYSTEMS ).
2. SPIRAL CABLE (in Combination Switch)
   1. The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral position, otherwise cable disconnection and other problems may occur. Refer to AIR BAG RESTRAINT SYSTEMS concerning the correct installation of the steering wheel.

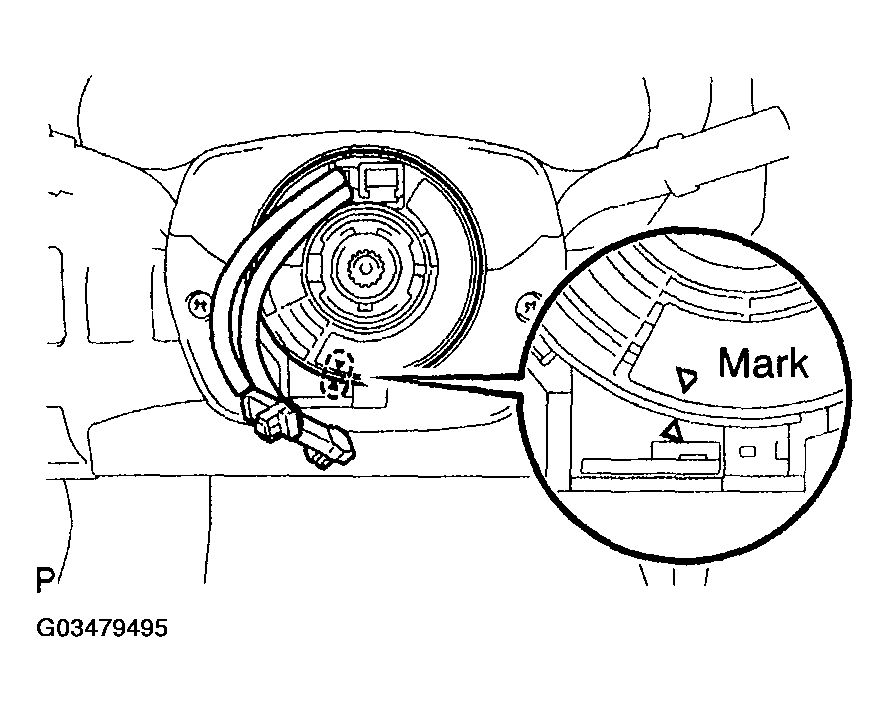

   Fig 11: Identifying Mark On Spiral Cable (In Combination Switch)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. HORN BUTTON ASSEMBLY (with Airbag)
   1. When removing the horn button assembly or handling a new horn button, it should be placed with the pad surface facing up. See Fig 12 .

      Placing the horn button with the pad surface facing down may lead to a serious accident if the airbag accidently inflates. Also, do not place anything on top of the horn button.

   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.
   3. Grease or detergents of any kind should not be applied to the steering wheel pad.
   4. Store the horn button assembly where the ambient temperature remains below 93°C (200°F), has low humidity and away from electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag or seat belt pretensioner deploying due to currents entering the squib wiring.
   6. When disposing of the vehicle or the horn button assembly by itself, the airbag should be inflated using an SST before disposal (See AIR BAG RESTRAINT SYSTEMS ). Perform the operation in a safe place away from electrical noise.

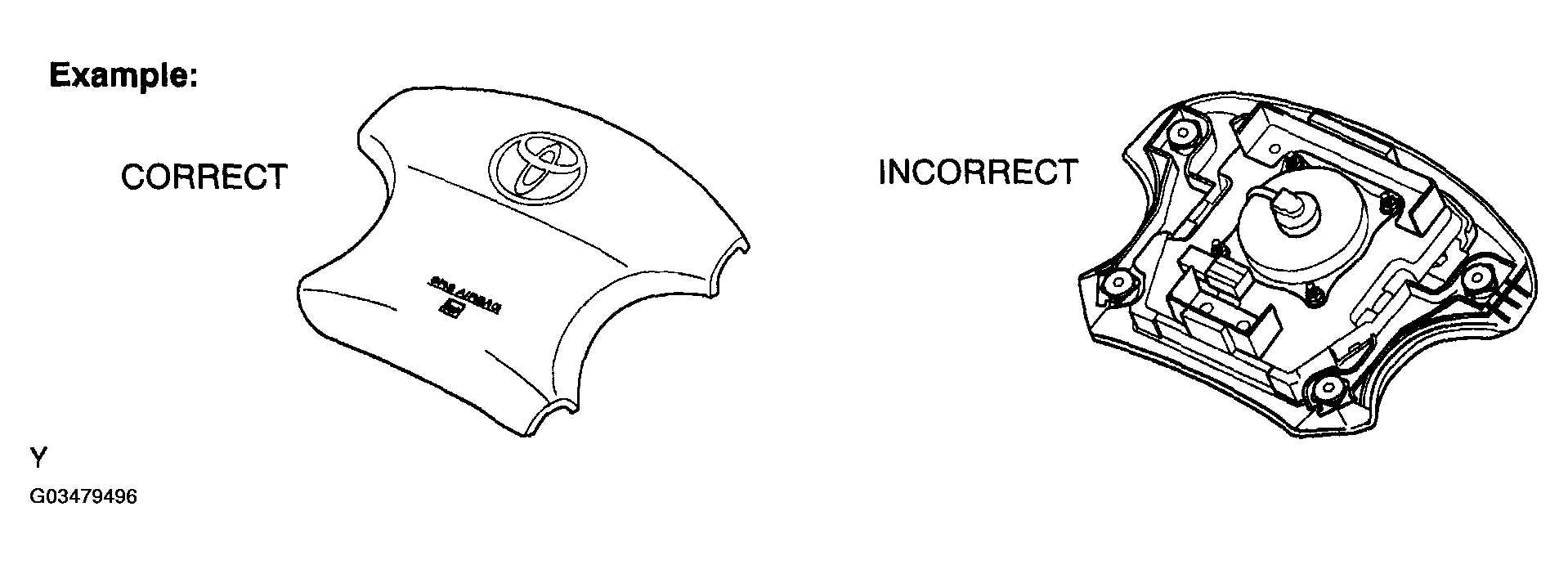

   Fig 12: Identifying Correct & Incorrect Horn Button Assembly (With Airbag)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

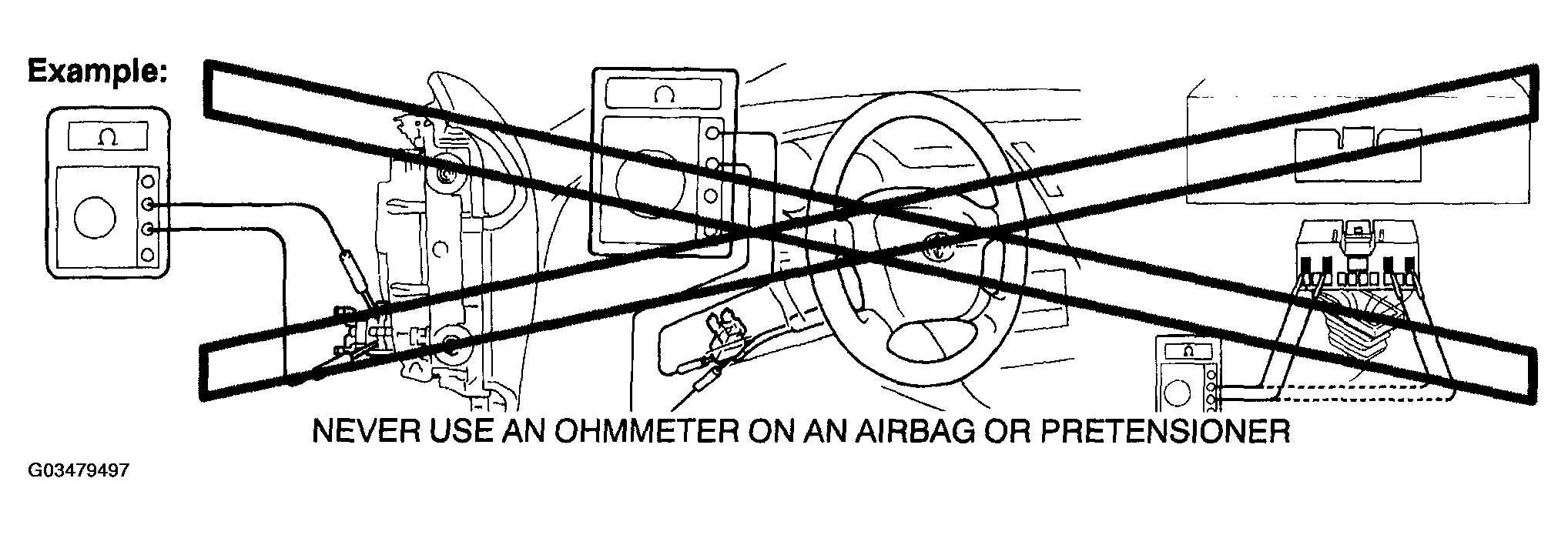

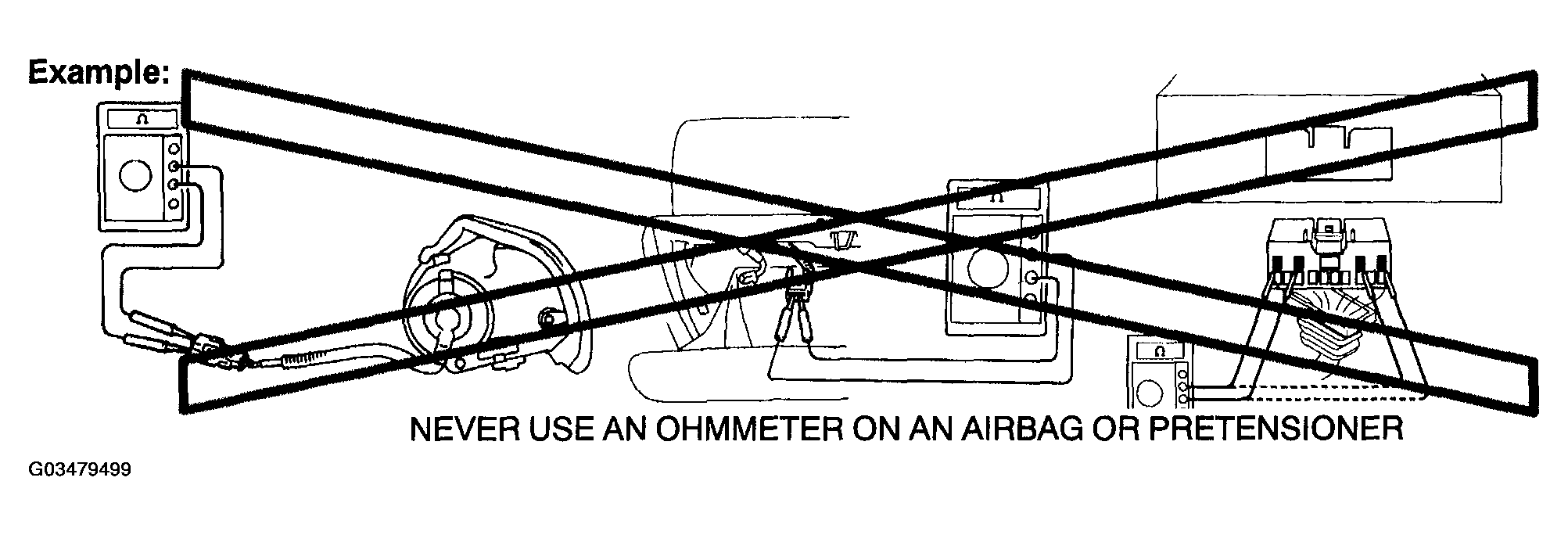

   Fig 13: Precaution For Never Use An Ohmmeter On Airbag Or Pretensioner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTRUMENT PANEL PASSENGER AIRBAG ASSY
   1. Always place a removed or new instrument panel passenger airbag assembly with the airbag inflation direction facing upward.

      Placing the airbag assembly with the airbag inflation direction facing downward could cause a serious accident if the airbag inflates.

   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.
   3. Grease or detergents of any kinds should not be applied to the instrument panel passenger airbag assembly.
   4. Store the airbag assembly where the ambient temperature remains below 93°C (200°F), has low humidity and away from electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
   6. When disposing of a vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal (See AIR BAG RESTRAINT SYSTEMS ).

      Activate in a safe place away from electrical noise.

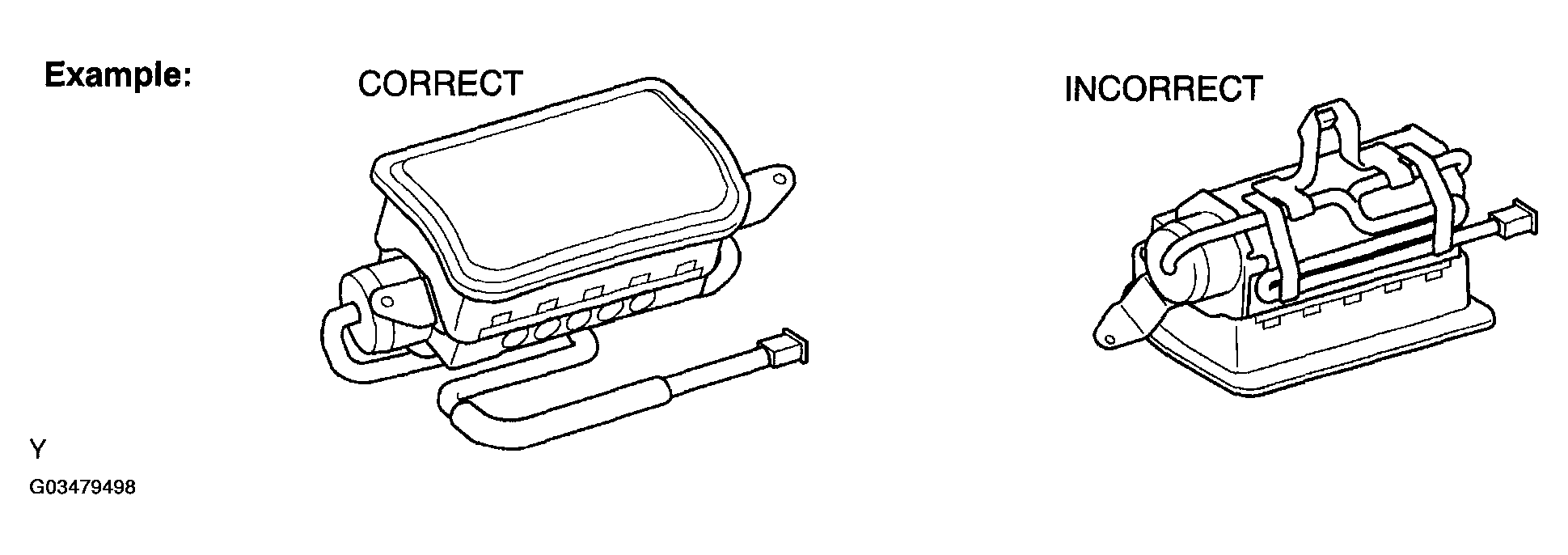

   Fig 14: Identifying Correct And Incorrect Instrument Panel Passenger Airbag Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

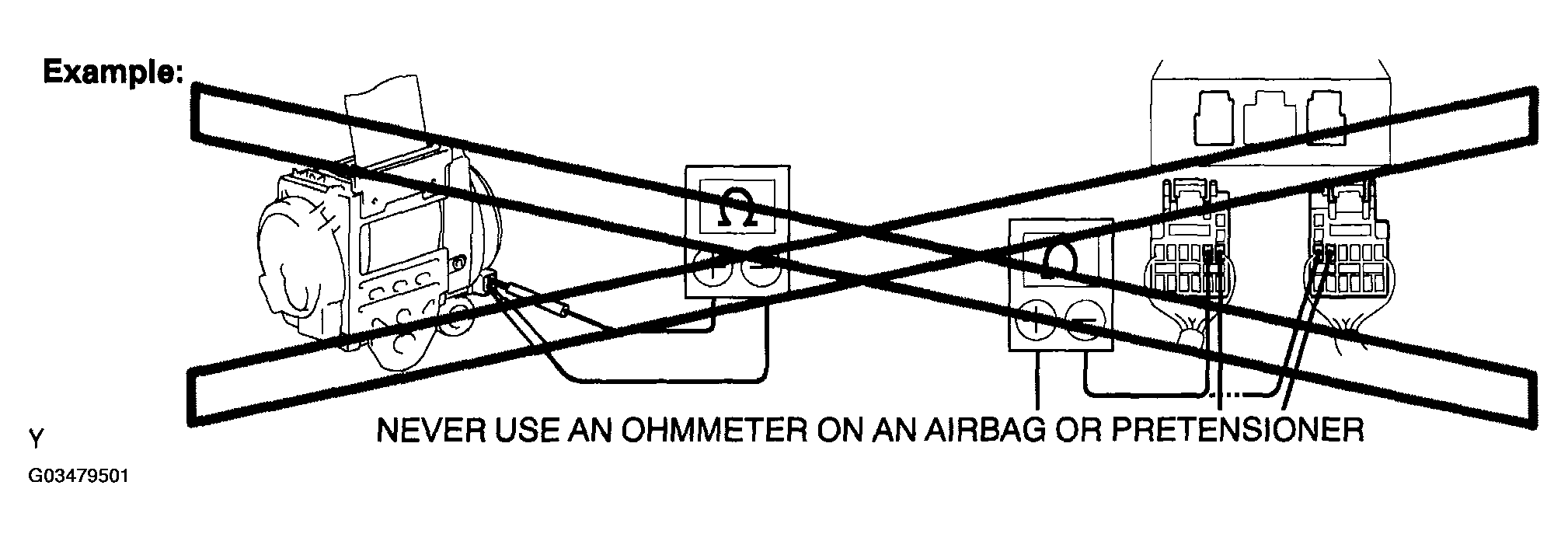

   Fig 15: Precaution For Never Use An Ohmmeter On An Airbag Or Pretensioner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. FRONT SEAT AIRBAG ASSEMBLY
   1. Always place a removed or new front seat airbag assembly with the airbag inflation direction facing upward. Placing the airbag assembly with the airbag inflation direction facing downward could cause a serious accident if the airbag deploys.
   2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which is very dangerous.
   3. Grease should not be applied to the front seat airbag assembly, and the airbag door should not be cleaned with detergents of any kind.
   4. Store the airbag assembly where the ambient temperature remains below 93°C (200°F), with out high humidity and away from electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
   6. When disposing of a vehicle or the airbag assembly unit, the airbag should be deployed using SST before disposal (See AIR BAG RESTRAINT SYSTEMS ).

      Activate in a safe place away from electrical noise.

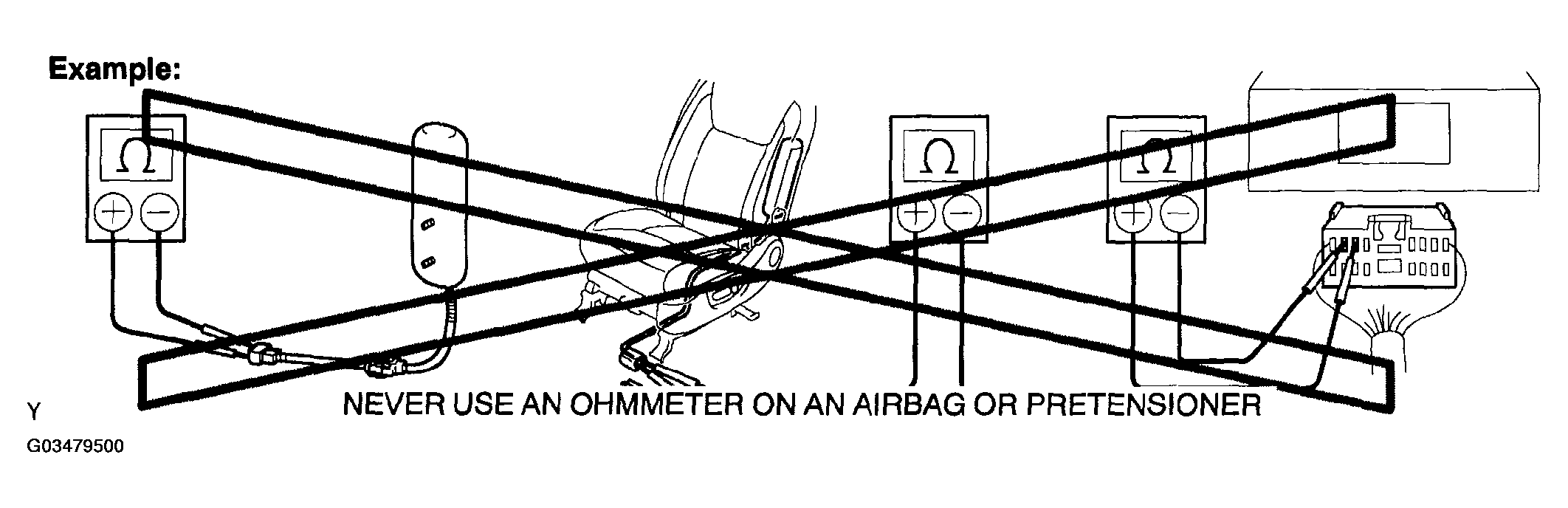

   Fig 16: Precaution For Never Use An Ohmmeter On Airbag Or Pretensioner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. SEAT BELT PRETENSIONER
   1. Never measure the resistance of the seat belt pretensioner (This may cause the seat belt pretensioner to activate, which is very dangerous).
   2. Never disassemble the seat belt pretensioner.
   3. Never install the seat belt pretensioner on another vehicle.
   4. Store the seat belt pretensioner where the ambient temperature remains below 80°C (176°F) without high humidity and away from electrical noise.
   5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
   6. When disposing of a vehicle or the seat belt pretensioner unit, the seat belt pretensioner should be activated before disposal (See DISPOSAL ). Perform the operation in a safe place away from electrical noise.
   7. The seat belt pretensioner is hot after being activated, so allow some time for it to cool down sufficiently before disposal. Never apply water to cool down the seat belt pretensioner.
   8. Oil or water should not be put on the front seat outer belt, and the front seat outer belt should not be cleaned with detergents of any kind.
   Fig 17: Precaution For Never Use An Ohmmeter On An Airbag Or Pretensioner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. AIRBAG SENSOR ASSEMBLY
   1. Never reuse an airbag sensor assembly that has been involved in a collision where the SRS has deployed.
   2. The connectors to the airbag sensor assembly should be connected or disconnected with the sensor mounted on the floor. If the connectors are connected or disconnected while the airbag sensor assembly is not mounted to the floor, it could cause accidental deployment of the SRS.
   3. Work must be started at last 90 seconds after the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery, even if only loosening the set bolts of the airbag sensor assembly.
8. WIRE HARNESS AND CONNECTOR
   1. The SRS wire harness is integrated with the instrument panel wire harness assembly. All the connectors in the system are a standard yellow color. If the SRS wire harness becomes disconnected or the connector becomes broken, repair or replace it.

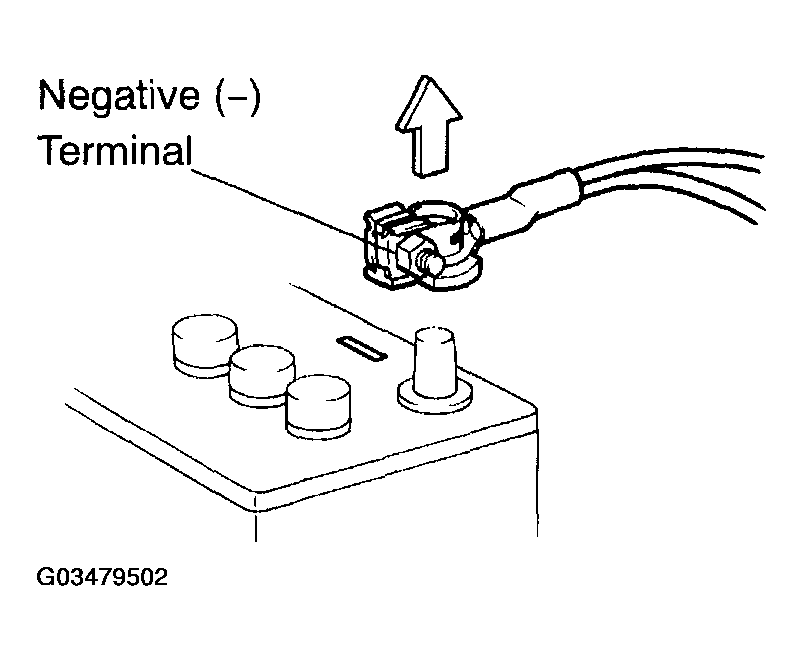

Fig 18: Disconnecting Battery Negative (-) Terminal Cable

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. REMOVAL AND INSTALLATION OF BATTERY TERMINAL
   1. Before performing electronic work, disconnect the battery negative (-) terminal cable beforehand to prevent component and wire damage caused by accidental short circuits.
   2. When disconnecting and installing the terminal cable, turn the ignition switch and lighting switch OFF and loosen the terminal nut completely. Perform these operations without twisting or prying the terminal. Remove the battery cable from battery post.
   3. Clock settings, radio settings, DTCs and other data are erased when the battery cable is removed. Before removing the battery cable, record any necessary data.
   4. When disconnecting the battery's negative (-) terminal cable, re-initialize the following system after the completion of the operation.
2. HANDLING OF ELECTRONIC PARTS
   1. Do not open the cover or case of the ECU unless absolutely necessary. If the IC terminals are touched, the IC may be rendered inoperative by static electricity.
   2. To disconnect electronic connectors, pull the connector itself, not the wires.
   3. Be careful not to drop electronic components, such as sensors or relays. If they are dropped on a hard floor, they should be replaced.
   4. When cleaning the engine with steam, protect the electronic components, air filter and emission-related components from water.

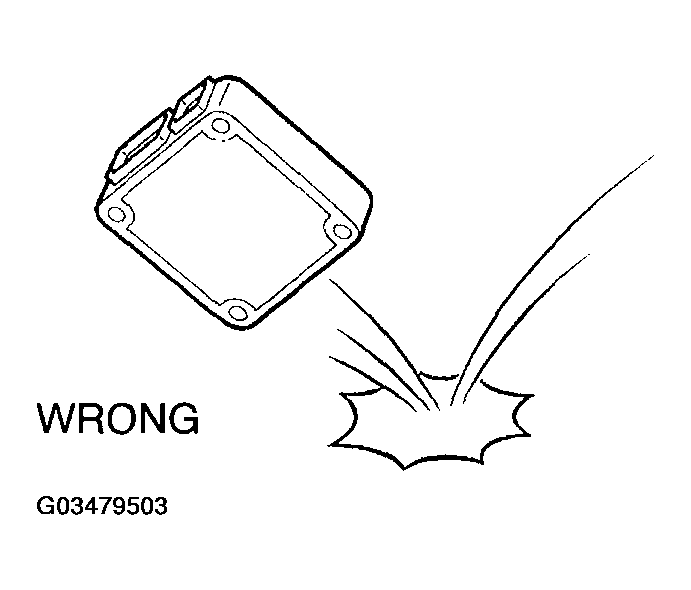

      Fig 19: Identifying Wrong Handling Of Electronic Parts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Never use an impact wrench to remove or install temperature switches or temperature sensors.
   6. When checking the continuity at the wire connector, insert the tester probe carefully to prevent terminals from bending.

1. PLACE FOR REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
   1. Work in a place with good air ventilation and without any ignition sources, such as a welder, grinder, drill, electric motor or stove.
   2. Never work in a place such as a pit or near a pit because vaporized fuel will collect in those places.
2. REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
   1. Prepare a fire extinguisher before starting operation.
   2. To prevent static electricity, install a ground on the fuel changer, vehicle and fuel tank, and do not spray the area with water. The work surface will become slippery. Do not clean up spills with water as this will spread and gasoline and create a fire hazard.
   3. Never use any electric equipment like an electric motor or a working light, as they may create sparks or high temperatures.
   4. Never use an iron hammer, as it may create sparks.
   5. Dispose of fuel-contaminated shop rags separately using a fire restraint container.

1. If any metal particle enters the inlet pass, this may damage the engine.
2. When removing and installing the inlet system parts, cover the openings of the removed parts and engine openings. Use clean shop rags, gummed tape, or other suitable materials.

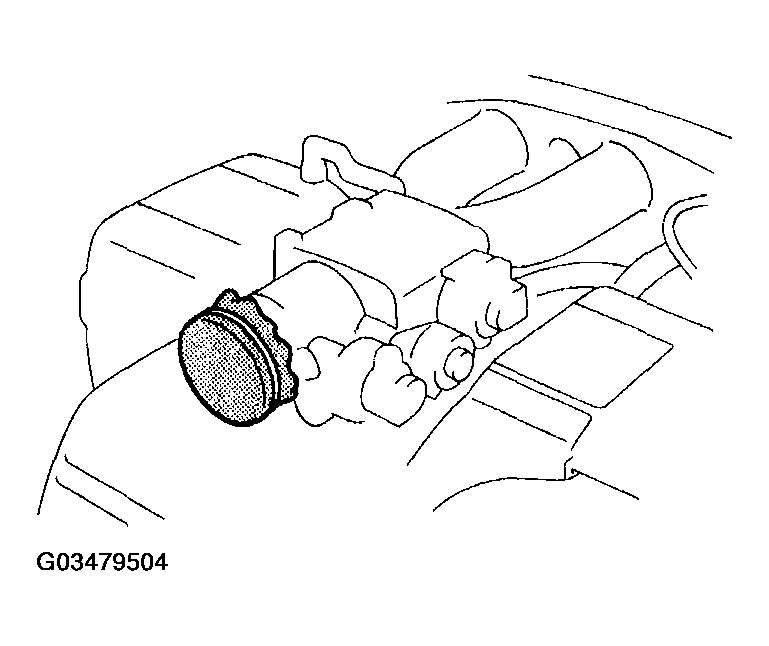

   Fig 20: Identifying Engine Intake Part

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When installing the inlet system parts, check that no metal particles have entered the engine or the installed part.

1. Before removing the hose, check the clamp position so that you can restore it in the same way.
2. Replace deformed or dented clamps with a new one.
3. When reusing a hose, attach the clamp on the clamp track portion of the hose.
4. For a spring type clamp, you may want to spread the tabs slightly after installation by pushing in the direction of the arrow marks as shown in Fig 21 .

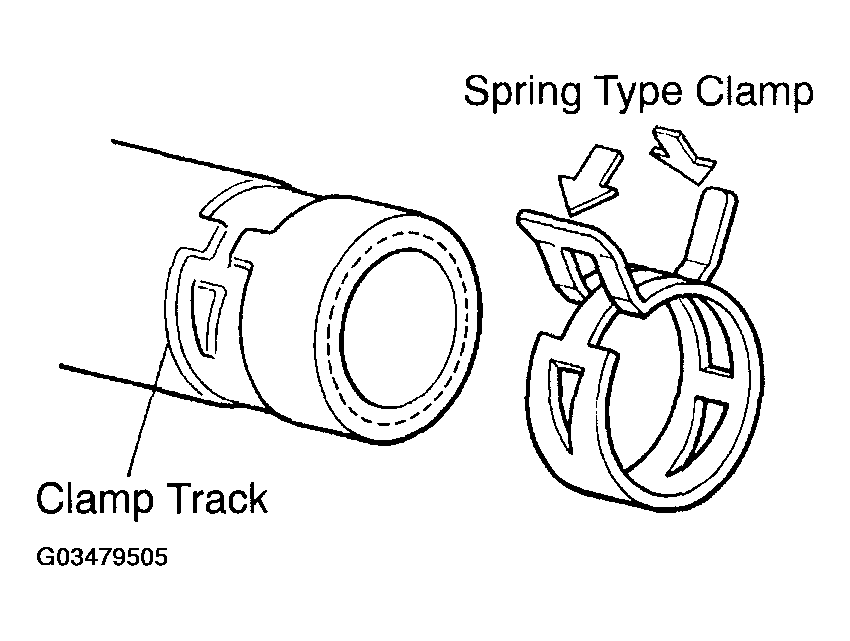

Fig 21: Identifying Spring Type Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the antenna as far away from the ECU and sensors of the vehicle electronic systems as possible.
2. Install an antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the vehicle electronic systems. For details of the ECU and sensors locations, refer to the information on applicable components.
3. Keep the antenna and feeder separate from other wirings as much as possible. This will prevent signals from the communication equipment from affecting vehicle equipment and vice-versa.

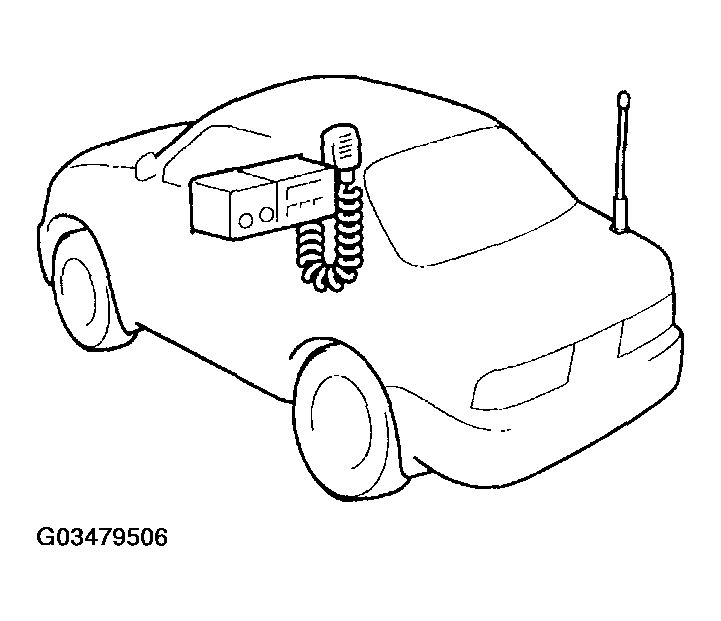

   Fig 22: Identifying Vehicles Equipped With Mobile Communication Systems

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check that the antenna and feeder are correctly adjusted.
5. Do not install any high-powered mobile communication system.

1. Press the VSC OFF switch.
2. Check that the VSC OFF indicator light comes ON.

   HINT:

   The VSC OFF indicator light should be always OFF when the engine is restarted.

3. Start measurements.
4. Press the VSC OFF switch again to change the TRAC & VSC system into operational condition and check that the VSC OFF indicator light goes off.

HINT:

The SLIP indicator light blinks when the TRAC system is operational.

1. Use only unleaded gasoline.
2. Avoid prolonged idling.

   Avoid running the engine at idle speed for more than 20 minutes.

3. Avoid a spark jump test.
   1. Perform a spark jump test only when absolutely necessary. Perform this test as rapidly as possible.
   2. While testing, never race the engine.
4. Avoid a prolonged engine compression measurement.

   Engine compression measurements must be performed as rapidly as possible.

5. Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and create an extra load on the converter.

1. When performing operations which involve the removal and installation of the propeller shaft, always check the joint angle. Make adjustments if necessary (see OVERHAUL ).

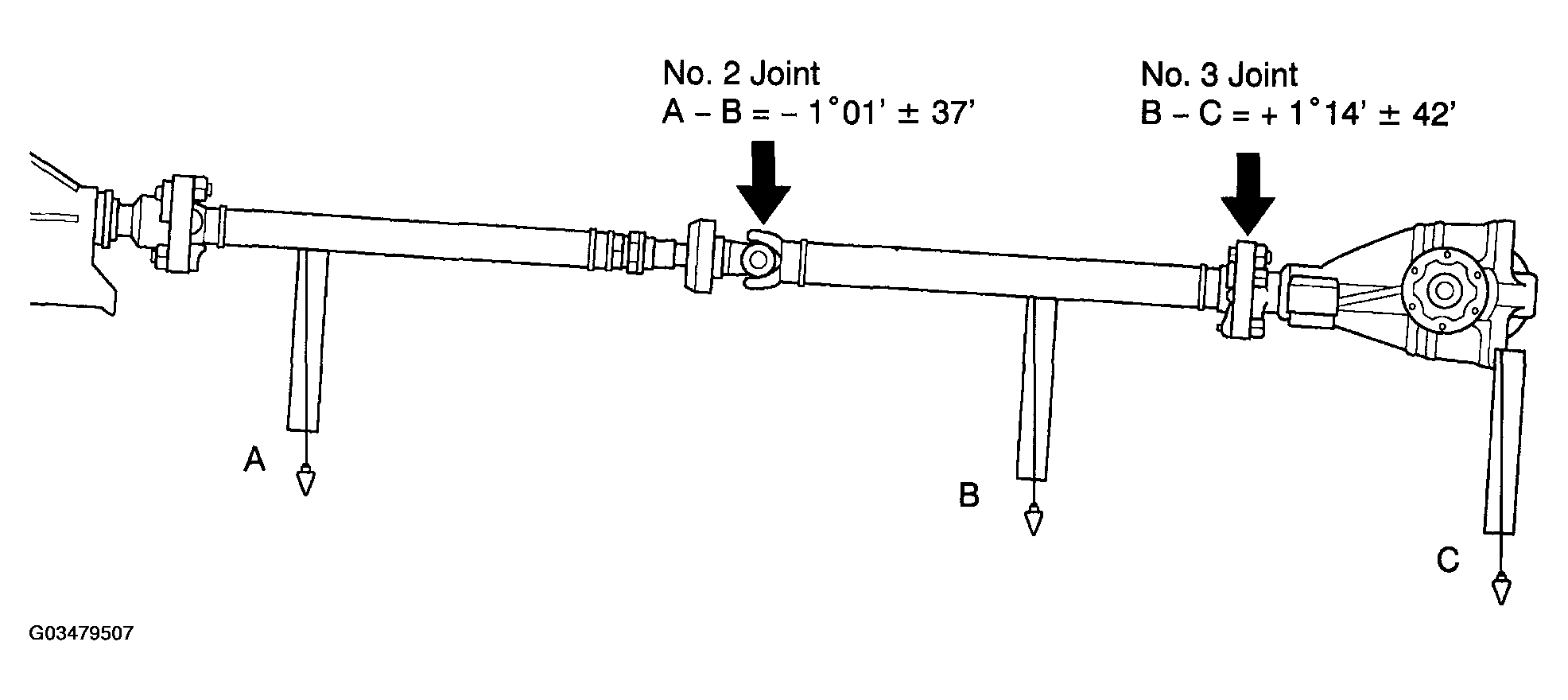

Fig 23: Adjusting Of Joint Angle Of Propeller Shaft

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
