Front Wheel Alignment: Adjustment

INSPECT TIRE
1. Check the tires for wear and proper inflation presser.
  Cold tire inflation pressure:

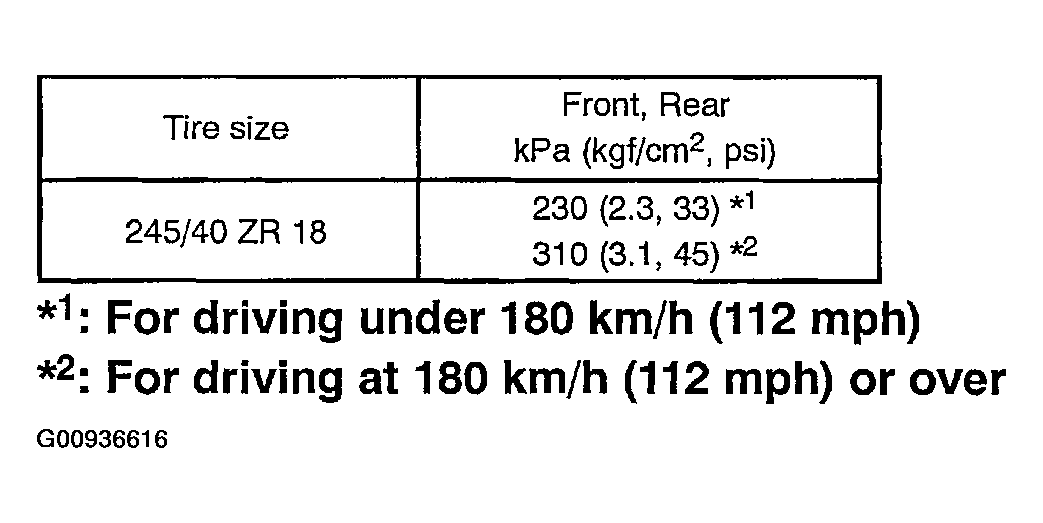

  Fig 1: Cold Tire Inflation Pressure Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
MEASURE VEHICLE HEIGHT

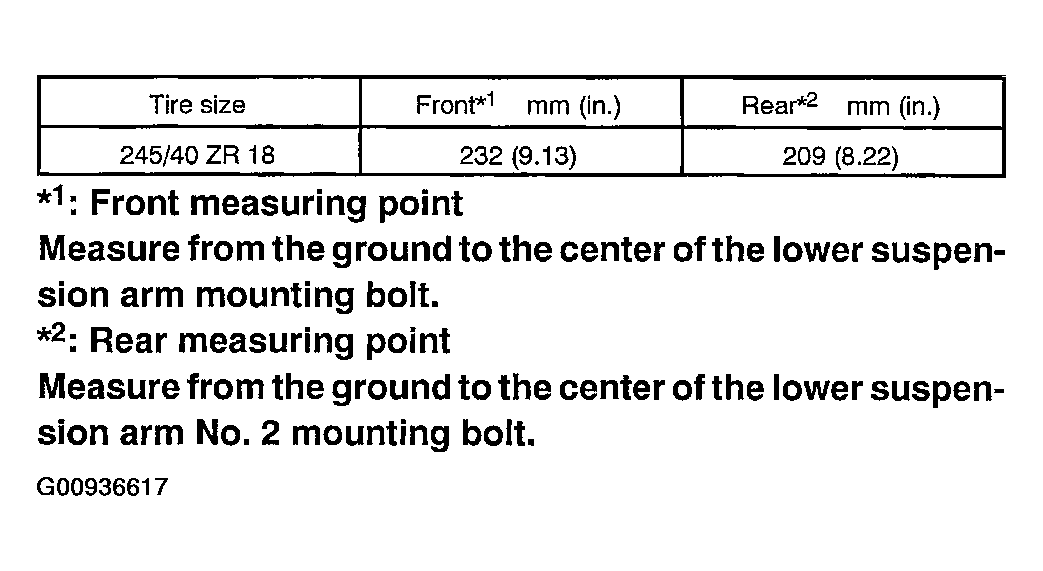

Fig 2: Measuring Vehicle Height Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.

If the vehicle height is not within the specification, try to adjust it by pushing down on or lifting the body.

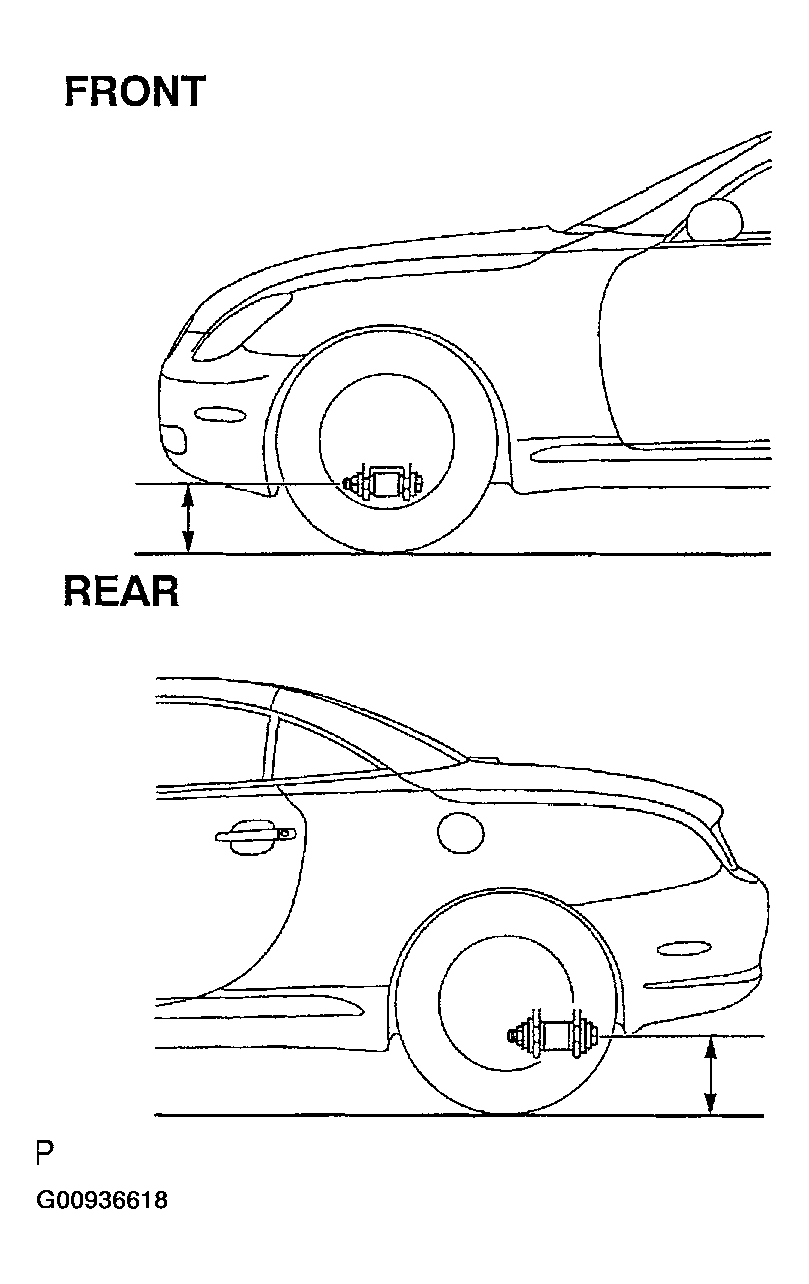

Fig 3: Identifying Front & Rear Vehicle Height
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TOE-IN

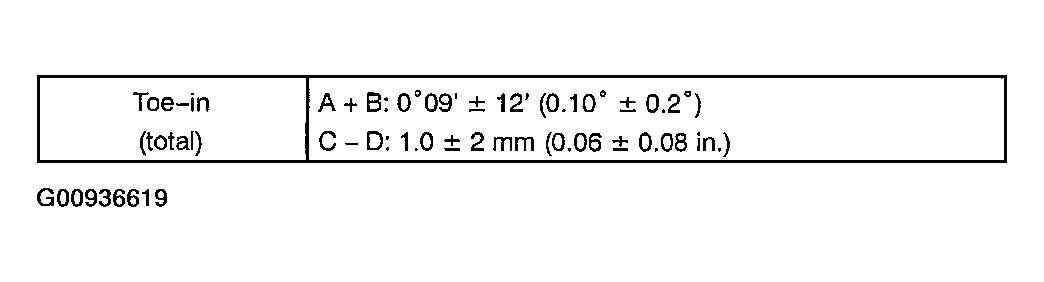

Fig 4: Toe-In Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specification, adjust it at the tie rod end.

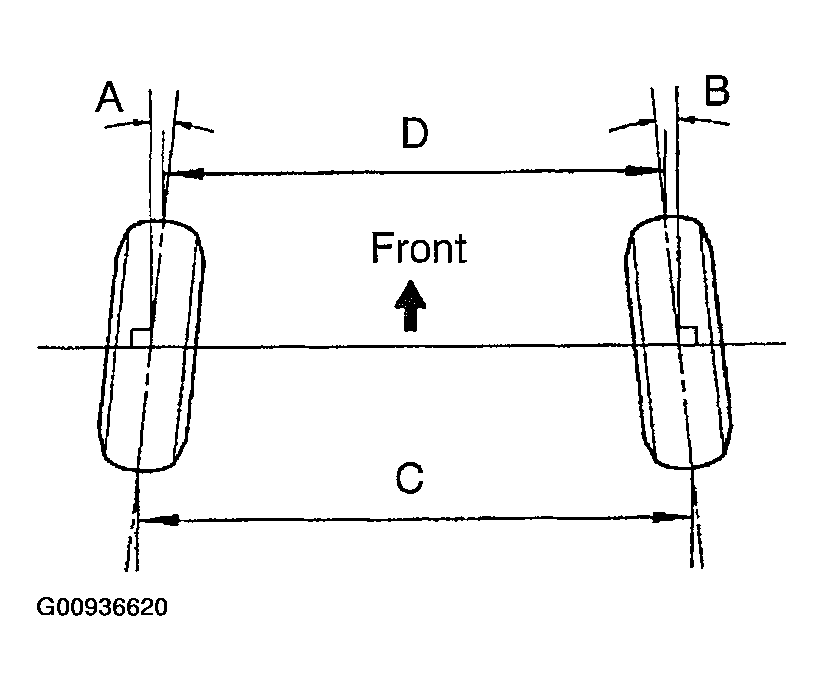

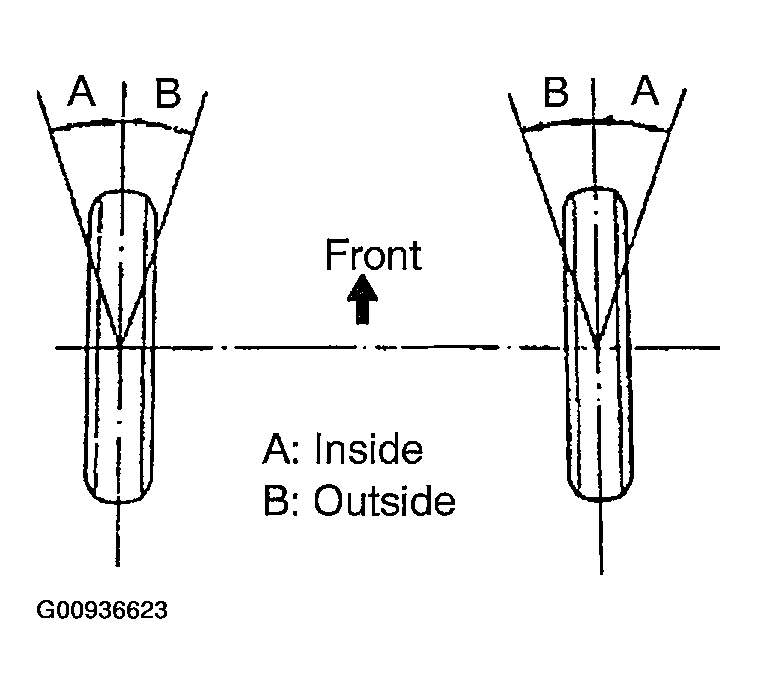

Fig 5: Identifying Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST TOE-IN
1. Remove the boot clips.
2. Loosen the tie rod end lock nuts.
3. Turn the left and right rack ends an equal amount to adjust the toe-in.

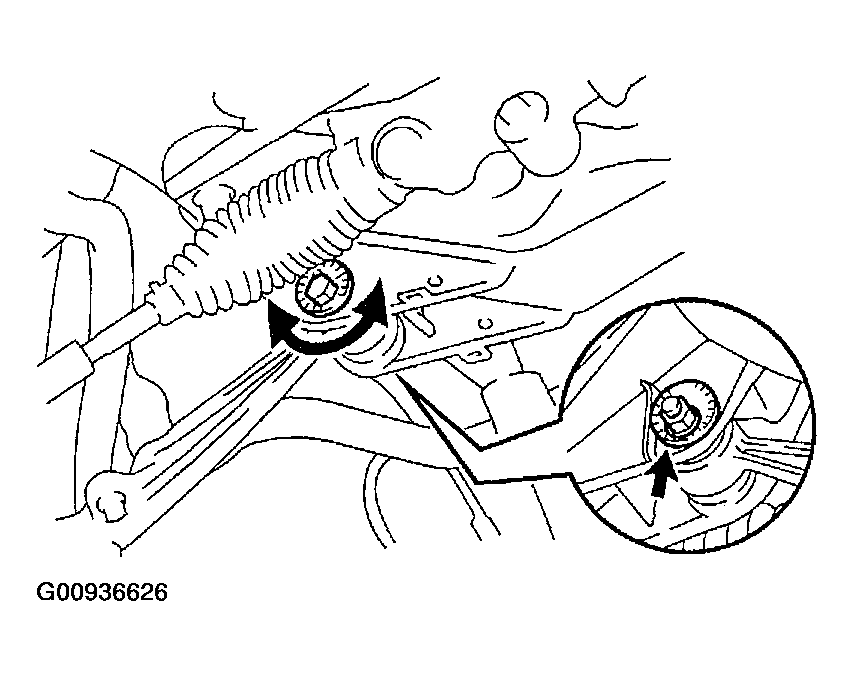

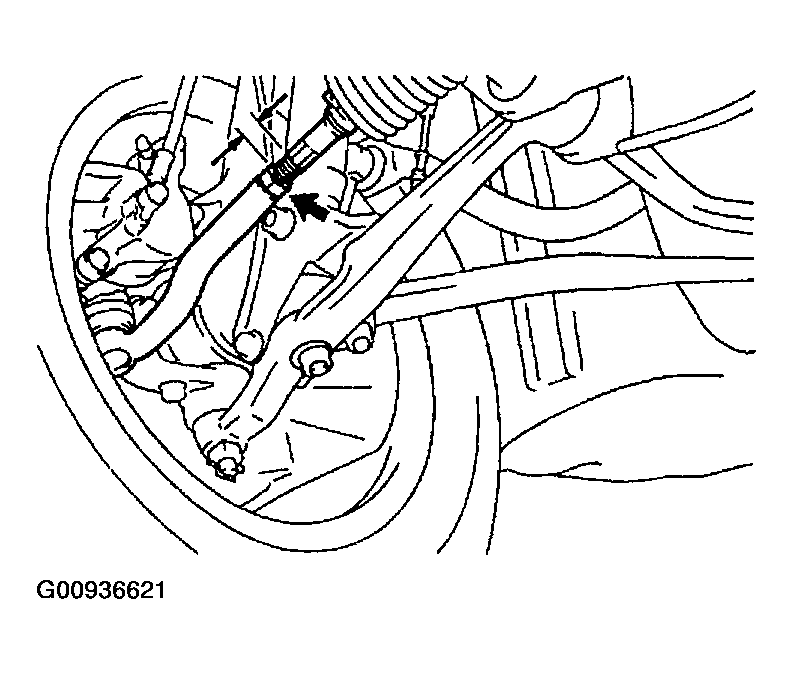

  Fig 6: Loosening Tie Rod End Lock Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Try to adjust the toe-in to the center value.

  Make sure that the lengths of the left and right rack ends are same.

  Rack end length difference: 1.5 mm (0.059 in.) or less
4. Torque the tie rod end lock nuts.
  Torque: 56 N.m (570 kgf.cm, 41 ft.lbf)
5. Place the boot on the seat and clamp it.
  HINT:

  Make sure that the boots are not twisted.
6. Perform VSC system calibration (See PRE-CHECK )
INSPECT WHEEL ANGLE
1. Turn the steering wheel fully, and measure the turning angle.

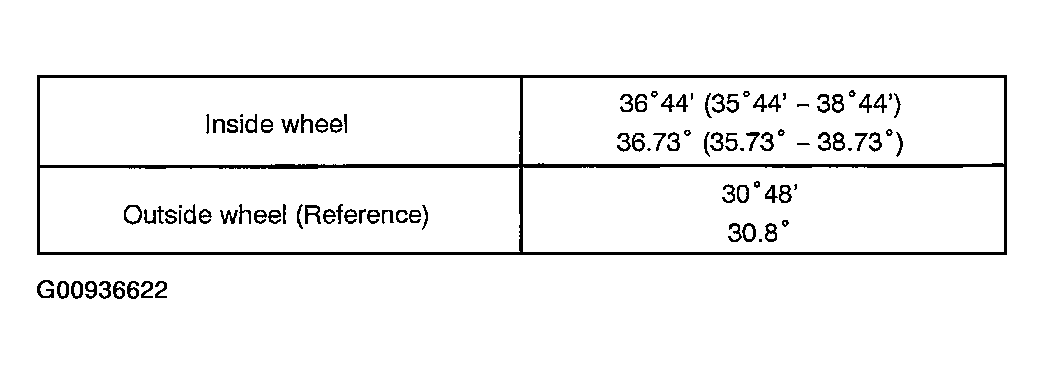

  Fig 7: Wheel Angle Specification Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the wheel angles differ from the standard of the specification, inspect the toe-in.

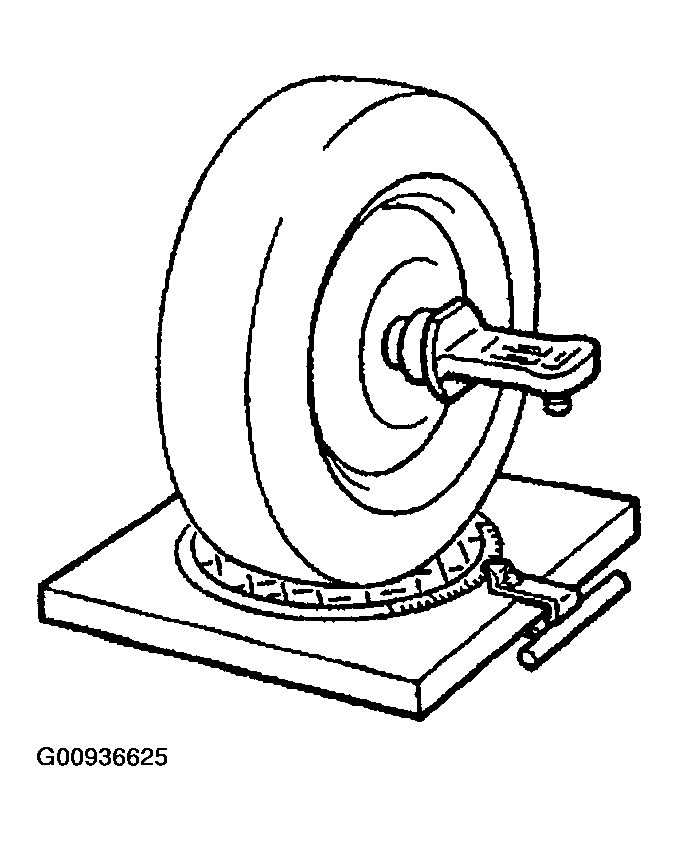

  Fig 8: Measuring Wheel Turning Angle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

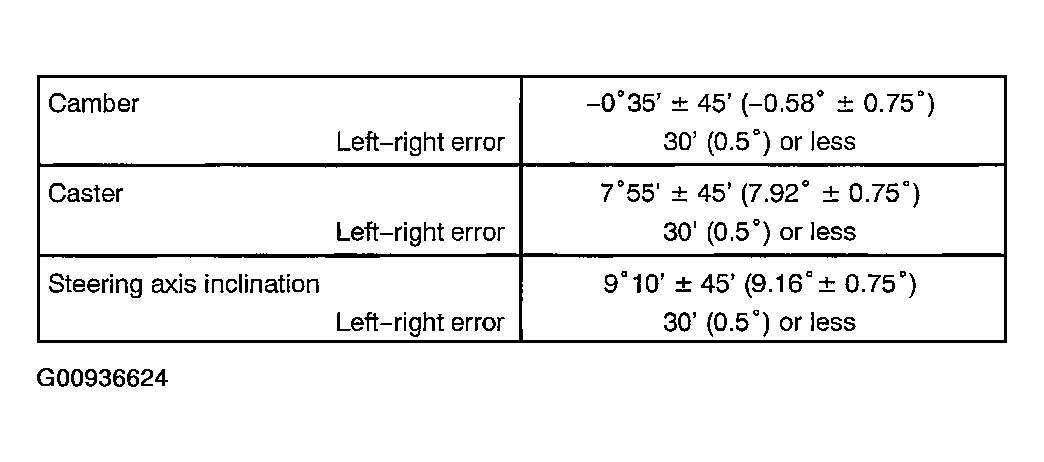

Fig 9: Camber, Caster & Steering Axis Inclination Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Inspecting Camber, Caster & Steering Axis Inclination
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the camber is not within the specification, adjust it by adjusting cam.
ADJUST CAMBER
HINT:
- After adjusting the camber, inspect the caster and toe-in.
- Try adjusting the camber to the center value of the specification.
1. Loosen the camber adjusting cam nut of the lower suspension arm.
2. Turn the camber adjusting cam of the lower suspension arm and adjust camber.
  HINT:

  Camber changes about 5' (0.08°) with each graduation of the adjusting cam.
3. Torque the camber adjusting cam nut of lower suspension arm.
  Torque: 172 N.m (1,755 kgf.cm, 127 ft.lbf)
