Rear Wheel Alignment: Adjustment

INSPECT TIRE (See ADJUSTMENT )
MEASURE VEHICLE HEIGHT (See ADJUSTMENT )
INSPECT CAMBER

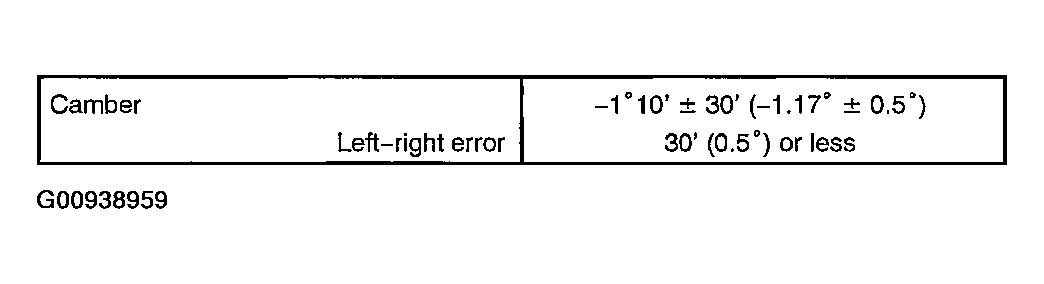

Fig 1: Camber Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TOE-IN

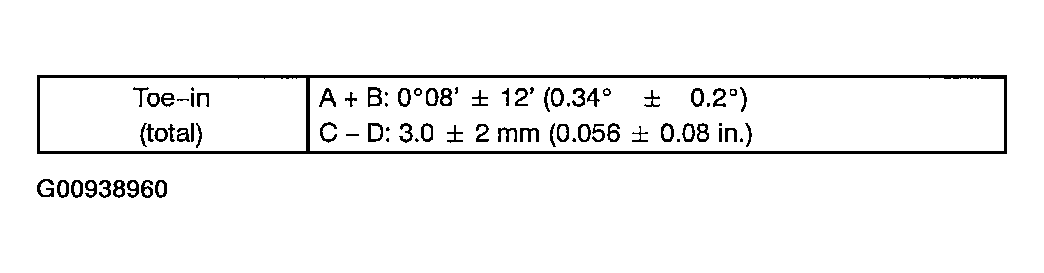

Fig 2: Toe-In Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

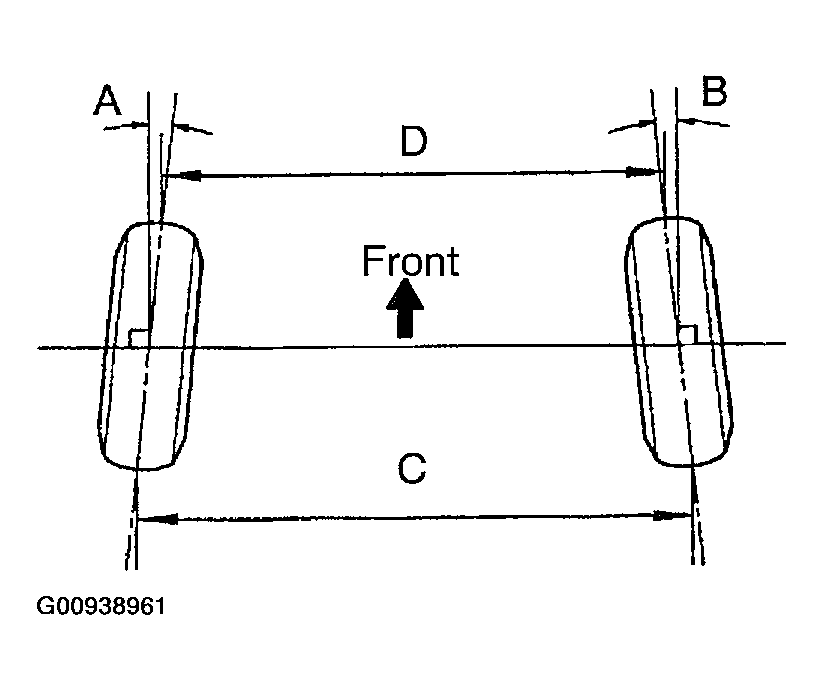

Fig 3: Measuring Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST CAMBER AND TOE-IN
1. Measure the lengths of the toe control link and No. 2 lower suspension arm, as shown in Fig 4 .
  Length: A - B = 4.0 mm (0.16 in.) or less

  If they are not within the specifications, adjust the lengths of them by turning the adjusting cam, as shown, until (A - B) is less than 4.0 mm (0.16 in.).
2. Measure the camber and toe-in.

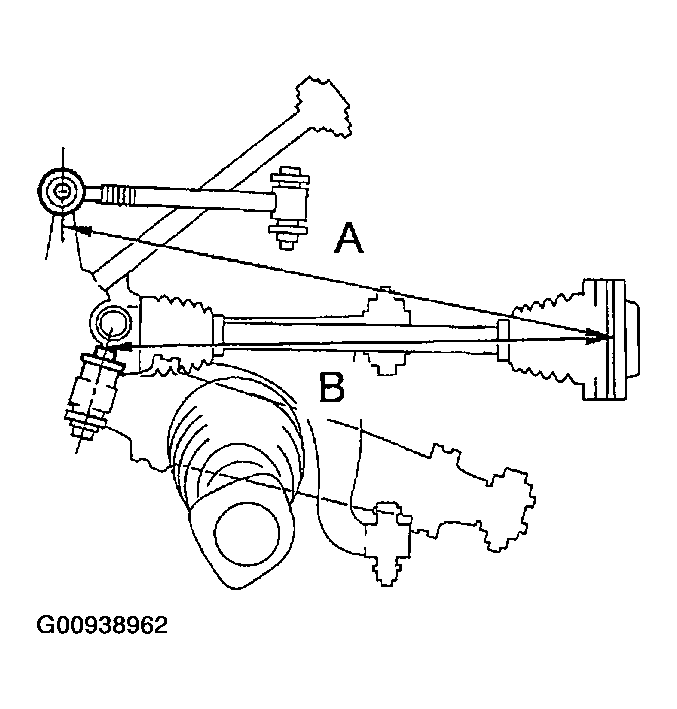

  Fig 4: Measuring Lengths Of Toe Control Link & No. 2 Lower Suspension Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the camber.
  1. Loosen the camber adjusting cam nut of lower suspension arm No. 2.
  2. Turn the camber adjusting cam of lower suspension arm No. 2 and adjust camber.
    HINT:

    Camber changes about 5.0' (0.08°) with each graduation of the cam.
  3. Torque the camber adjusting cam nut.
    Torque: 110 N.m (1,120 kgf.cm, 81 ft.lbf)

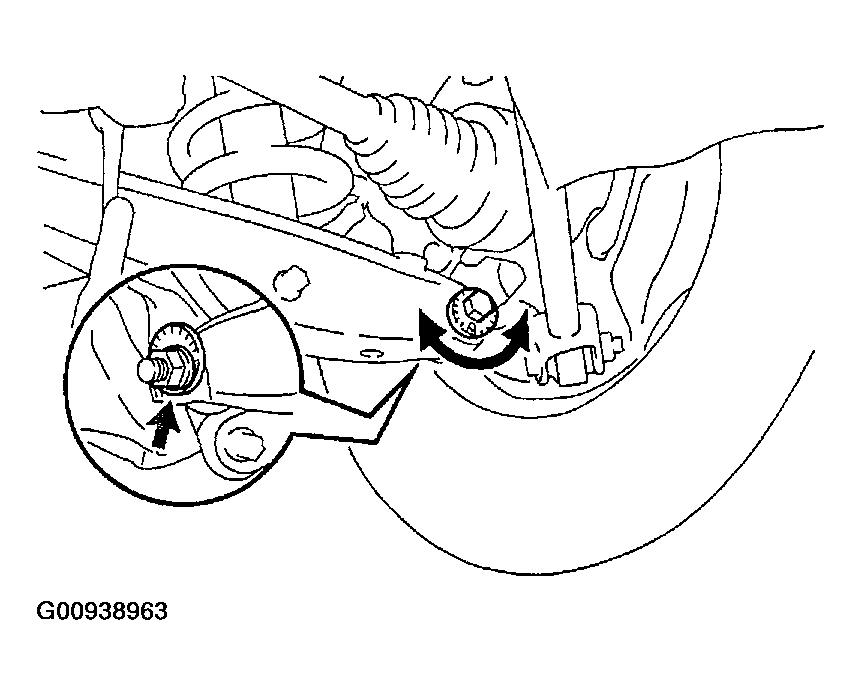

    Fig 5: Adjusting Camber
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Adjust the toe-in.
  1. Loosen the camber adjusting cam nut of toe control link.
  2. Turn the camber adjusting cam of toe control link and adjust toe-in.
    HINT:

    Camber changes about 5.0' (0.08°) with each graduation of the cam.
  3. Torque the camber adjusting cam nut.
    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

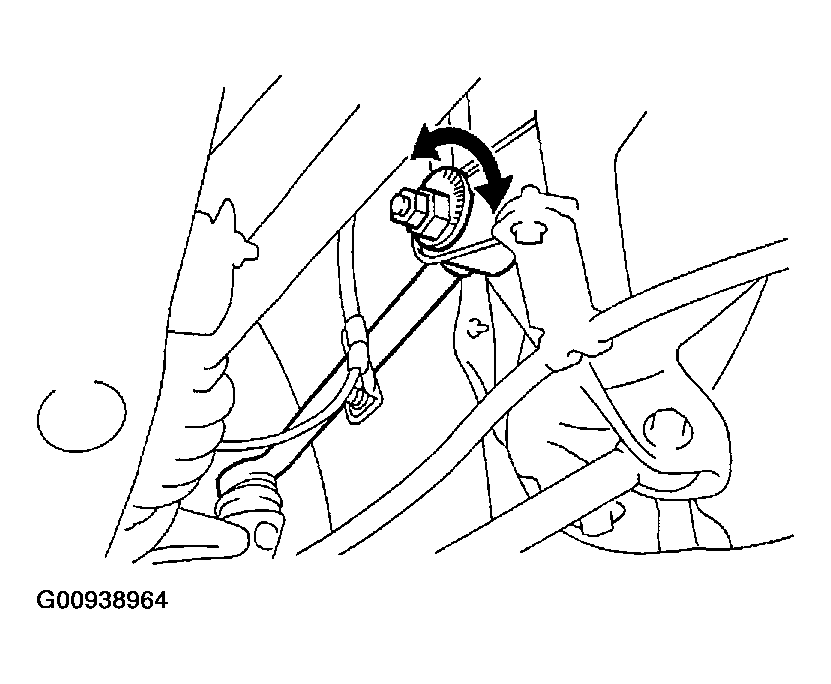

    Fig 6: Adjusting Toe-In
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
