Specifications & Procedures: Specifications

Use illustrations for wheel alignment specifications. See Fig 1 and Fig 2 .

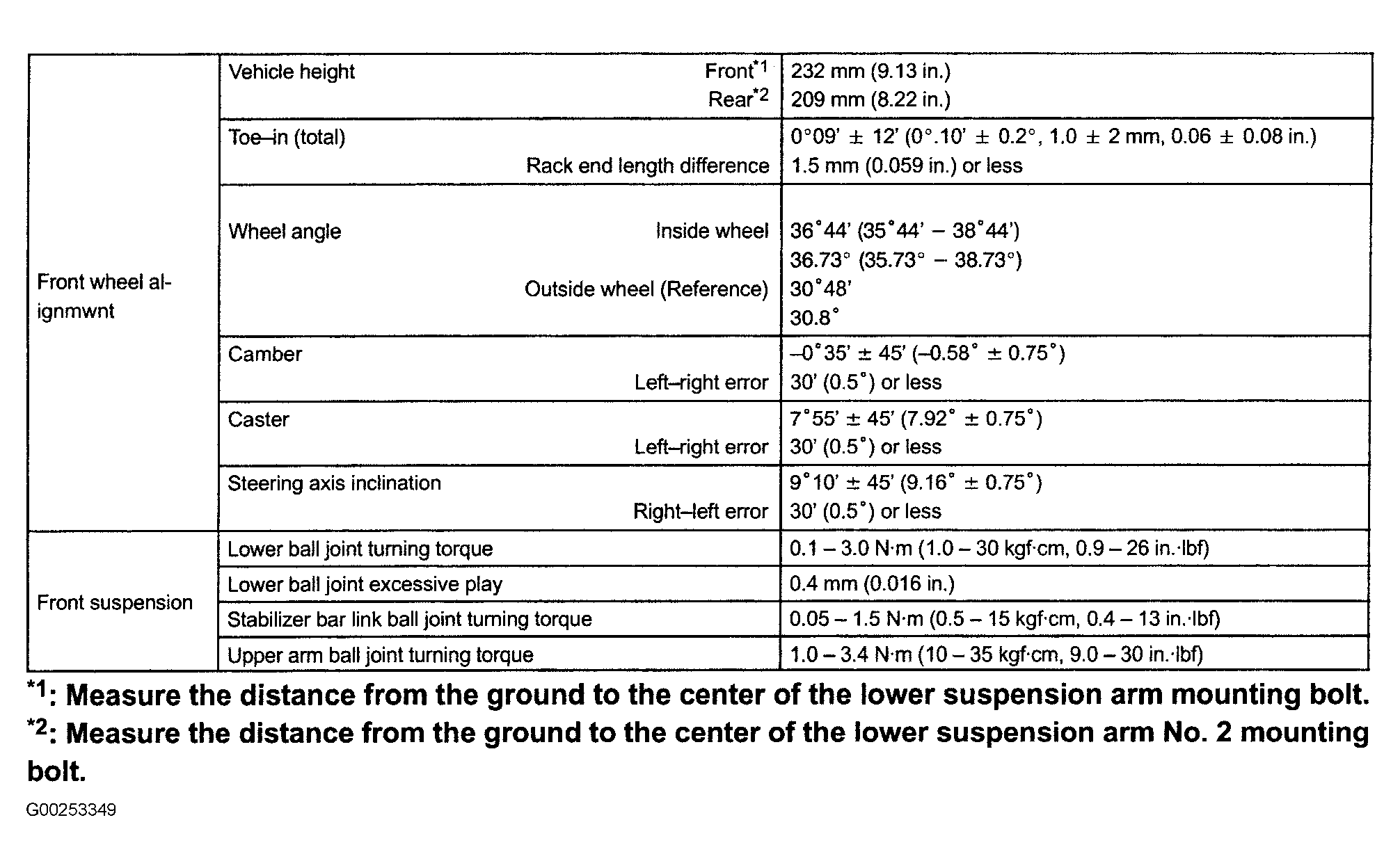

Fig 1: Front Wheel Alignment Specifications (SC 430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

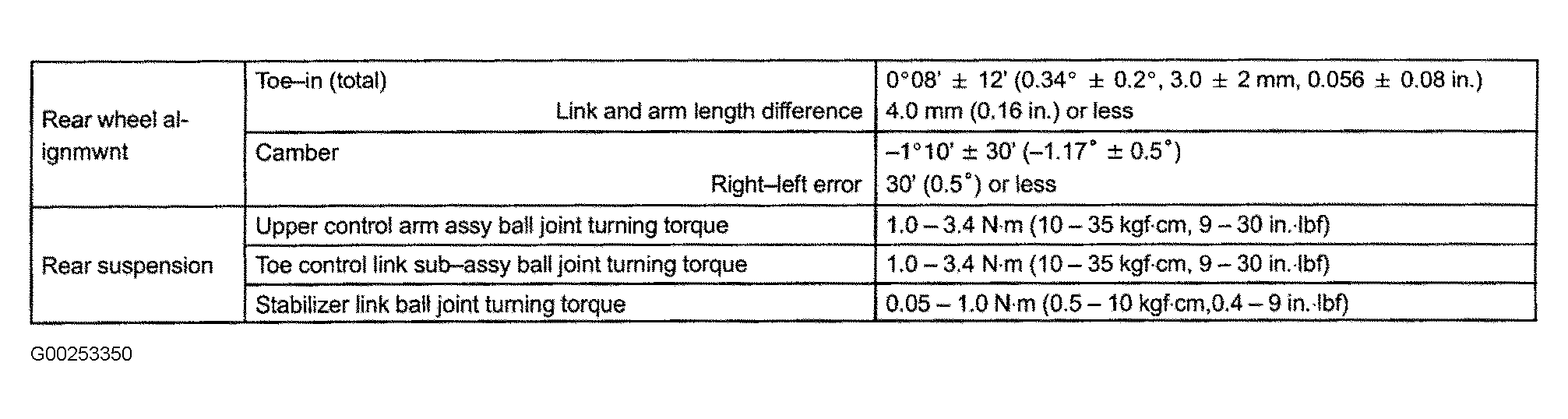

Fig 2: Rear Wheel Alignment Specifications (SC 430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
