Ignition Switch/Steering Lock: Replacement

REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See REPLACEMENT )
REMOVE IGNITION OR STARTER SWITCH ASSY
1. Disconnect the ignition switch connector and unlock warning switch connector.
2. Remove the clamp.
3. Remove the 2 screws and ignition switch.

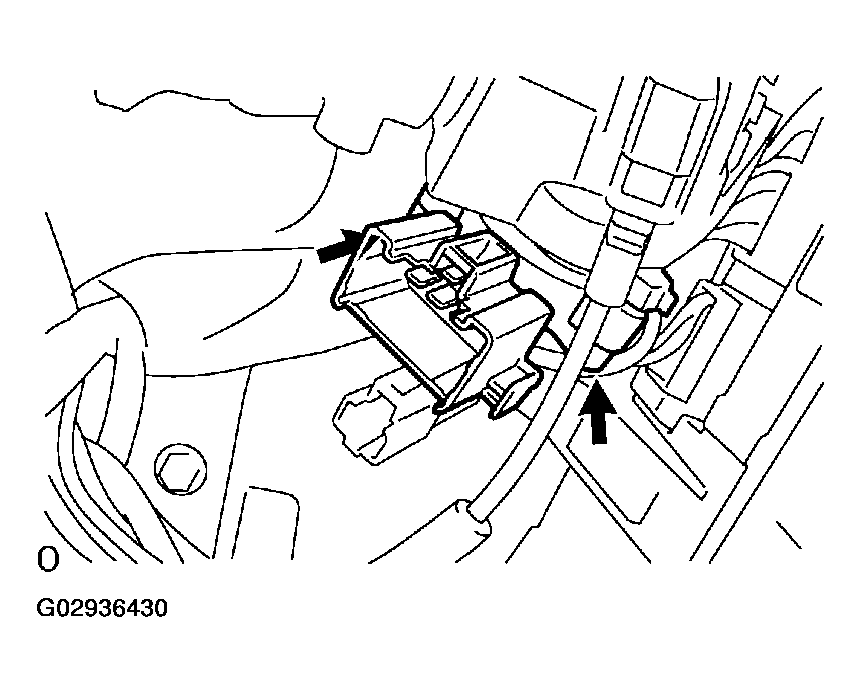

  Fig 1: Disconnecting Ignition Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
