Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G00263375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Dash & Center Console
G00263376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
Turn Signal Flasher Relay
Wiper Relay
Fig 3: Vehicle Overview
G00263377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REAR SUNSHADE CONTROL RELAY IDENTIFICATION

RELAY DESCRIPTION
Rear Sunshade Control Relay
Fig 4: Engine Room R/B
G00263378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE COMPARTMENT RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
DRL No.4 Relay (*1)
ADJ PDL Relay
DRL No.2 Relay (*1)
Fan No.3 Relay
MG CLT Relay
A/F HTR Relay
DRL No.3 Relay (*1)
Fan No.2 Relay
ST Relay
HTR Relay
Fig 5: ABS R/B
G00263379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE COMPARTMENT ABS RELAY BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
VSC MTR Relay
VSC CUT Relay
Fig 6: Engine Room J/B
G00263380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE COMPARTMENT JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Head Relay
Fan No.1 Relay
C/OPN Relay
Horn Relay
EFI Relay
Fig 7: Driver Side J/B
G00263381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE COMPARTMENT JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC Relay
IG1 Relay
Tail Relay
DEF Relay
Fog Relay

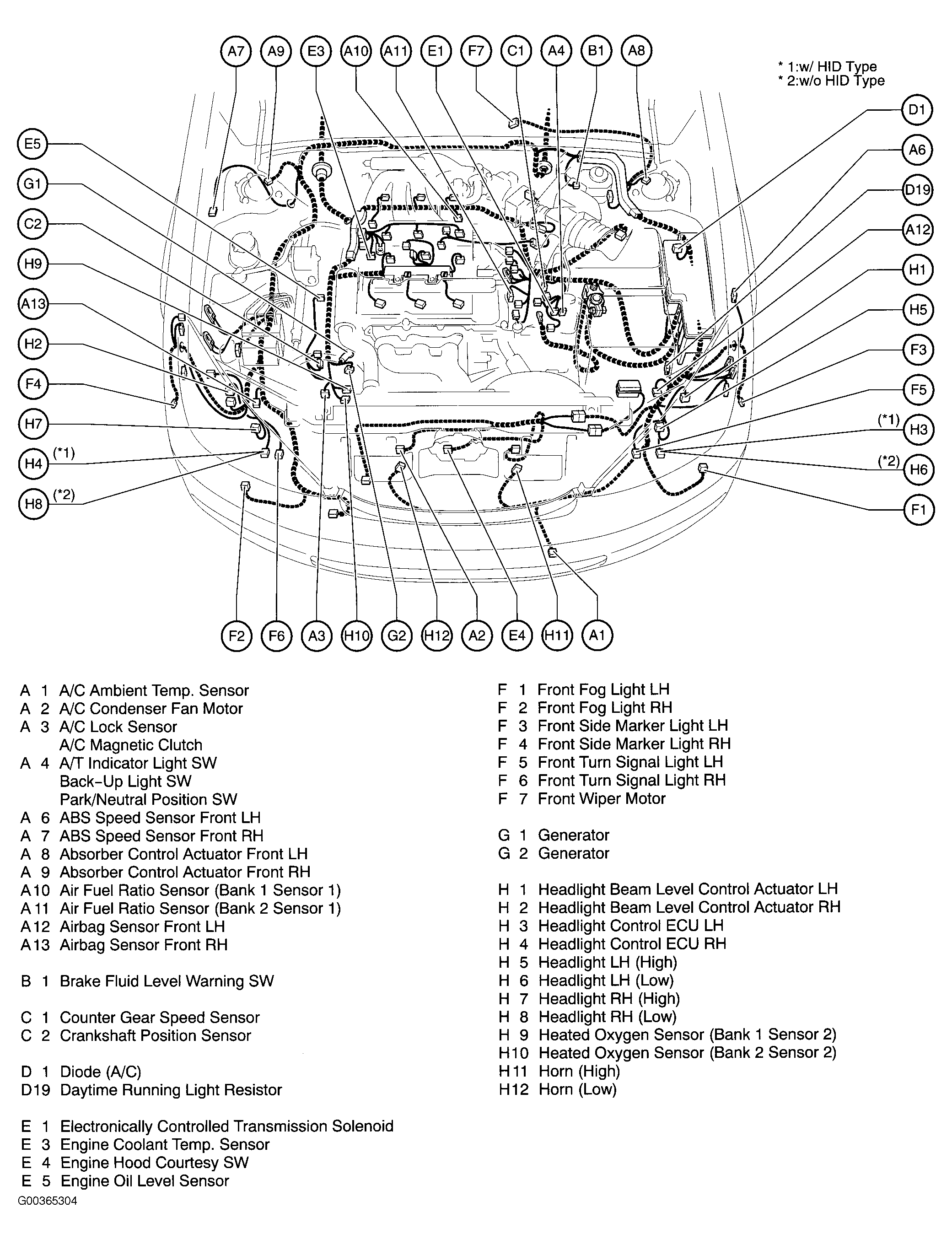

Fig 8: Engine Compartment
G00365304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Engine Compartment
G00263383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Dash & Center Console
G00263384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

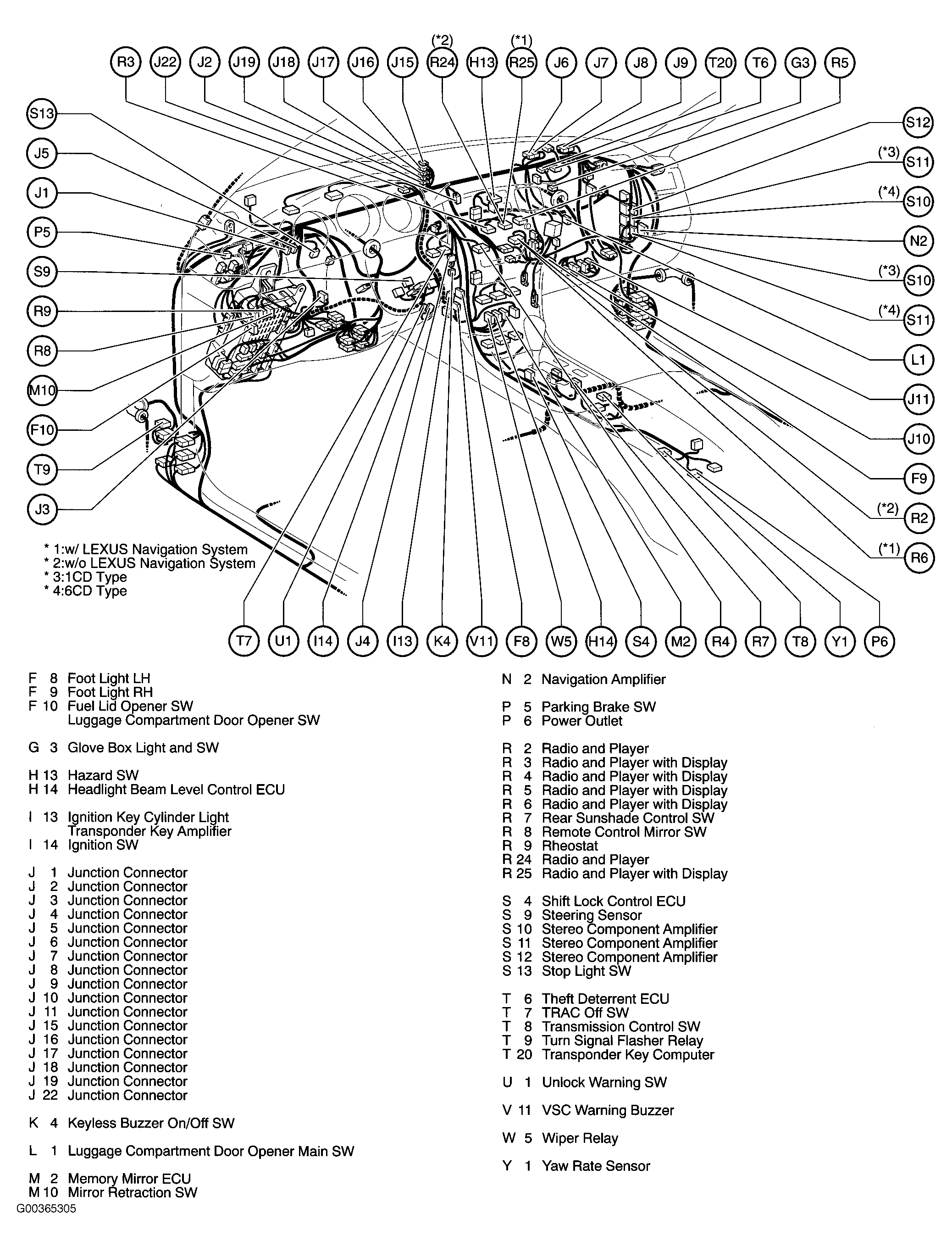

Fig 11: Dash & Center Console
G00365305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Vehicle Overview
G00263386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

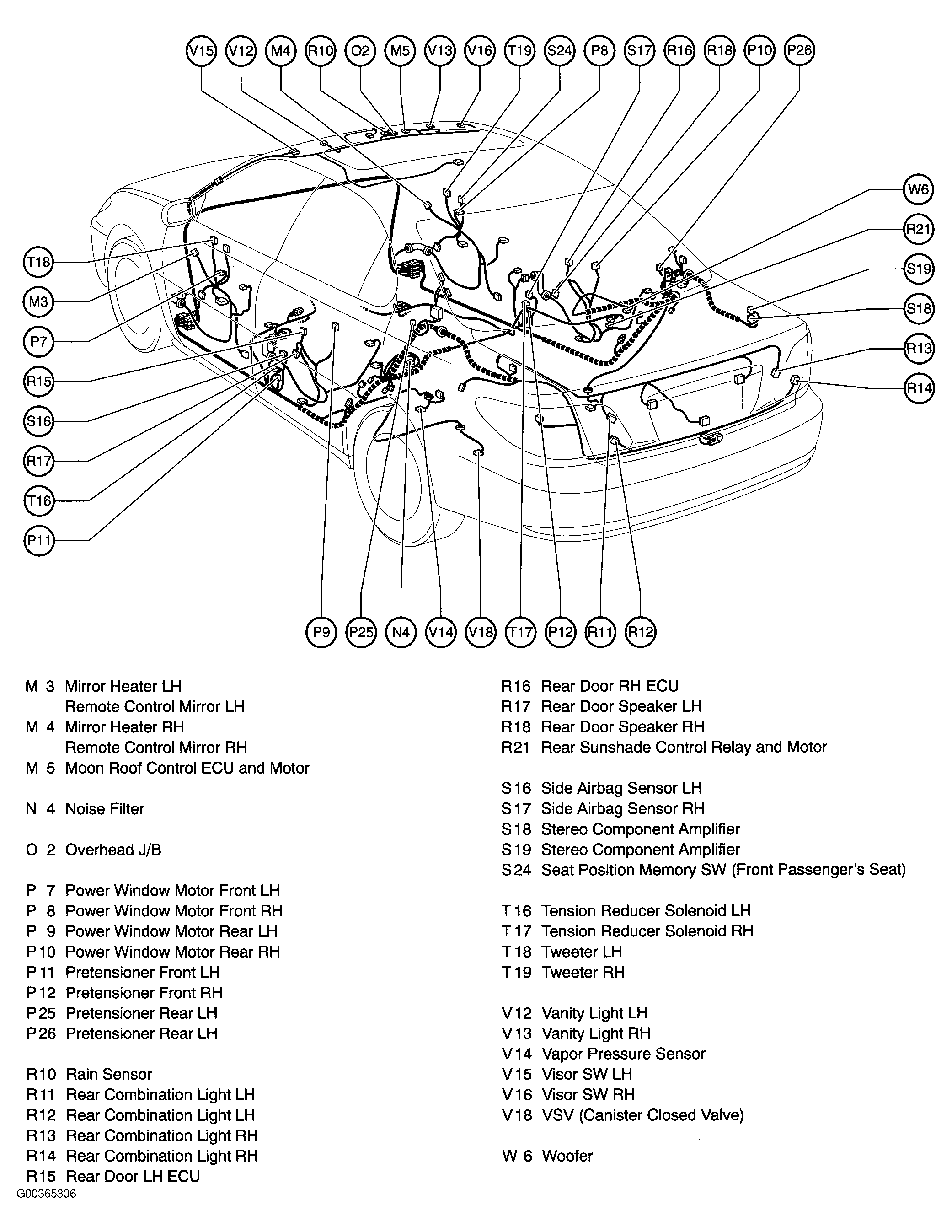

Fig 13: Vehicle Overview
G00365306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Front Seats
G00365307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

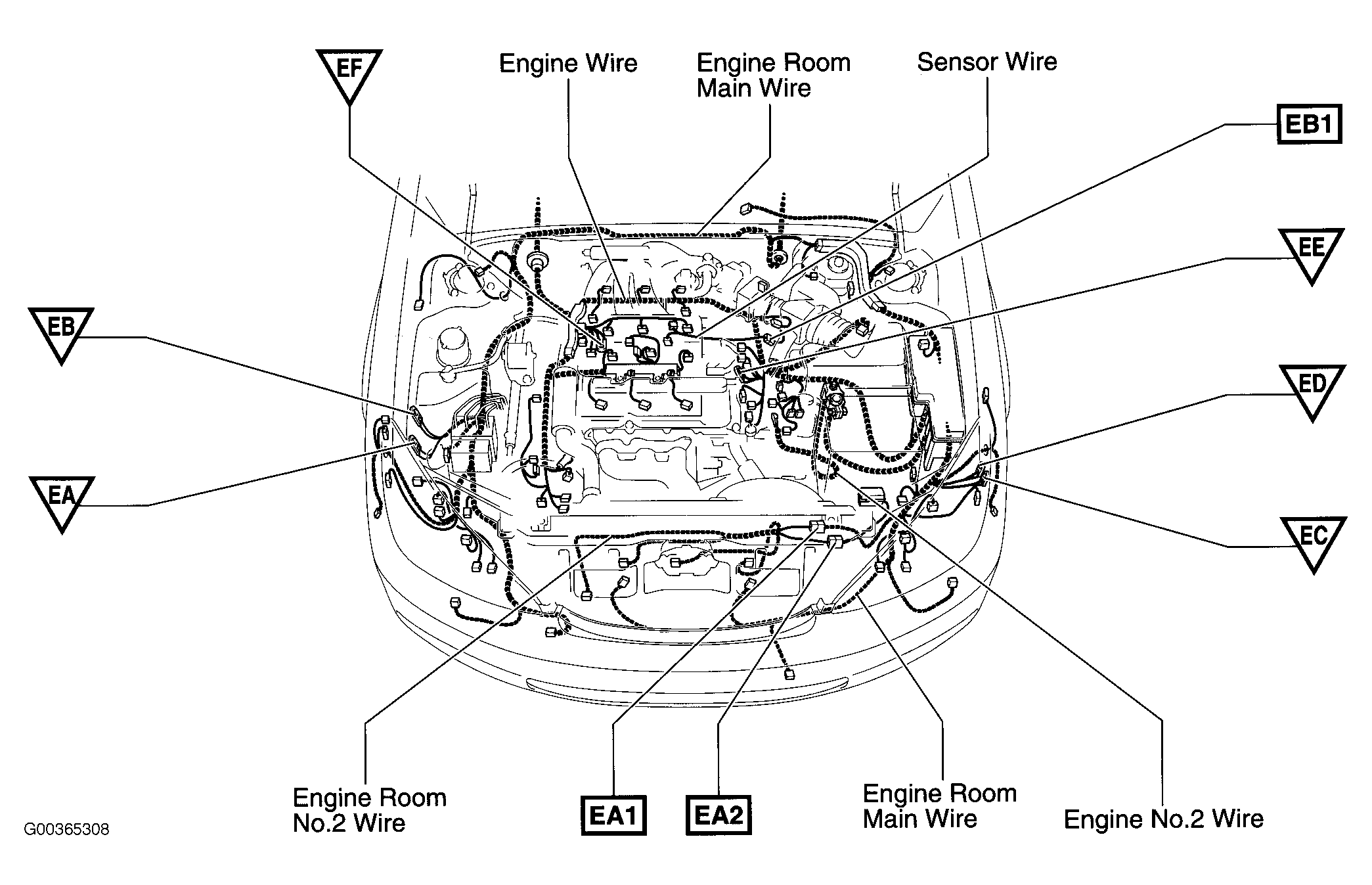

Fig 15: Engine Compartment Grounds
G00365308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

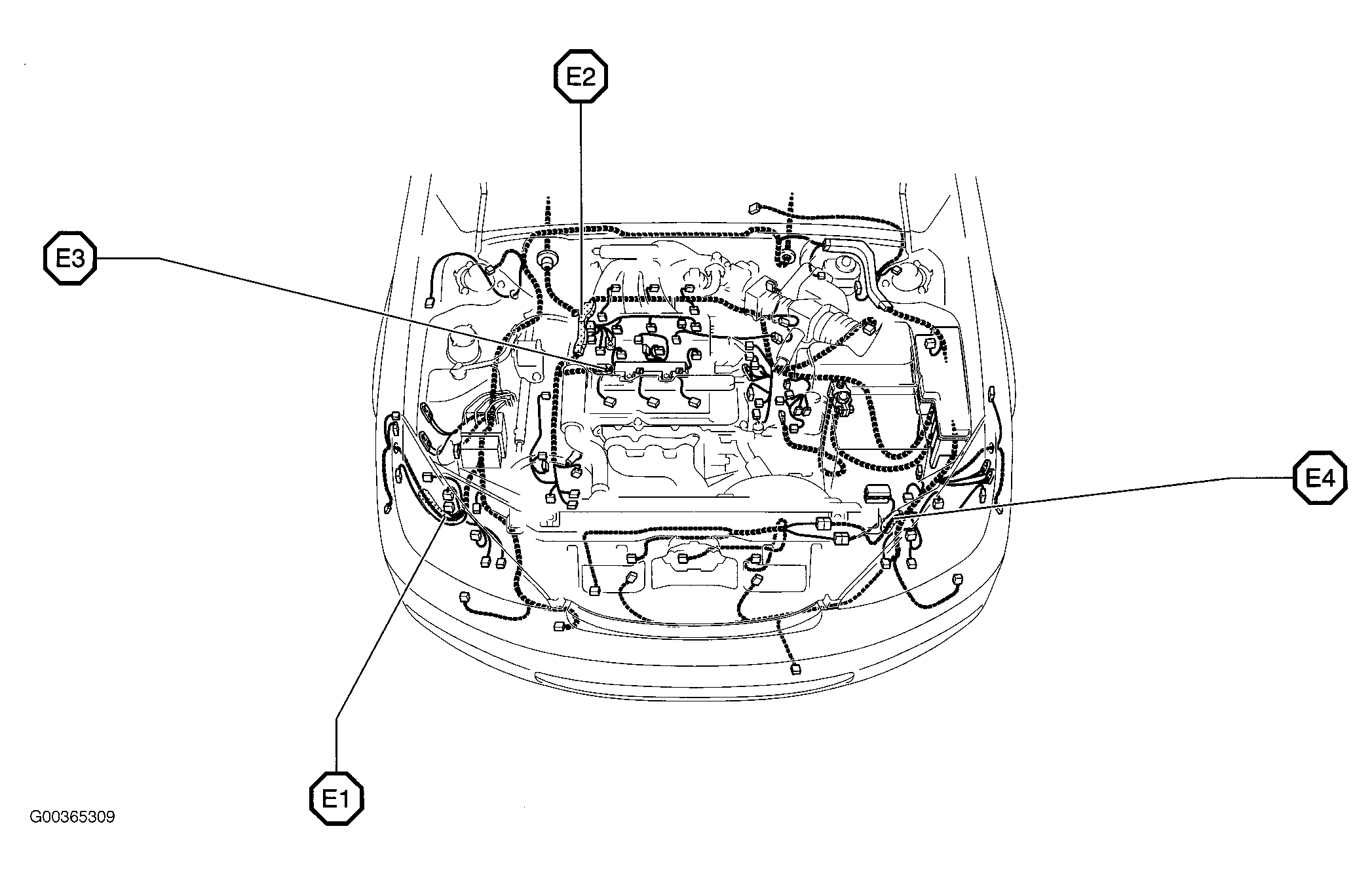

Fig 16: Engine Compartment Splices
G00365309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

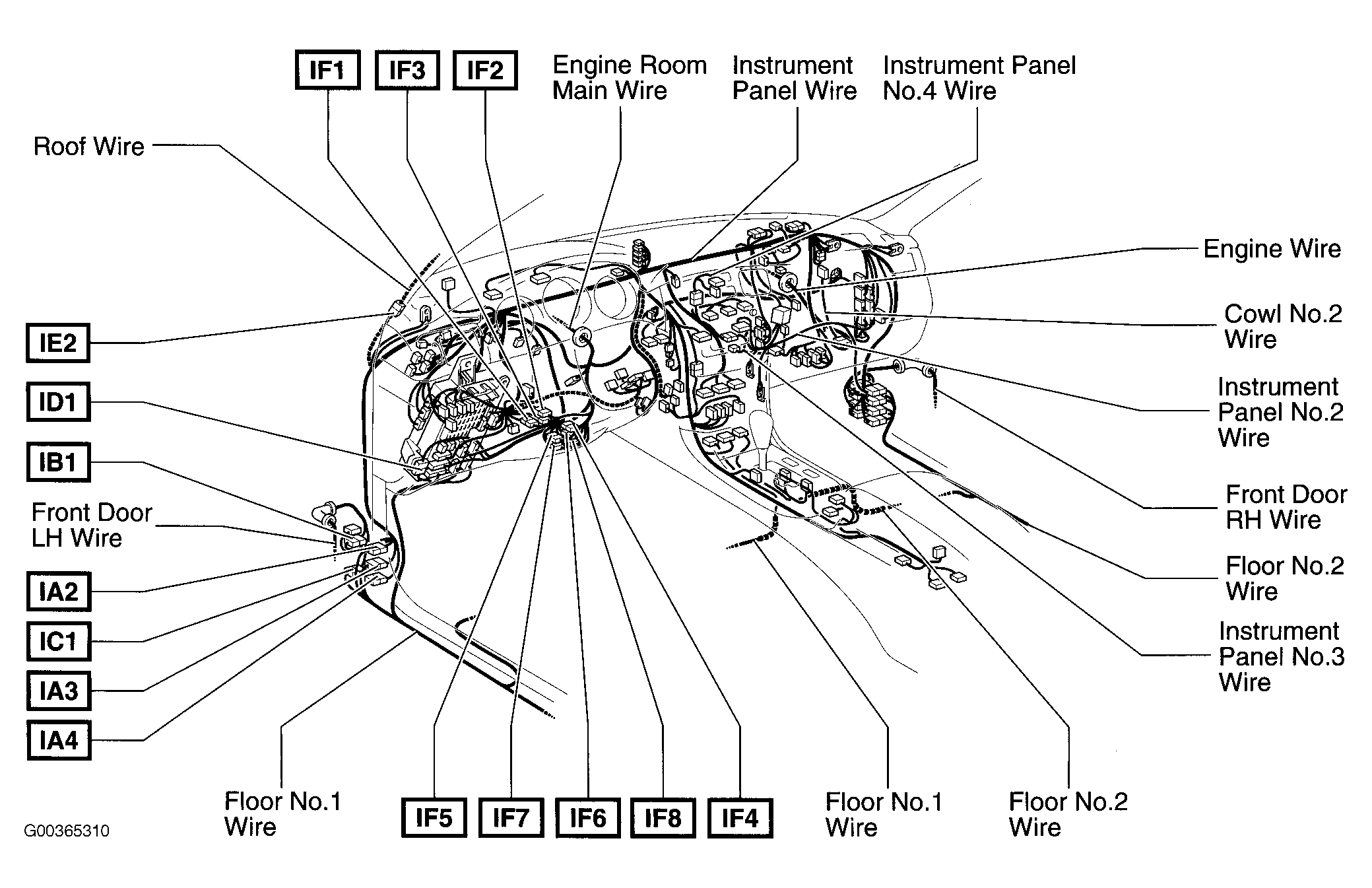

Fig 17: Dash & Center Console
G00365310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 18: Dash & Center Console
G00263392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 19: Dash & Center Console
G00263393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

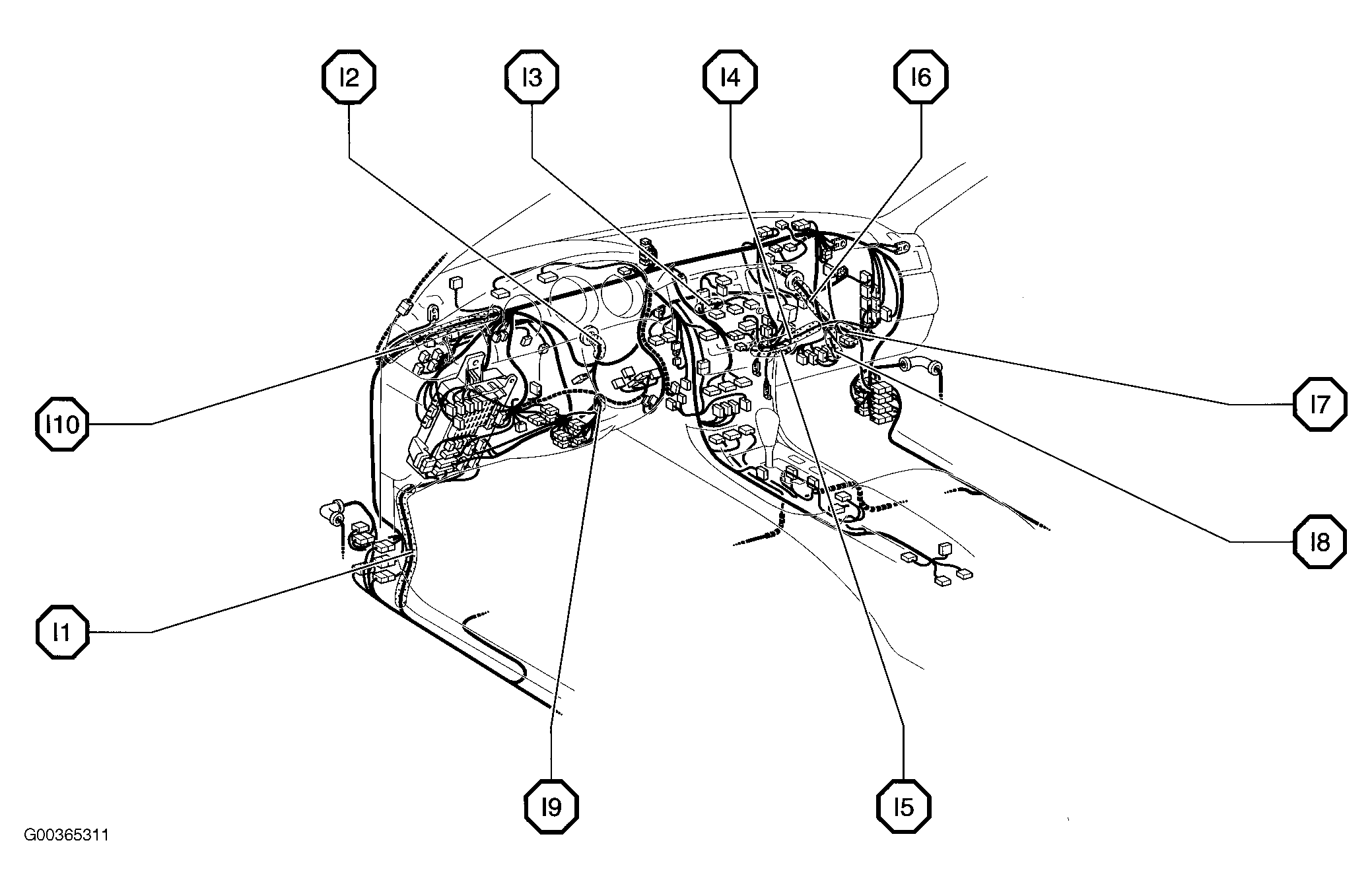

Fig 20: Dash & Center Console
G00365311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 21: Vehicle Overview
G00263395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 22: Vehicle Overview
G00263396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

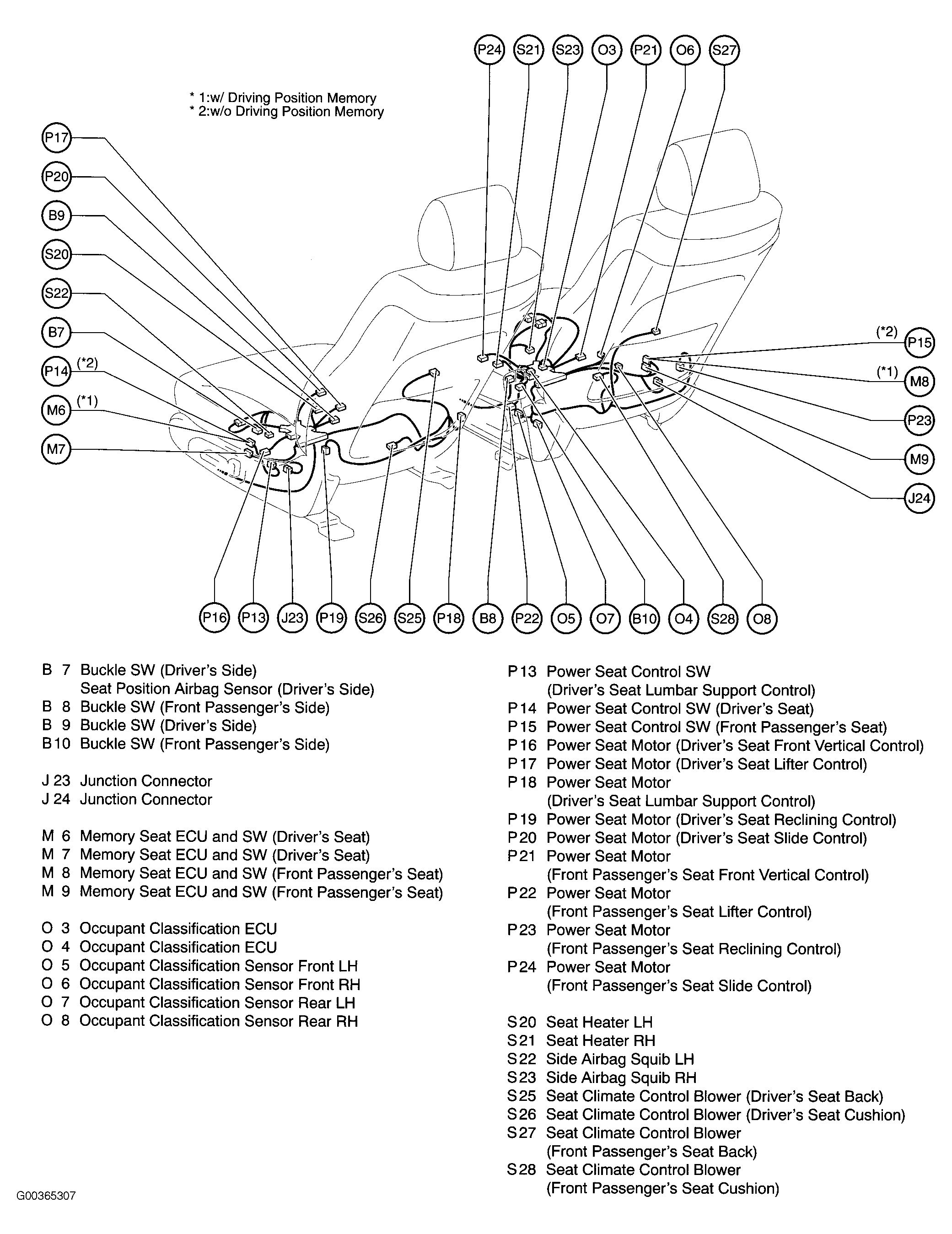

Fig 23: Front Seats
G00365312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

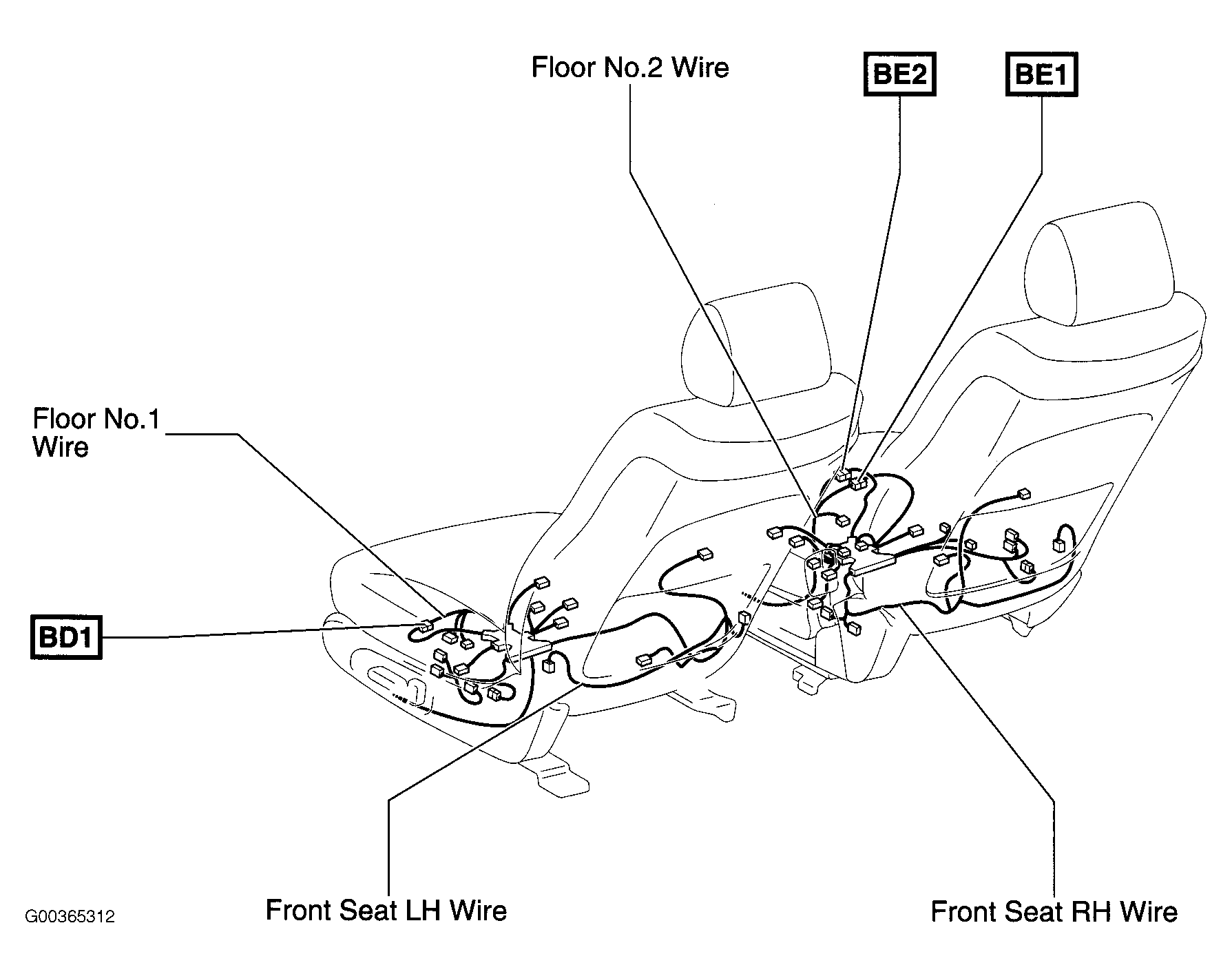

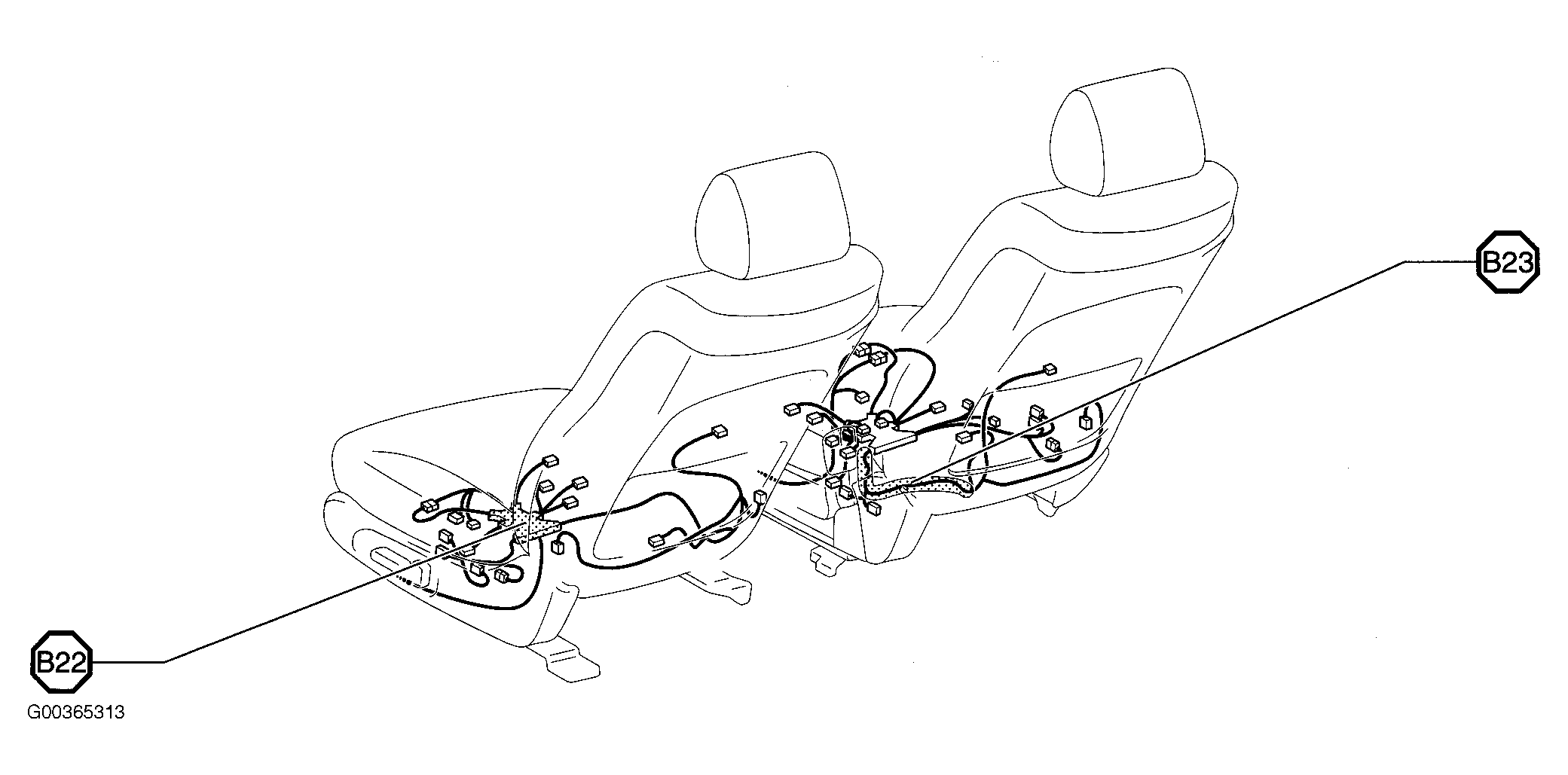

Fig 24: Front Seats
G00365313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
