Automatic Transmission / Trans: Preparation

SST

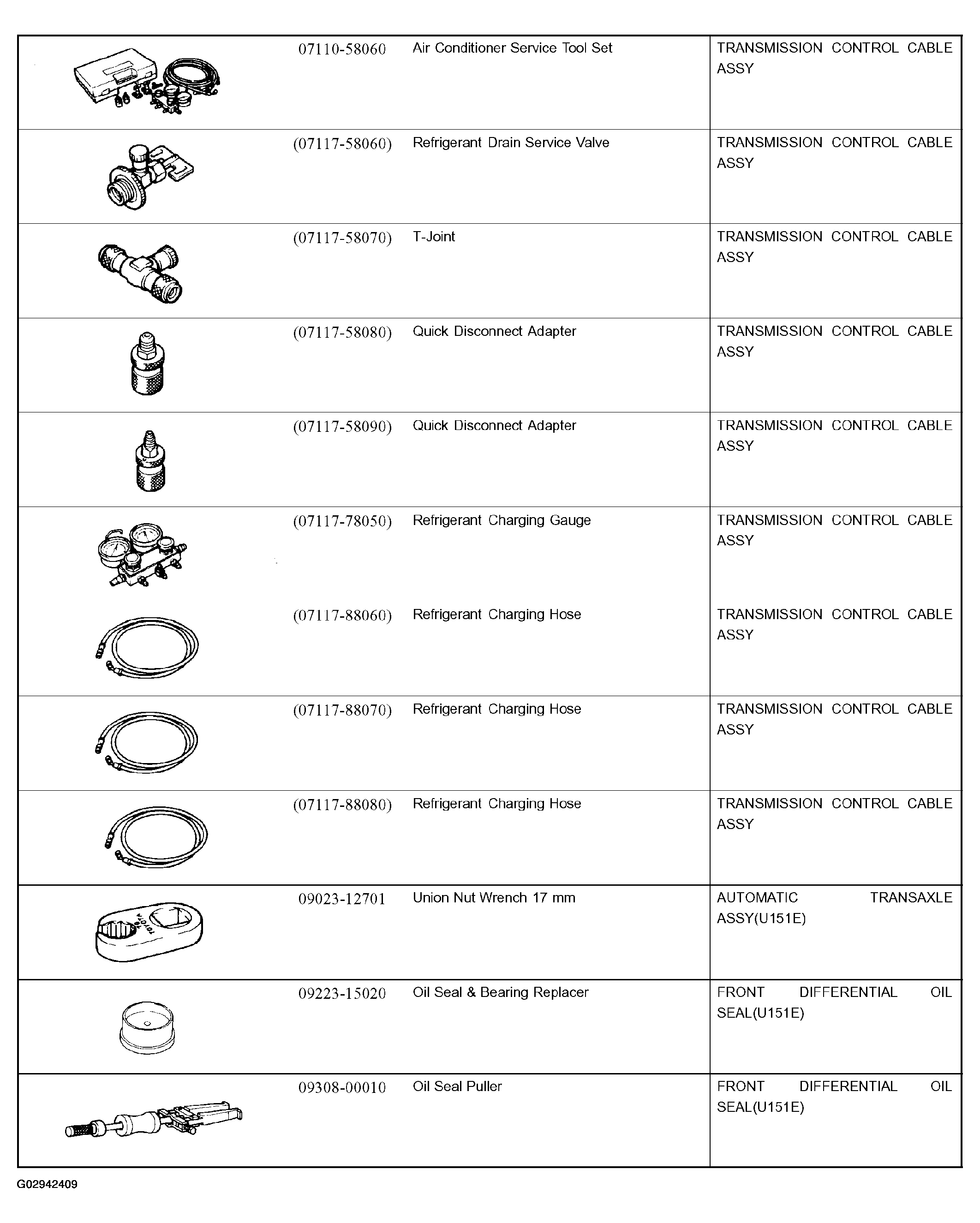

Fig 1: Automatic Transmission/Trans System SST Chart (1 Of 2)
G02942409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

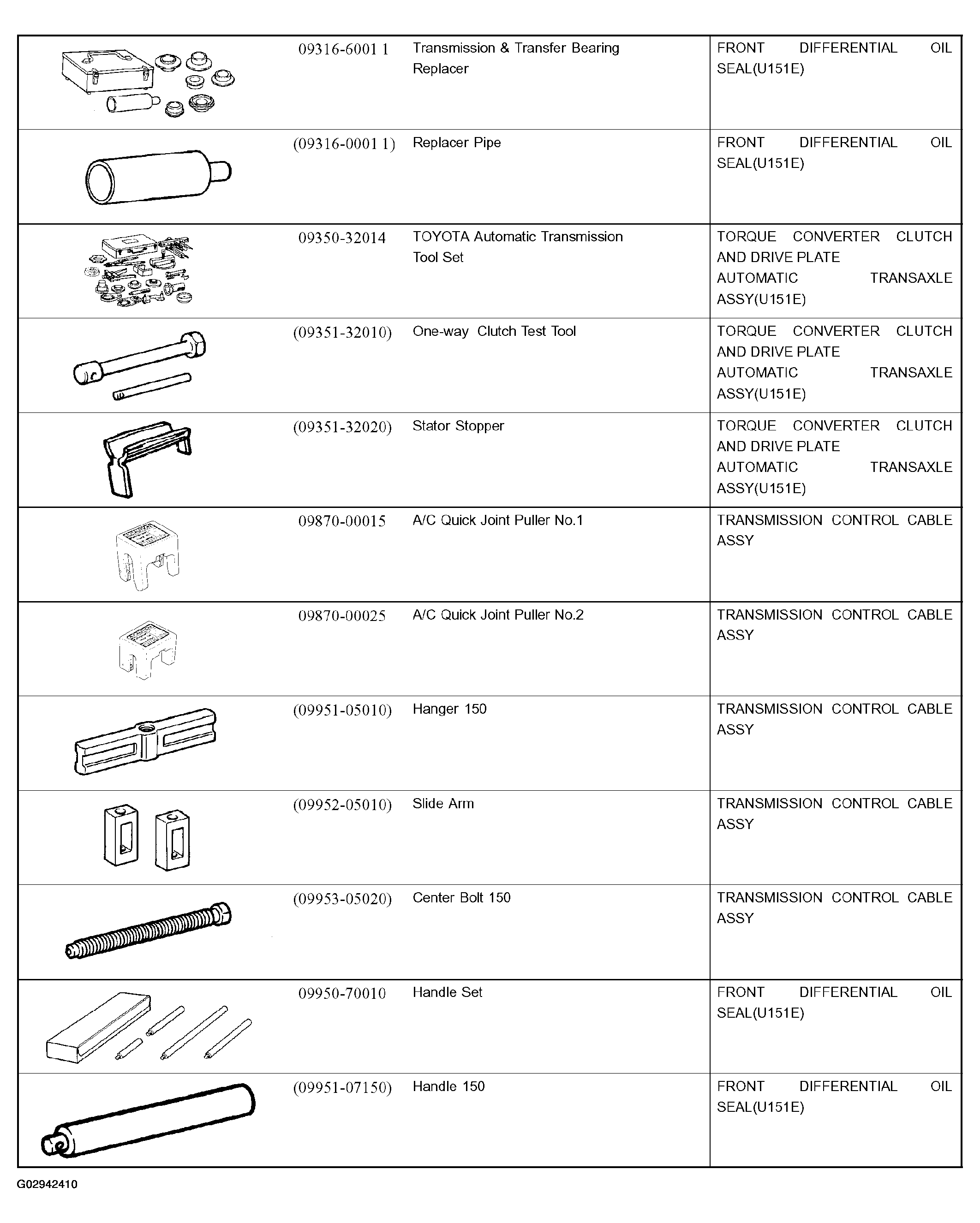

Fig 2: Automatic Transmission/Trans System SST Chart (2 Of 2)
G02942410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

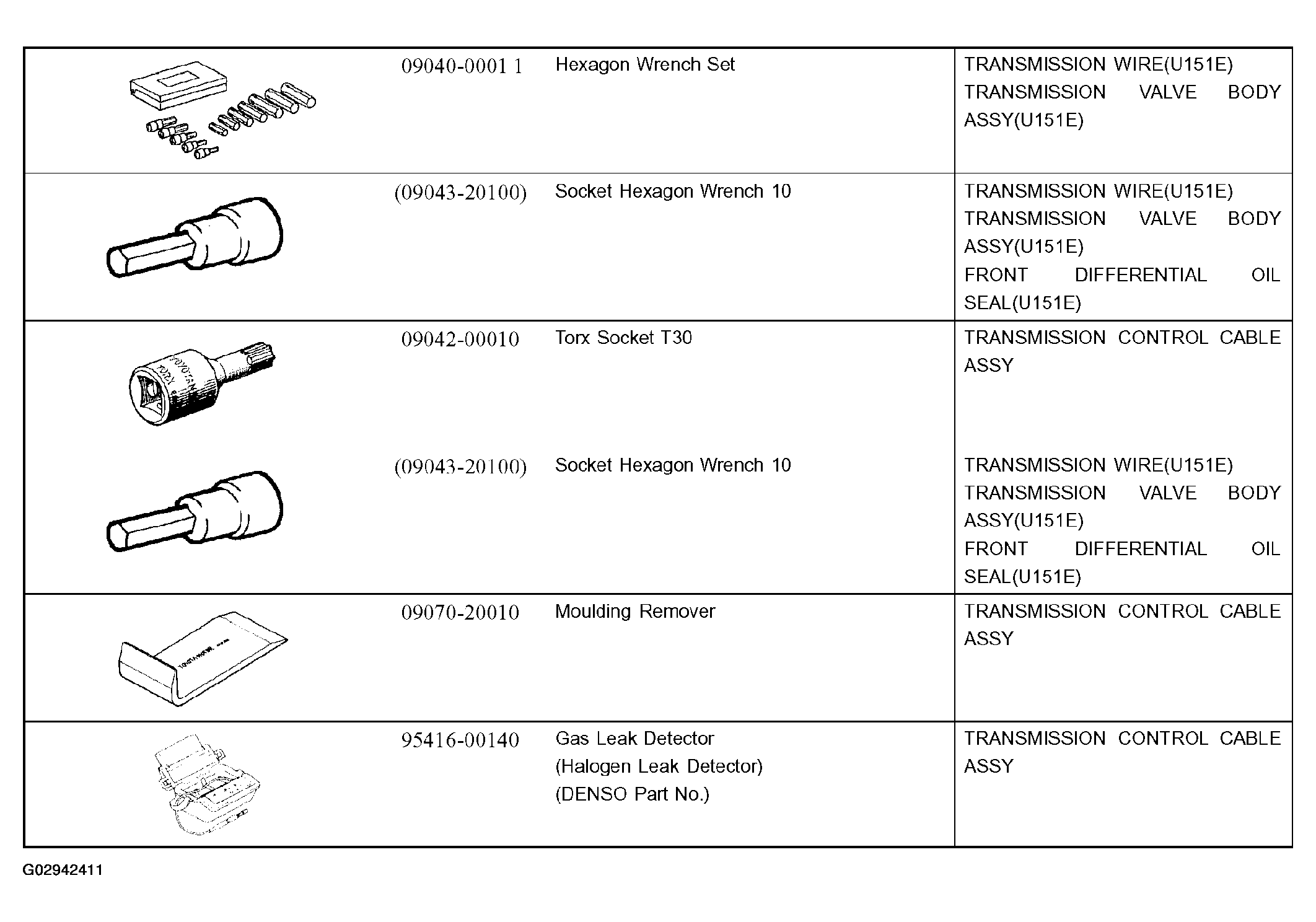

Recommended Tools

Fig 3: Automatic Transmission/Trans System Recommended Tools Chart
G02942411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

AUTOMATIC TRANSMISSION/TRANS. SYSTEM EQUIPMENT

Straight edge Torque converter
Vernier calipers Torque converter
Dial indicator or dial indicator with magnetic base Drive plate
Punch
Torque wrench

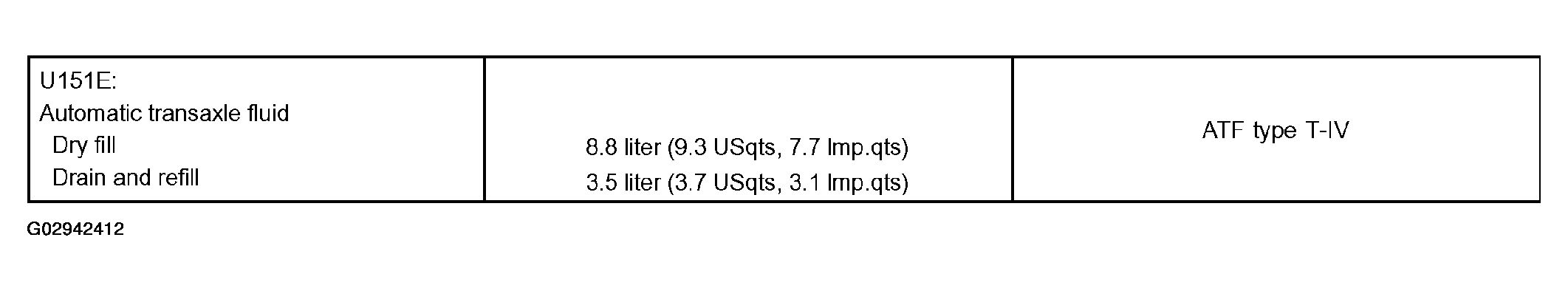

Lubricant

Fig 4: Automatic Transmission/Trans System Lubricant Table
G02942412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

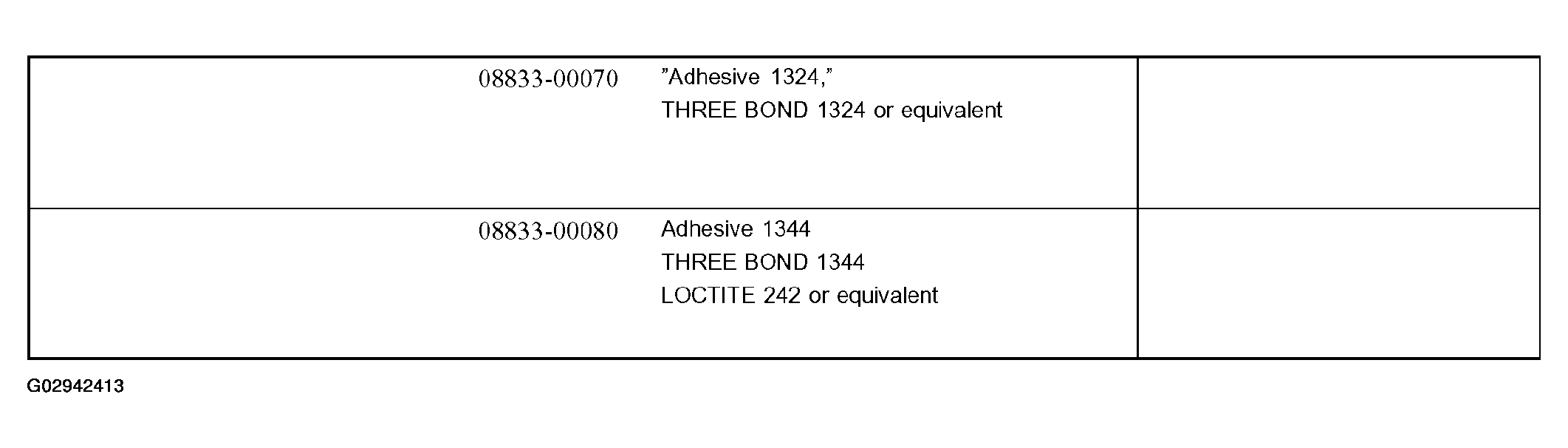

SSM (Special Service Materials)

Fig 5: Automatic Transmission/Trans System SSM Table
G02942413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
