Problem Symptoms Table

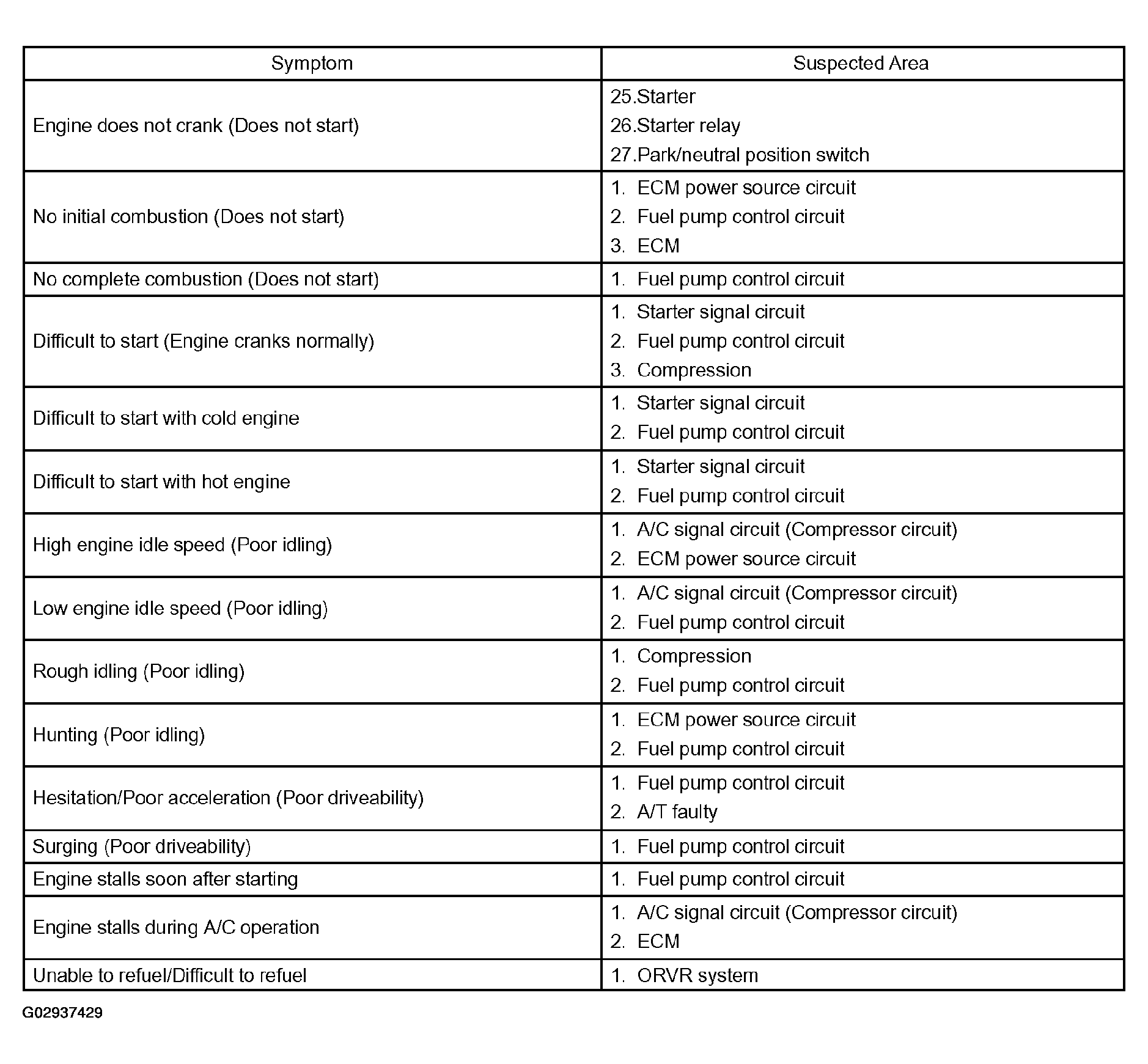

Fig 1: Problem Symptom Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
