Absorber Control Ecu: Replacement

REMOVE FRONT DOOR SCUFF PLATE LH (See REPLACEMENT )
REMOVE INSTRUMENT PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH (See REPLACEMENT )

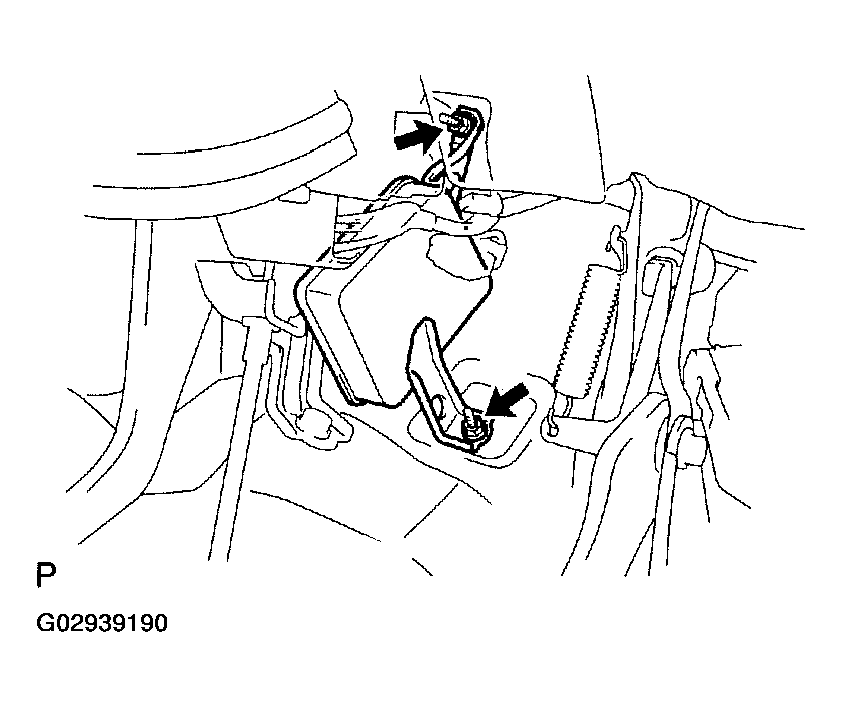

Fig 1: Locating Absorber Control ECU Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ABSORBER CONTROL ECU
1. Disconnect the 2 absorber control ECU connectors.
2. Remove the 2 nuts and absorber control ECU.
INSTALL ABSORBER CONTROL ECU
1. Install the absorber control ECU with the 2 nuts.
  1. Torque: 7.8 N.m (80 kgf.cm, 69 in..lbf)
2. Connect the 2 absorber control ECU connectors.
