Front Acceleration Sensor: Replacement

  1. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See  REPLACEMENT  )

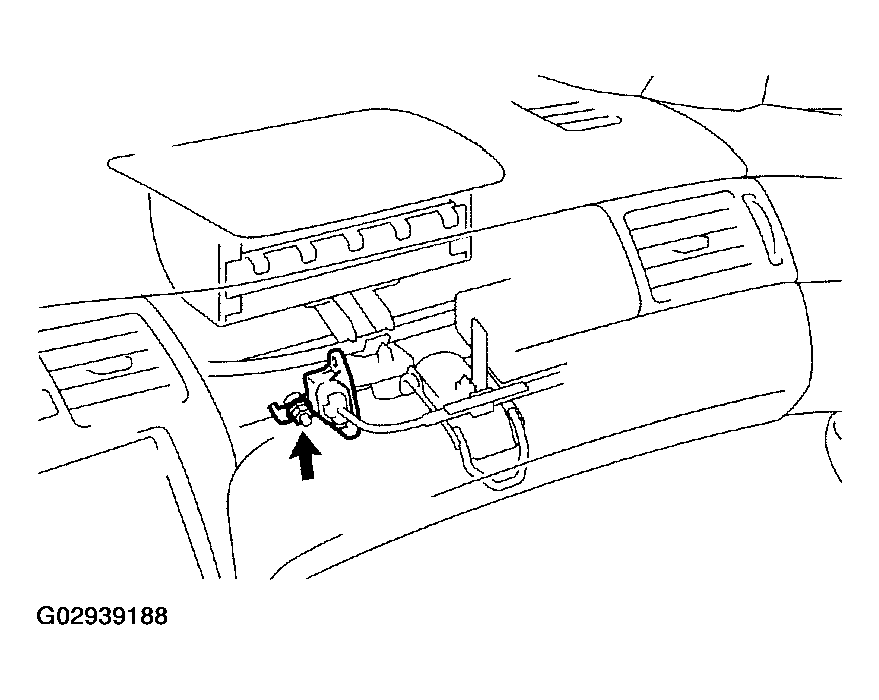

    Fig 1: Locating Sensor Assy Nut
    G02939188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ACCELERATION SENSOR ASSY
    1. Disconnect the acceleration sensor connector.
    2. Remove the nut and acceleration sensor from the instrument panel reinforcement.
  5. INSTALL ACCELERATION SENSOR ASSY
    1. Install the acceleration sensor with the nut.
      1. Torque: 7.8 N.m (80 kgf.cm, 69 in..lbf)
    2. Connect the acceleration sensor connector.
