Rear Acceleration Sensor: Replacement

  1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  2. REMOVE REAR SEATBACK ASSY (See  OVERHAUL  )
  3. REMOVE ROOF SIDE GARNISH INNER RH (See  REPLACEMENT  )

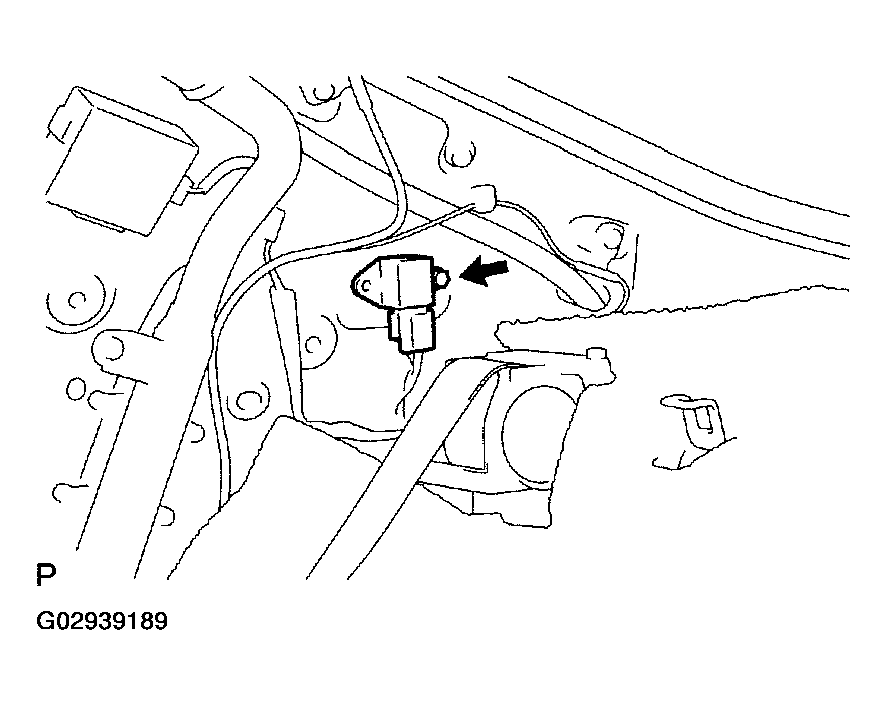

    Fig 1: Locating Acceleration Sensor Bolt RH
    G02939189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ACCELERATION SENSOR
    1. Disconnect the acceleration sensor connector.
    2. Remove the bolt and acceleration sensor from the side pillar RH.
  5. INSTALL ACCELERATION SENSOR
    1. Install the acceleration sensor with the bolt.
      1. Torque: 7.8 N.m (80 kgf.cm, 69 in..lbf)
    2. Connect the acceleration sensor connector.
