Flow Chart < A >

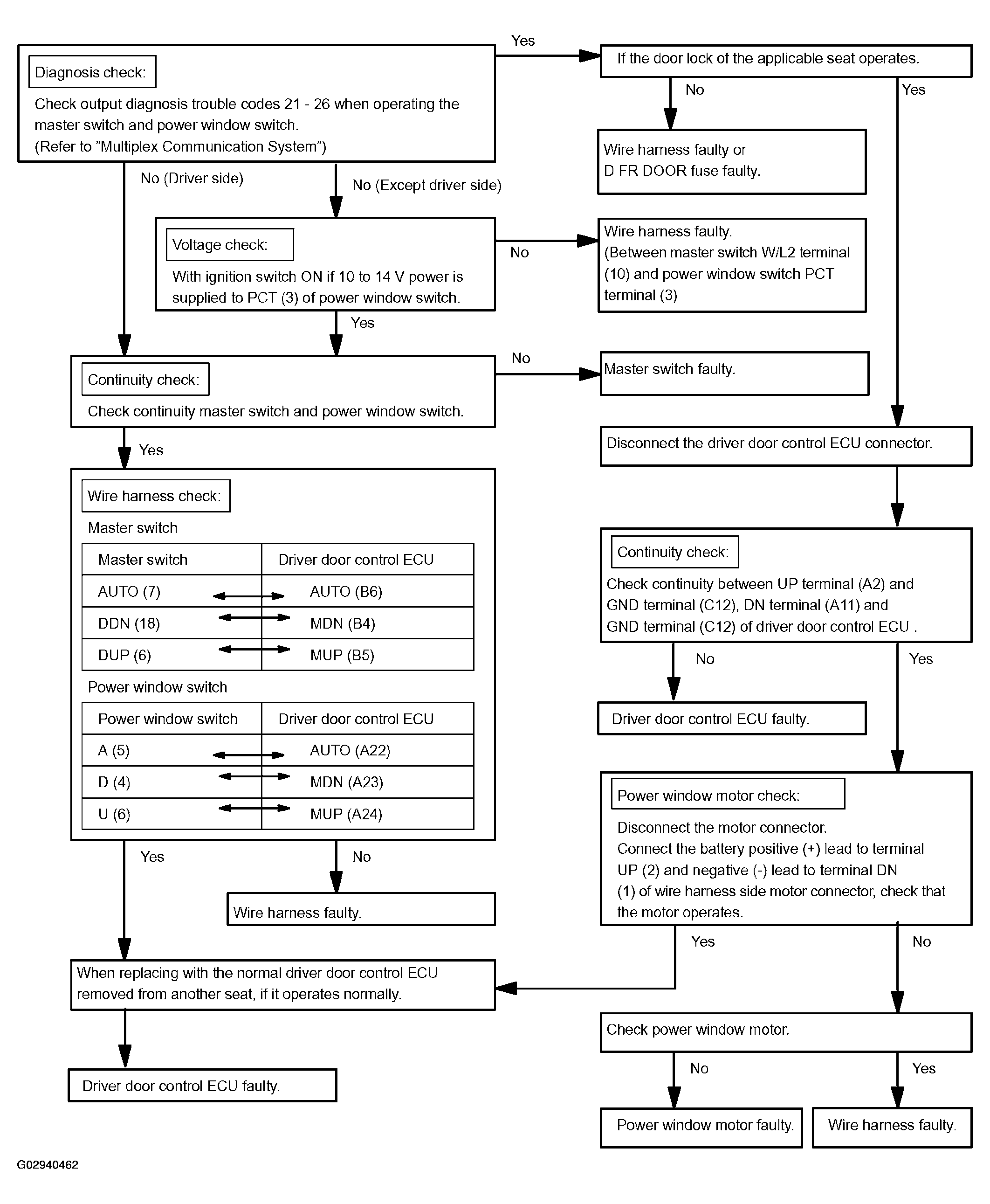

Only specific window does not operate (Neither manual nor automatic operation is available).

Fig 1: Only Specific Window Does Not Operate Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

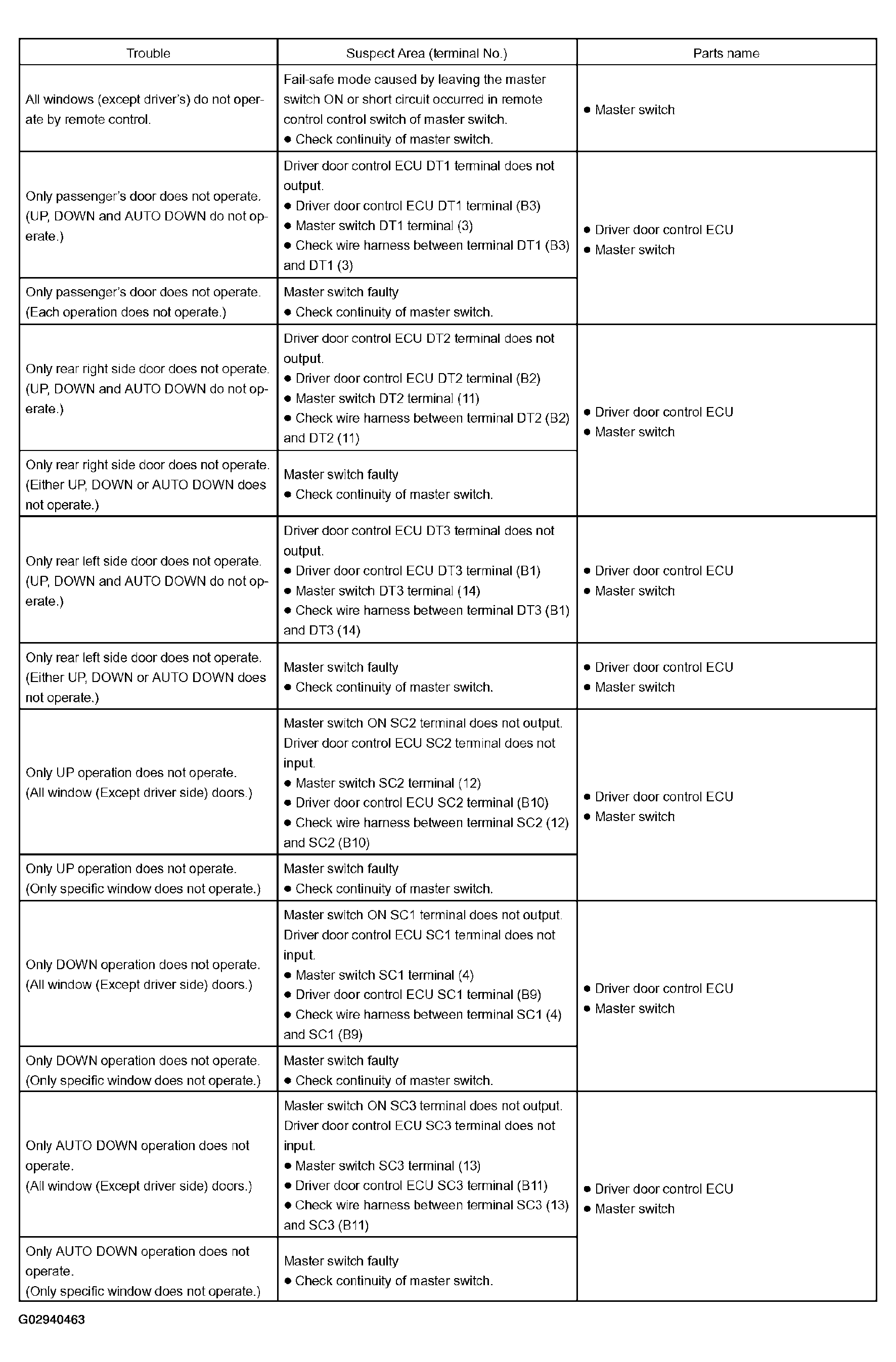

REMOTE CONTROL OF ALL WINDOWS (EXCEPT DRIVER'S) DOES NOT FUNCTION WITH MASTER SWITCH. (WINDOWS OPERATE NORMALLY WITH EACH OF MASTER SWITCHES.

Fig 2: Trouble Shooting Table (Remote Control Of All Windows)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

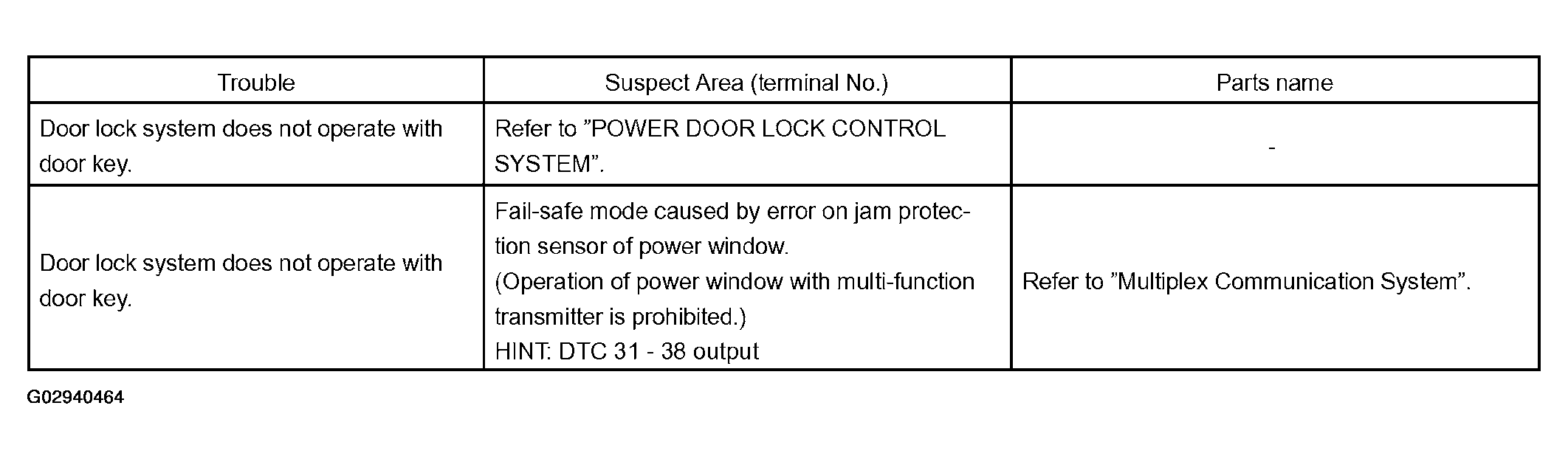

THE KEY RELATED POWER WINDOW OPERATION DOES NOT OPERATE WITH DRIVER Side Door KEY CYLINDER. (MASTER SWITCH OPERATION IS NORMAL.)

Fig 3: Trouble Shooting Table Key Related Power Windows Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
POWER WINDOW DOES NOT OPERATE WITH MULTI-FUNCTION TRANSMITTER. (WINDOWS OPERATE NORMALLY WITH MASTER SWITCH.)

Fig 4: Trouble Shooting Table Power Window Does Not Operate With Multi-Function Thermistor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

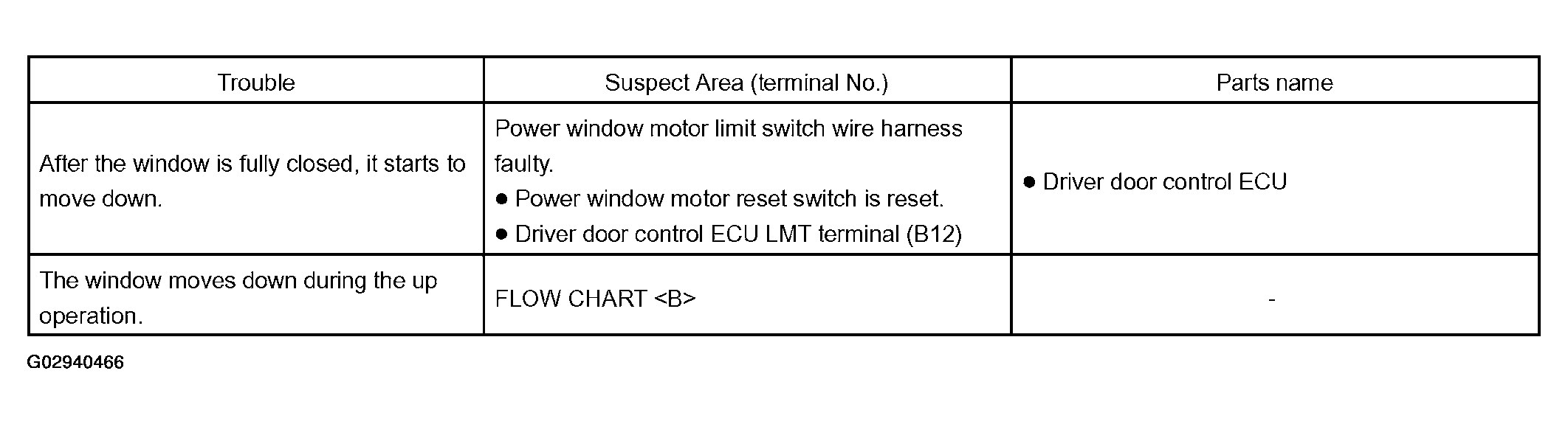

WINDOW MOVES DOWN WITHOUT BEING ORDERED DURING THE UP OPERATION

Fig 5: Trouble Shooting Table (Window Moves Down Without Being Ordered During Up Operation)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
