SST (Special Service Tools)

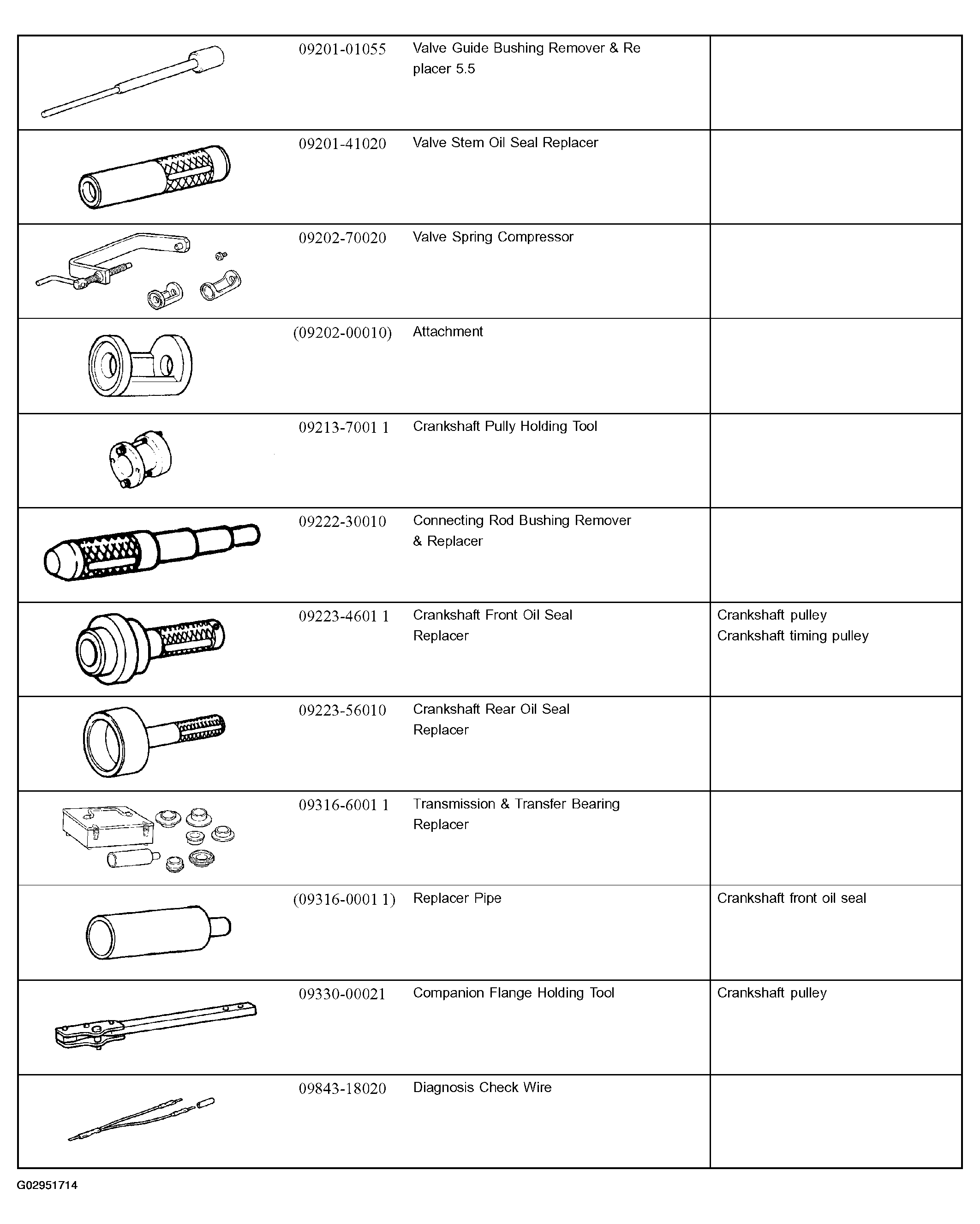

Fig 1: Identifying Special Service Tools - Engine Mechanical (3UZ-FE) (1 of 2)
G02951714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

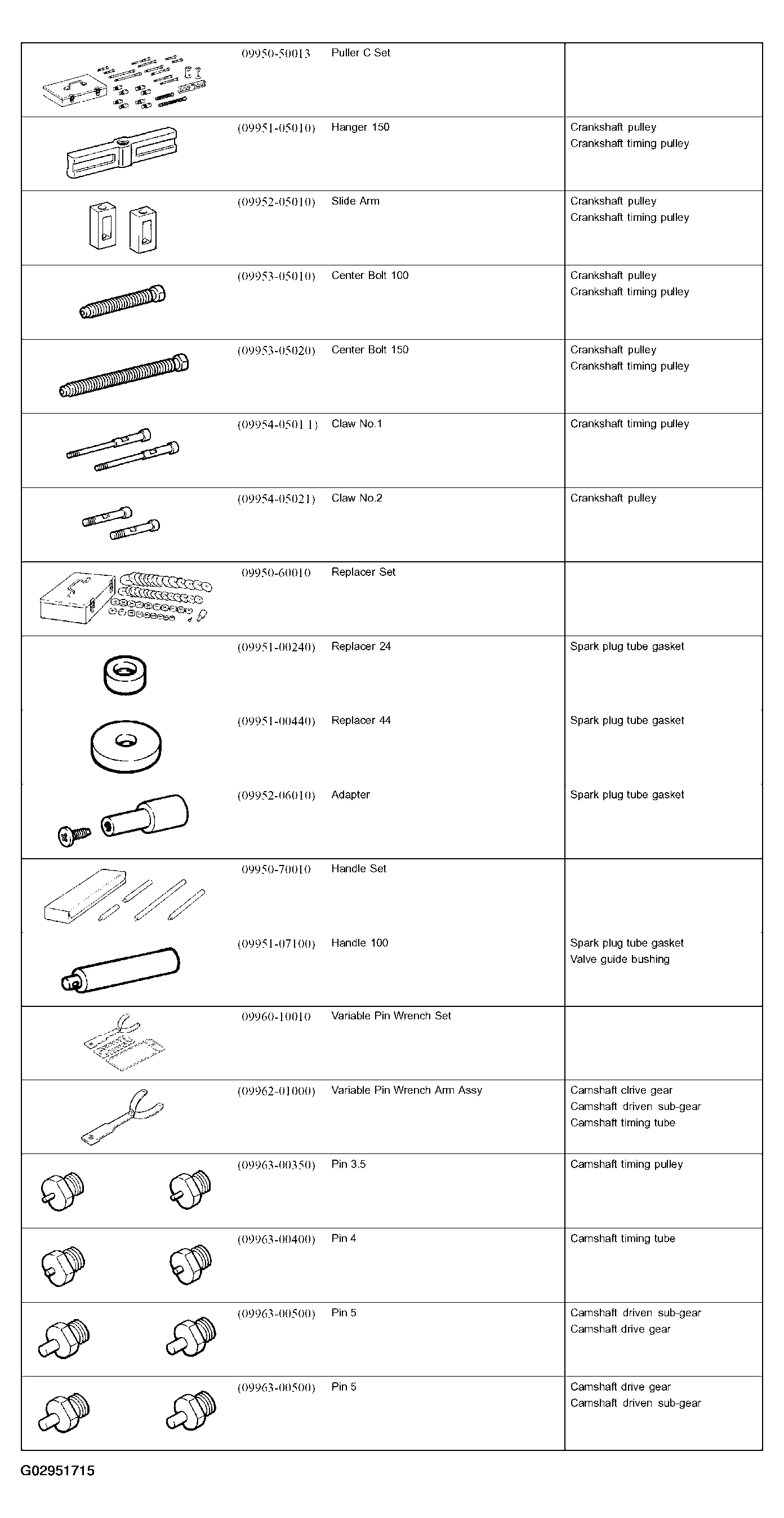

Fig 2: Identifying Special Service Tools - Engine Mechanical (3UZ-FE) (2 of 2)
G02951715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
