Ignition System (3UZ-FE)
>>
Service Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Service Data

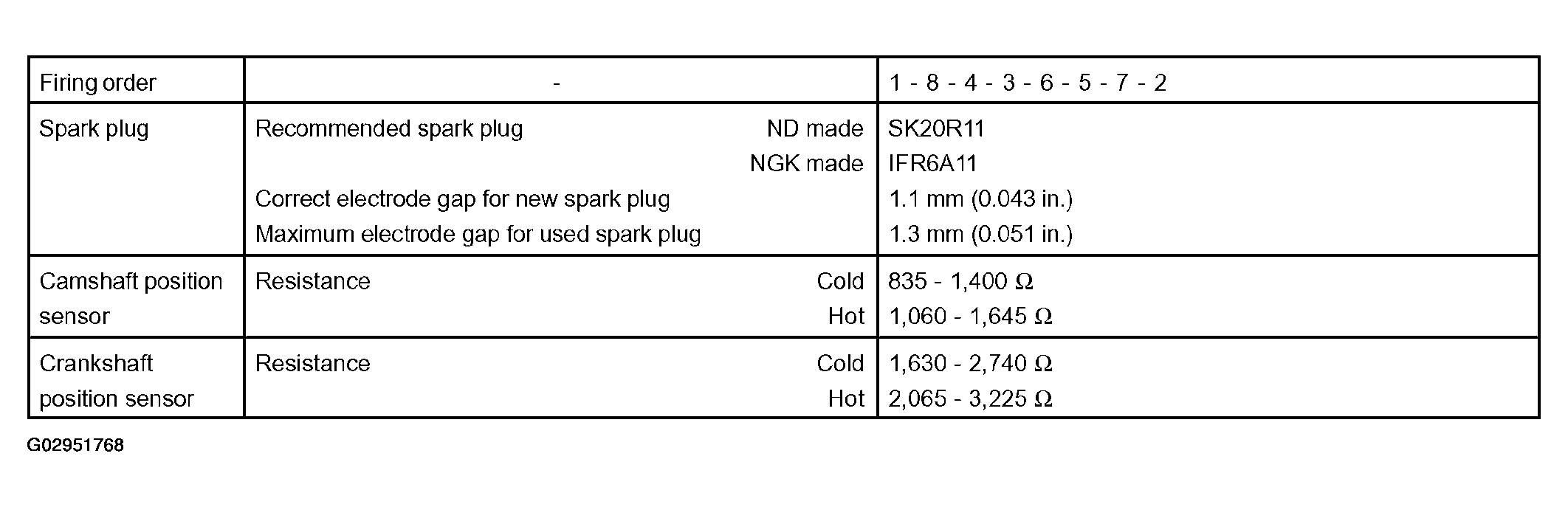

Fig 1: Ignition System Service Specification Chart (3UZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
