Automatic Transmission/Trans: Preparation

SST

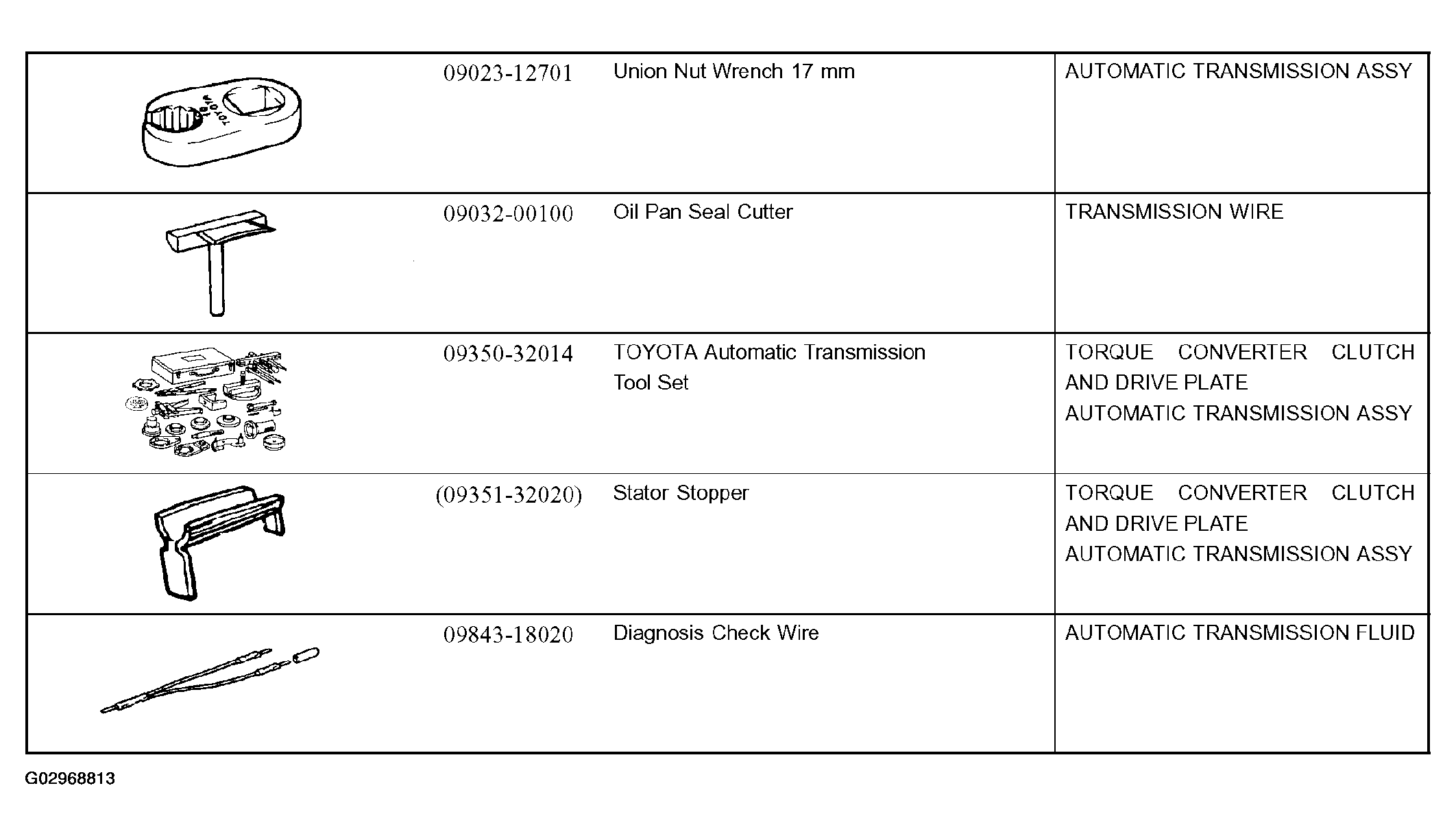

Fig 1: Service Special Tool Table - Automatic Transmission/Trans
G02968813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

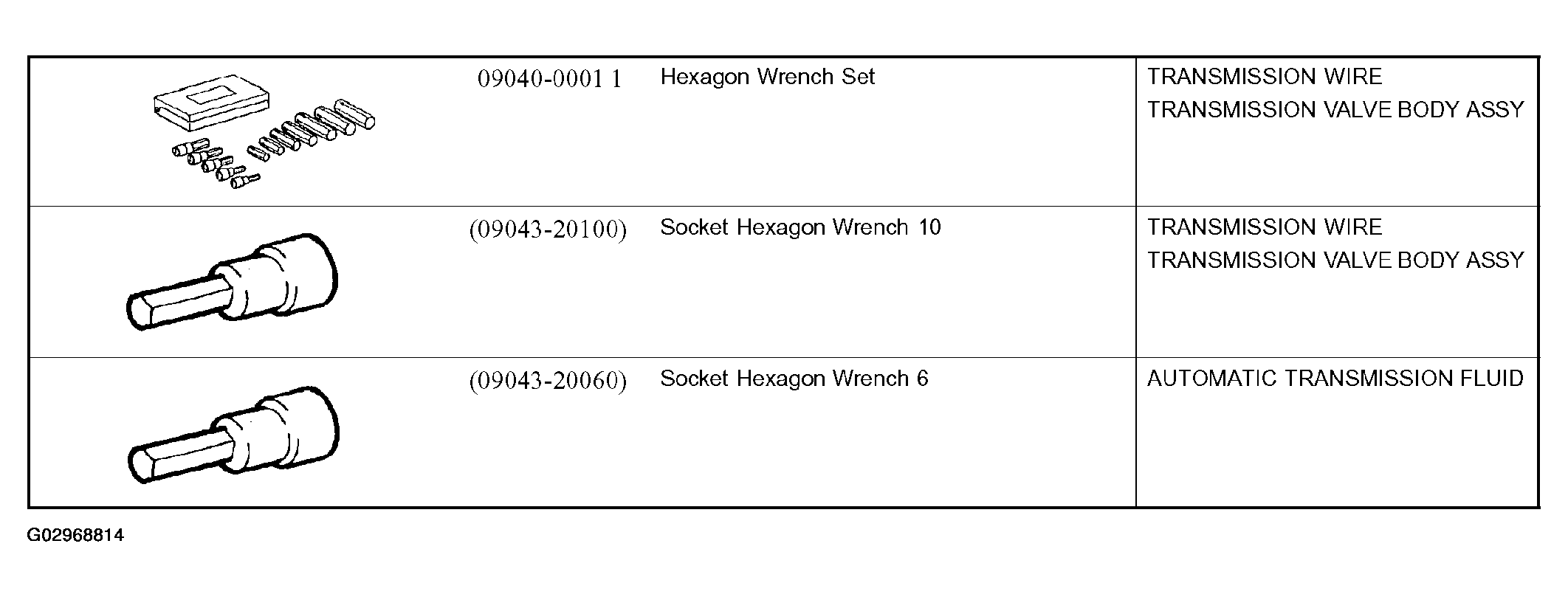

Fig 2: Recommended Tools Table - Automatic Transmission/Trans
G02968814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

AUTOMATIC TRANSMISSION/TRANS EQUIPMENT SPECIFICATION

Straightedge Torque converter
Vernier calipers Torque converter
Dial indicator or dial indicator with magnetic base Drive plate
Punch
Torque wrench

Lubricant

LUBRICANT SPECIFICATION

Automatic transmission fluid - ATF WS
Dry fill 10.9 liter (11.5 US qts, 9.6 lmp.qts) ATF WS
Drain and refill 3.0 liter (3.2 US qts, 2.6 6 lmp.qts) ATF WS
