Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and the certification label, as shown in Fig 1.

      A: Vehicle Identification Number Plate

      B: Certification Label

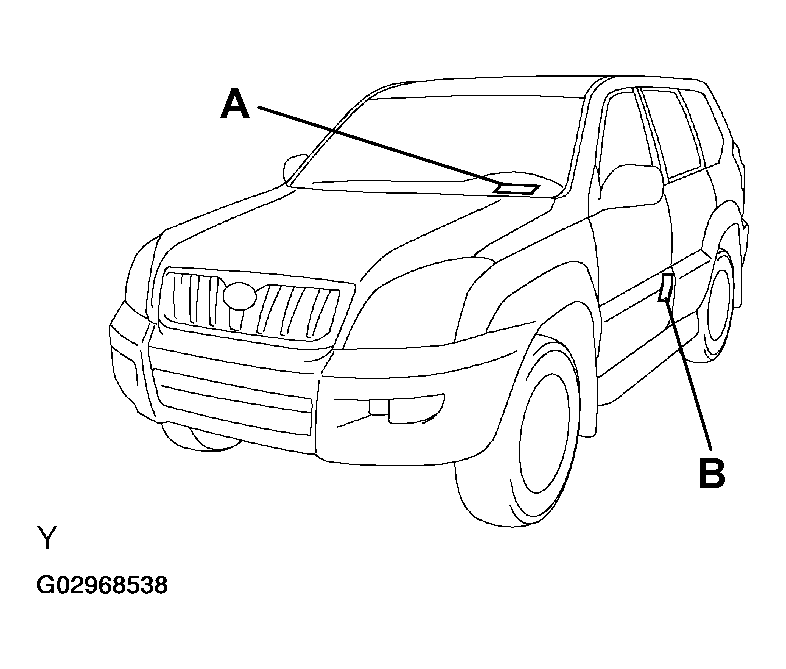

      Fig 1: Locating Vehicle Identification Number
      G02968538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine, and the transmission serial number is stamped on the housing, as shown in both Fig 2 and Fig 3.

      A: Engine Serial Number

      B: Transmission Serial Number

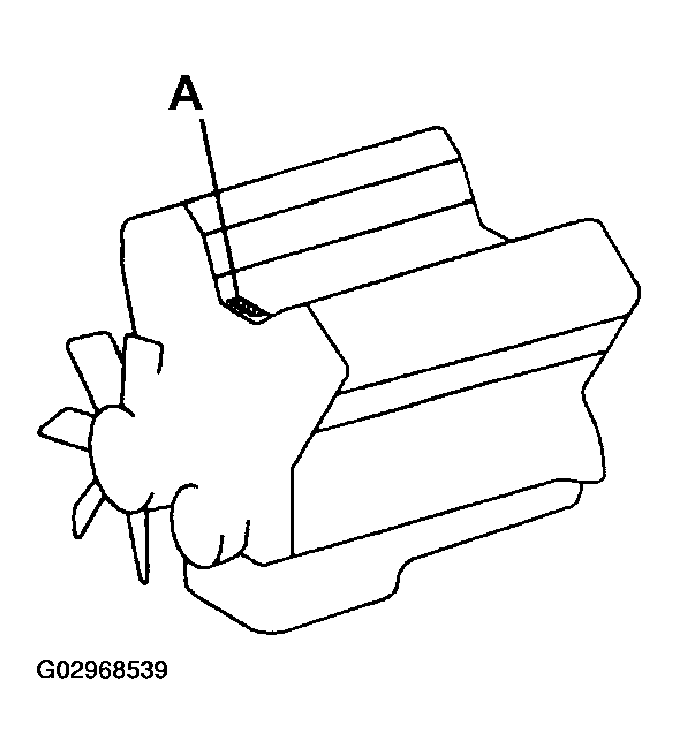

      Fig 2: Locating Engine Serial Number
      G02968539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

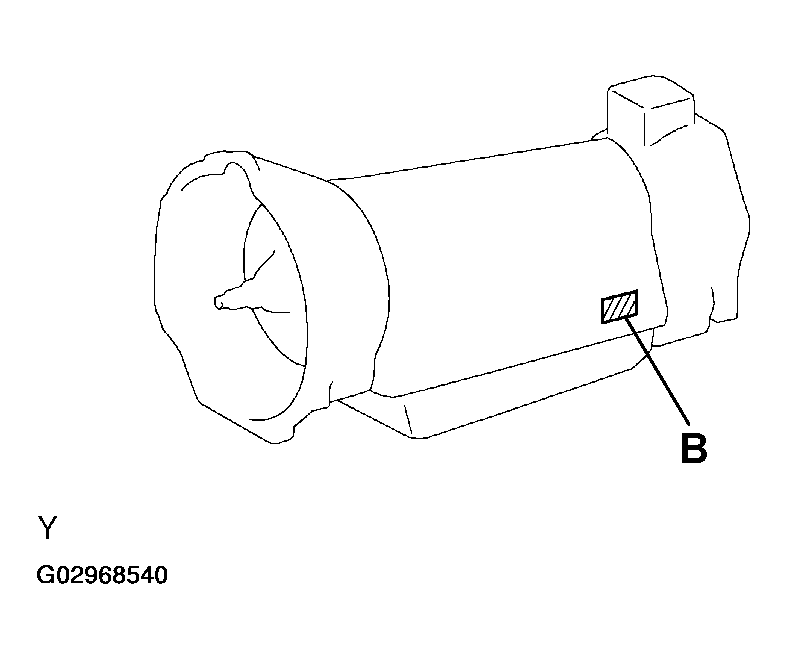

      Fig 3: Locating Transmission Serial Number
      G02968540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
