Restraints Control Systems: Preparation: Differential: Preparation

SST

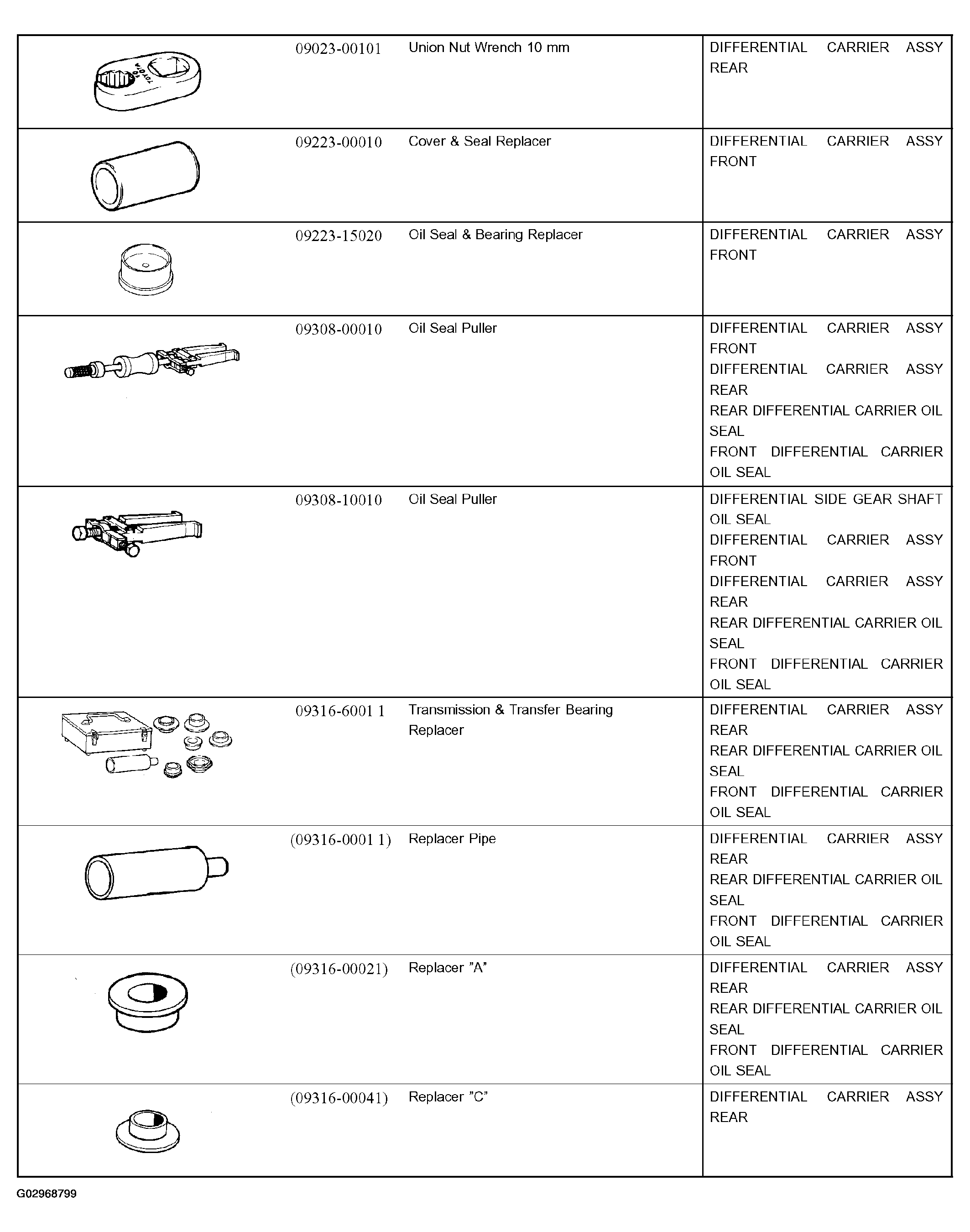

Fig 1: Service Special Tools Table - Differential (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

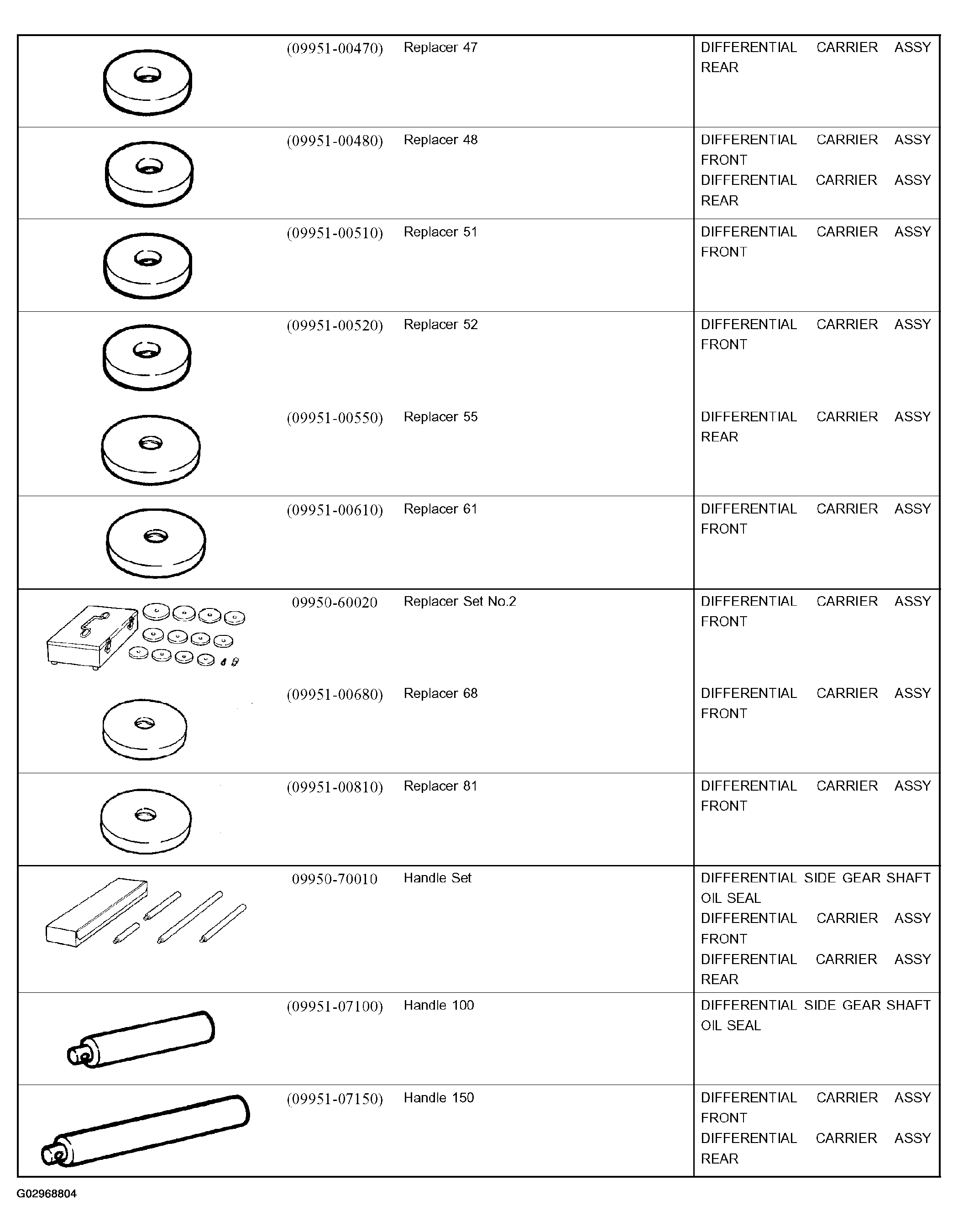

Fig 2: Service Special Tools Table - Differential (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

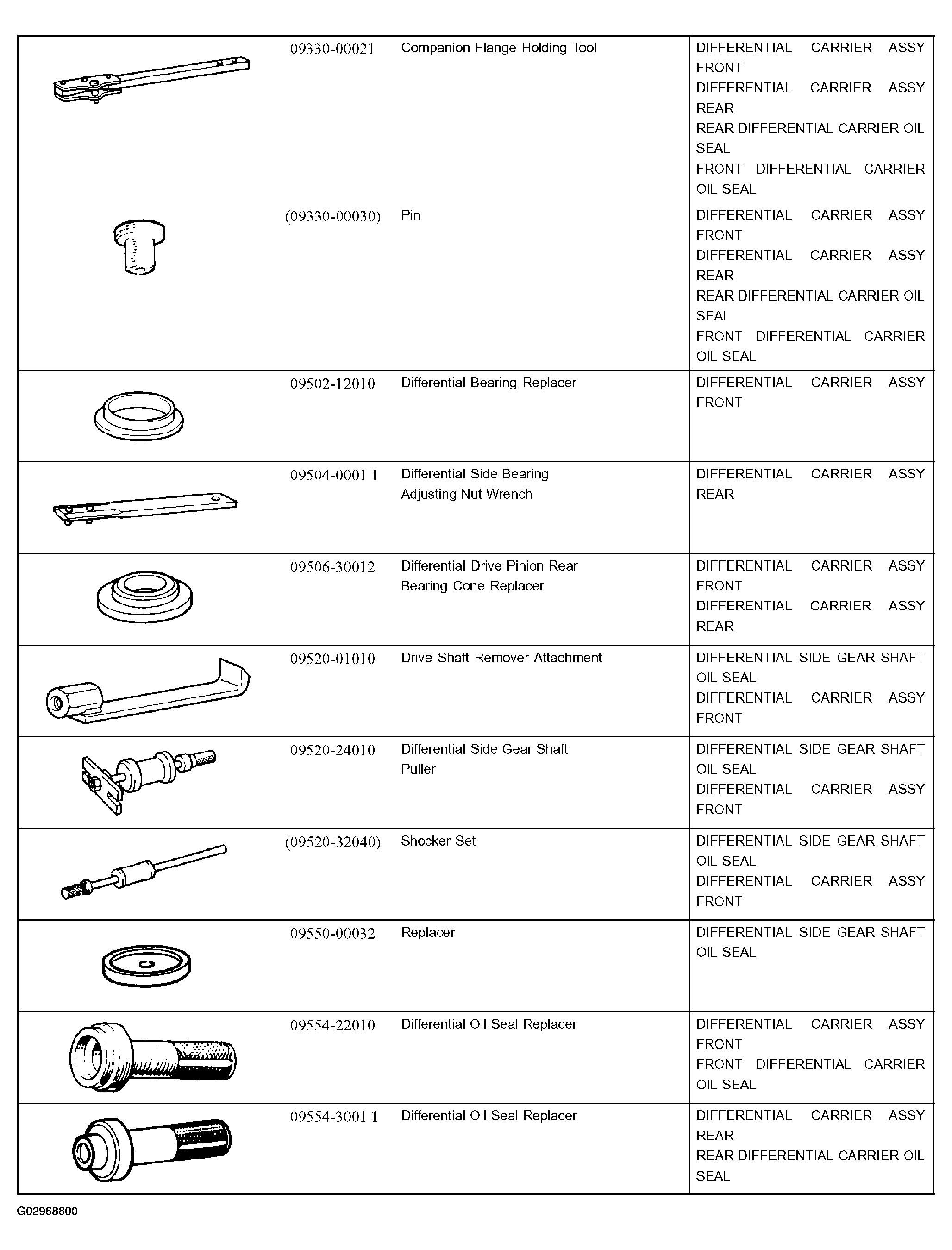

Fig 3: Service Special Tools Table - Differential (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

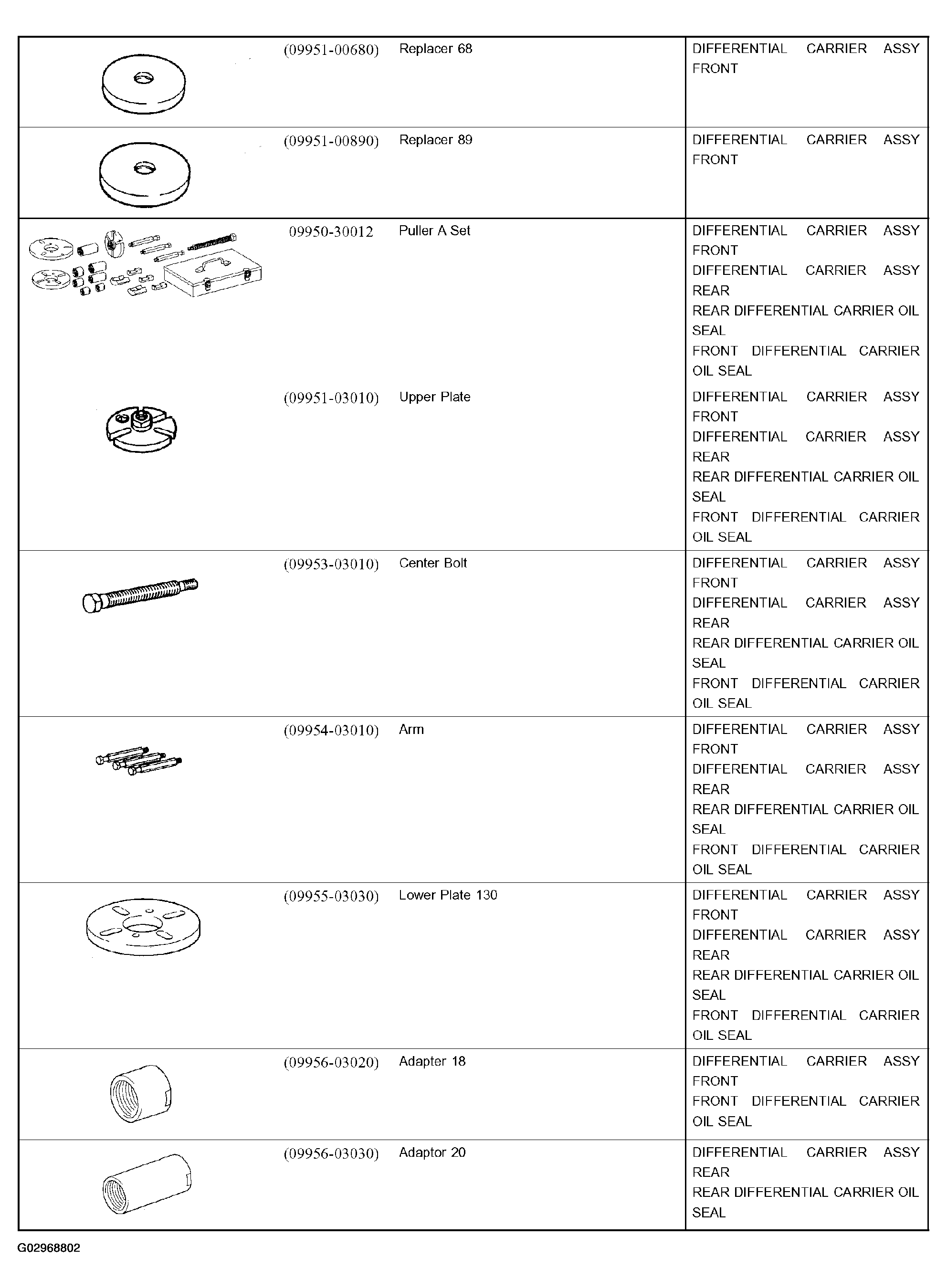

Fig 4: Service Special Tools Table - Differential (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

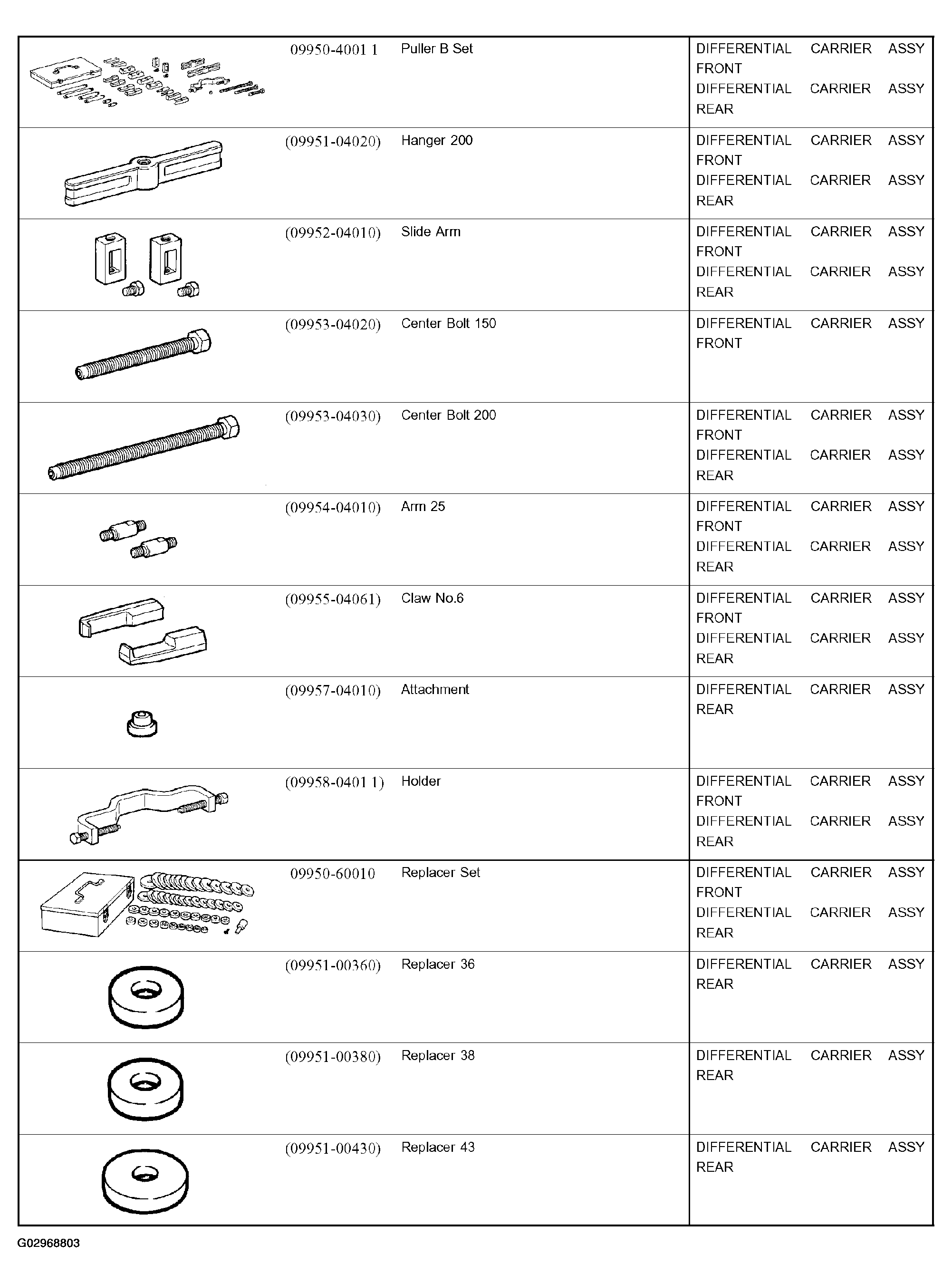

Fig 5: Service Special Tools Table - Differential (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

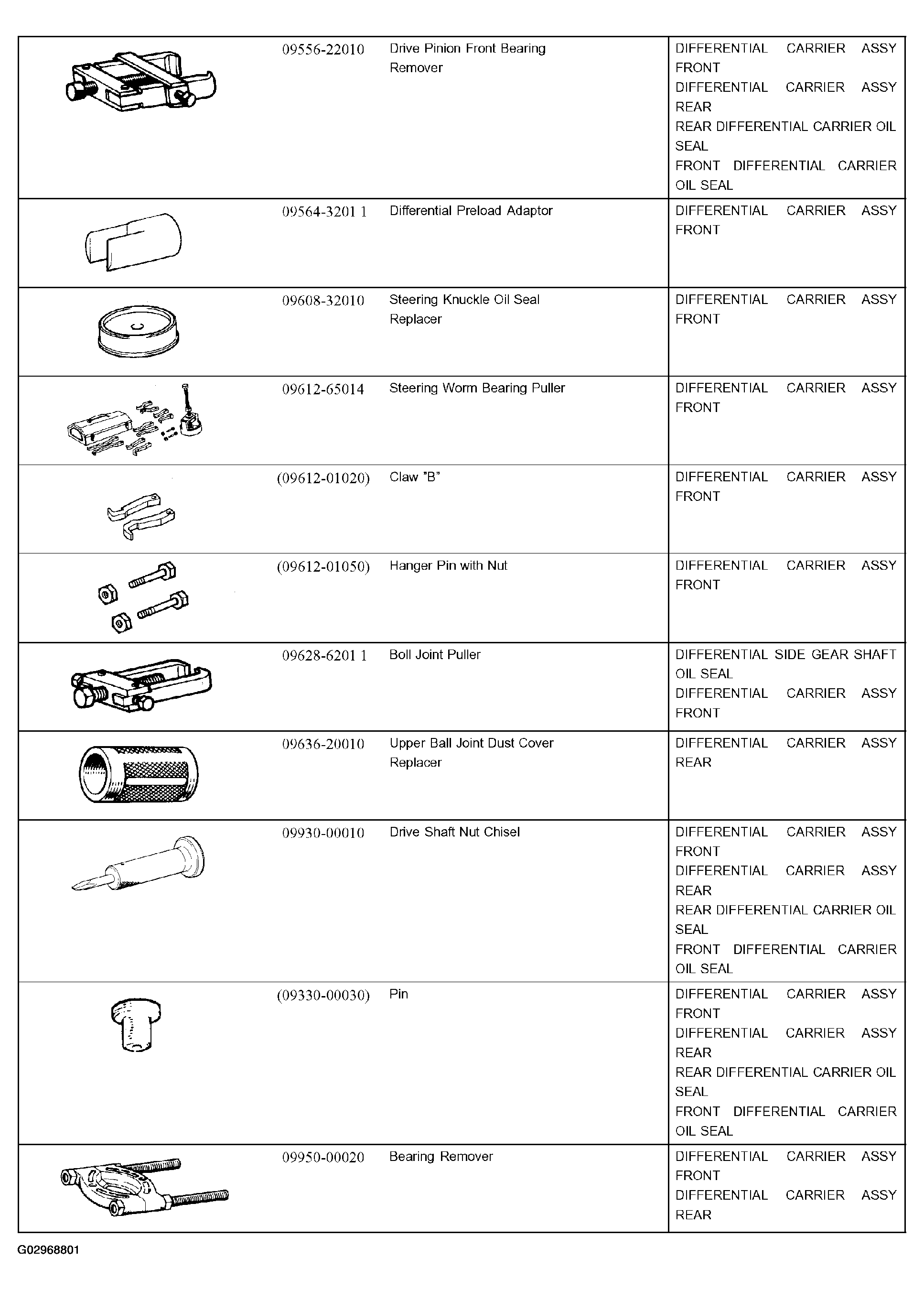

Fig 6: Service Special Tools Table - Differential (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

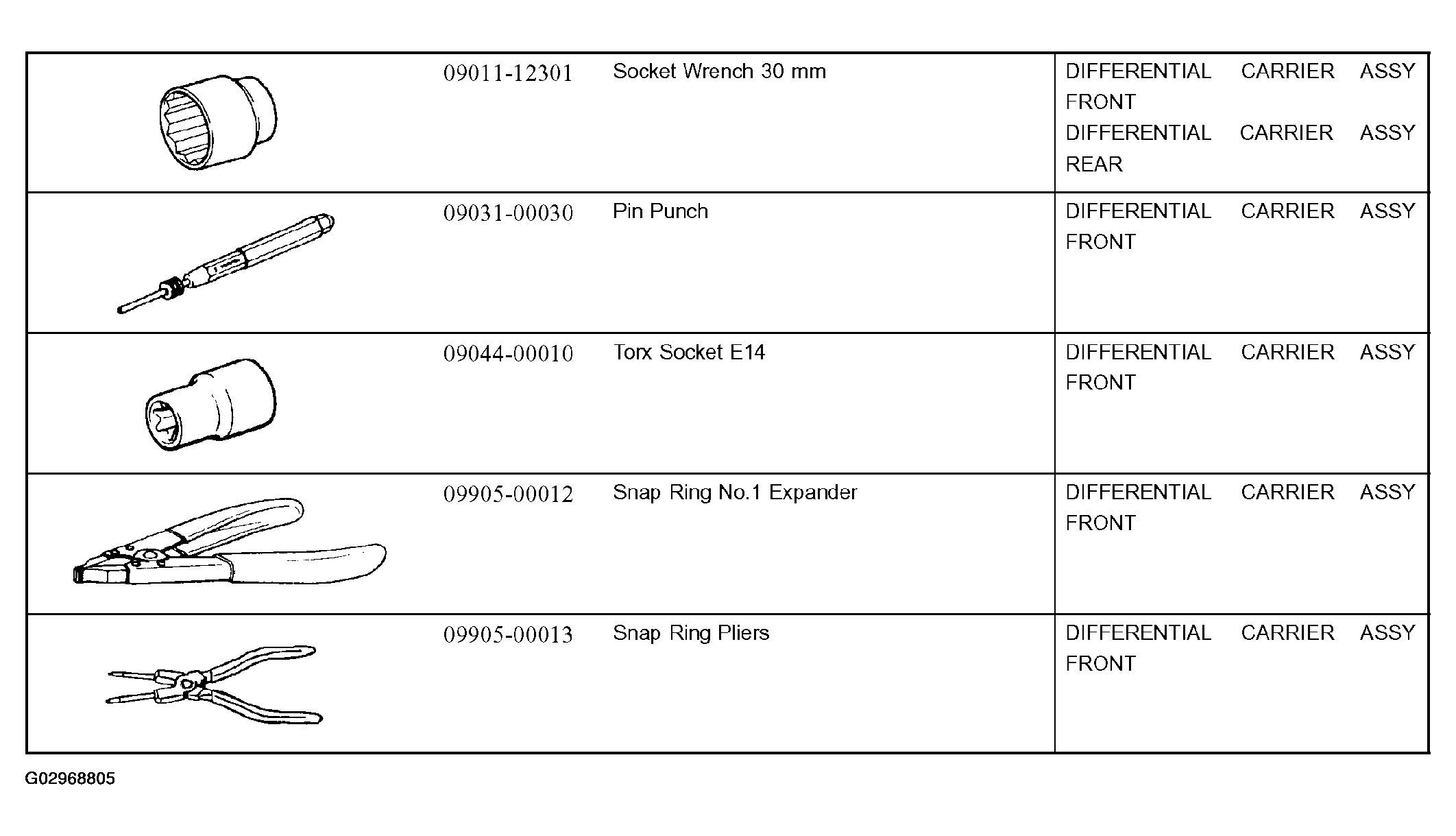

Fig 7: Recommended Tools Table - Differential

Torx is a registered trademark of Textron Inc.

Equipment

DIFFERENTIAL EQUIPMENT SPECIFICATION

Lubricant

LUBRICANT SPECIFICATION

Item	Capacity	Classification
Front differential oil	1.40 +/- 0.05 liters (1.48 +/- 0.05 US qts, 1.23 +/- 0.04 lmp.qts)	Hypoid gear oil APL GL-5 Above -18°C (0°F): SAE 90 Below -18°C (0°F): SAE 80W or 80W - 90
Rear differential oil	3.05 +/- 0.05 liters (3.22 +/- 0.05 US qts, 2.68 +/- 0.04 lmp.qts)	Hypoid gear oil APL GL-5 Above -18°C (0°F): SAE 90 Below -18°C (0°F): SAE 80W or 80W - 90
