Windshield/Window Glass/Mirror: Preparation

Recommended Tools

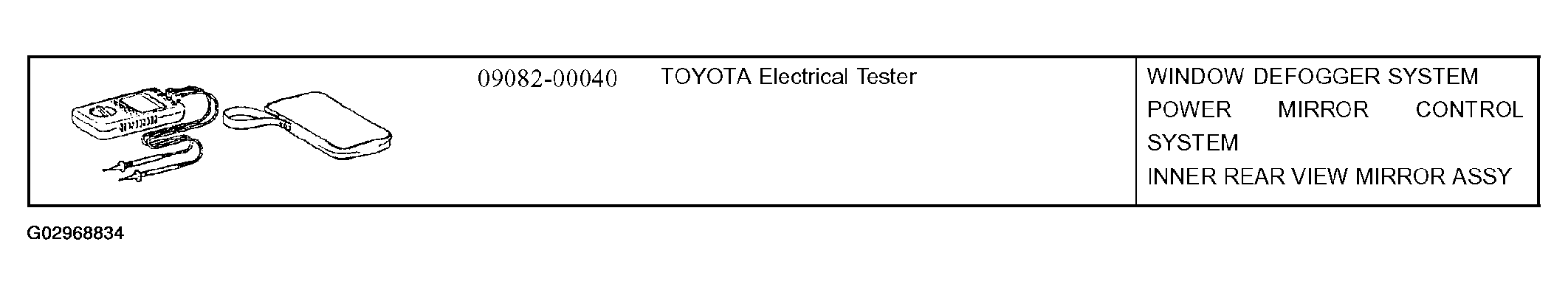

Fig 1: Recommended Tools Table - Windshield/Window Glass/Mirror
G02968834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

WINDSHIELD/WINDOW GLASS/MIRROR EQUIPMENT SPECIFICATION

Adhesive
Knife
Piano wire Windshield
Plastic sheet To avoid surface damage.
Sealer gun
Torque wrench
Tape To avoid surface damage.
Wooden block or similar object For tying both piano wire ends

SSM

SSM SPECIFICATION

08850-00801 Windshield Glass Adhesive Set or equivalent WINDSHIELD GLASS
