Back Window Glass: Components

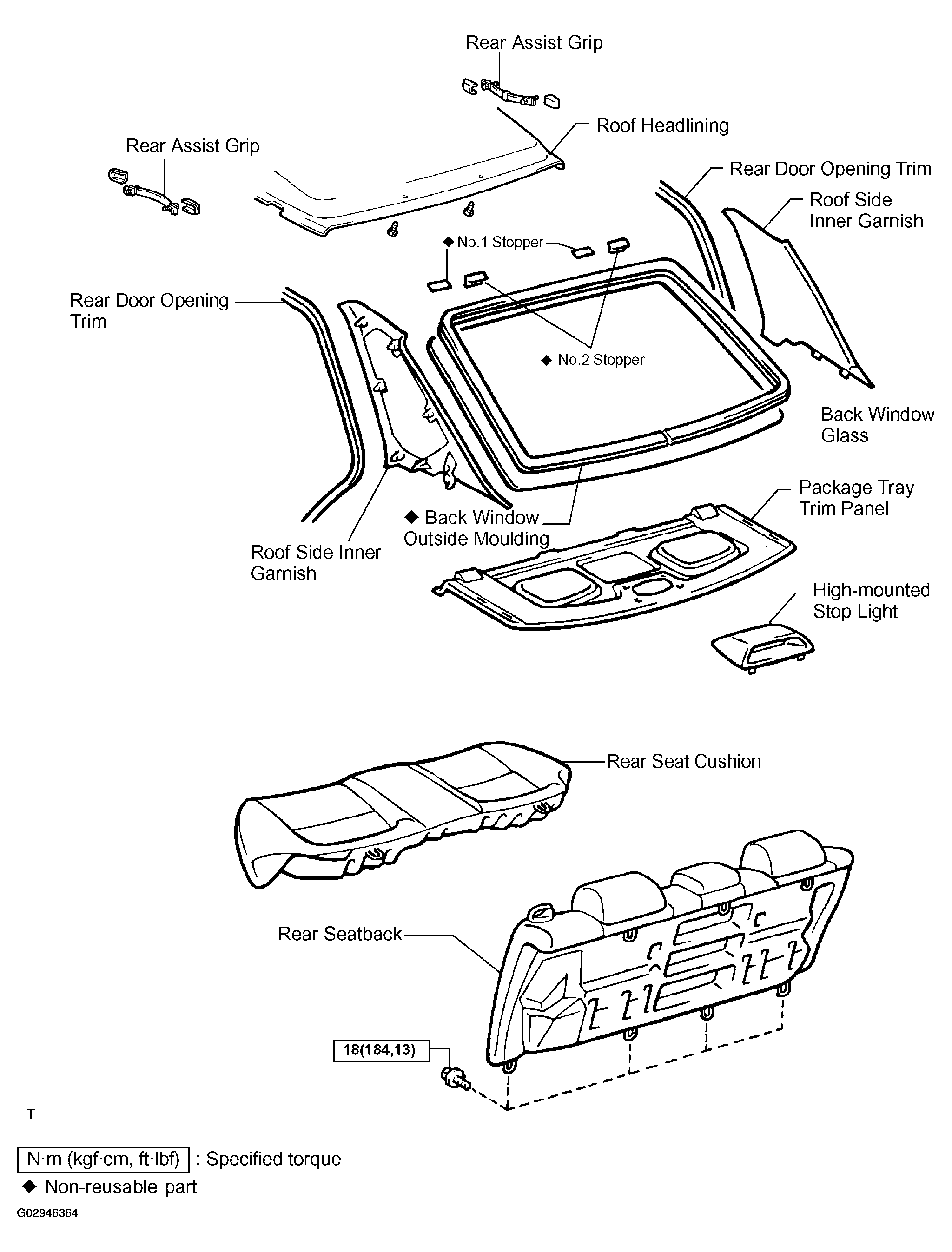

Fig 1: Identifying Back Window Glass Components & Replacements
G02946364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
