Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC P0010 | Camshaft Position "A" Actuator circuit (Bank 1) |
| DTC P0011, P0012 | Camshaft Position "A"-Timing Over-Actuator or System Performance (Bank 1), Camshaft Position "A"-Timing Over-Retarded (Bank 1) |
| DTC P0016 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) |
| DTC P0031, P0032, P0037, P0038, P0051, P0052, P0057, P0058 | Oxygen Sensor Heater Control Circuit Low/High (Bank 1 Sensor 1)/(Bank 1 Sensor 2)/(Bank 2 Sensor 1)/(Bank 2 Sensor 2) |
| DTC P0100, P0102, P0103 | Mass or Volume Air Flow Circuit, Mass or Volume Air Flow Circuit Low/High Input |
| DTC P0101 | Mass or Volume Air Flow Circuit Range/Performance Problem |
| DTC P0110, P0112, P0113 | Intake Air Temperature Circuit, Intake Air Temperature Circuit Low/High Input |
| DTC P0115, P0117, P0118 | Engine Coolant Temperature Circuit, Engine Coolant Temperature Circuit Low/High Input |
| DTC P0116 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) |
| DTC P0120, P0122, P0123, P0220, P0222, P0223, P2135 | Throttle/Pedal Position Sensor/Switch "A" Circuit, Throttle/Pedal Position Sensor/Switch "A" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "B" Circuit, Throttle/Pedal Position Sensor/Switch "B" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "A"/"B" Voltage Correlation |
| DTC P0121 | Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem |
| DTC P0125 | Insufficient coolant temperature for closed loop fuel control |
| DTC P0128 | Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) |
| DTC P0130, P0150, P2195, P2196, P2197, P2198 | Oxygen Sensor Circuit (Bank 1 Sensor 1)/(Bank 2 Sensor 1), Oxygen Sensor Signal Stuck Lean/Rich (Bank 1 Sensor 1)/(Bank 2 Sensor 1) |
| DTC P0133, P0153 | Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1)/(Bank 2 Sensor 1) |
| DTC P0134, P0154 | Oxygen Sensor Circuit No Activity Detected (Bank 1 Sensor 1)/(Bank 2 Sensor 1) |
| DTC P0136, P0156 | Oxygen Sensor Circuit Malfunction (Bank 1 Sensor 2)/(Bank 2 Sensor 2) |
| DTC P0171 | System too Lean/Rich (Bank 1)/(Bank 2) |
| DTC P0230 | Fuel Pump Primary Circuit |
| DTC P0300, P0301, P0302, P0303, P0304, P0305, P0306 | Random/Multiple Cylinder Misfire Detected, Cylinder 1, 2, 3, 4, 5, 6 Misfire Detected |
| DTC P0325, P0330 | Knock Sensor 1 Circuit (Bank 1 or Single Sensor), Knock Sensor 2 Circuit Malfunction (Bank 2) |
| DTC P0335, P0339 | Crankshaft Position Sensor "A" Circuit/Intermittent |
| DTC P0340, P0341 | Camshaft Position Sensor "A" Circuit (Bank 1 or Single Sensor), Camshaft Position Sensor "A" Circuit Range/Performance (Single Sensor) |
| DTC P0351 | Igniter Coil "A" Primary/Secondary Circuit |
| DTC P0420, P0430 | Catalyst System Efficiency Below Threshold (Bank 1)/(Bank 2) |
| DTC P0441, P0446 | Evaporative Emission Control System Incorrect Purge Flow/Vent Control Circuit |
| DTC P0442, P0456 | Evaporative Emission Control System Leak Detected (Small Leak)/(Very Small Leak) |
| DTC P0451, P0452, P0453 | Evaporative Emission Control System Pressure Sensor/Switch Range/Performance, Evaporative Emission Control System Pressure Sensor/Switch Low/High Input |
| DTC P0500, P0503 | Vehicle Speed Sensor "A", Vehicle Speed Sensor "A" Intermittent/Erratic/High |
| DTC P0505 | Idle Air Control System |
| DTC P0550, P0552, P0553 | Power Steering Pressure Sensor/Switch Circuit, Power Steering Pressure Sensor/Switch Circuit Low/High Input |
| DTC P0560 | System Voltage |
| DTC P0604, P0606, P0607, P0657 | Internal Control Module Random Access Memory (RAM) Error, ECM/PCM Processor, Control Module Performance, Actuator Supply Voltage Circuit/Open |
| DTC P0617 | Starter Relay Circuit High |
| DTC P0630 | VIN Not Programmed of Mismatch - ECM/PCM |
| DTC P1126 | Magnetic Clutch Circuit |
| DTC P2102, P2103 | Throttle Actuator Control Motor Circuit Low/High |
| DTC P2111/P2112 | Throttle Actuator Control System-Stuck Open/Closed |
| DTC P2118 | Throttle Actuator Control Motor Current Range/Performance |
| DTC P2119 | Throttle Actuator Control Throttle Body Range/Performance |
| DTC P2120, P2122, P2123, P2125, P2127, P2128, P2138 | Throttle/Pedal Position Sensor/Switch "D" Circuit, Throttle/Pedal Position Sensor/Switch "D" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "E" Circuit, Throttle/Pedal Position Sensor/Switch "E" Circuit Low/High Input, Throttle/Pedal Position Sensor/Switch "D"/"E" Voltage Correlation |
| DTC P2121 | Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance |

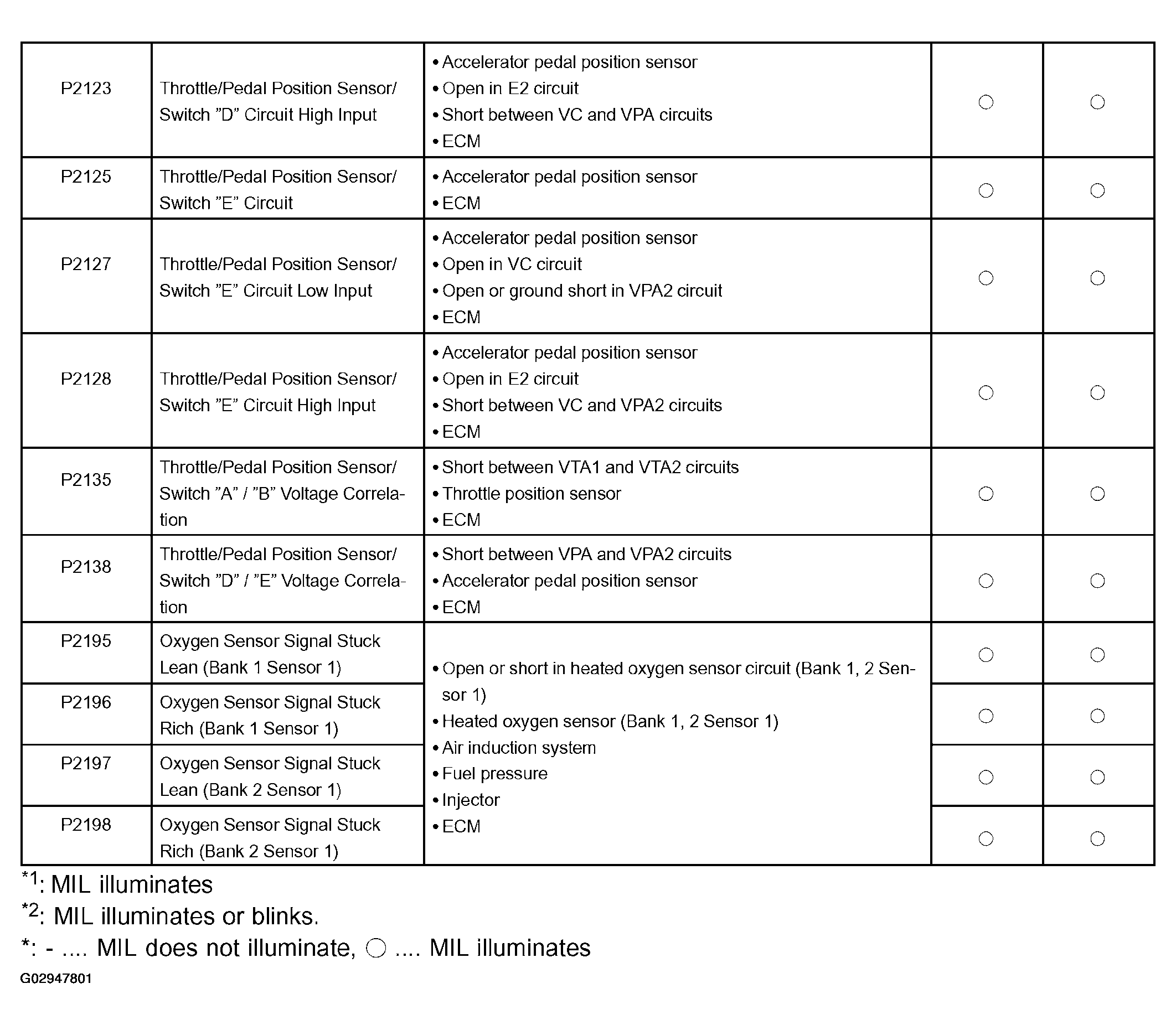

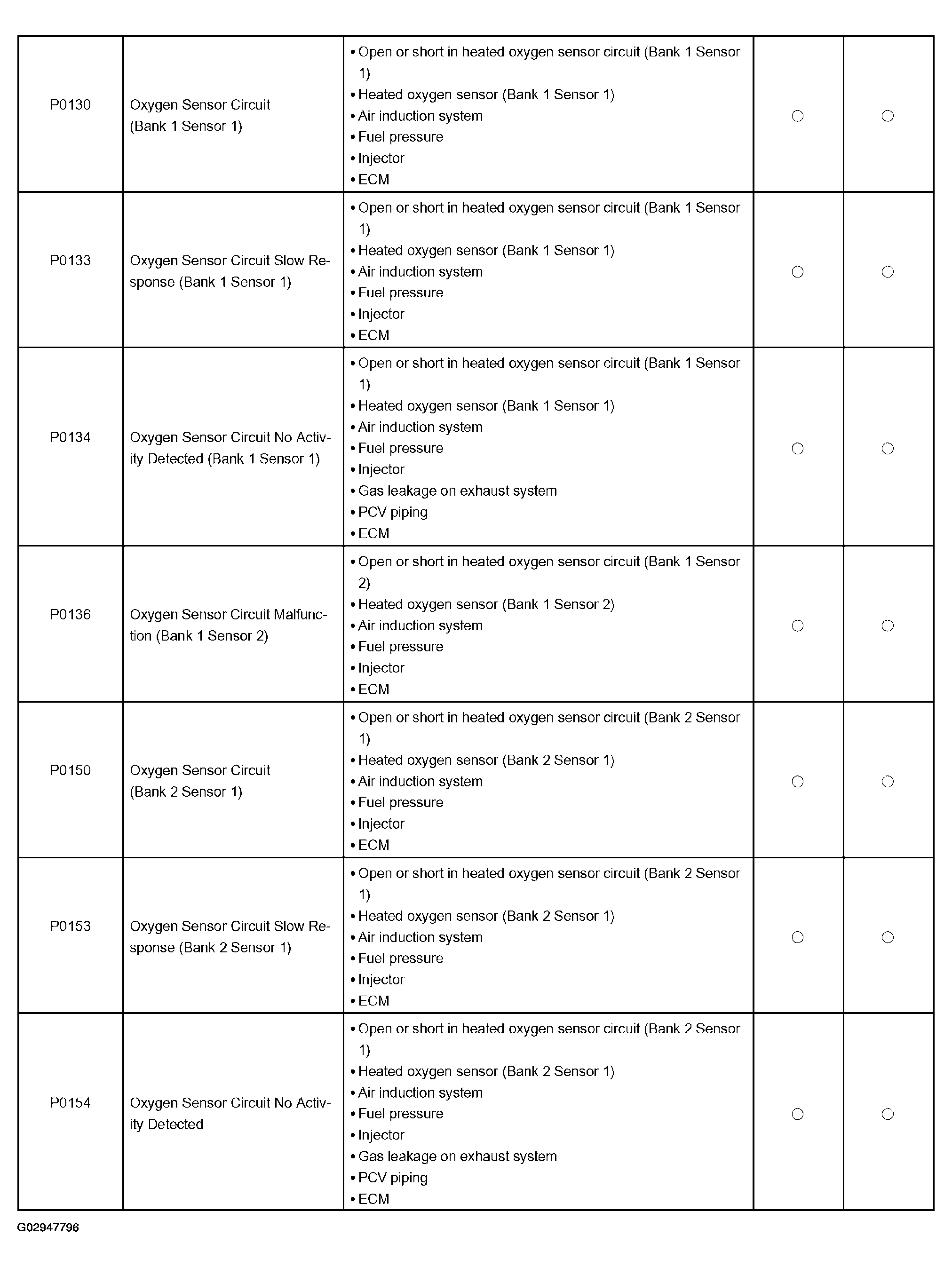

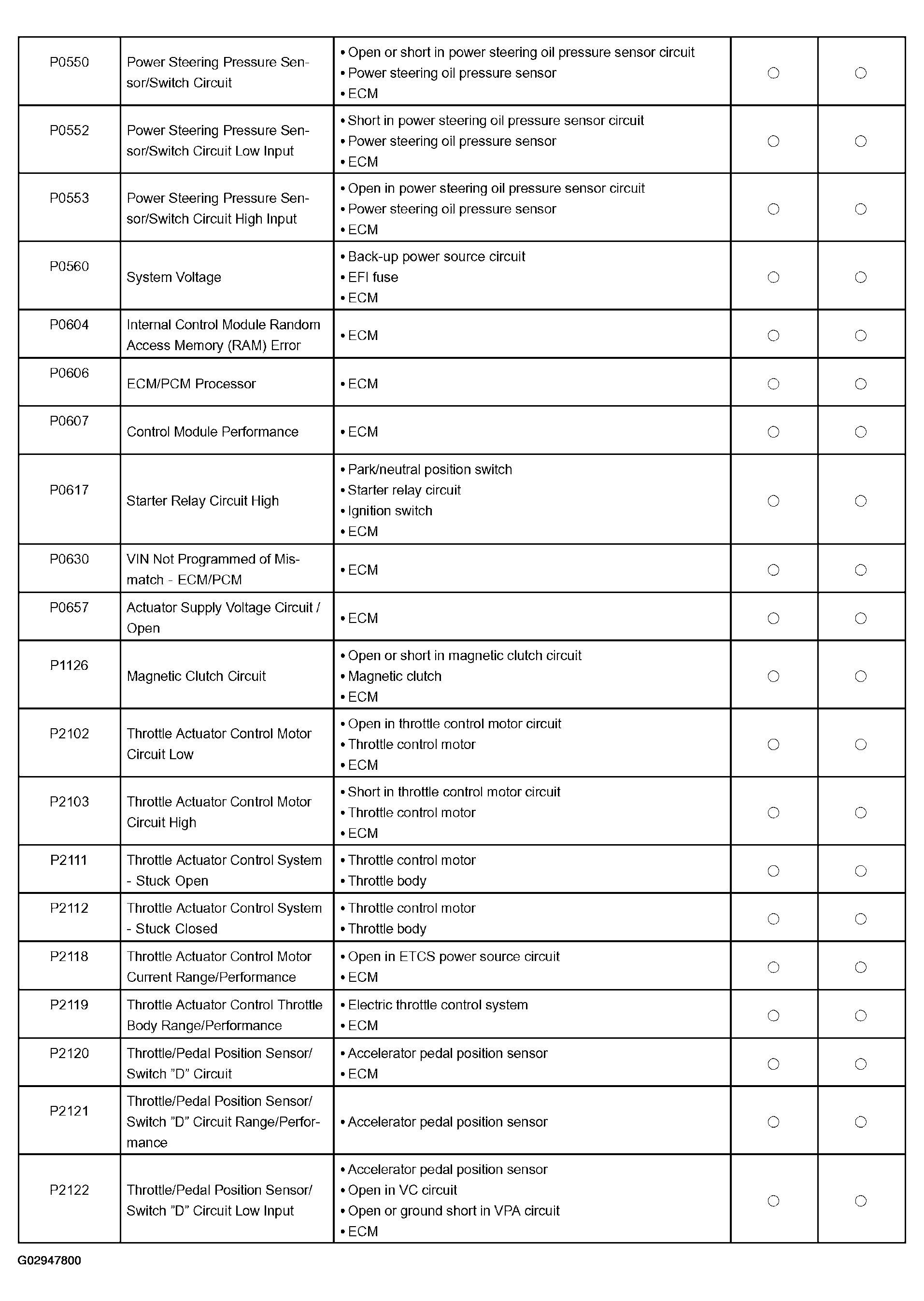

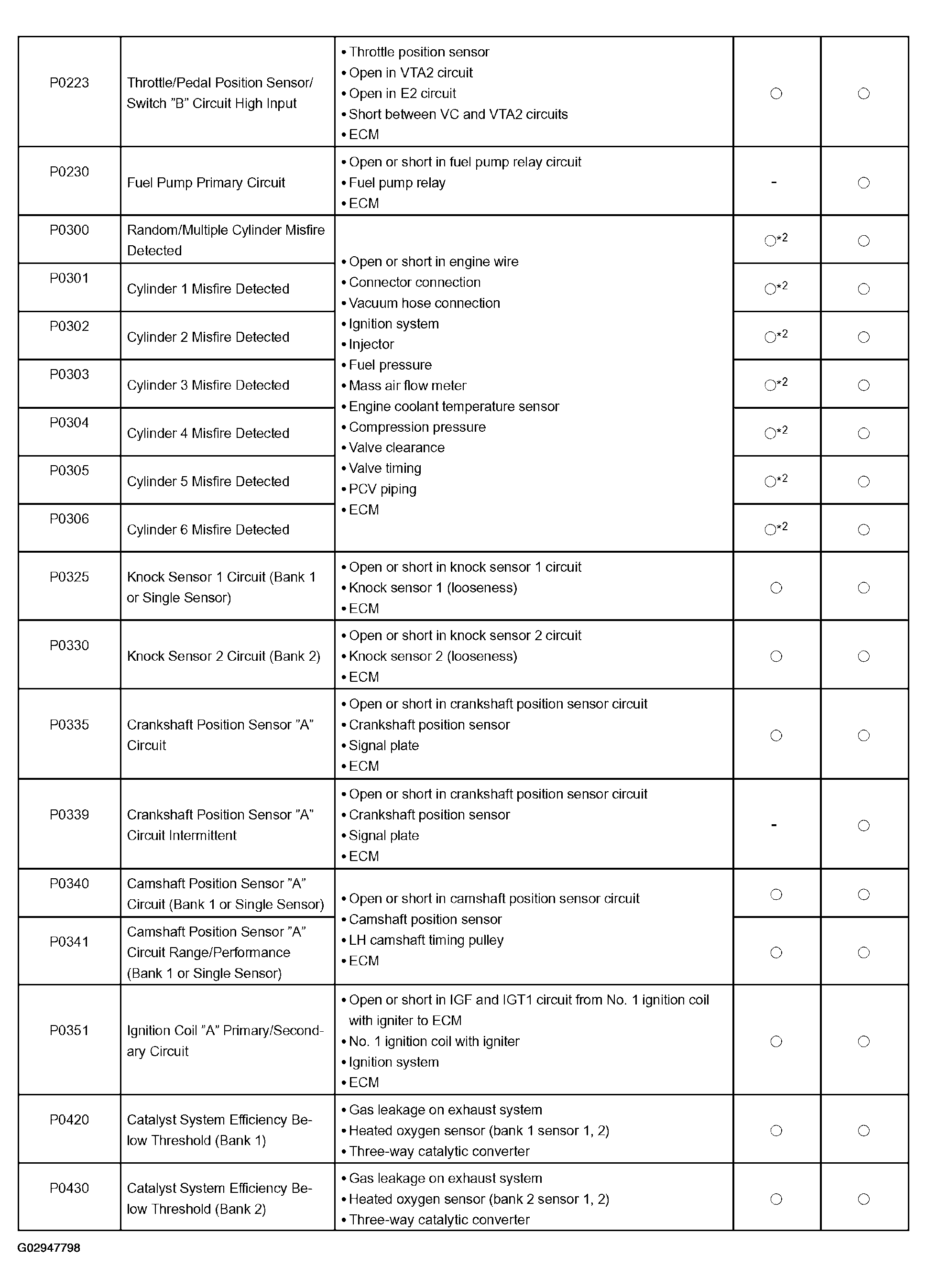

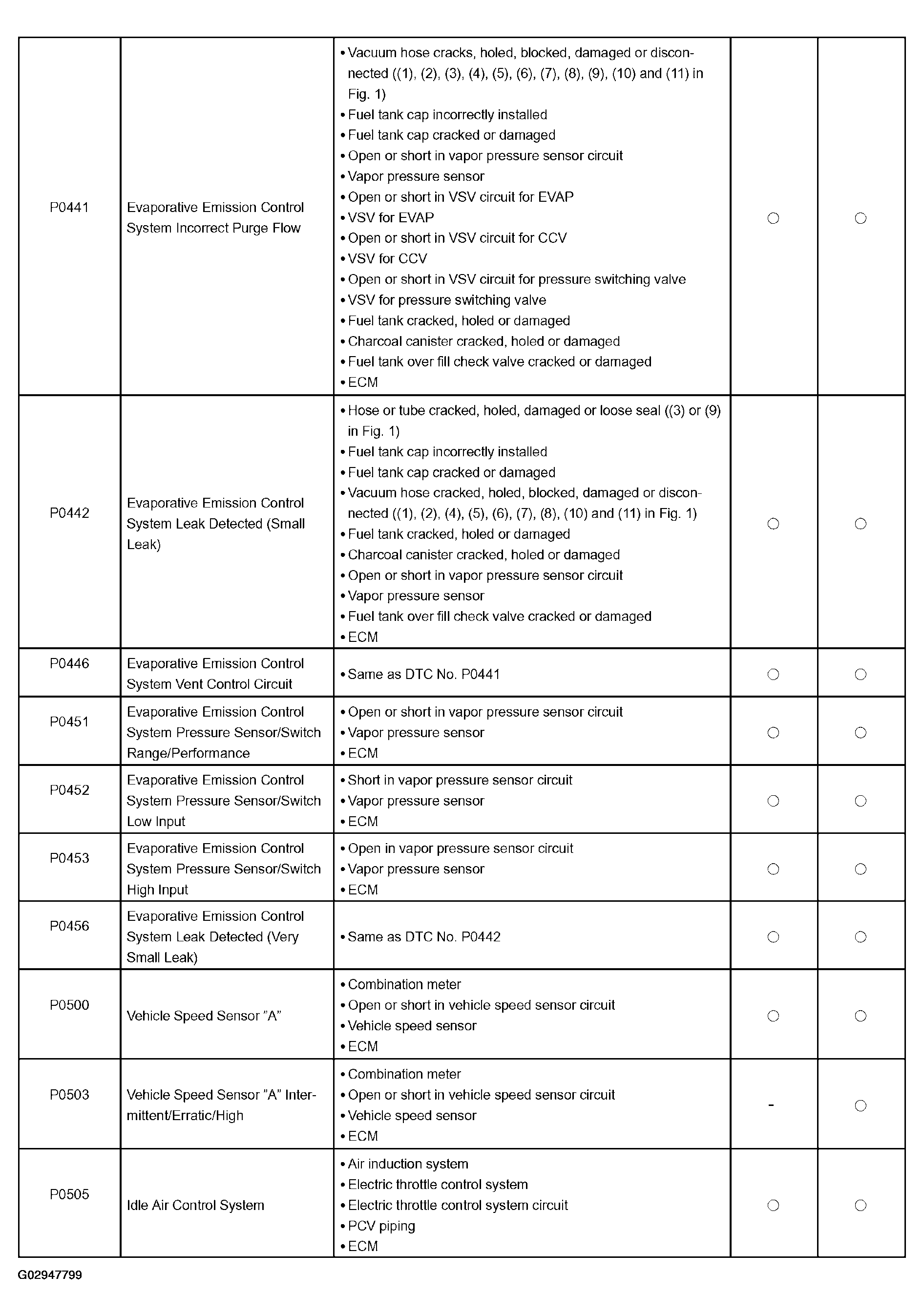

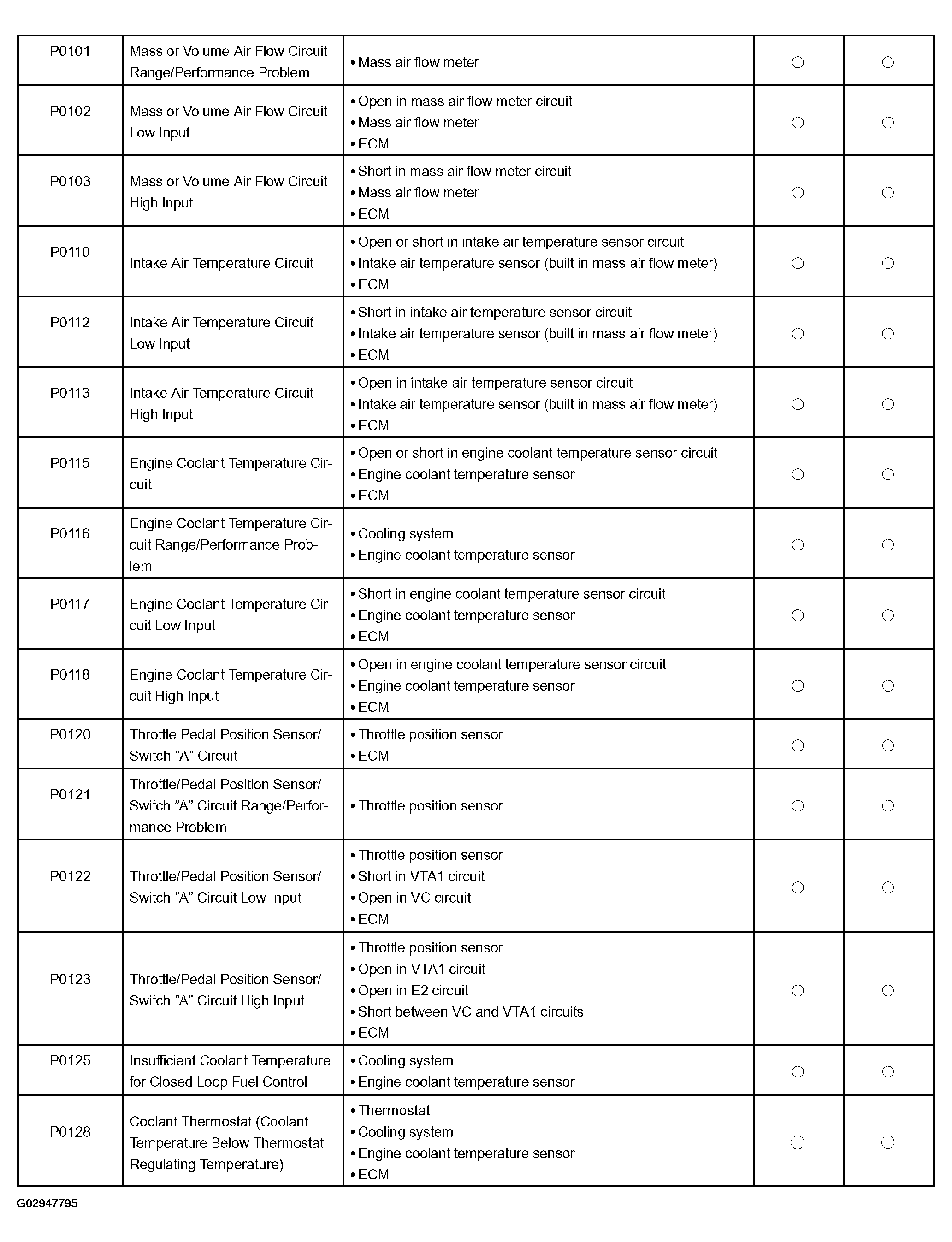

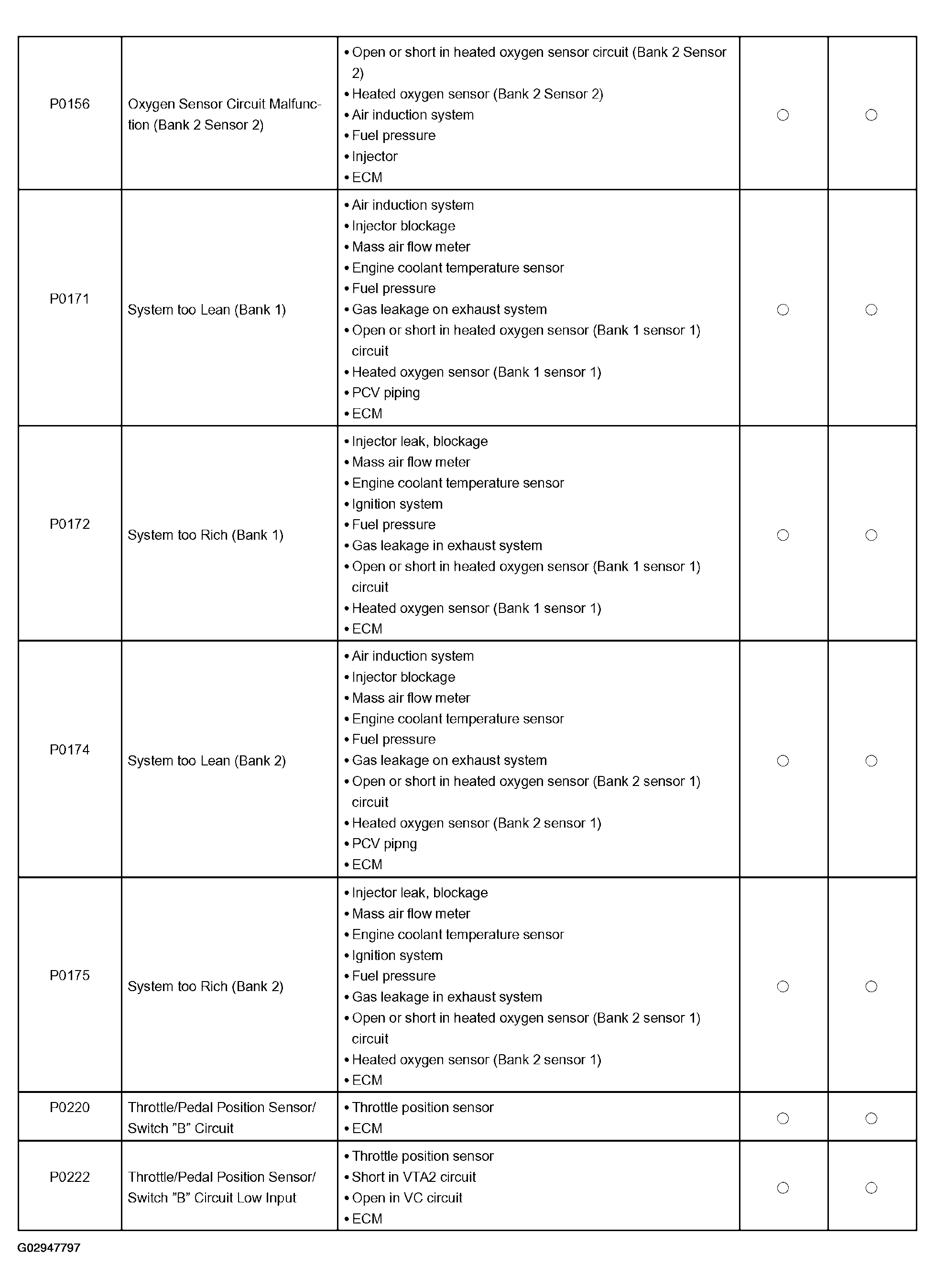

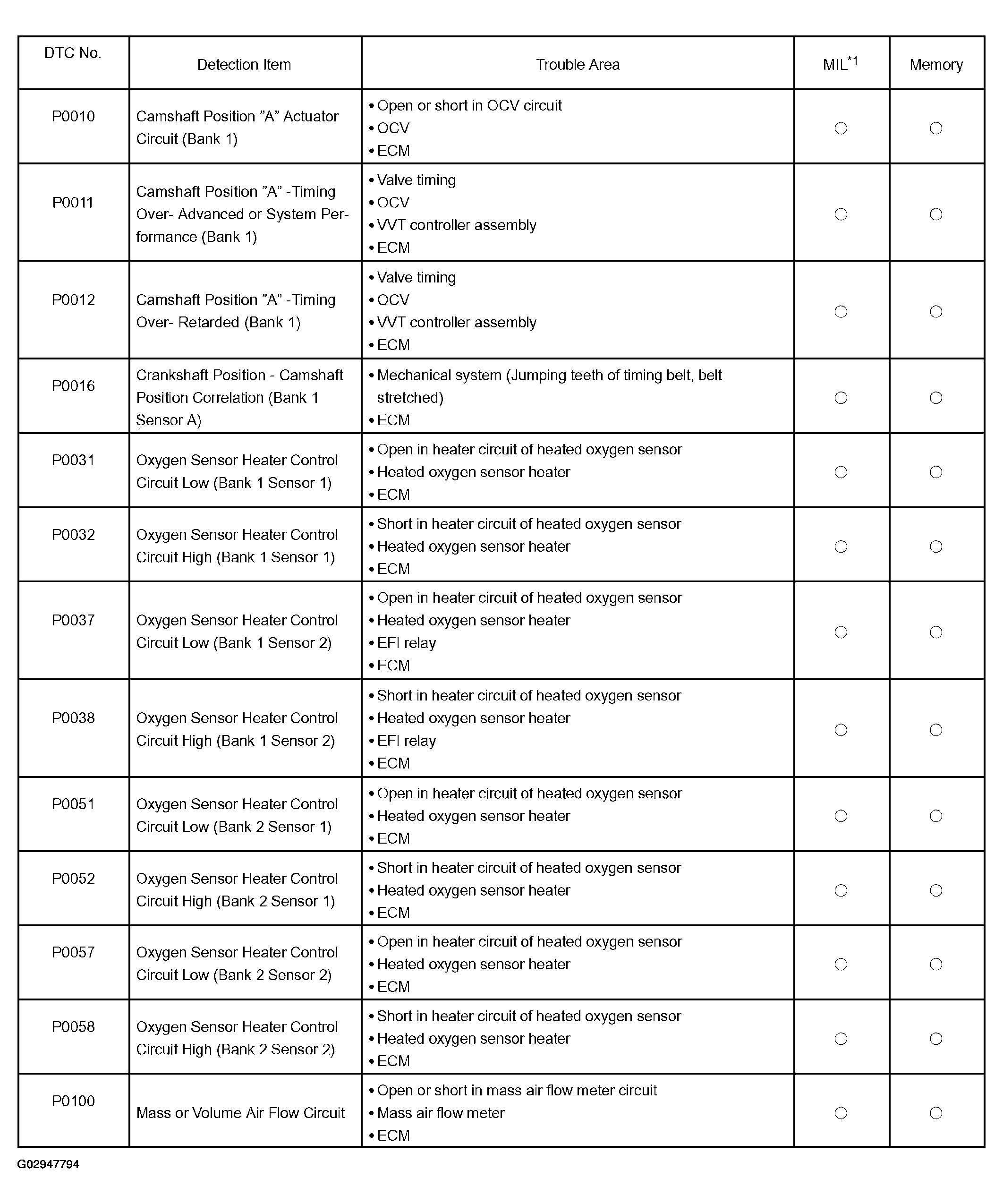

HINT:
Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in the tables below.
