How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure on this information.

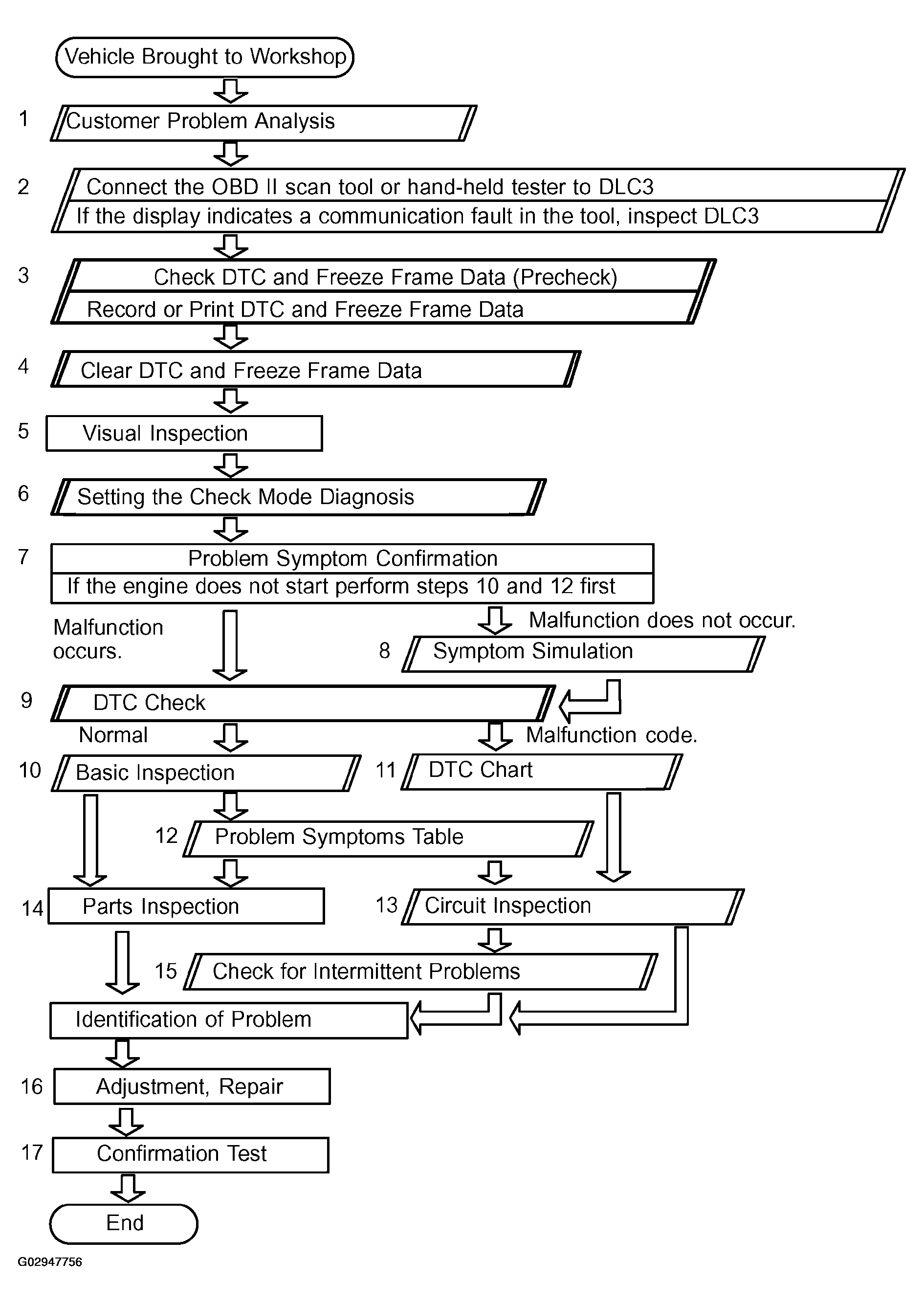

Fig 1: Engine Troubleshooting Flow Chart
G02947756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
