Circuit Description

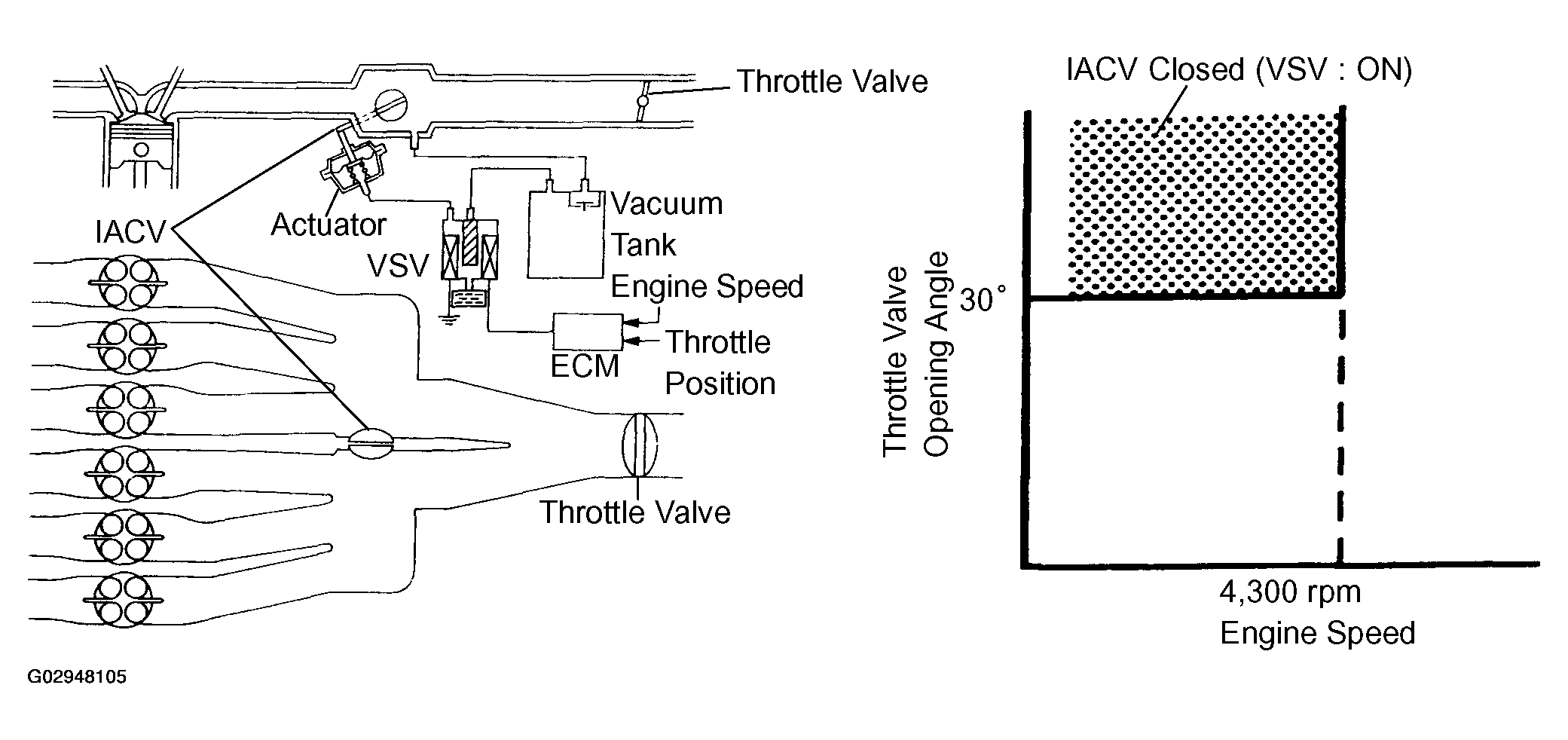

This circuit opens and closes the Intake Air Control Valve (IACV) in response to the engine load in order to increase the intake efficiency.
When the engine speed is 4,300 RPM or less and the throttle valve opening angle is 30° or more, the ECM turns the VSV ON and closes the IACV. At all other times, the VSV is OFF, so the IACV is open.
HINT:
IACV stands for "Acoustic Control Induction System".
