Terminals Of ECM

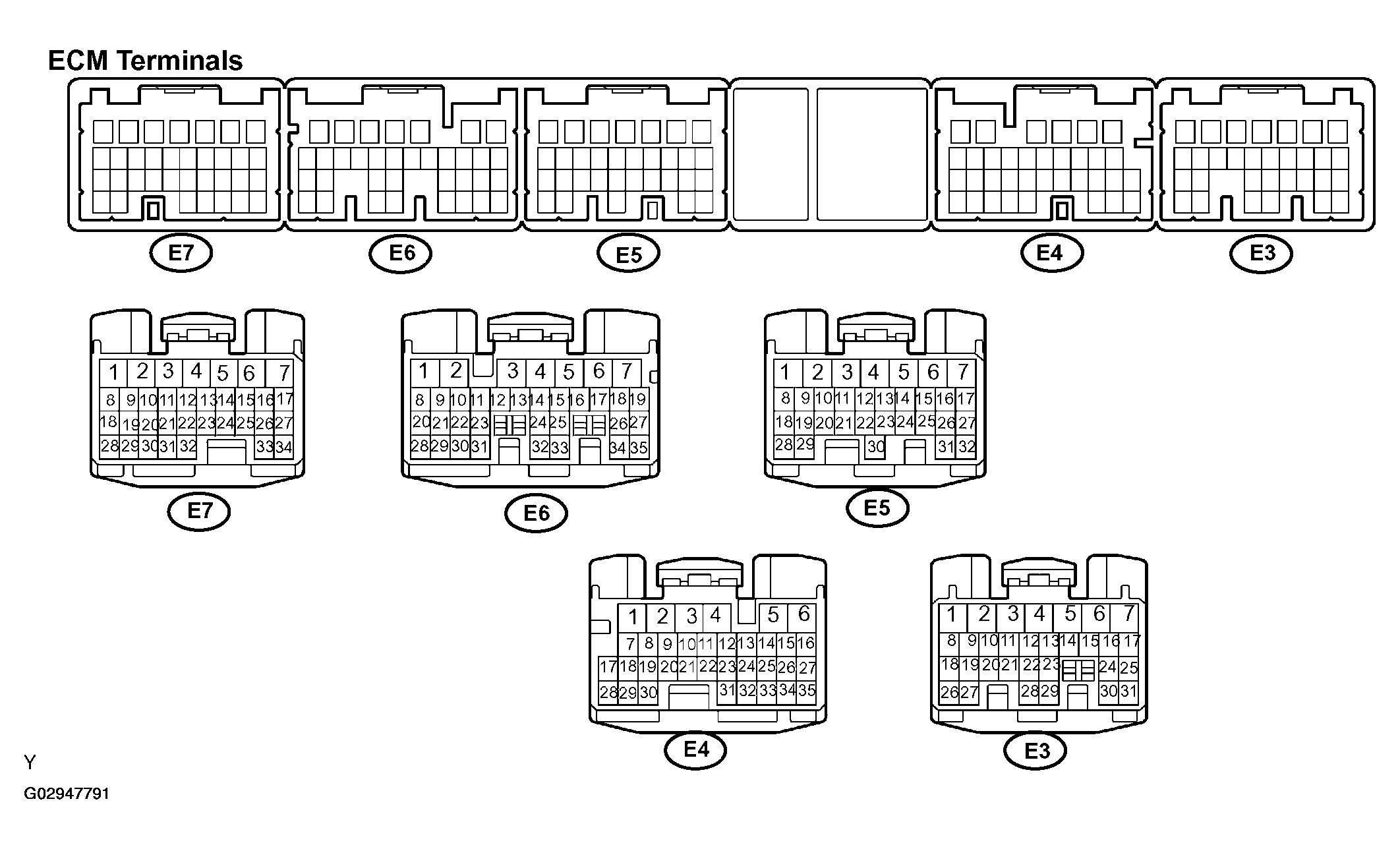

Fig 1: Identifying ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Each ECM terminals standard normal voltage is shown in the table below. In the table, first follow the information under "Condition".

Look under "Symbols (Terminals No.)" for the terminals to be inspected.

The standard normal voltage between the terminals is shown under "STD Voltage".

Use the illustration above as a reference for the ECM terminals.

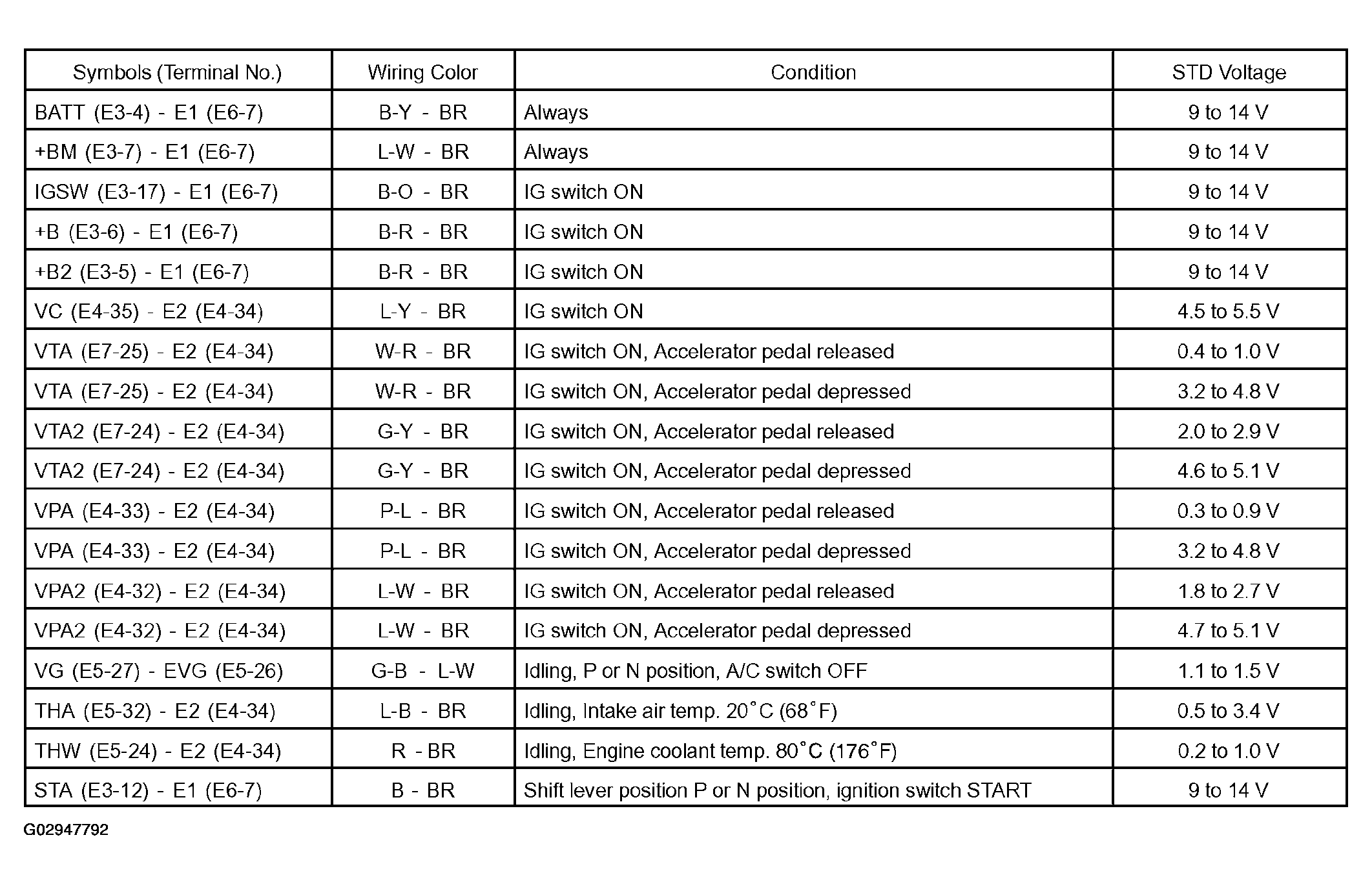

Fig 2: ECM Connector Terminals Reference Chart (1 Of 2)

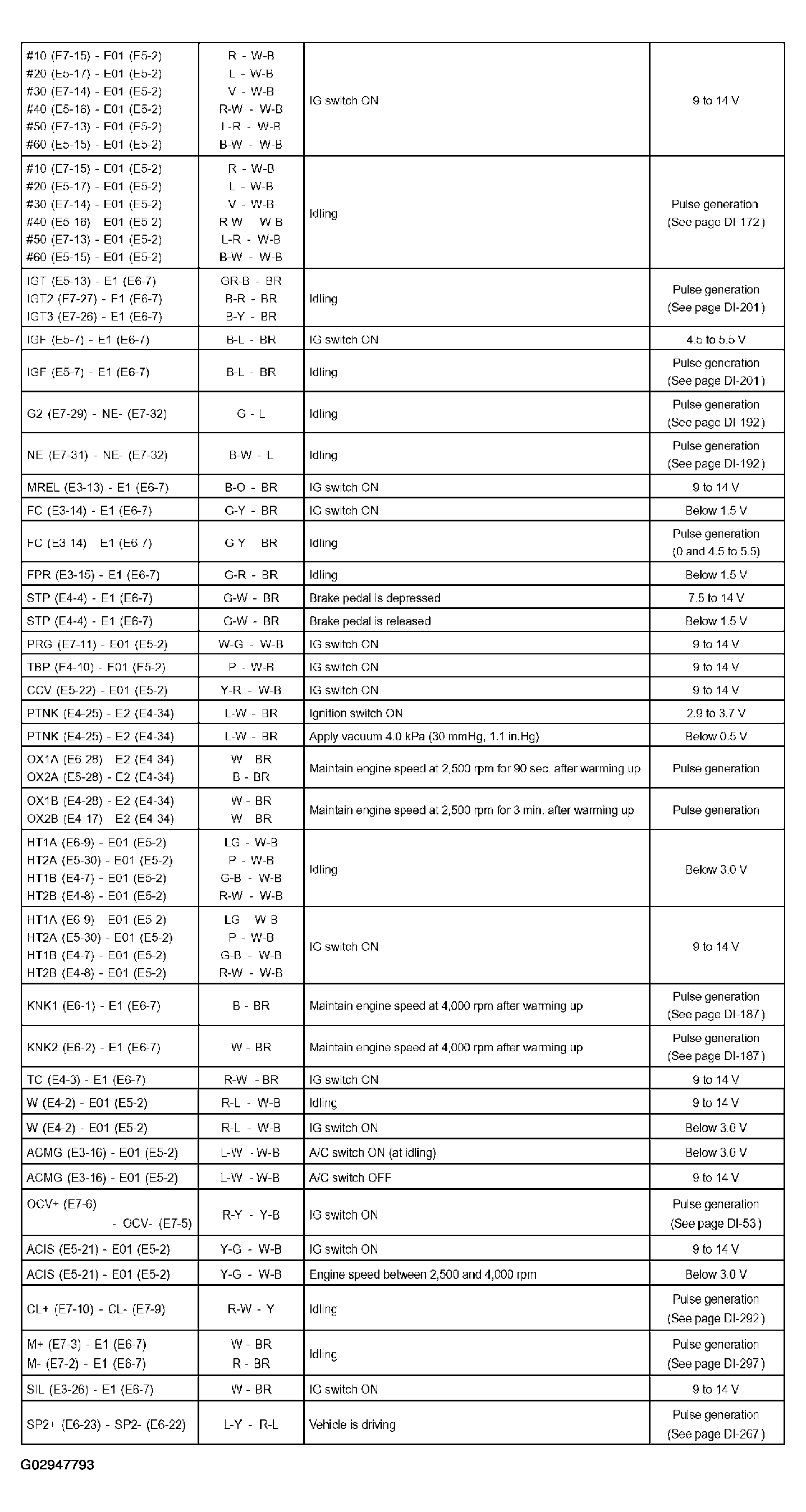

Fig 3: ECM Connector Terminals Reference Chart (2 Of 2)
