Crankshaft Position Sensor: Components

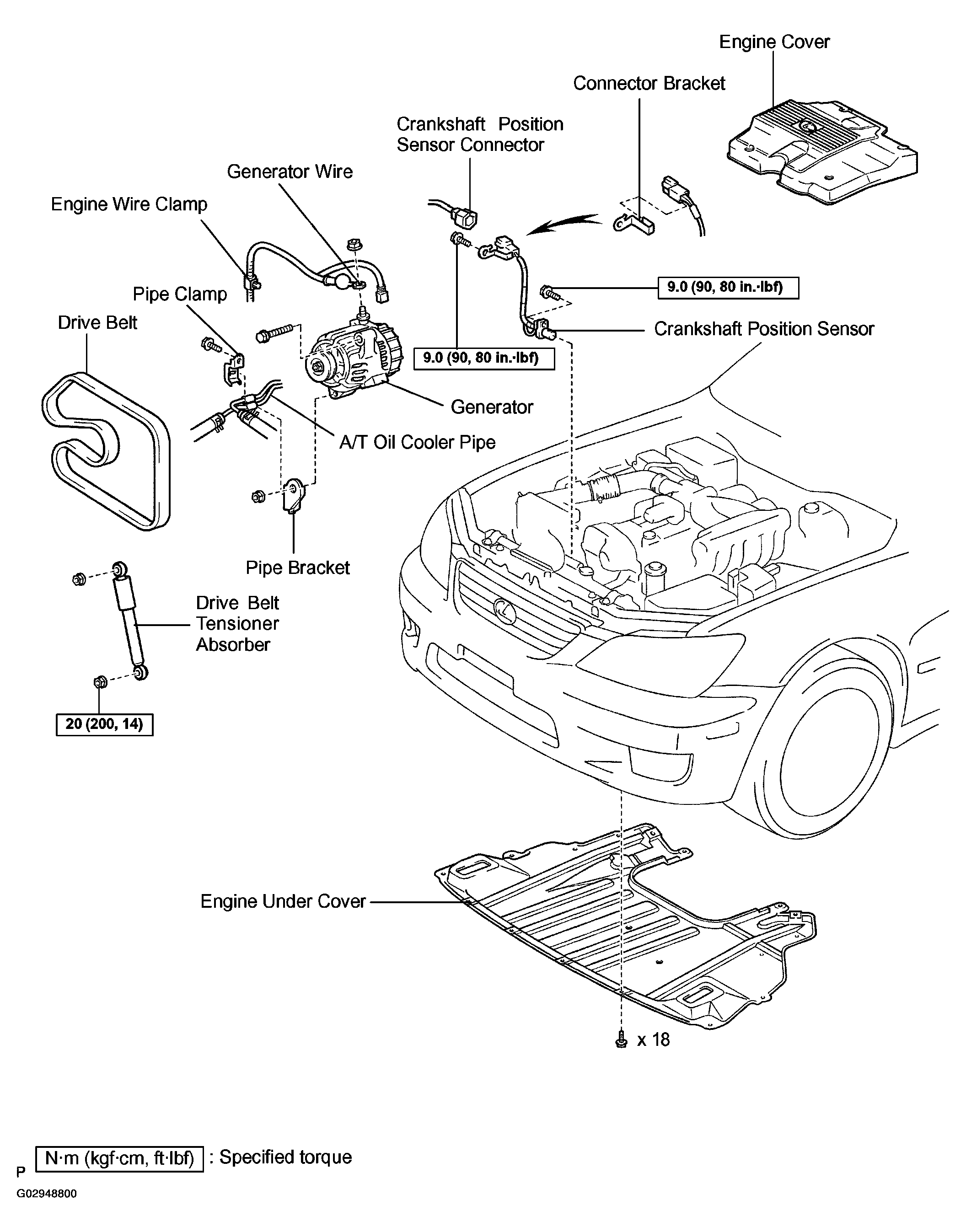

Fig 1: Exploded View Of Crankshaft Position Sensor Components With Torque Specifications
G02948800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
