Ignition Coil: Components

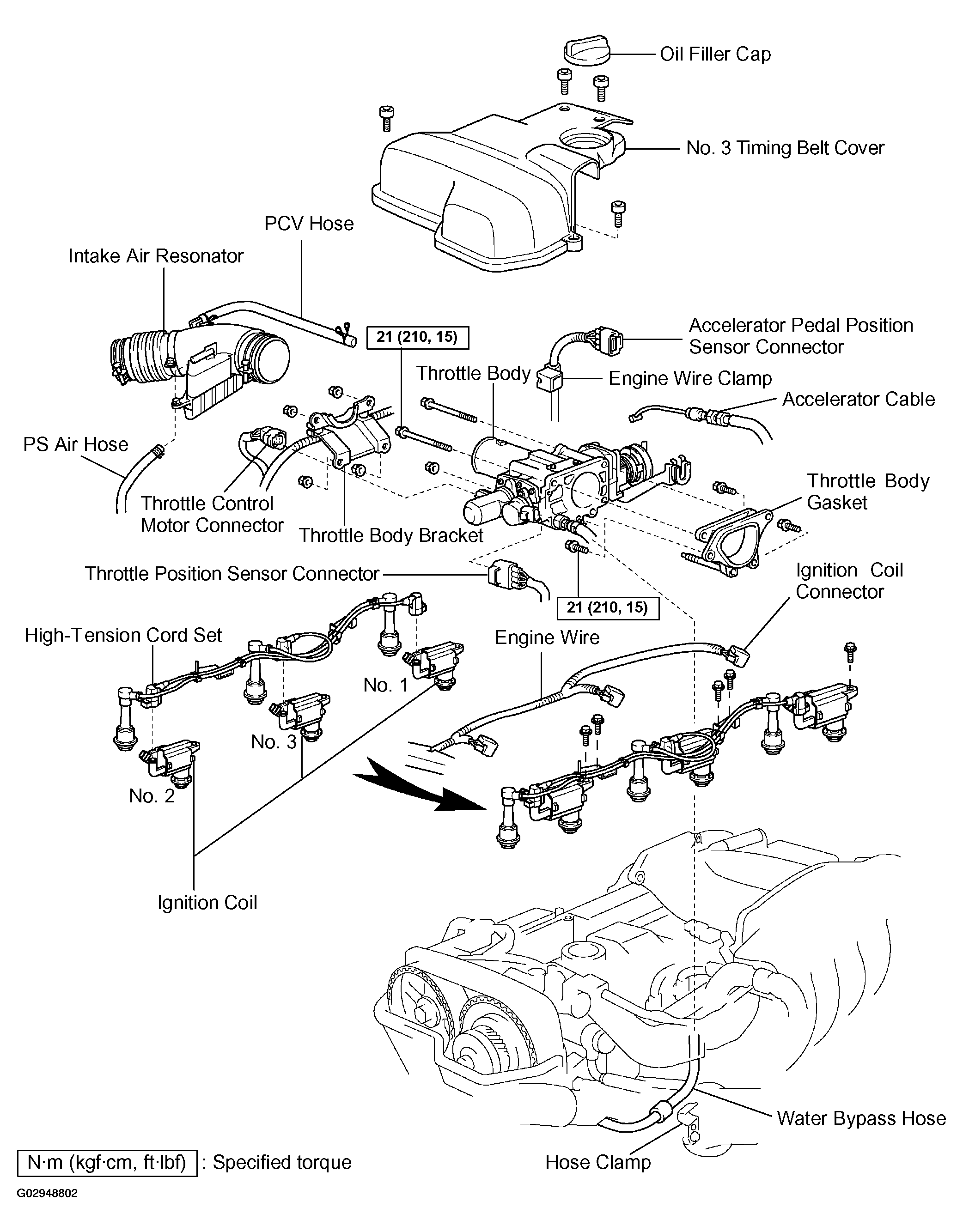

Fig 1: Exploded View Of Ignition Coil Components With Torque Specifications
G02948802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
