Ignition System: Preparation: Differential: Preparation

SST

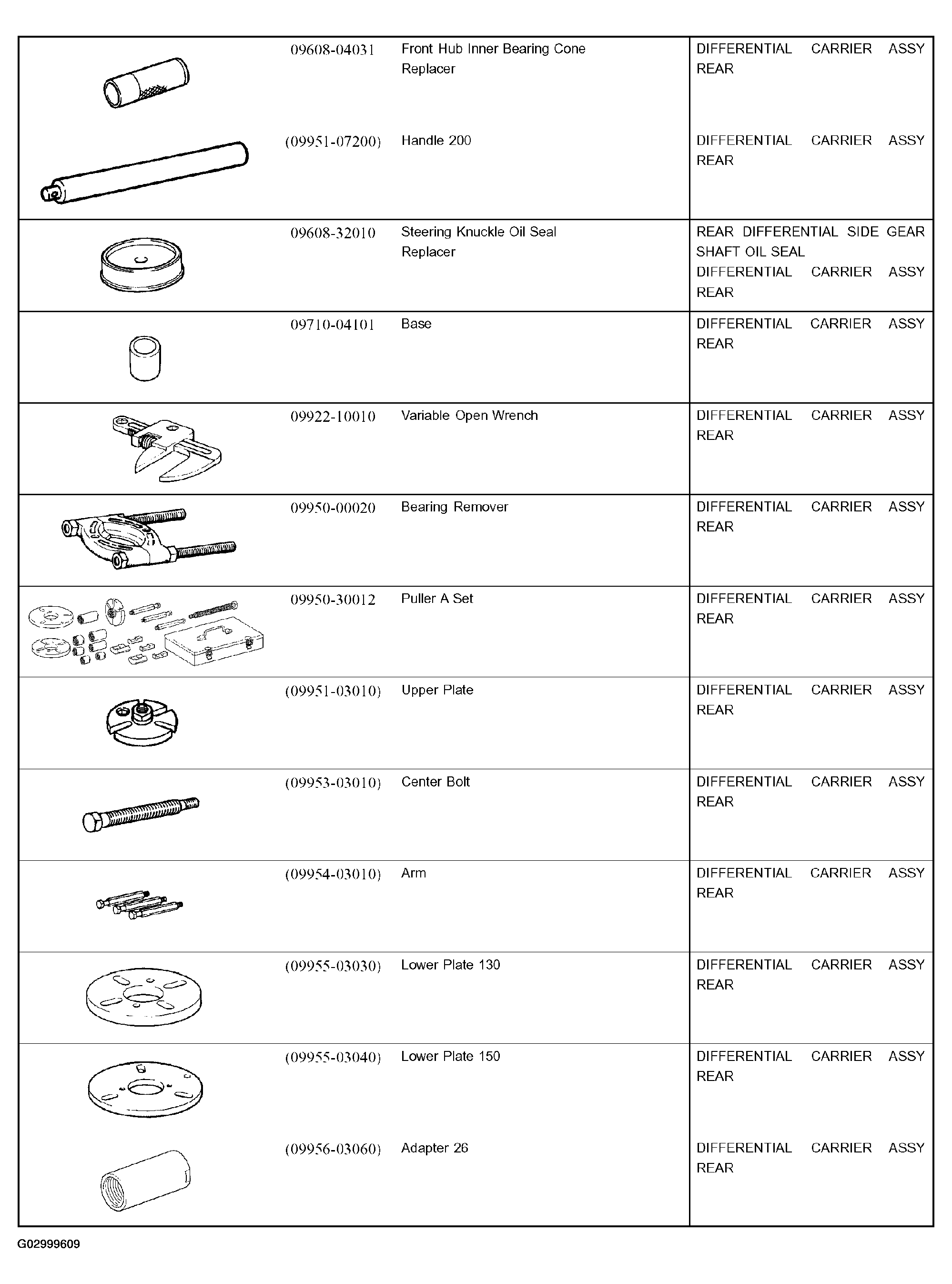

Fig 1: Differential Tools Reference (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

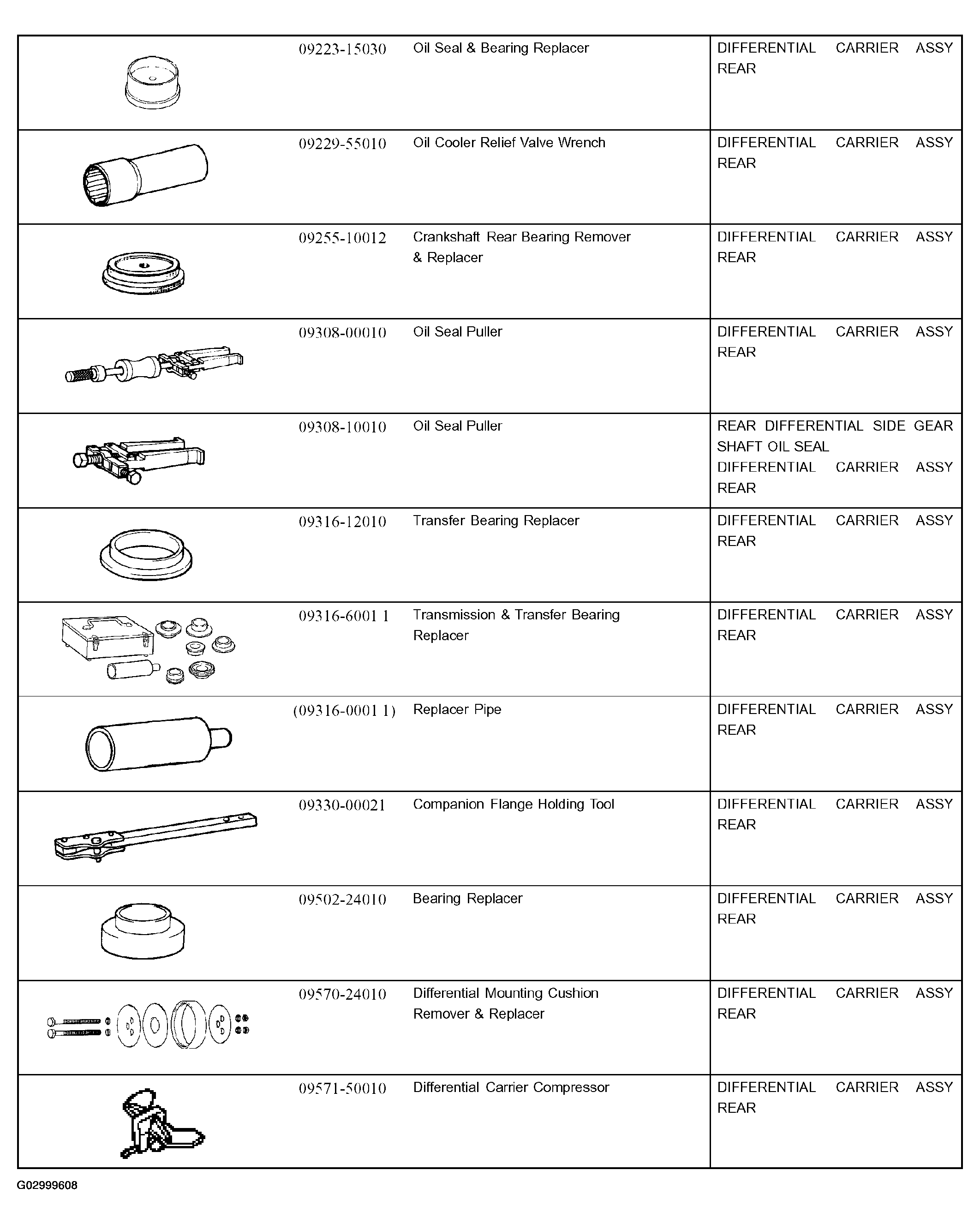

Fig 2: Differential Tools Reference (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

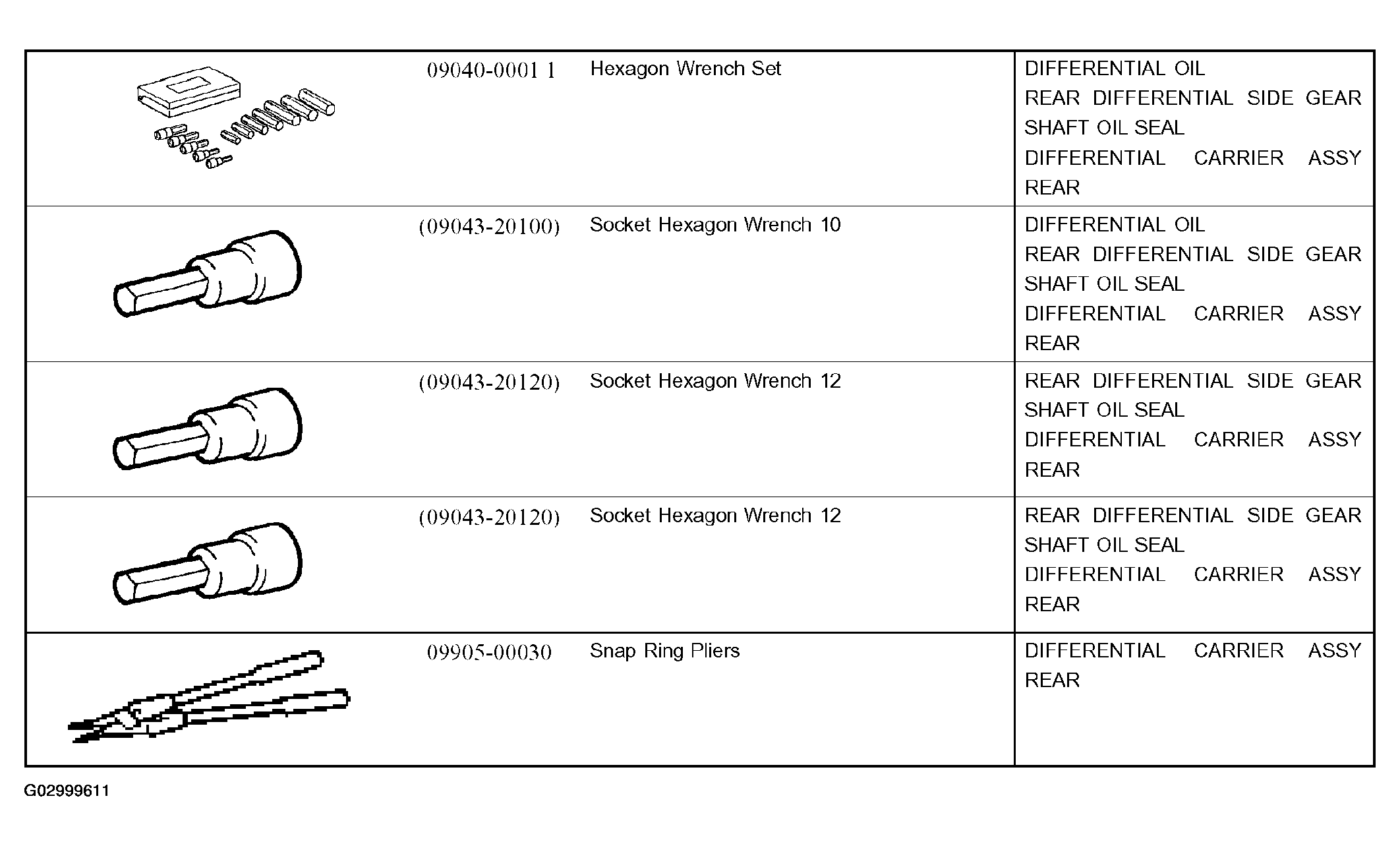

Fig 3: Differential Tools Reference (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

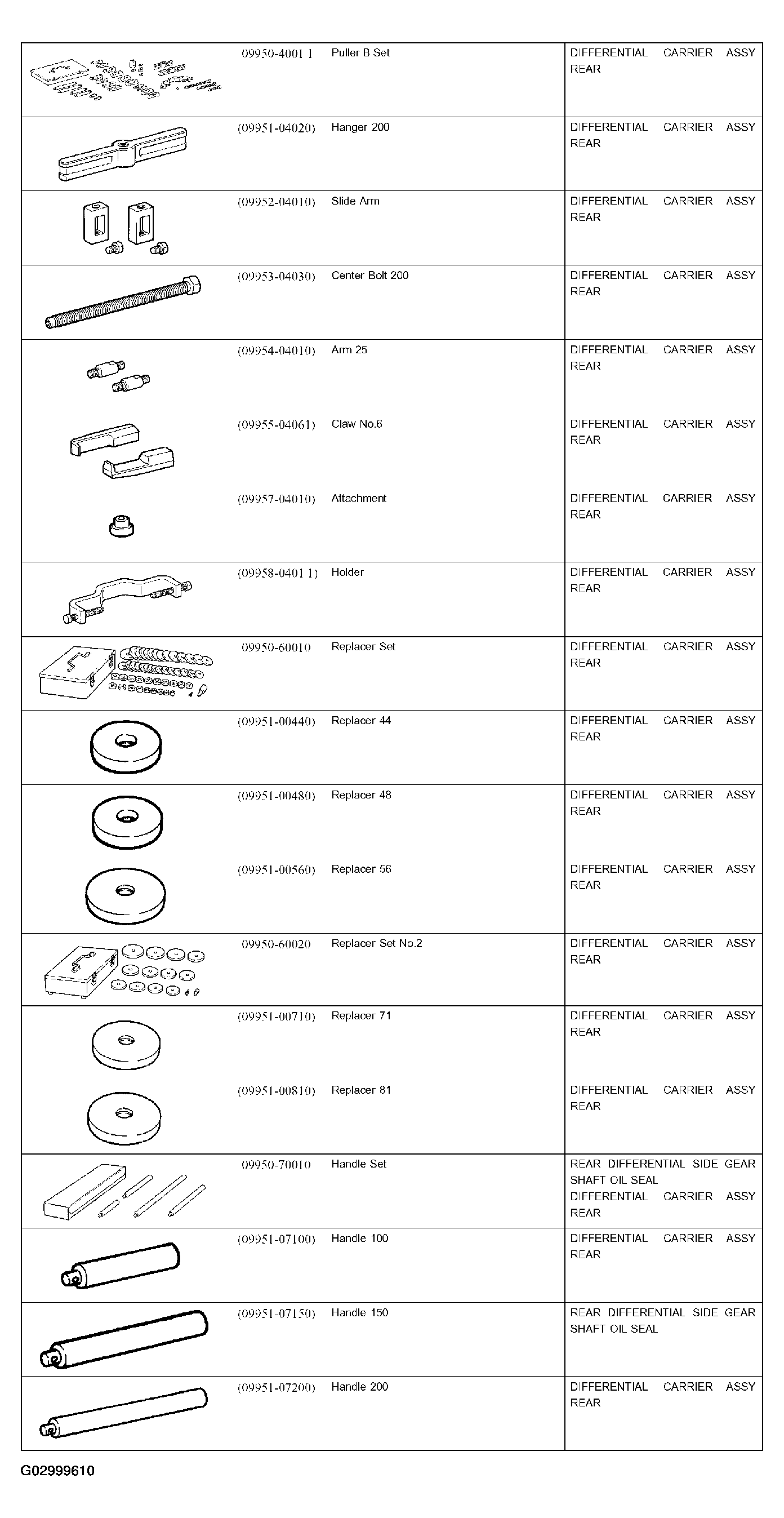

Fig 4: Differential Tools Reference (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Dial indicator
Feeler gauge
Torque wrench
Alignment tester
Toe-in gauge
Deep socket wrench 24 mm
Heater

Lubricant

LUBRICANT CLASSIFICATION

Item	Capacity	Classification
Differential oil	1.35 +/- 0.05 litters (1.43 +/- 0.05 US qts, 1.19 +/- 0.04 lmp. qts)	Differential synthetic gear oil GL-5 75W-90 or it's equivalent

SSM

SSM REFERENCE

08826-00090 "Seal Packing 1281," THREE BOND 1281 or equivalent (FIPG)

DIFFERENTIAL CARRIER ASSY REAR
