Diagnostic Trouble Code Chart
HINT:
If a trouble code is displayed during the DTC check, check the circuit listed for the code .

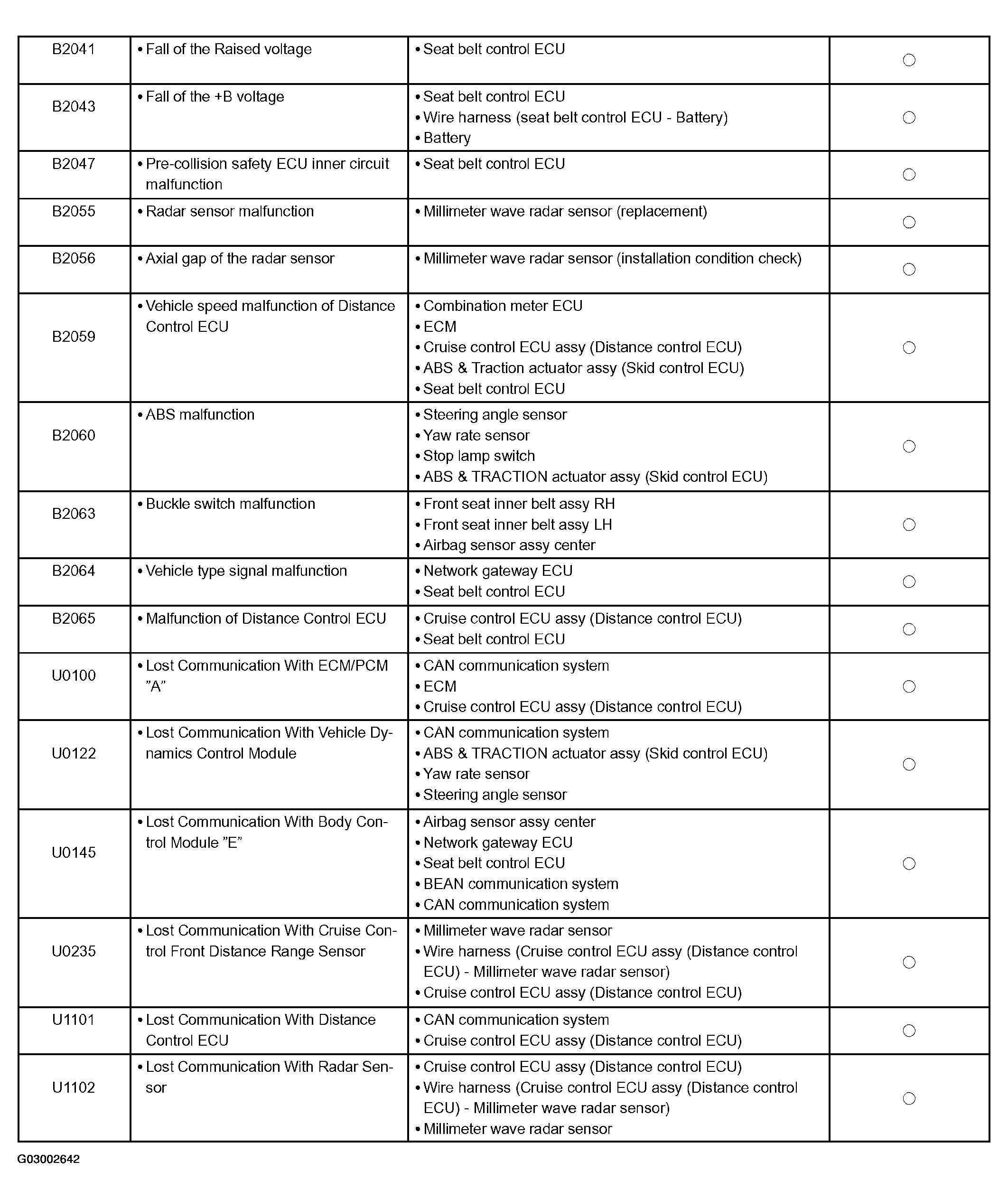

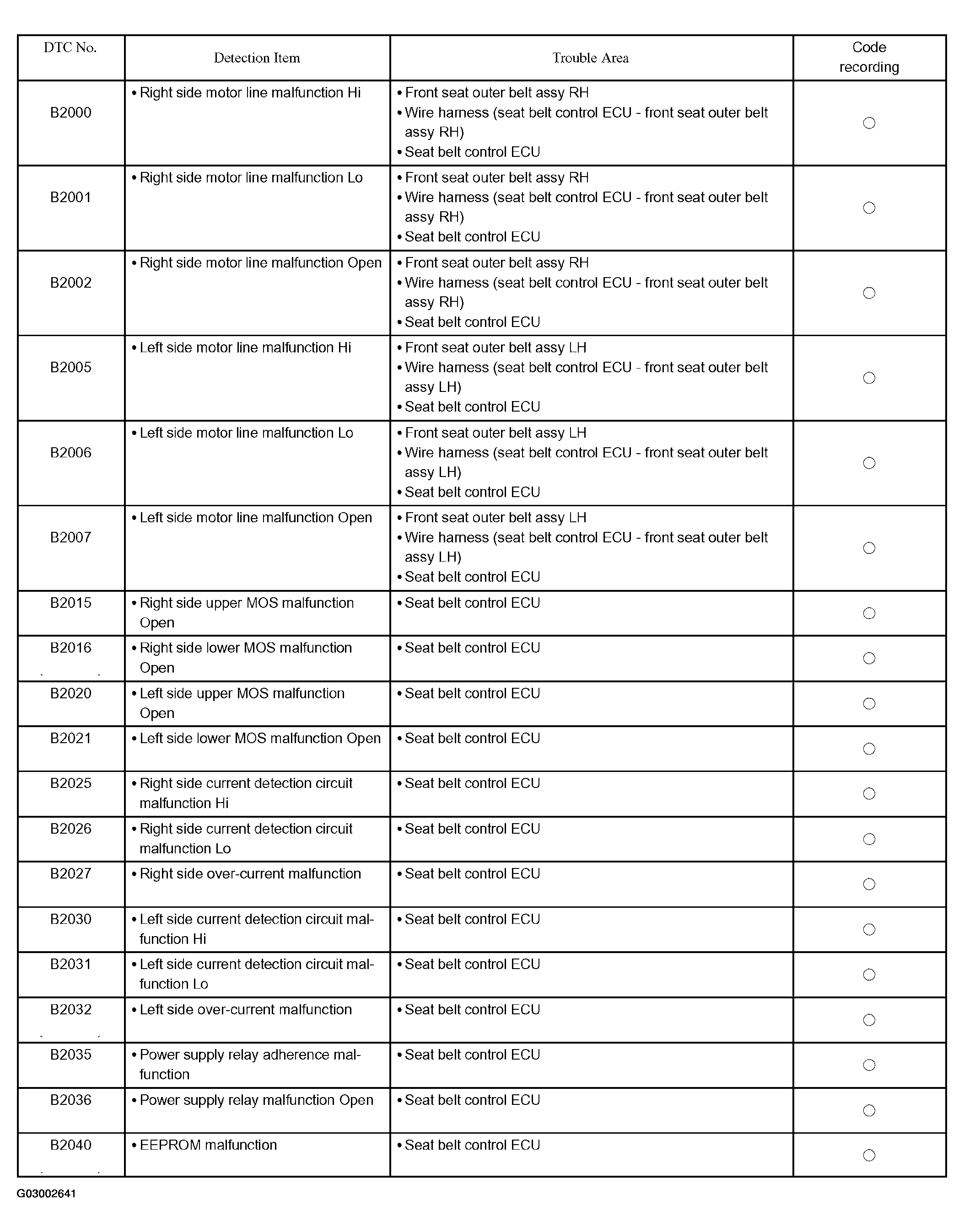

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC B2000 | RIGHT SIDE MOTOR LINE MALFUNCTION HI |
| DTC B2001 | RIGHT SIDE MOTOR LINE MALFUNCTION LO |
| DTC B2002 | RIGHT SIDE MOTOR LINE MALFUNCTION OPEN |
| DTC B2005 | LEFT SIDE MOTOR LINE MALFUNCTION HI |
| DTC B2006 | LEFT SIDE MOTOR LINE MALFUNCTION LO |
| DTC B2007 | LEFT SIDE MOTOR LINE MALFUNCTION OPEN |
| DTC B2015, B2016, B2020, B2021, B2025, B2026, B2027, B2030, B2031, B2032, B2035, B2036, B2040, B2041, B2047 | RIGHT/LEFT SIDE UPPER/LOWER MOS MALFUNCTION OPEN, RIGHT SIDE CURRENT DETECTION CIRCUIT MALFUNCTION HI/LO, RIGHT/LEFT SIDE OVER-CURRENT MALFUNCTION, LEFT SIDE CURRENT DETECTION CIRCUIT MALFUNCTION HI/LO, POWER SUPPLY RELAY ADHERENCE MALFUNCTION, POWER SUPPLY RELAY MALFUNCTION OPEN, EEPROM MALFUNCTION, FALL OF THE RAISED VOLTAGE, PRE-COLLISION SAFETY ECU INNER CIRCUIT MALFUNCTION |
| DTC B2043 | FALL OF THE +B VOLTAGE |
| DTC B2059 | VEHICLE SPEED MALFUNCTION OF DISTANCE CONTROL ECU |
| DTC B2064 | VEHICLE TYPE SIGNAL MALFUNCTION |
HINT:
- "Check PCS system" is displayed on the multi-information display in the combination meter assy when the above DTCs are output. The fail-safe function of the pre-collision safety system is operating (see PRECAUTION ) if "PCS not Available Now" is displayed on the multi-information display.
- When DTC B2060 is output there may be a malfunction in the ABS WITH EBD & BA & TRAC & VSC system. Check the DTCs on the ABS & TRACTION actuator assy (skid control ECU).
- When the DTC B2055, B2056, B2065, U0235, or U1102 is output there may be a malfunction in the dynamic laser cruise control system. Check the DTCs on the cruise control ECU assy (distance control ECU) (see PRECAUTION ). DTCs for the dynamic laser cruise control system may not be output when the set speed of the cruise control is 40 km/h or less.
- When DTC B2063 is output there may be a malfunction in the SRS airbag system. Check the DTCs on the airbag sensor assy center (see PRECAUTION ).
- When DTC U0145 is output, DTC B1266 or B1267, which indicated malfunction in BEAN communication, may be output simultaneously. If these DTCs are output simultaneously there may be a malfunction in the multiplex communication system. Check the DTCs on the multiplex communication system (see HOW TO PROCEED WITH TROUBLESHOOTING ).
