Fail-Safe Chart

HINT:

The pre-collision safety system fail-safe function and details are indicated in Fig 1 .

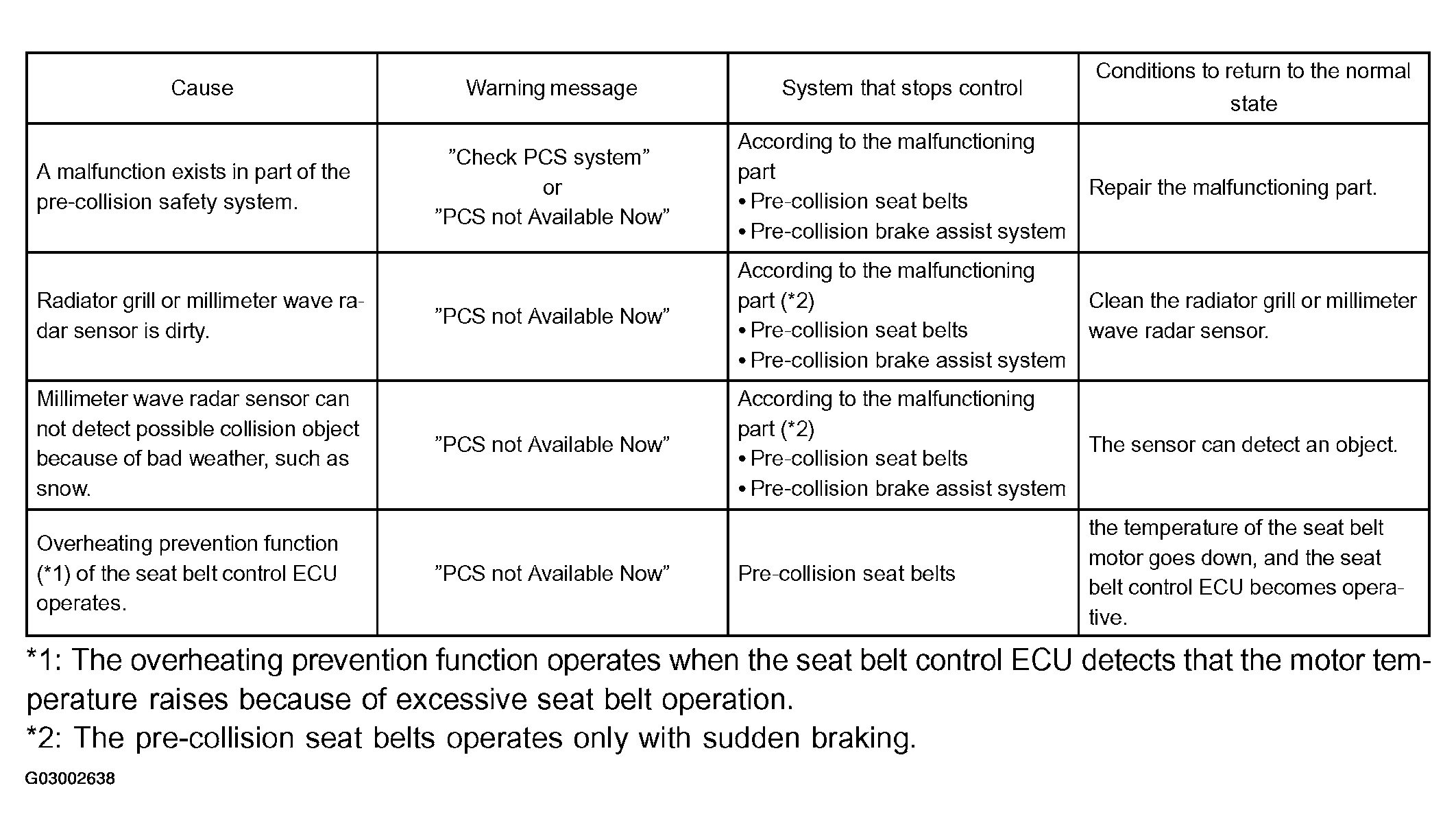

Fig 1: Pre-Collision Safety System Fail-Safe Function Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
