System Diagram

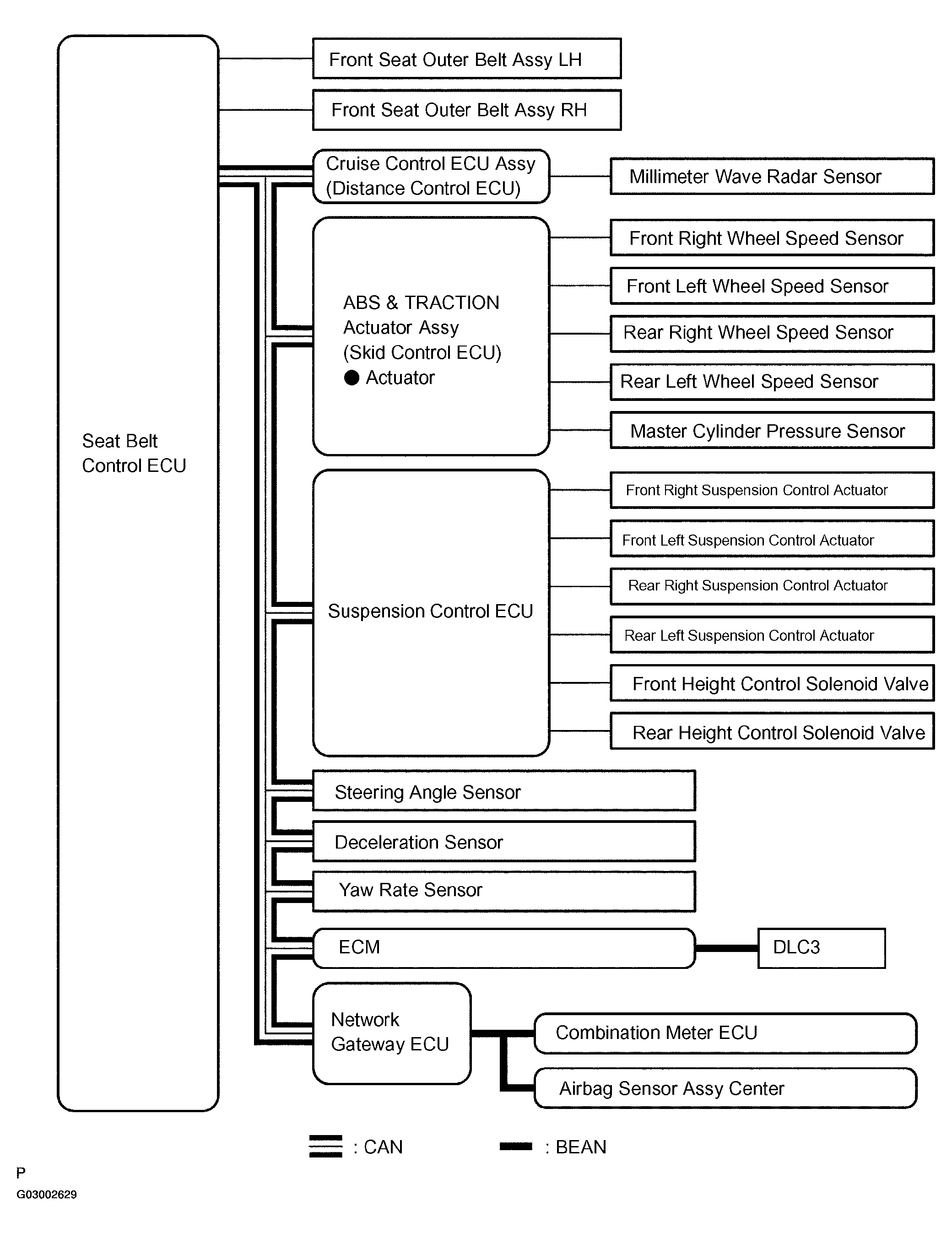

Fig 1: Pre-Collision Safety System Diagram
G03002629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

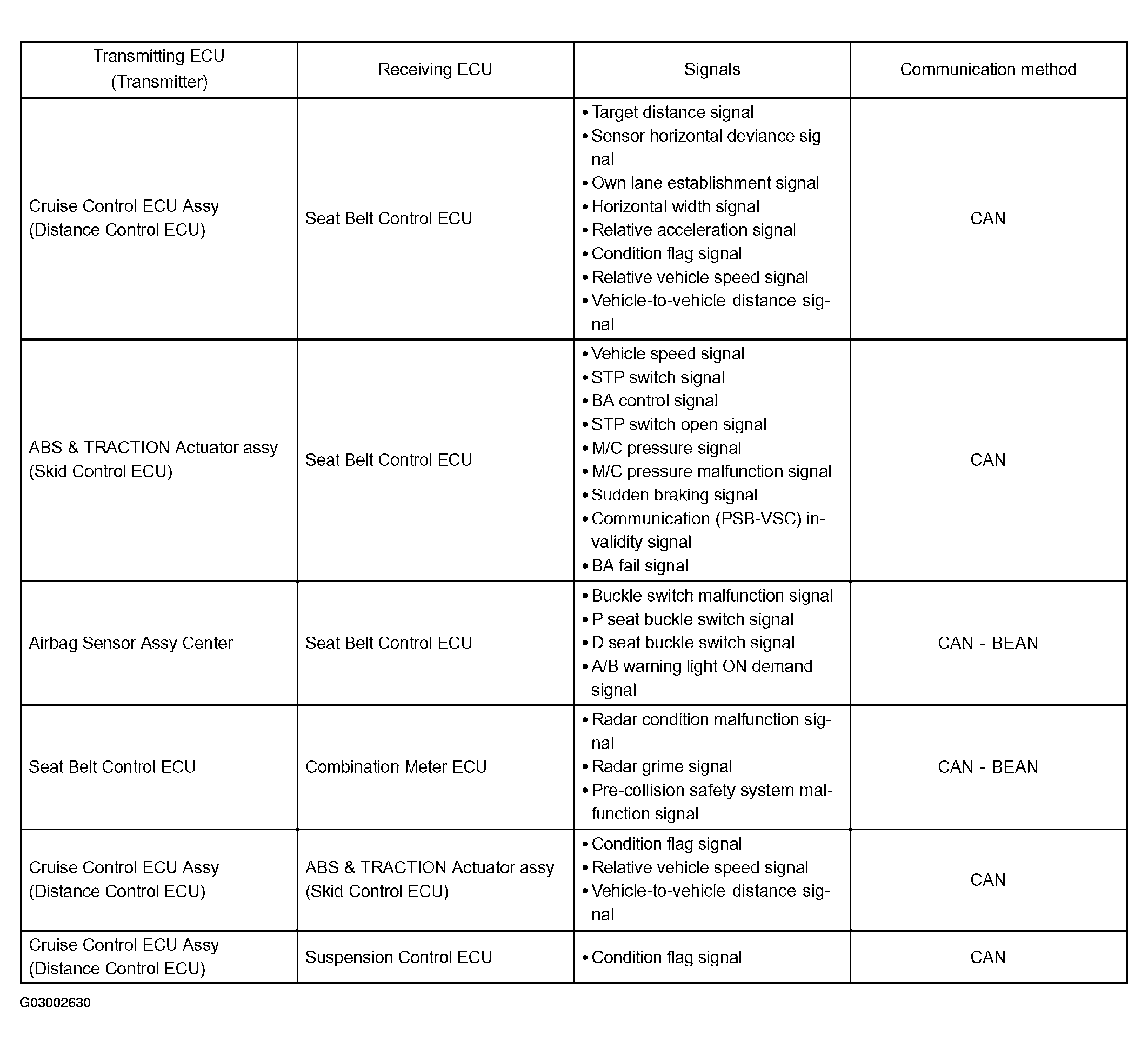

Fig 2: Pre-Collision Safety System Chart
G03002630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
