Seat Belt Warning System: Location

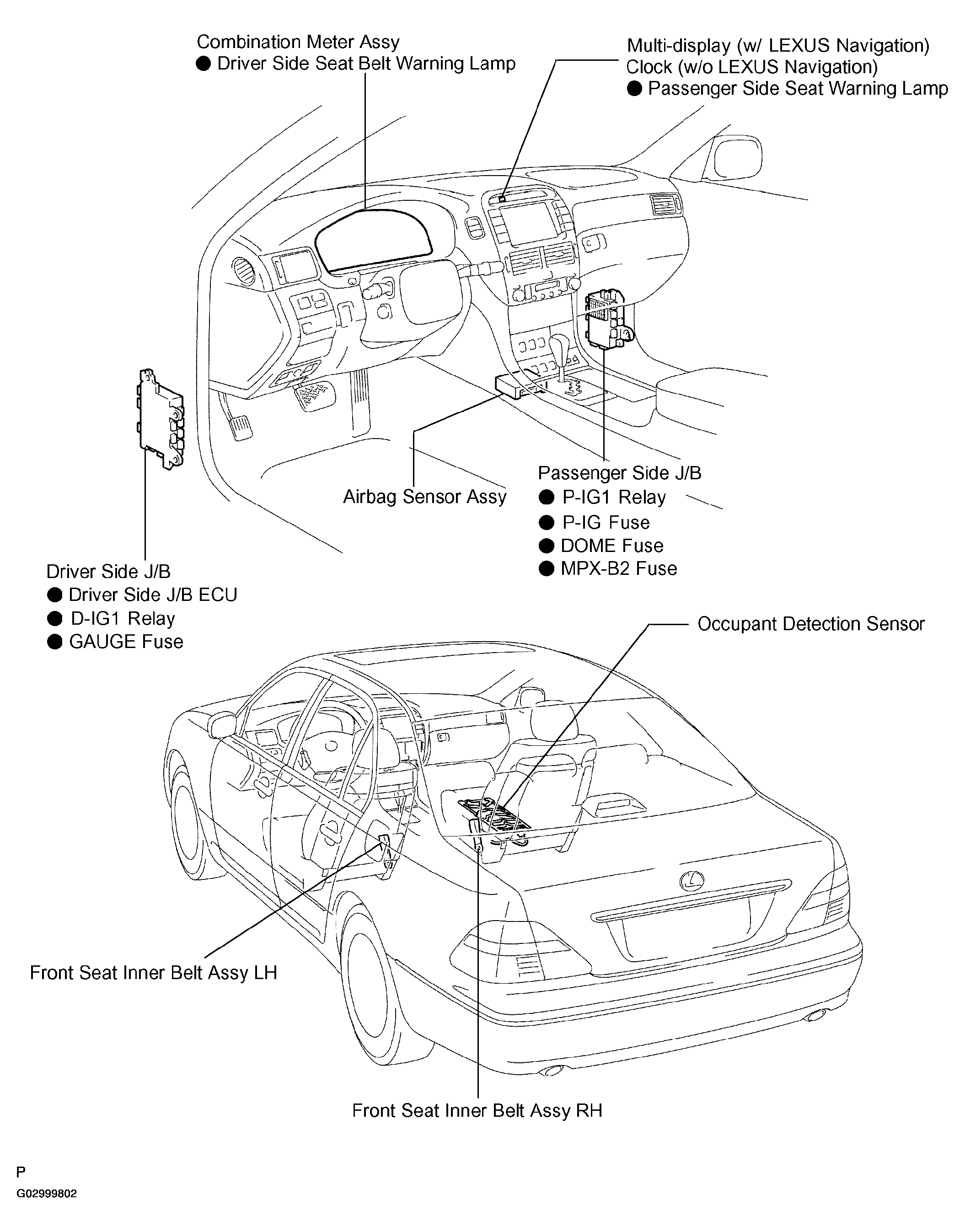

Fig 1: Identifying Seat Belt Warning System Component Locations
G02999802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
