Steering Control Systems: Preparation: Cooling: Preparation

SST

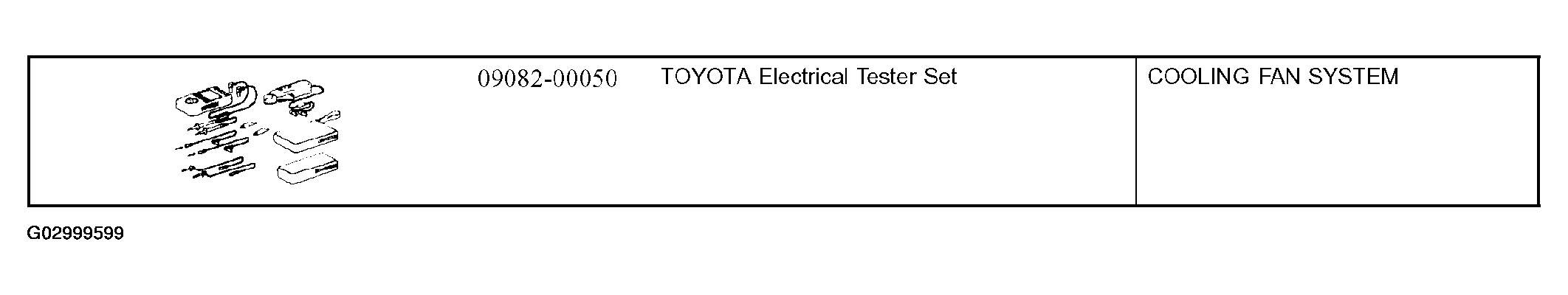

Fig 1: Cooling Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

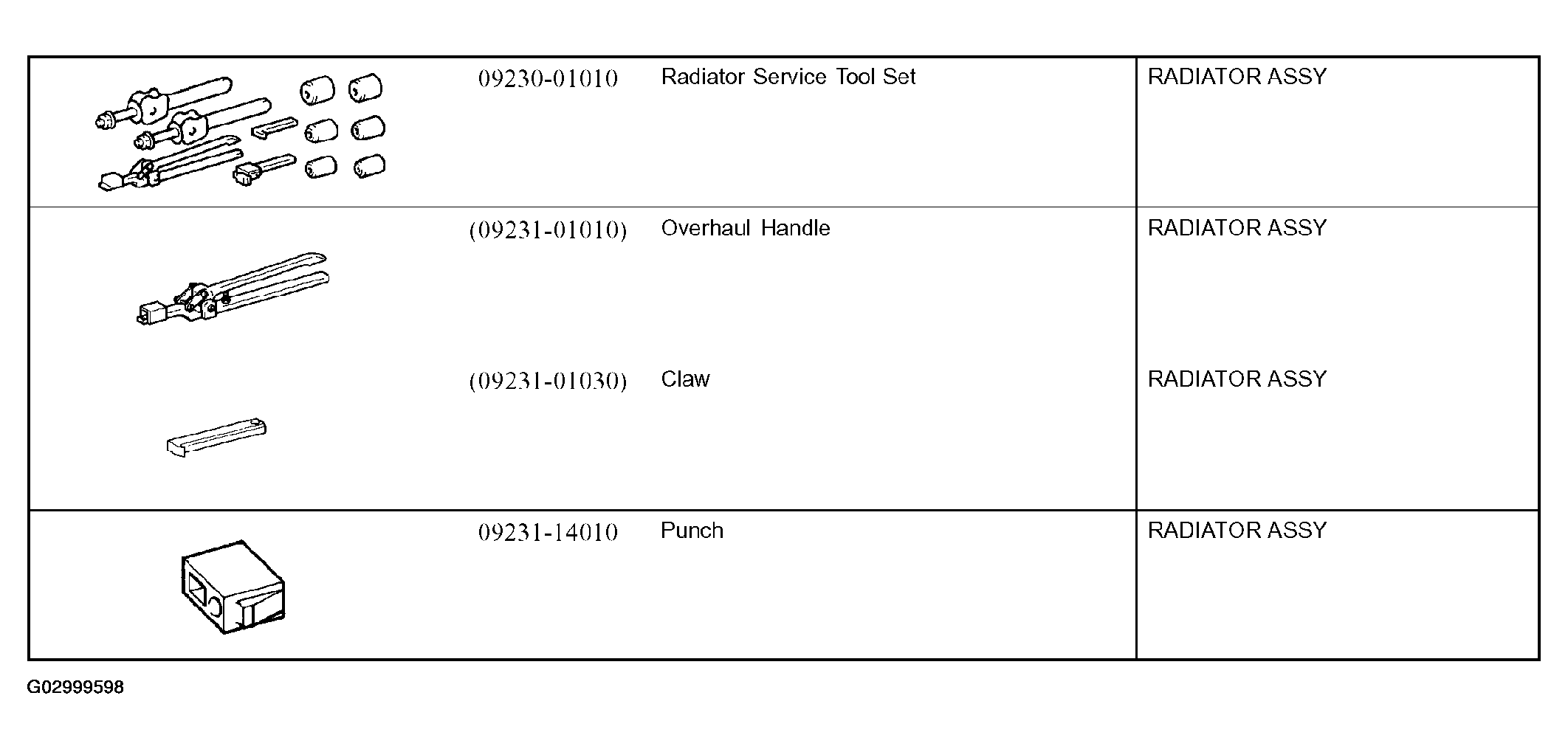

Fig 2: Recommended Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

Equipment

EQUIPMENT

Heater
Radiator cap tester
Thermometer
Torque wrench
Vernier caliper

SSM

SSM REFERENCE

08826-00100 "Seal Packing 1282B," THREE BOND 1282B or equivalent (FIPG)

WATER PUMP ASSY

Coolant

COOLANT CLASSIFICATION

Item	Capacity	Classification
Engine coolant	9.5 liters (10.0 US qts, 8.4 lmp. qts)	"Toyota Super Long Life Coolant", "Toyota Long Life Coolant" or equivalent
