Height Control Compressor ASSY: Components

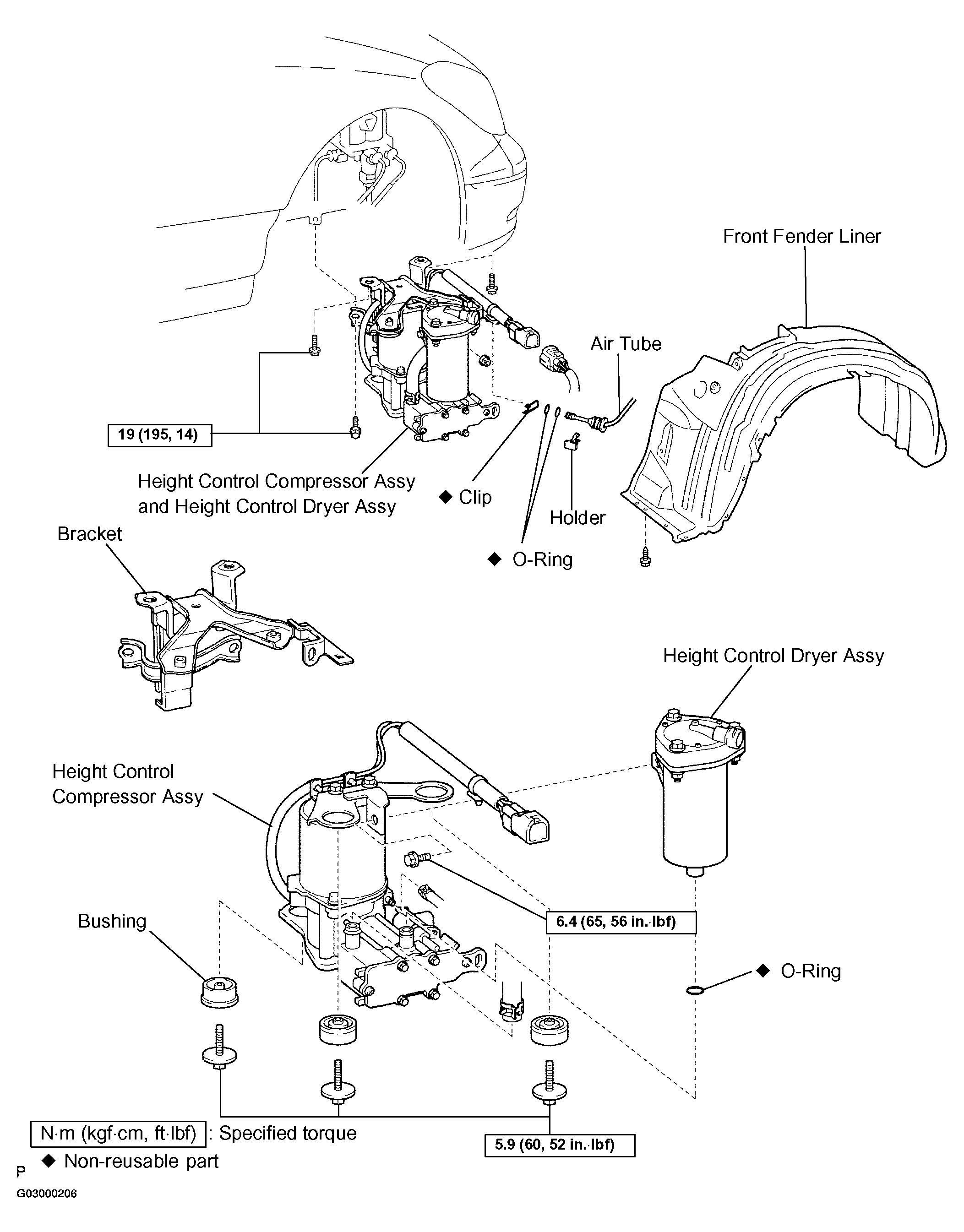

Fig 1: Identifying Height Control Compressor Assy Components
G03000206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
