Height Control Valve Sub-ASSY No.2: Components

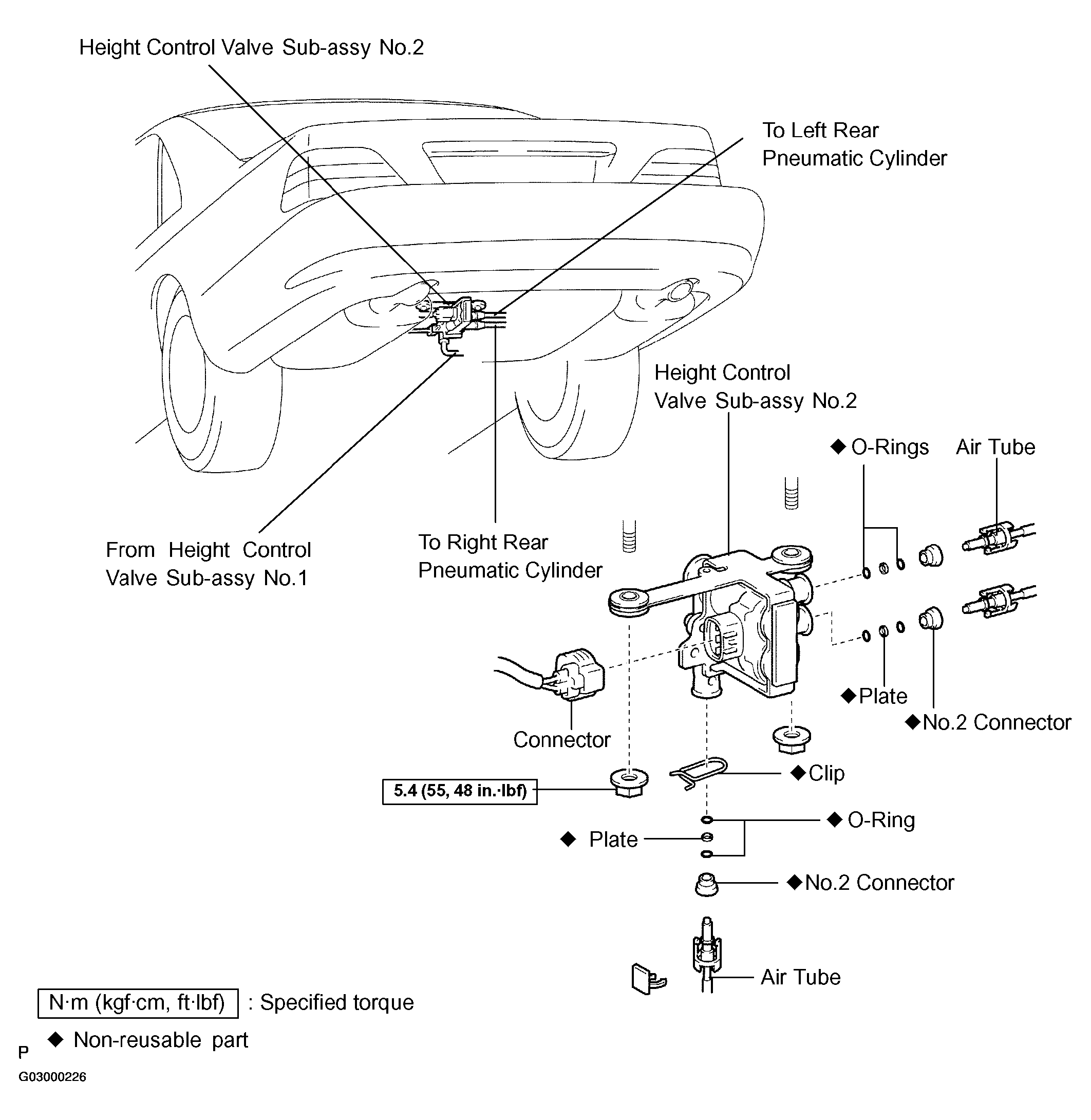

Fig 1: Identifying Height Control Valve Sub-Assy No.2 Components
G03000226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
