How To Proceed With Troubleshooting

HINT:

Troubleshooting of the wireless door lock control system is based on the premise that the door lock control system is operating normally. Accordingly, before troubleshooting the wireless door lock control system, first make certain that the door lock control system is operating normally.

Perform troubleshooting in accordance with procedure on the following page.

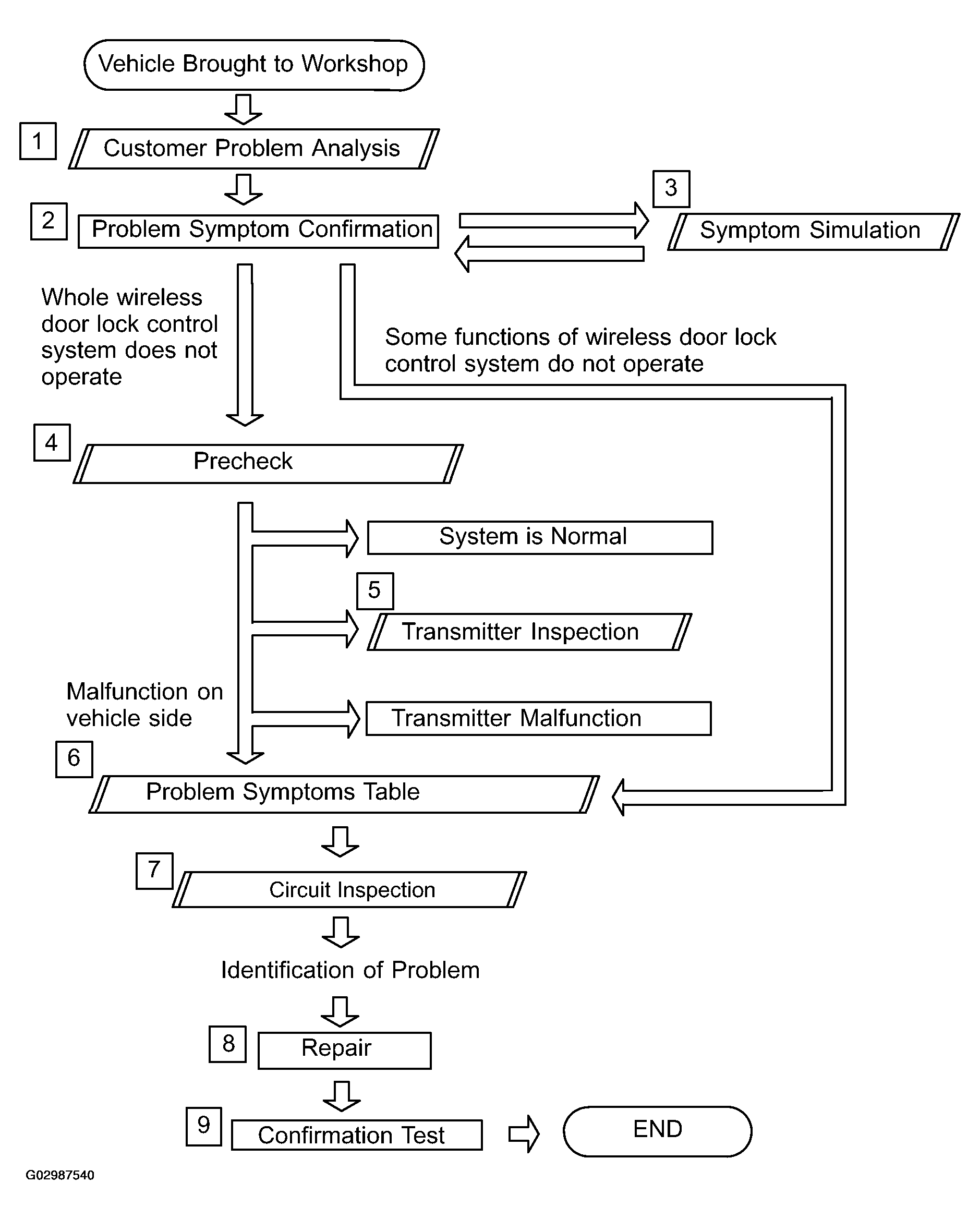

Fig 1: Wireless Door Lock Control System Troubleshooting Flow Chart
G02987540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
