Body & Frame: Windows: Windshield: Components

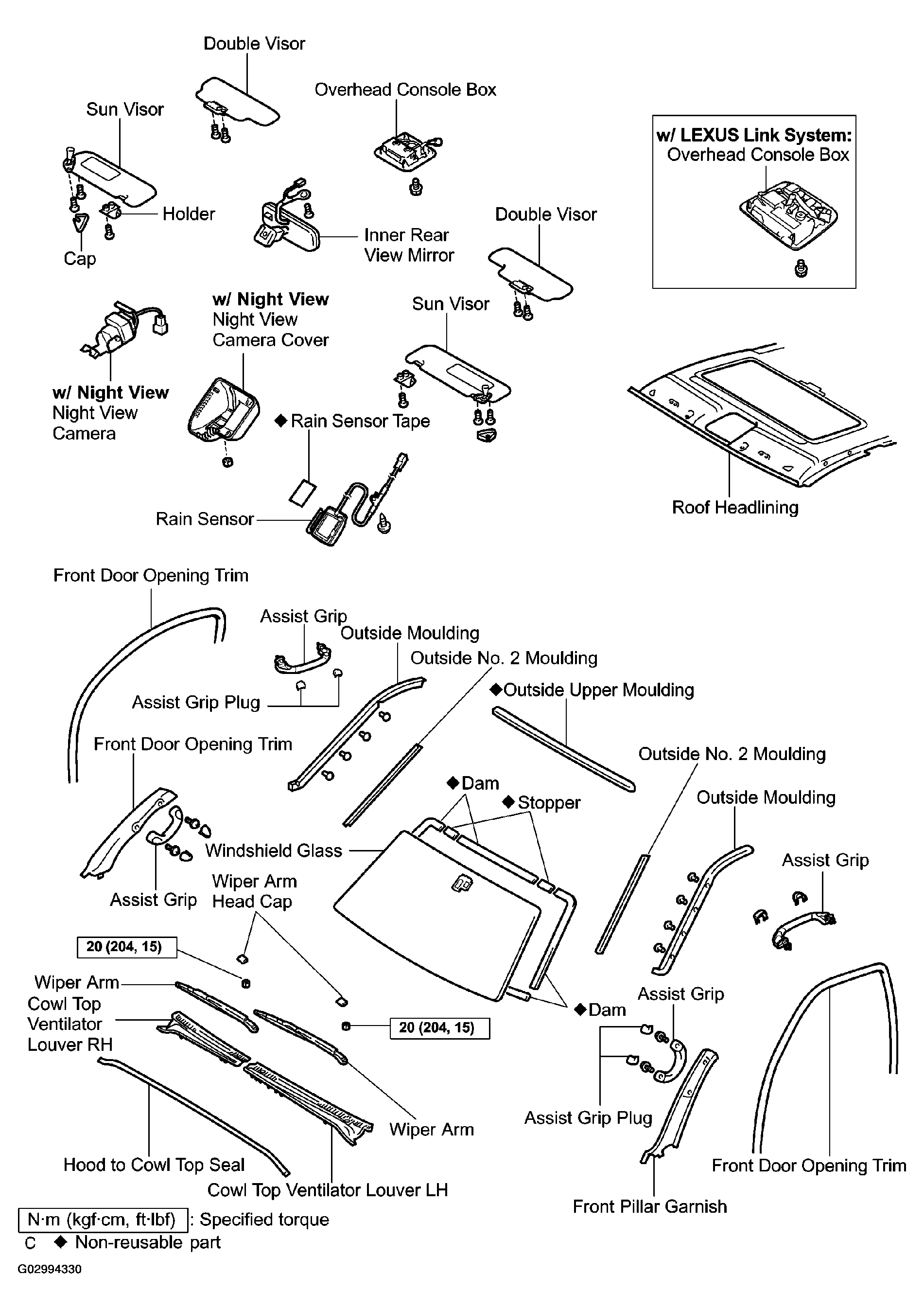

Fig 1: Identifying Windshield Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

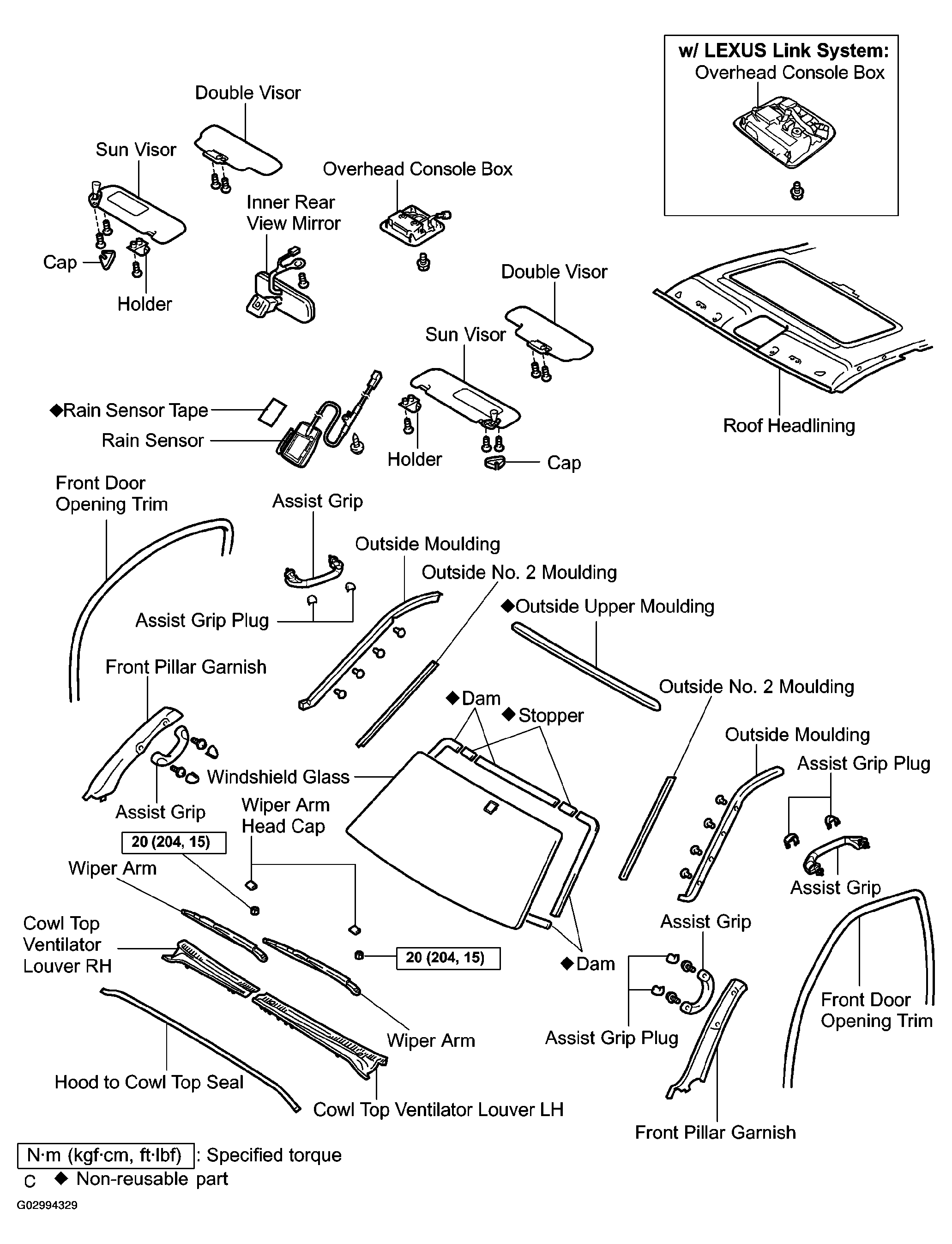

Fig 2: Identifying Windshield Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
