Camshaft Position Sensor: Removal

  1. REMOVE V-BANK COVER
  2. DRAIN ENGINE COOLANT
  3. DISCONNECT UPPER RADIATOR HOSE
  4. REMOVE LH NO. 3 TIMING BELT COVER

    (See  REMOVAL  )

  5. REMOVE CAMSHAFT POSITION SENSOR

    Remove the bolt, stud bolt and camshaft position sensor.

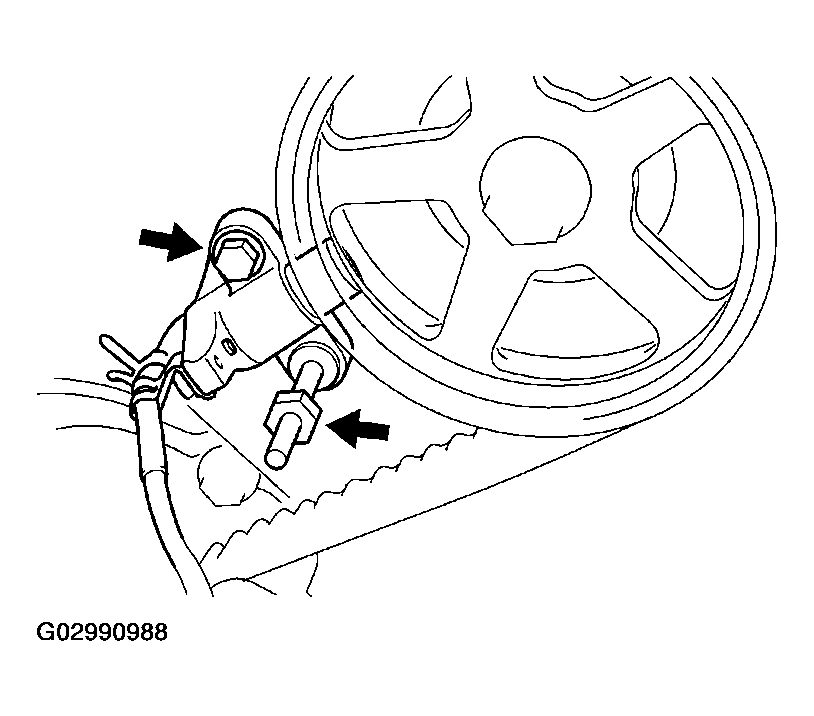

    Fig 1: Removing Stud Bolt And Camshaft Position Sensor
    G02990988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
