Crankshaft Position Sensor: Removal

  1. REMOVE NO. 2 ENGINE UNDER COVER
  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt and crankshaft position sensor.

      Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)

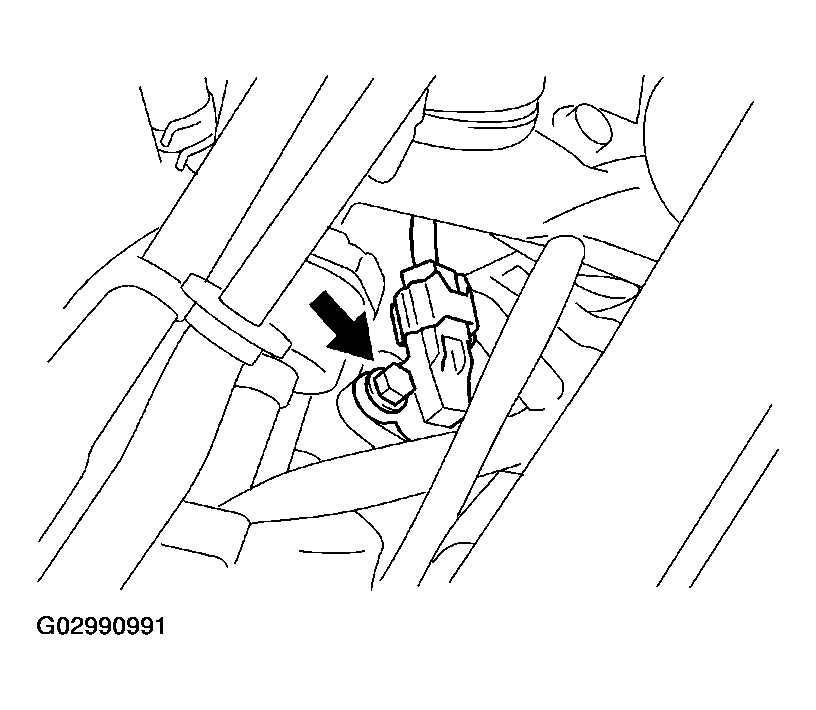

    Fig 1: Removing Crankshaft Position Sensor
    G02990991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
